Automating Continuous Cord Loop Roman Shades: A Retrofit Guide

Imagine this: It’s Saturday morning. You want to let the sunlight in, but your heavy blackout fabric is fully lowered. Instead of climbing out of bed to tug on a beaded chain, you mutter a command to your voice assistant, and the room gradually brightens. While continuous cord loop roman shades are traditionally manual fixtures known for handling heavier fabrics than standard spring-loaded rollers, they are prime candidates for a smart home retrofit.

You don't need to replace your entire window treatment ecosystem to get automation. By using retrofit chain drivers, you can bridge the gap between analog durability and digital convenience.

Quick Compatibility Check: Chain Driver Specs

Before buying a motor, you need to know if it can physically move your specific shade. Roman shades are heavier than rollers due to the folding fabric mechanism. Here is the tech spec breakdown for common retrofit options.

Installation Types: The Retrofit Approach

When we talk about smartifying a continuous loop roman shade, we generally aren't replacing the tube inside the headrail. That requires a hardwired tubular motor and often involves voiding warranties or cutting hardware.

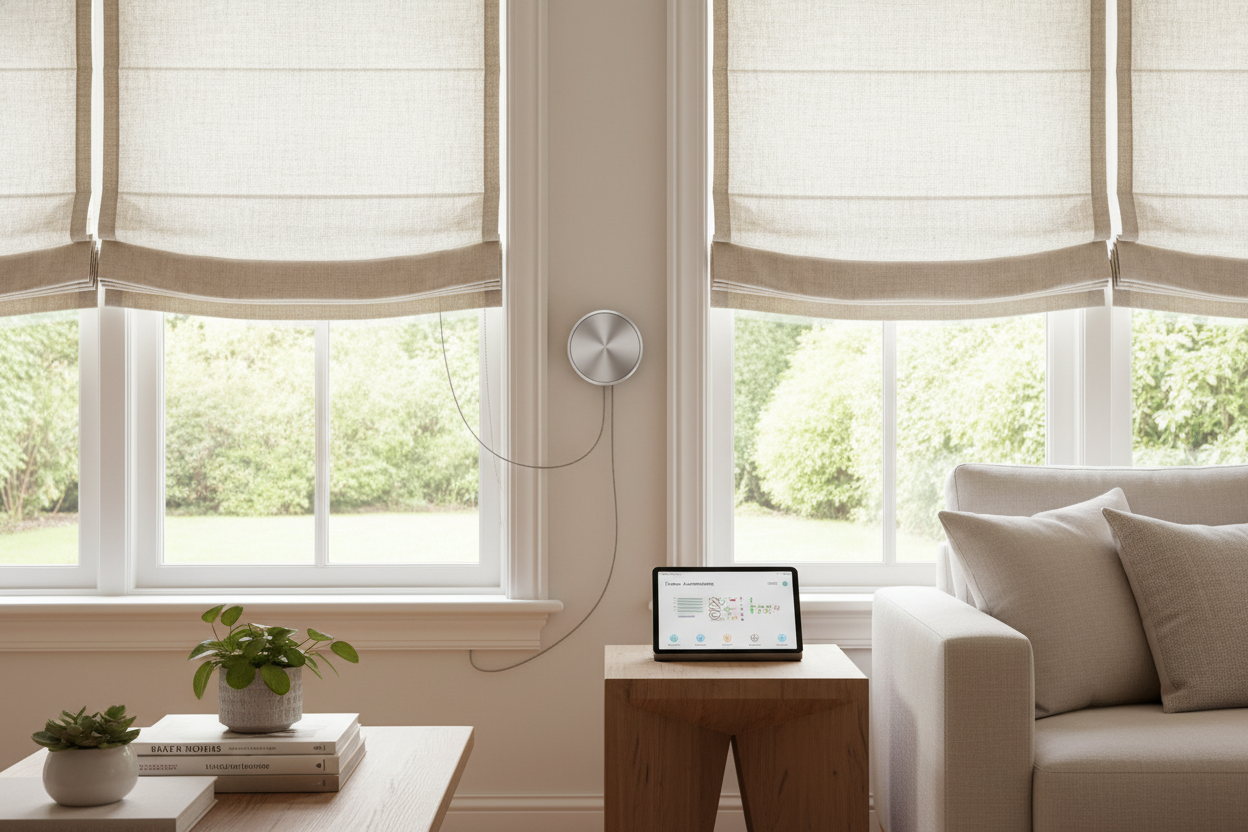

The accessible route is the External Chain Driver. This device mounts to your window frame or wall, directly below the headrail. You feed the existing beaded loop into a gear inside the device. The motor spins the gear, which pulls the chain, mimicking your hand movement.

Power Options and Cable Management

Most modern chain drivers (like those from Aqara, Soma, or Ryse) utilize internal rechargeable batteries. This eliminates the need for an electrician. However, for high windows, charging can be a hassle. I recommend looking for devices that support a trickle-charge solar panel which can be taped unobtrusively to the glass behind the fabric.

Smart Integrations and App Features

Hardware is only half the battle. The software experience dictates how useful the shade actually is.

Setting Limits

Unlike a roller shade that just goes up and down, Roman shades stack. You must set precise upper and lower limits in the companion app. If the motor pulls too tight at the top, it can snap the continuous loop or damage the headrail clutch. Look for apps that offer "soft stop" features to slow the motor as it approaches the top stack.

Noise Levels (dB)

This is the trade-off. Tubular motors inside a headrail are insulated and quiet (around 35dB). Retrofit chain drivers are external and mechanical. Expect noise levels between 45dB and 55dB. It sounds like a small RC car. If you are a light sleeper, avoid setting the automation for the exact moment you want to wake up; set it for 10 minutes prior so the noise doesn't startle you.

Living with continuous cord loop roman shades: Day-to-Day Reality

I’ve had a retrofit driver installed on the Roman shades in my home office for about six months, and here is the unvarnished truth about the experience.

The biggest nuance is the chain tension. When I first installed it, I left a little slack in the loop, thinking it would reduce strain. Big mistake. The gear inside the motor slipped against the plastic beads, making a grinding noise and messing up the calibration. I had to remount the device about half an inch lower to make that cord guitar-string tight. Now, it catches every bead perfectly.

Another detail you notice is the visual aesthetic of the "smart" device. Even the sleekest drivers look like a white plastic brick attached to your wall. I actually used cable management channels to hide the solar panel wire, but the device itself is visible. It’s a utilitarian look. Also, the delay is real. When I ask Google to "Open the Office Shade," there is a solid three-second pause before the motor whirs to life. It’s not instant, but being able to cut glare on my monitor without standing up during a Zoom call makes it 100% worth it.

Conclusion

Retrofitting a continuous cord loop roman shade is the most cost-effective way to get smart window treatments without buying new fabric. While the motor noise and visible hardware are compromises, the ability to schedule privacy and light control adds significant value to your smart home ecosystem.

Frequently Asked Questions

How long does the battery last on a chain driver?

On average, with one up/down cycle per day, a standard lithium-ion retrofit motor lasts between 2 to 6 months. Heavy Roman shades drain the battery faster than light roller shades due to the torque required.

Can I manually operate the shade if the power goes out?

Generally, no. The motor gear locks the chain in place. Some models have physical buttons on the device to move it, but if the battery is dead, you usually have to pop the cover off and remove the chain from the gear to move it manually.

Do I need a Hub?

It depends on the brand. Bluetooth-only motors work with your phone but offer limited range and no remote access. For Alexa, Google Home, or HomeKit integration, you typically need the manufacturer's specific Zigbee hub or a Thread border router.
