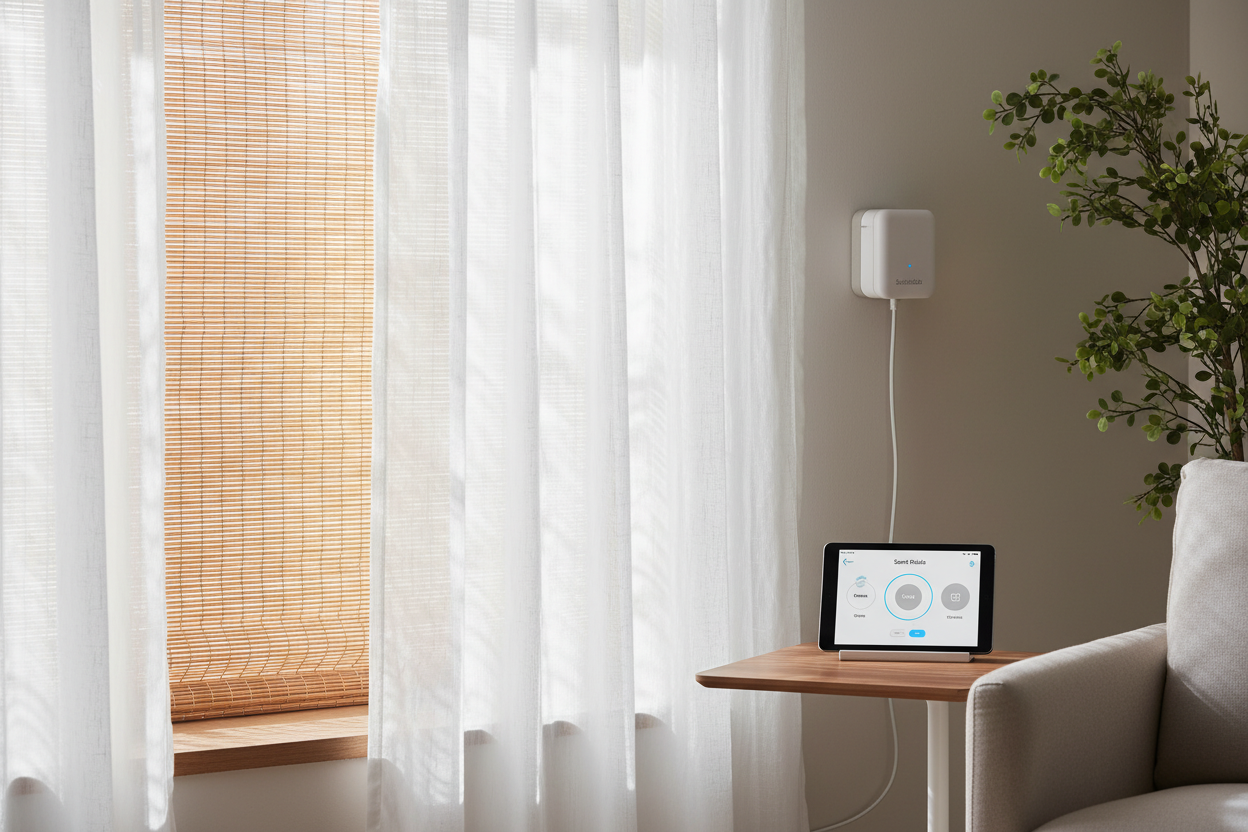

Automating Curtains Over Bamboo Shades for Smart Light Control

Imagine it's movie night. You're settled on the couch, popcorn in hand. Instead of getting up to manually adjust two different layers of window treatments, you simply say, "Alexa, turn on Cinema Mode." The room dims as your heavy drapes glide shut, covering the textured wood blinds behind them. This is the functional beauty of installing smart curtains over bamboo shades.

While bamboo shades provide excellent texture and privacy during the day, they often lack the total light-blocking capability needed for sleeping or media rooms. By adding a motorized curtain layer over them, you get the best of both worlds: organic aesthetics and automated, voice-controlled blackout capabilities.

Quick Compatibility Check: Smart Layering Specs

Before drilling holes, you need to know if your window setup can handle a smart retrofit. Here is a breakdown of the technical requirements for layering motorized curtains over existing blinds.

Installation Logistics: Rods vs. Tracks

When you layer window treatments, depth is your biggest technical hurdle. Bamboo shades usually mount inside the window frame or on the trim. To automate curtains over them, you must ensure your smart motor doesn't snag on the rough texture of the bamboo.

If you are using bamboo blinds and white curtains for a high-contrast look, I recommend a Smart Electric Curtain Track rather than a rod. Tracks offer smoother operation with less friction. However, you will need wall brackets that extend at least 4 to 6 inches from the wall to clear the rolled-up bamboo shade. If the curtain fabric drags against the bamboo, the motor's torque sensor might interpret it as an obstruction and emergency stop.

Power Options and Cable Management

For a clean look, battery-powered motors are superior. Running a white cable down the wall ruins the aesthetic of bamboo blinds with sheer curtains. Most modern motors, like the SwitchBot Curtain 3 or Aqara B1, offer 6-12 months of battery life. If you have a nearby outlet and want zero maintenance, hardwired is reliable, but hiding the cable behind the bamboo valance requires precise cable management clips.

Smart Integrations and Noise Levels

Noise (dB) Matters

In a bedroom, the sound of the motor matters. Retrofit bots that run along a rod tend to be louder (around 40-50dB) because of the friction wheels. Dedicated belt-driven tracks are whisper-quiet (often under 30dB). If you are automating this setup to wake you up gently, opt for a track system with a "Soft Touch" or "Slow Start" feature.

App Features

Look for an ecosystem that supports "Touch & Go" (tug the curtain to activate the motor) and Light Sensing. For example, you can program the curtains to close automatically when the summer sun hits the bamboo shades, protecting the wood from UV bleaching while keeping the room cool.

Living with Curtains Over Bamboo Shades: Day-to-Day Reality

I've lived with this specific dual-layer setup in my living room for about eight months now, and there are nuances you won't find on a spec sheet. The biggest adjustment was the "snag factor." Bamboo is naturally rough. In the beginning, I used a linen-textured curtain that kept catching on the bamboo slats when the motor engaged.

I had to install a small plastic guide at the bottom of the curtain hem to weigh it down and keep it swinging clear of the blinds. Also, the latency. Because my bamboo shades are manual but the curtains are smart, I often find myself asking Google to "Open the curtains" while I'm walking over to manually pull up the bamboo cord. It creates a funny mix of high-tech and low-tech workflow. However, seeing the diffracted light hit the floor through the bamboo after the curtains automatically part at 7:00 AM makes the setup completely worth it.

Conclusion

Automating curtains over bamboo shades is an excellent intermediate smart home project. It solves the privacy issues of bamboo while adding the convenience of voice control. Whether you choose a retrofit bot for your existing rod or install a dedicated Zigbee track, the key is ensuring enough physical clearance between the layers.

Frequently Asked Questions

Can I still move the curtains manually if the power goes out?

Yes, most dedicated smart curtain tracks have a manual override clutch that allows you to pull the fabric by hand without damaging the motor. Retrofit robots can be harder to move manually depending on the model.

Do I need a hub for smart curtains?

It depends on the connectivity. Wi-Fi motors connect directly to your router. Bluetooth and Zigbee motors (like SwitchBot or Aqara) require their respective hubs or a compatible Matter border router to enable voice control and remote access.

Will the motor be strong enough for heavy velvet curtains?

If you are layering heavy thermal drapes over bamboo, check the payload capacity. Battery motors usually top out around 17lbs. For anything heavier, you need a hardwired track system.
