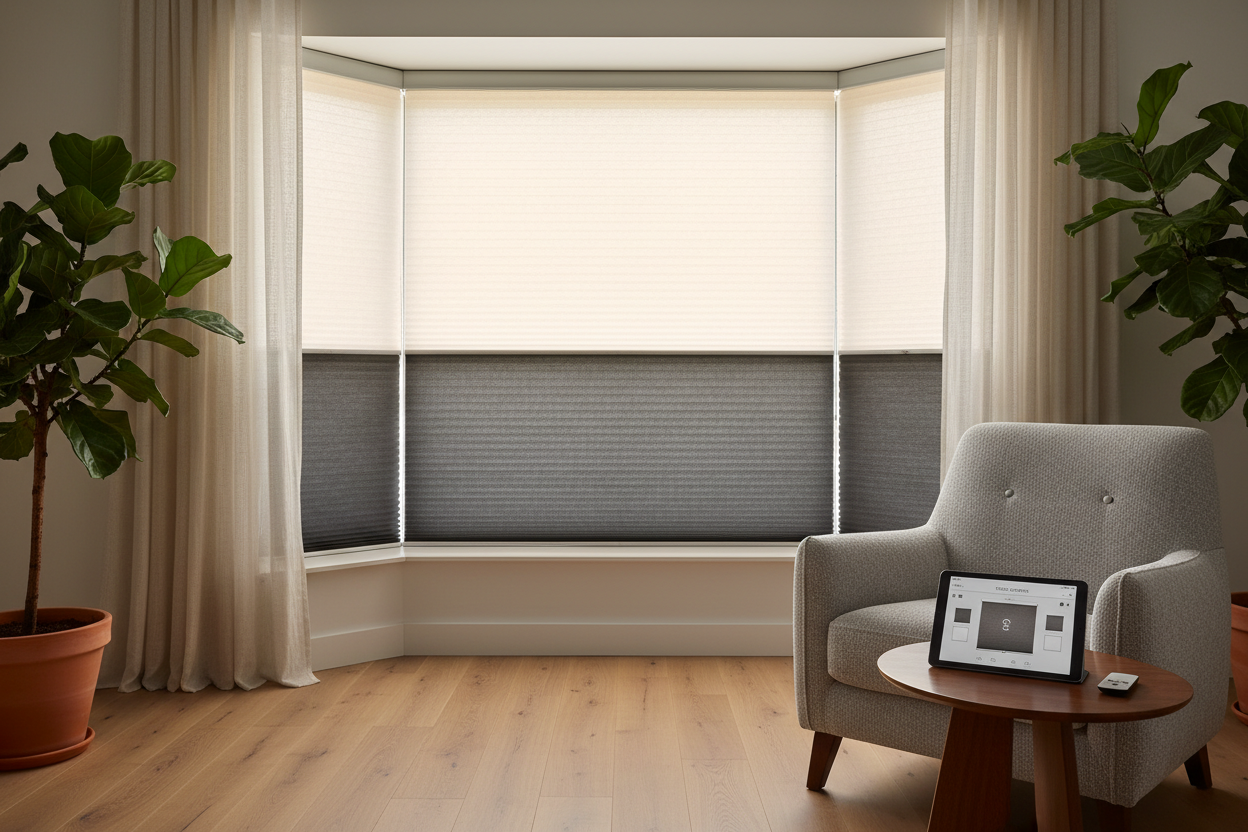

Automating Day Night Top Down Bottom Up Shades for Total Control

Imagine it’s movie night. You want total darkness, but you don't want to get off the couch. Or perhaps it's a Tuesday morning; you want natural light to flood the room without exposing your home to the street traffic outside. This is where day night top down bottom up shades solve a specific problem that standard smart blinds cannot. By combining a sheer fabric and a blackout fabric on a single headrail—and automating the movement of both the bottom and middle rails—you gain granular control over light and privacy via voice command or automation scripts.

Key Specs at a Glance

Before buying, understand that automating dual-fabric shades requires more torque and sophisticated motor logic than a standard roller blind. Here is the technical breakdown.

Feature	Specification	Why It Matters
Motor Configuration	Dual Motor or Dual-Shaft Gear	Required to move the middle rail and bottom rail independently.
Connectivity	Zigbee 3.0, Z-Wave, or RF (433MHz)	Zigbee/Z-Wave offers two-way feedback (battery status); RF requires a bridge (like Bond).
Power Source	Li-ion Rechargeable or 12V/24V Hardwired	Hardwired is preferred for dual shades due to the weight of two fabrics.
Ecosystem Support	Alexa, Google Home, HomeKit (via Bridge)	Native HomeKit support is rare; often requires a hub.

Installation Types and Motor Housings

When dealing with day night cellular shades top down bottom up configurations, the headrail is significantly larger than a standard blind because it houses the mechanisms for two distinct fabric layers.

Inside Mount vs. Outside Mount

For smart setups, an inside mount is critical for insulation, especially with cellular fabrics. However, you need at least 2.5 to 3 inches of window depth to accommodate the wider headrail containing the smart motor and battery tube. If your depth is shallow, the motor casing will protrude, ruining the aesthetic.

Hardwired vs. Battery Retrofits

If you are renovating, run low-voltage wiring (CAT5 or 16/2 wire) to the window headers. Dual-fabric shades are heavy. A battery-operated motor lifting a blackout and a sheer honeycomb fabric simultaneously will drain faster than a single roller shade. Expect to charge Li-ion wands every 3–4 months depending on usage, whereas hardwired setups are set-and-forget.

Smart Integrations and App Features

The software experience defines the utility of these shades. You aren't just commanding "Open" or "Close." You are managing three states: Full Open, Sheer Only, or Blackout Only.

Scene Management

Look for motors that support "scene" programming. You want to configure a "Good Morning" routine where the blackout fabric retracts, but the sheer fabric extends to filter the sunrise. In the app, check if the slider UI allows you to position the middle rail specifically. Many generic Tuya-based controllers struggle with this, treating the unit as one giant blind rather than two segments.

Noise Levels (dB)

Because these units often utilize two motors (or complex gearing), noise can be an issue. A high-end motor (like Somfy or Lutron) operates around 38–40dB—roughly the sound of a quiet library. Cheaper retrofit motors can hit 50–55dB, which is noticeable and potentially disruptive in a bedroom setting if scheduled for early morning.

Living with day night top down bottom up shades: Day-to-Day Reality

I have lived with a motorized day/night cellular setup in my home office for six months, and there are nuances the spec sheets don't mention.

The first thing I noticed was the "alignment shuffle." When I ask Google to switch from Blackout to Sheer, the motors don't always move in perfect unison. Often, the bottom rail drops first, followed by the middle rail lowering the sheer fabric. It creates a 5-second window where I have zero privacy before the sheer layer kicks in. It’s a minor quirk, but if you have neighbors directly across the street, you learn to time your voice commands accordingly.

Another detail is the "light leak" at the middle rail. Even on high-end models, there is a tiny, unavoidable gap where the blackout fabric meets the sheer fabric on the floating rail. At noon, a razor-thin line of sunlight cuts through. It doesn't bother me, but if you are chasing 100% pitch-black conditions for a home theater, you might notice that horizontal streak.

Conclusion

Upgrading to smart day night top down bottom up shades is a significant investment, but it offers versatility that single-fabric shades cannot match. The ability to filter light while maintaining privacy via voice command changes how you utilize a room. For the best experience, prioritize hardwired power options to handle the extra weight and ensure your chosen hub supports dual-rail control logic.

Frequently Asked Questions

Can I operate these manually if the Wi-Fi goes down?

Most smart motors have a small button on the headrail for emergency operation, and RF remote controls will work without Wi-Fi. However, if the battery dies or power is cut (and you don't have a manual override chain), the shades will remain in their current position.

Do I need a specific hub for day night cellular shades?

It depends on the protocol. If you choose Zigbee or Z-Wave motors, you will need a compatible hub (like SmartThings or Hubitat). Wi-Fi motors connect directly to your router but can crowd your network. RF motors need a bridge like Bond to connect to Alexa.

How long do the batteries last on dual-fabric shades?

Due to the increased weight of lifting two fabrics, battery life is generally 20-30% shorter than single shades. Expect to recharge every 3 to 5 months with average daily use.
