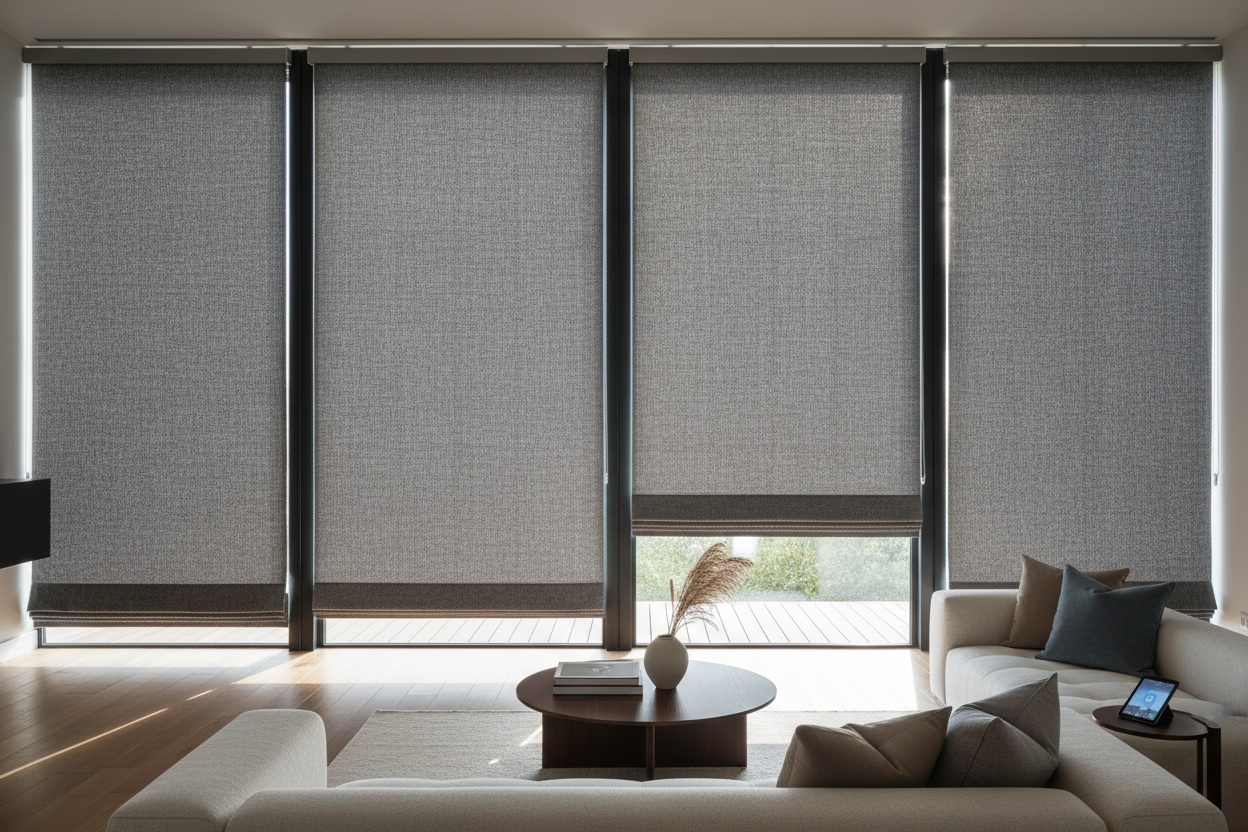

Automating Large Windows: The Ultimate Heavy Duty Roller Shade Guide

Imagine standing in front of a 12-foot floor-to-ceiling window. The view is spectacular, but manually cranking a chain to lift fifty pounds of blackout fabric every morning is a workout you didn't ask for. This is where a heavy duty roller shade transitions from a luxury to a functional necessity. Whether you are managing heat gain in a loft with double-height windows or securing a commercial space, standard smart motors simply won't cut it. You need torque, larger tube diameters, and robust connectivity.

Key Specs at a Glance

Before buying, verify your window dimensions against these technical requirements. Heavy duty window shades require specific motor strength and tube support to prevent bowing.

Hardware: Tube Diameter and Motor Torque

The physics of automating large windows is unforgiving. If you install a standard motor on a wide span, you will encounter "telescoping"—where the fabric rolls up unevenly—or the tube will bow in the center, creating a smile-shaped gap at the bottom.

For any span over 100 inches, a 2-inch or 2.5-inch aluminum tube is mandatory. The increased diameter reduces deflection. Regarding motors, look for specifications rating at least 3Nm (Newton Meters) of torque. Unlike smaller retrofit bots that twist a wand, these motors slide inside the tube (tubular motors). Brands like Somfy or Rollease Acmeda are the gold standard here, though newer Zigbee-native options from Zemismart are entering the heavy-duty space.

Power Options: Hardwired vs. Battery

Hardwired (120V/240V AC)

For true heavy duty window shades, hardwiring is the superior choice. AC motors are stronger, quieter, and never need charging. If you are in the framing stage of a renovation, run 14/2 Romex or low-voltage CAT6 (for PoE motors) to the window headers. These motors can handle the heaviest velvet or vinyl blackout fabrics without straining.

High-Capacity Battery (Li-ion)

If you are retrofitting, you need a high-capacity external battery pack or a motor with a large internal cell. Be warned: heavy fabric drains batteries faster. A standard shade might last 6 months on a charge; a heavy 12-foot shade might only last 2-3 months depending on usage. Look for motors compatible with trickle-charge solar panels to mitigate this.

Smart Integrations and Noise Levels

When moving this much fabric, noise becomes a factor. A cheap high-torque motor can sound like a coffee grinder (60dB+). Premium heavy-duty motors operate closer to 40-45dB. This is a low hum rather than a high-pitched whine.

For integration, avoid Wi-Fi motors if possible. They have high latency and drain batteries. A Zigbee or Z-Wave hub (like Hubitat or SmartThings) offers local control. This ensures that when you say "Close the shades," all five windows move instantly and simultaneously, rather than in a staggered, "popcorn" effect.

Living with heavy duty roller shade: Day-to-Day Reality

I want to share a detail that doesn't show up on the spec sheet, but you will notice immediately once installed. It's the "thud."

I installed a 10-foot wide blackout shade in my living room. The bottom weight bar required to keep that much fabric taut is heavy—solid steel wrapped in fabric. During the first week, I didn't dial in the lower limit perfectly. Every night at 10 PM, the automation would trigger, and the shade would hit the window sill with a solid, audible clank that vibrated the floor.

I had to spend about 20 minutes in the app fine-tuning the "step" adjustments to stop the motor exactly 2 millimeters above the sill. Also, regarding the noise: in a dead-silent house at night, the low-frequency hum of a large motor sounds louder than it does during the day. It’s not annoying, but it is definitely a "mechanical presence" that signals the house is shutting down for the night.

Conclusion

Upgrading to a heavy duty roller shade is an investment in infrastructure, not just a gadget. It solves the physical problem of weight and the convenience problem of scale. Prioritize tube diameter to prevent sagging and choose a communication protocol like Zigbee for reliable group control. Once dialed in, watching a wall of windows darken in unison is one of the most satisfying experiences in home automation.

Frequently Asked Questions

Can I operate heavy duty shades manually if the power goes out?

Generally, no. Most tubular motors disengage the manual clutch to allow the motor to spin freely. If power fails, the shade stays in its current position. Some specialized "dual-operation" brackets exist, but they are rare and expensive.

Do I need a hub for these shades?

For the best experience, yes. While some offer direct Bluetooth control, a hub (Bond Bridge, SmartThings, or a proprietary bridge) is required for voice control via Alexa/Google and for setting scheduling routines.

How long do batteries last in heavy duty units?

Expect 3 to 6 months with daily use (one up/down cycle). The weight of the fabric significantly impacts energy consumption compared to standard blinds.
