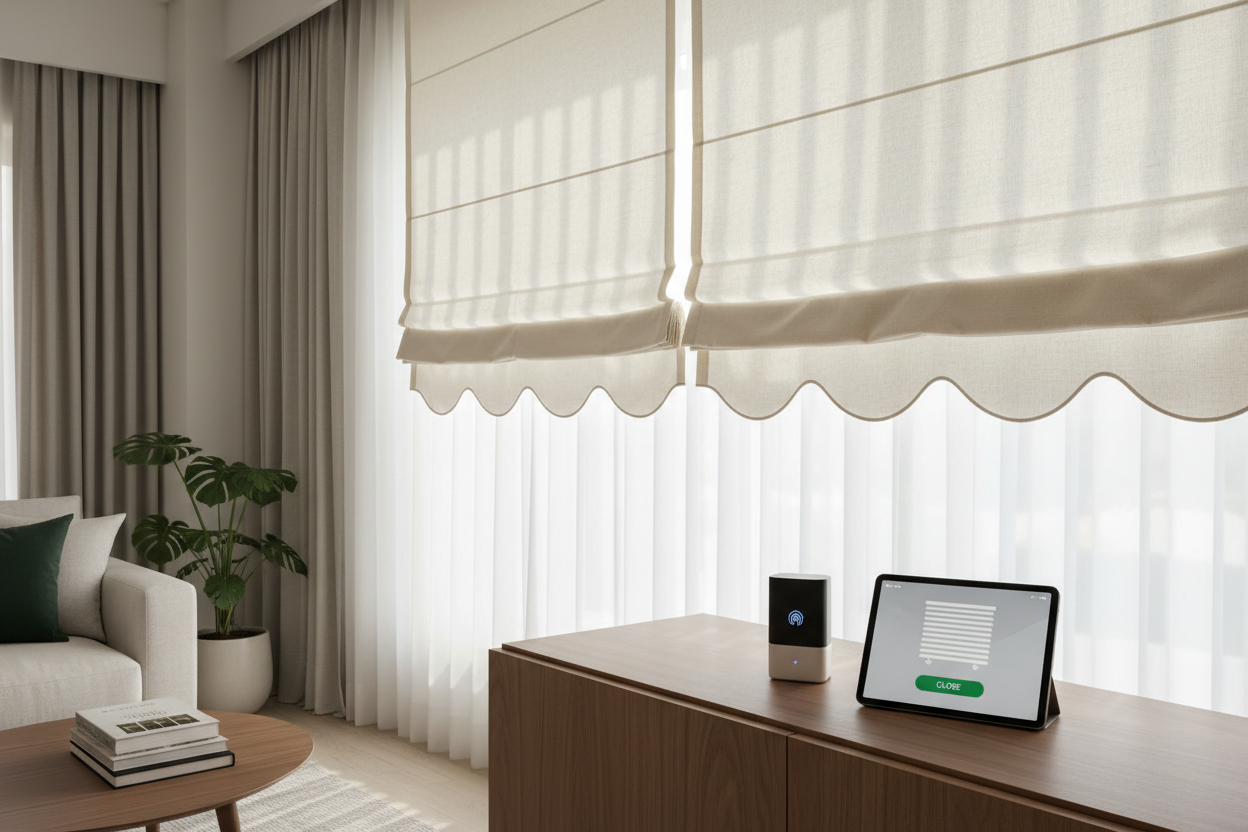

Automating Roller Shades Scalloped: A Retrofit Guide
by Yuvien Royer on Feb 24 2025
Picture this: It's Saturday morning. You want to let the light in, but your bed is too comfortable to leave. You prefer the classic aesthetic of roller shades scalloped over cold, industrial smart blinds, but you miss the convenience of voice control. By integrating smart tubular motors into traditional window treatments, you don't have to choose between vintage style and modern automation. You can keep that charming scalloped edge window shade look while adding the security of scheduled movement while you're away on vacation.
Key Specs at a Glance
Before you buy a retrofit motor or order custom smart scalloped blinds, check these technical requirements to ensure they fit your ecosystem.
| Feature | Specification Options | Best For |
|---|---|---|
| Power Source | Rechargeable Li-ion / 12V DC Hardwire | Battery for retrofits; Hardwire for new builds. |
| Connectivity | Zigbee 3.0, Z-Wave, WiFi, Bluetooth | Zigbee for mesh networks; WiFi for direct app control. |
| Lift Capacity | 1.1Nm to 6Nm | Higher torque needed for fringed roller shades with heavy vinyl. |
| Smart Platform | Alexa, Google Home, HomeKit (via Bridge) | Check for Matter support for future-proofing. |
Installation Types: Retrofit vs. Custom
When dealing with scalloped window blinds, you generally have two paths: retrofitting your existing manual shades or ordering new custom units.
Retrofitting Old Fashioned Scalloped Window Shades
If you already own high-quality scalloped window shades with fringe, you can insert a tubular motor into the existing roller tube. This requires measuring the inner diameter (ID) of your tube—usually 1.5 inches or 38mm for standard residential shades. You remove the manual clutch and chain, slide in the motor (like a Somfy or Eve MotionBlinds core), and mount it back up. Note that scalloped spring roller shades (the cordless snap-back type) require removing the internal spring mechanism entirely before motorizing.
Custom Smart Scalloped Shades
If you are looking for where to buy scalloped window shades pre-installed with smart tech, brands like Select Blinds or Blinds.com offer roller blinds with scalloped bottom options that ship with motors pre-installed. This eliminates the DIY hassle but often limits you to their specific hub ecosystems.
Power Options and Motor Torque
The aesthetic of window shades with scalloped bottom often involves heavier materials or additional fringe trim. This added weight at the bottom bar affects the torque requirements.
For standard vinyl roller shades with scalloped edge, a 1.1Nm motor is sufficient. However, if you are using roller shades with fringe or heavy blackout fabrics, the drag is higher. I recommend stepping up to a 2Nm motor to prevent the motor from stalling or draining the battery prematurely. For battery-operated units, expect to recharge every 4-6 months depending on daily usage.
Smart Integrations and Noise Levels
The goal is automation. Most retrofit motors for scalloped roller window shades use Zigbee or RF (Radio Frequency). If you use RF, you will need a bridge (like a Bond Bridge) to talk to Alexa or Google Home.
Regarding acoustics: Smart motors have come a long way, but they aren't silent. Average noise levels sit between 40dB and 55dB. If you have scalloped roller blinds with tassels, be aware that the start/stop motion can cause the tassels to swing and tap against the glass. Soft-start motors (which ramp up speed slowly) are essential for fringed window shades to minimize this swinging pendulum effect.
Living with roller shades scalloped: Day-to-Day Reality
I installed a retrofit motor on a set of scalloped pull down window shades in my guest room to test the "vintage-meets-tech" setup. Here is the unpolished truth: the hardest part isn't the wiring; it's the fringe.
When I set the "down" limit on the app, I had to be incredibly precise. On my first attempt, the shade lowered too far, and the scalloped edge window shades fringe dragged on the window sill, collecting dust and getting tangled. I had to reset the limit so the scallop edge roller shade hovered exactly half an inch above the sill.
Another nuance: The visual delay. When I say "Alexa, turn on the bedroom," the lights are instant, but the shades take about 2 seconds to wake from sleep mode and start rolling. Also, the silhouette of the scalloped shades for windows rising against the morning sun is distinct—seeing that classic shape move automatically feels surprisingly futuristic, despite the retro look.
Conclusion
Upgrading scalloped roller shades for windows adds modern functionality to a traditional look. Whether you choose roller shades with scalloped edge for the kitchen or fringed roller window shades for the bedroom, the key is matching the motor torque to the fabric weight and ensuring your limit switches are set to protect that delicate fringe.
Frequently Asked Questions
Can I motorize scalloped spring roller shades?
Yes, but you must remove the internal spring mechanism. The tubular motor replaces the spring, converting the shade from tension-based to motorized rotation.
How do I handle power outages with smart scalloped blinds?
Most battery-operated motors do not allow for manual pull-down when powered off to prevent damaging the gears. If power reliability is a concern, look for "dual-operation" motors that support manual override.
Do scalloped blinds with fringe require a specific hub?
The fabric style doesn't dictate the hub, but the motor does. If you buy a Zigbee motor, you'll need a Zigbee hub (like Echo 4th Gen or SmartThings). If you buy WiFi motors, they usually connect directly to your router without a hub.
