Automating Roman Shades Corded: The Ultimate Retrofit Guide

Imagine settling in for movie night. The projector spins up, the popcorn is ready, but a streetlamp is glaring right through the window. Instead of pausing and getting up, you simply mutter, "Cinema Mode." Instantly, your vintage fabric shades lower smoothly. This isn't science fiction, and you don't need to replace your window treatments to achieve it. By retrofitting your existing roman shades corded setup, you can bridge the gap between classic interior design and modern home automation.

Quick Compatibility Check

Before buying a motor, verify your current hardware against these specs. Not all retrofit drivers can handle the weight of heavy Roman fabrics.

Retrofitting: Chain Drivers vs. Motor Swaps

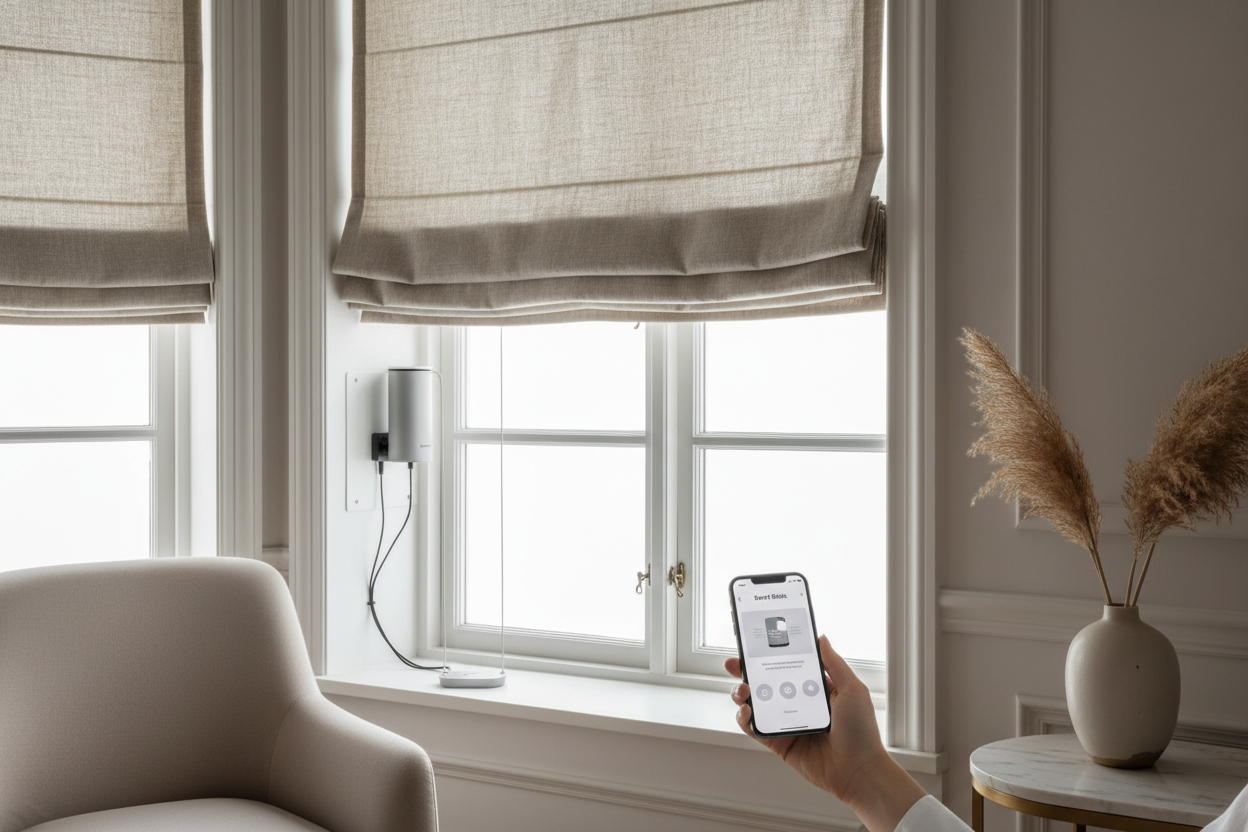

When dealing with a roman shade with cord, you generally have two paths for automation. The most accessible route is the "Chain Driver." This device mounts to your window frame and acts as a motorized pulley for the existing bead chain or loop. It's non-destructive and installs in minutes.

The second, more advanced option involves replacing the internal mechanism with a tubular motor. This requires disassembling the headrail. For this guide, we focus on the external chain driver, as it is the true retrofit solution for preserving your current aesthetic.

Power Options and Connectivity

Battery vs. Hardwired

Most retrofit drivers for roman shades utilize internal rechargeable batteries. Expect to charge them every 3 to 6 months depending on daily usage. If you have a nearby outlet, keep the unit plugged in for a "set and forget" experience. However, dangling wires ruin the look of Roman shades, so battery power is usually the cleaner install.

Smart Ecosystem Integration

Zigbee vs. WiFi: If you want local control that works even when the internet is down, opt for a Zigbee driver (requires a gateway like a SmartThings hub or Echo Show). WiFi motors connect directly to your router but can crowd your network bandwidth if you automate every window in the house.

Performance: Noise and Weight Capacity

Noise Levels (dB): This is where budget motors reveal themselves. High-end retrofit drivers operate around 35-40dB—roughly the sound of a quiet library. Cheaper units can whine at 55dB+, which is noticeable and distracting in a bedroom setting.

Weight Capacity: Roman shades are heavier than roller blinds due to the folding fabric and dowels. Ensure your motor is rated for the specific weight of your shade. A standard retrofit motor usually handles up to 10kg (22lbs). If you have lined velvet shades, you are pushing the limit of most consumer-grade chain drivers.

Living with roman shades corded: Day-to-Day Reality

I’ve had a retrofit driver installed on my office Roman shade for about eight months now. Here is the unpolished truth: The sound profile changes based on the time of day. In the afternoon, with ambient traffic noise, I don't hear the motor. But at 6:00 AM, that low-frequency hum is definitely audible—it acts as a secondary alarm clock.

Another nuance involves the bead connector. Most cord loops have a small plastic joiner clip. You have to set your upper and lower limits carefully so this clip doesn't hit the drive gear. I spent an hour frustratingly recalibrating the "Open" position just two inches lower than I wanted, simply to stop that joiner clip from grinding against the motor housing. It’s a small compromise for voice control, but it's a quirk you will absolutely encounter.

Conclusion

Automating a roman shade with cord is one of the most satisfying weekend projects you can undertake. It removes the safety hazard of dangling loops and adds significant convenience. Just pay close attention to the torque rating and the position of your cord connector during setup.

Frequently Asked Questions

How long does the battery last on a retrofit driver?

On average, with one up/down cycle per day, a rechargeable lithium-ion motor lasts between 3 to 6 months. Heavier Roman fabrics will drain the battery faster due to the increased torque required.

Can I still operate the shades manually during a power outage?

Generally, no. Most chain drivers lock the gear mechanism when not in motion to hold the weight of the shade. However, some models feature a "clutch" release button that allows you to pull the cord manually in emergencies.

Do I need a separate hub?

If you buy a WiFi version, no hub is needed. If you choose a Zigbee or Z-Wave version for better local control and battery life, you will need a compatible bridge (like an Amazon Echo, Samsung SmartThings, or proprietary hub).
