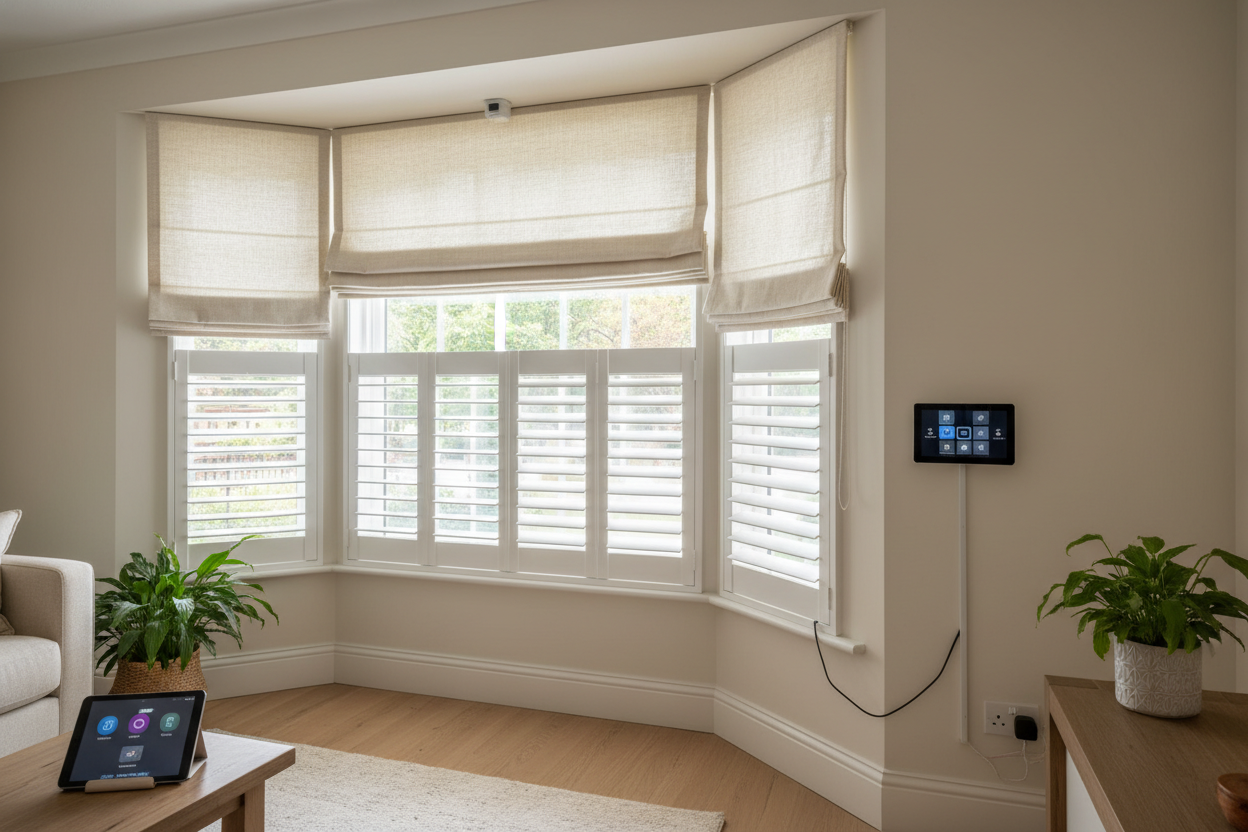

Automating Roman Shades with Plantation Shutters: A Setup Guide

Imagine settling in for a movie night. You don't want to get up to fiddle with multiple layers of window treatments. Instead, you say, "Hey Google, Cinema Mode." Instantly, the lights dim, and your motorized fabric shades lower smoothly over your louvers, blocking those annoying light gaps. This is the functional beauty of layering roman shades with plantation shutters. While shutters offer excellent architectural structure and airflow, they often suffer from light bleed. Adding a smart Roman shade on top creates the ultimate insulation and blackout solution, but it requires precise planning regarding motor clearance and mounting depth.

Key Specs at a Glance

Before drilling into your trim, review these technical requirements to ensure your smart motor can handle the layered setup.

Installation Types: The Clearance Challenge

The primary technical hurdle when combining plantation shutters with roman shades is depth. Standard shutters usually sit inside the window frame (inside mount). To layer a smart Roman shade over them, you must use an outside mount for the shade.

You cannot simply mount the headrail flush against the wall. If you do, the shade will snag on the shutter's tilt rod or louvers. You need projection brackets or spacer blocks that push the motorized headrail out at least 3 to 4 inches. Ideally, you want enough clearance so the shade can operate even if the shutter louvers are slightly tilted open.

Power Options: Retrofit vs. New Build

Battery-Powered (Retrofit):
For existing homes, rechargeable Li-ion motors are the standard. Look for motors (like Somfy or Eve MotionBlinds) that offer a USB-C charging port. Since the shade is mounted high and potentially behind a valance to hide the projection brackets, ensure the charging port is accessible without dismounting the unit.

Hardwired (DC Power):
If you are in the renovation phase, run low-voltage wire (12V or 24V) to the top corners of the window. This eliminates battery anxiety and allows for stronger motors that can lift heavier blackout fabrics often used in this layered configuration.

Smart Integrations & App Features

Connectivity Protocols:
Avoid proprietary RF remotes if you want true automation. Opt for motors using Zigbee or Thread. These mesh networks respond faster than WiFi and don't congest your bandwidth.

App Features to Look For:

• Sun Position Automations: Use a light sensor to lower the Roman shade only when direct UV hits the shutters to prevent furniture fading.
• Soft Start/Stop: Essential for heavy Roman shades. It prevents the "jerk" motion that can cause the fabric to sway and hit the shutters behind them.

Living with roman shades with plantation shutters: Day-to-Day Reality

I’ve lived with this specific dual-layer setup in my master bedroom for six months, and there are sensory details the spec sheets don't mention. The first thing you notice is the sound dampening. When both the shutters are latched and the heavy Roman shade is lowered, the acoustic isolation from street noise is significantly better than a single treatment.

However, there is a quirk regarding the "sway." Even with a soft-start motor, when the Roman shade lowers, the bottom weight bar tends to swing slightly. Because the plantation shutters sit just inches behind the fabric, you will occasionally hear a rhythmic tap-tap-tap of the weight bar hitting the shutter frame until the shade settles. I solved this by adding small felt pads to the back of the Roman shade's bottom bar—a low-tech fix for a high-tech setup. Also, be aware of the "charging reach." Because I used projection brackets to clear the shutters, the charging port is further out; I had to buy a 10-foot USB-C cable just to reach it comfortably without standing on a chair.

Conclusion

Layering smart Roman shades over shutters is an investment in both hardware and installation effort. However, for drafty windows or media rooms requiring total darkness, it is superior to single-layer solutions. By focusing on projection depth and choosing high-torque motors, you can achieve a setup that looks traditional but acts futuristic.

Frequently Asked Questions

How long do the batteries last in a layered setup?

With average use (one up/down cycle per day), modern Li-ion motors last 6 to 12 months. Heavier blackout fabrics used for Roman shades will drain the battery faster than sheer rollers.

Can I operate the shade if the internet goes down?

Yes. Most smart motors have local RF control (via a remote) or a manual tug-to-operate feature that works independently of your WiFi or hub.

Do I need a hub for this setup?

It depends on the motor. WiFi motors connect directly to Alexa/Google but often have higher latency. Zigbee and Z-Wave motors require a gateway (like a SmartThings hub or Bond Bridge) for app control and voice commands.
