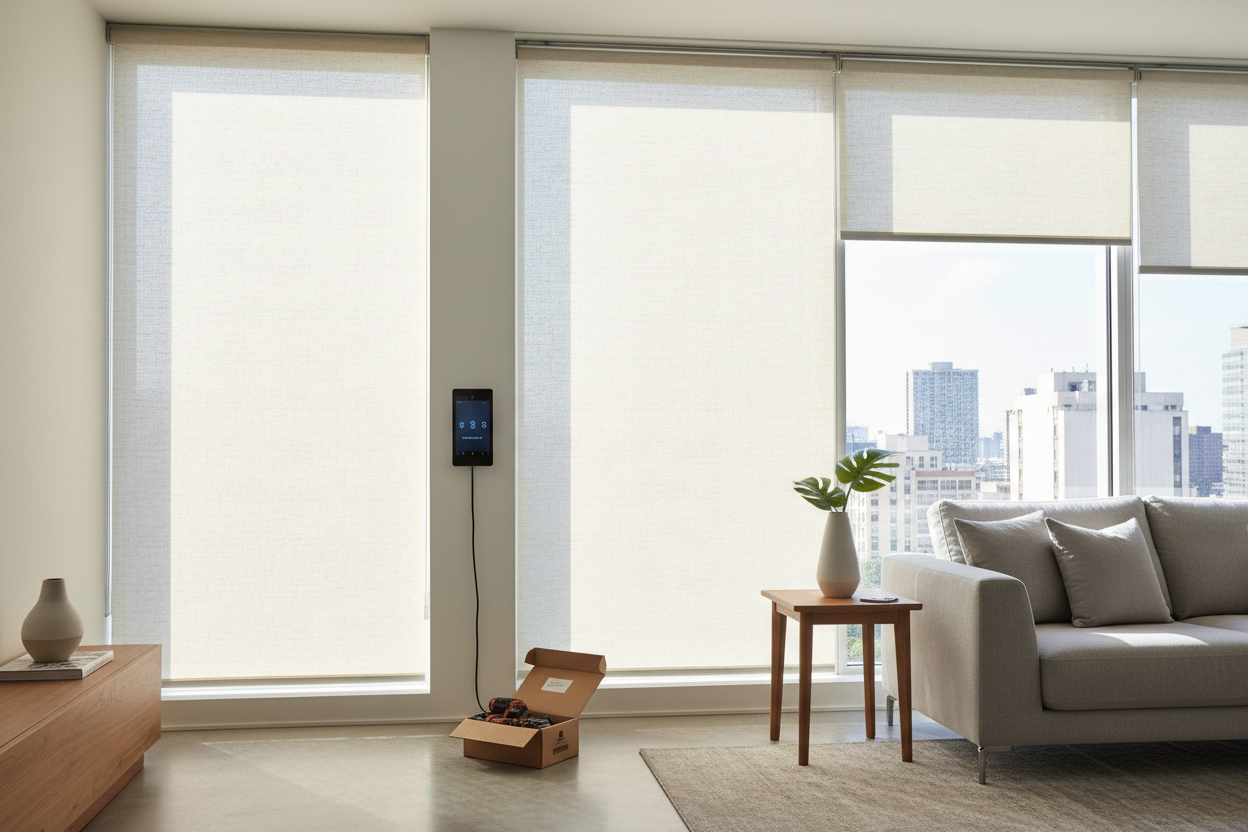

Automating Shade Cloth for Windows: The Ultimate Smart Retrofit

It’s 2:00 PM on a Tuesday. You’re deep in a video call, and suddenly that piercing afternoon sun hits your monitor, washing out the screen. Instead of stopping the meeting to manually crank down a heavy blind, you simply say, “Turn on Cinema Mode.” The room dims, the glare vanishes, and the temperature drops instantly. This is the practical reality of combining high-performance shade cloth for windows with modern smart home automation.

While many focus on the motor, the fabric itself—the shade cloth—is the critical variable for light filtration and thermal control. When paired with the right retrofit motor or smart roller system, you get a setup that manages heat gain before your AC even kicks on.

Key Specs at a Glance

Before you start drilling holes or ordering fabric samples, check these technical requirements to ensure your window shade cloth setup plays nice with your existing ecosystem.

Feature	Specification / Recommendation
Motor Protocol	Zigbee 3.0 (Preferred), Thread/Matter, or WiFi (2.4GHz)
Power Source	Rechargeable Li-ion (Retrofit) vs. 120V Hardwired (New Build)
Cloth Weight Support	Look for motors rated >1.5Nm for heavy thermal cloth
Ecosystem Support	Alexa, Google Home, HomeKit (often requires Bridge)

Choosing the Right System: Rods vs. Tracks

When automating shade cloth, the hardware dictates the motor type. Unlike curtains which use linear actuators on a track, shade cloth almost exclusively relies on tubular motors inside a roller mechanism.

The Retrofit Approach

If you already have roller shades with a beaded chain, you don't need to replace the fabric. You can use a "bead chain driver" (like the Aqara E1 or Soma Smart Shades). These mount to the window frame and pull the cord for you. However, for heavier window shade cloth designed for thermal insulation, these small motors sometimes struggle with the torque required to lift the weight.

Total Replacement (Tubular Motors)

For a cleaner look, you insert a tubular motor directly into the metal tube holding the cloth. This is the superior option for noise control. A high-end tubular motor operates at roughly 35-40dB—barely a whisper. If you are buying new shade cloth, ensure the tube diameter (usually 38mm or 1.5 inches) matches the motor crown adapter.

Power Options: Battery vs. Hardwired

Battery-Powered (The Retrofit King): Most DIY setups utilize internal lithium-ion batteries. You’ll typically charge these once every 4-6 months via USB-C. The trade-off is that they eventually lose charge capacity over years of use, much like a smartphone.

Hardwired (12V/120V): If you are renovating, run low-voltage wire to the window headers. Hardwired motors respond faster—there is no "wake up" latency that you sometimes get with battery-saving Zigbee end devices. Plus, they can handle significantly heavier blackout shade cloth without straining.

Smart Integrations and App Features

The real magic happens in the software. Mere remote control isn't "smart." Here is what you should look for in the companion app:

• Sun Position Automations: Advanced hubs can adjust the shade height based on the sun's azimuth and elevation relative to your window's orientation.
• Lux Sensor Pairing: Instead of a fixed schedule, stick a light sensor on the window. Program the shade cloth to lower to 50% only when light intensity exceeds 2,000 lux.
• Soft Start/Stop: Premium motors ramp up speed gradually. This prevents the bottom bar from banging against the sill and prolongs the life of the fabric attachment.

Living with Shade Cloth for Windows: Day-to-Day Reality

I’ve lived with a retrofitted smart shade cloth setup in my home office for about eight months now, utilizing a 5% openness solar screen fabric on a Zigbee roller motor. Here is the unpolished truth about the experience.

The first thing I noticed wasn't the convenience, but the sound frequency. While the motor is rated at a quiet 40dB, in a dead-silent room at 6 AM, the mechanical whirrr is definitely audible. It’s not loud, but it’s distinct enough that I had to disable the "sunrise" automation because it was waking up the dog before the alarm went off.

Another nuance is the "fabric memory." Because the shade cloth spends 90% of its life rolled up, the bottom two inches tend to curl inward slightly when fully extended. I had to add a heavier weighted bottom bar to force the cloth to hang perfectly flat. Also, regarding smart home latency: there is a consistent 1.5-second delay between me asking Google to "Close the Office" and the motor actually engaging. It’s a minor quirk, but that brief pause often makes guests wonder if the system heard the command.

Conclusion

Upgrading to motorized shade cloth for windows is one of the highest ROI smart home projects regarding comfort. It moves beyond the novelty of smart bulbs and offers tangible thermal regulation. Whether you opt for a simple chain-pull driver or a fully integrated tubular motor, the ability to control natural light with voice or sensor data fundamentally changes how you use your living space.

Frequently Asked Questions

Can I manually operate the shades if the power goes out?

Generally, no. Most tubular motors lock in place when unpowered. However, some hybrid models offer a "manual override" clutch that allows you to pull the shade down by hand, though these are rare in the consumer DIY market.

Does the weave of the window shade cloth affect the motor?

Yes. A blackout cloth with a PVC backing is significantly heavier (higher GSM) than a standard 5% solar screen. Ensure your motor's torque rating (measured in Nm) is sufficient for the total weight of your fabric.

Do I need a dedicated hub?

It depends on the connectivity. WiFi motors connect directly to your router but can crowd your network. Zigbee and Z-Wave motors require a gateway (like SmartThings, Hubitat, or a dedicated brand hub) but offer better battery life and local control reliability.
