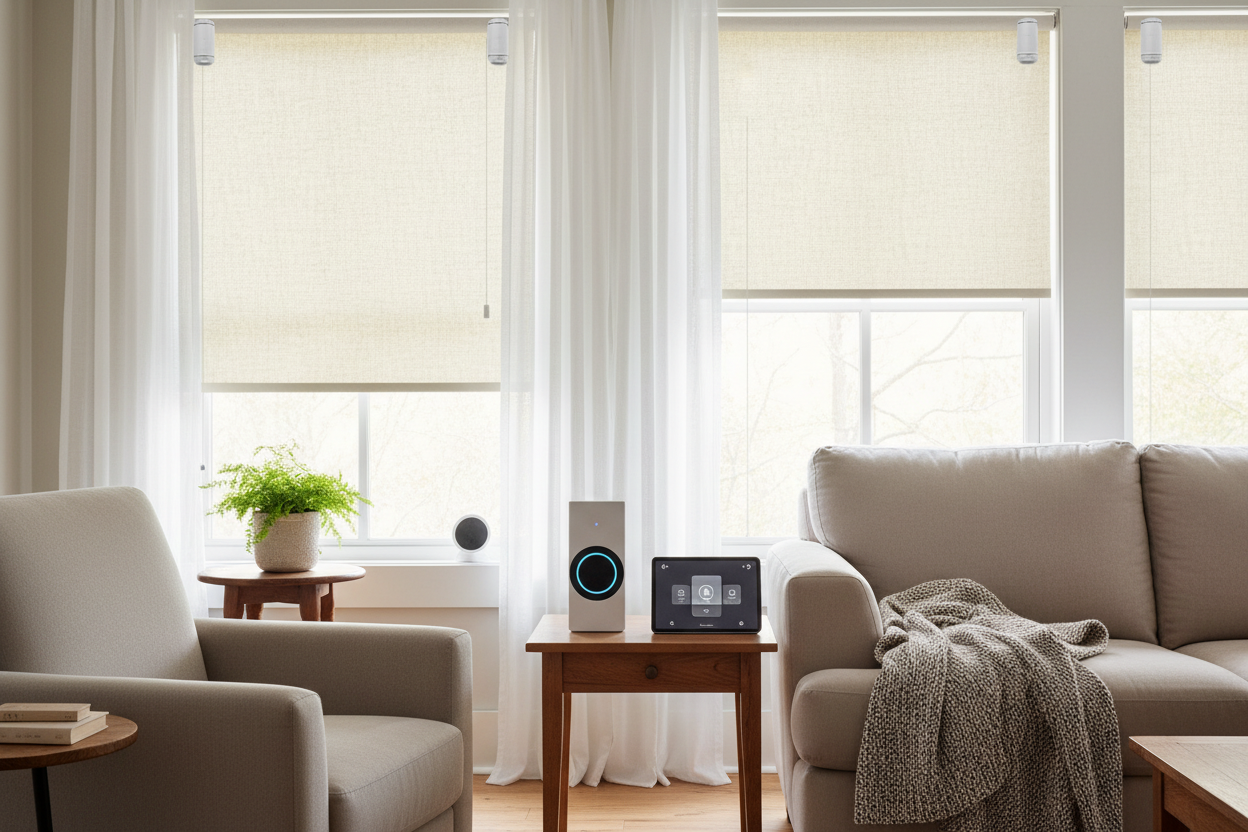

Automating Traditional Roller Shades: The Ultimate Retrofit Guide

Imagine settling onto the couch for a movie marathon, popcorn in hand. The glare from the setting sun hits the TV screen. Instead of getting up to manually pull a chain, you simply say, "Cinema Mode," and the room darkens instantly. This is the practical reality of bringing traditional roller shades into the smart home ecosystem. While many homeowners assume they need to replace their entire window treatment setup to get automation, the truth is often simpler. You can keep the classic aesthetic you love while adding the voice control and scheduling capabilities of a modern smart home.

Key Specs at a Glance

Before buying a motor or a retrofit kit, check these specifications to ensure your shades will actually work with your existing setup.

Feature	Retrofit Chain Driver	Tubular Motor Insert
Power Source	Rechargeable Battery / Solar	Li-ion Battery or 12V/24V Hardwired
Connectivity	Bluetooth / Zigbee / WiFi	Radio (RTS), Zigbee, Thread (Matter)
Weight Capacity	Low to Medium (Max ~10 lbs)	High (Heavy fabrics/Blackout)
Install Difficulty	Easy (DIY, 5 mins)	Moderate (Requires disassembly)

Installation Types: Chain vs. Tube

When upgrading traditional roller window shades, you generally have two paths: external drivers or internal motors.

The Chain Driver (Retrofit)

This is the least invasive method. These devices mount to your window frame and loop the existing beaded chain through a gear. The motor physically pulls the chain for you. It is ideal for renters or those who aren't comfortable taking their shades apart. However, be aware of the torque limits; heavy blackout fabrics might strain smaller motors.

The Tubular Motor

For a cleaner look, you insert a tubular motor directly into the metal tube of the roller shade. This requires measuring the inner diameter of your tube (usually 1.5" or 38mm) and replacing the manual clutch mechanism. While more labor-intensive, the result is invisible technology with higher lifting capacity.

Power Options and Connectivity

If you are building a new home, hardwiring (120V or low voltage) is the gold standard for reliability. You never have to worry about charging. For most retrofits, however, rechargeable lithium-ion battery wands are the norm. Expect to charge them every 6 to 12 months depending on usage.

Regarding connectivity, avoid WiFi motors if possible. They consume more battery power and crowd your router bandwidth. Look for Zigbee or Thread (Matter-compatible) motors. These mesh protocols respond faster and allow for local control, meaning your shades still work even if the internet goes down.

Deep Dive: Noise and App Features

Noise Levels (dB): Not all motors sound the same. A premium motor (like those from Somfy or Rollease) usually operates around 40-45dB—roughly the sound of a quiet library. Cheaper generic motors can hit 55dB+ with a high-pitched whine that ruins the "luxury" vibe.

App Features: The hardware is only half the story. Ensure your chosen ecosystem supports "Sun Position" automation. This allows the shades to lower gradually as the sun hits specific windows, protecting your furniture from UV damage without you lifting a finger.

Living with Traditional Roller Shades: Day-to-Day Reality

I have been running automated roller shades in my master bedroom for two years now, and there are nuances specs won't tell you. The first thing I noticed was the "cloud delay." I initially used a WiFi-based bridge. When I asked Alexa to "Open Shades," there was a solid 2.5-second pause before the motor engaged. It sounds trivial, but in a smart home, that lag feels like an eternity. Switching to a local Zigbee hub cut that reaction time down to near-instant.

Another detail is the sound in the morning. Even quiet motors are audible in a dead-silent room at 6:00 AM. The mechanical hum isn't loud, but it is distinct enough to wake a light sleeper before the light actually does. I had to adjust my automation to open the shades after my alarm goes off, rather than using them as the alarm. Also, alignment matters: about once every six months, I have to manually adjust the "telescoping"—where the fabric rolls up slightly crooked—because the motor torque is consistent, but the fabric settling isn't.

Conclusion

Automating your traditional roller window shades bridges the gap between classic interior design and modern convenience. Whether you choose a simple chain driver or a fully integrated tubular motor, the ability to control natural light with your voice or a schedule is a massive quality-of-life upgrade. Just ensure you pick the right protocol to keep your network uncrowded and your response times fast.

Frequently Asked Questions

How long do the batteries last on retrofit motors?

On average, with one up/down cycle per day, a lithium-ion battery motor lasts between 6 to 9 months. Adding a small solar panel strip behind the shade can extend this indefinitely.

Can I move the shades manually if the power goes out?

With external chain drivers, usually no—the gear locks the chain. With tubular motors, unless you buy a specific "manual override" model, the shade will remain stuck in its current position until power is restored.

Do I need a hub?

Bluetooth motors work directly with your phone but have limited range. For out-of-home control and voice assistant integration (Alexa/Google/HomeKit), a gateway or hub is almost always required.
