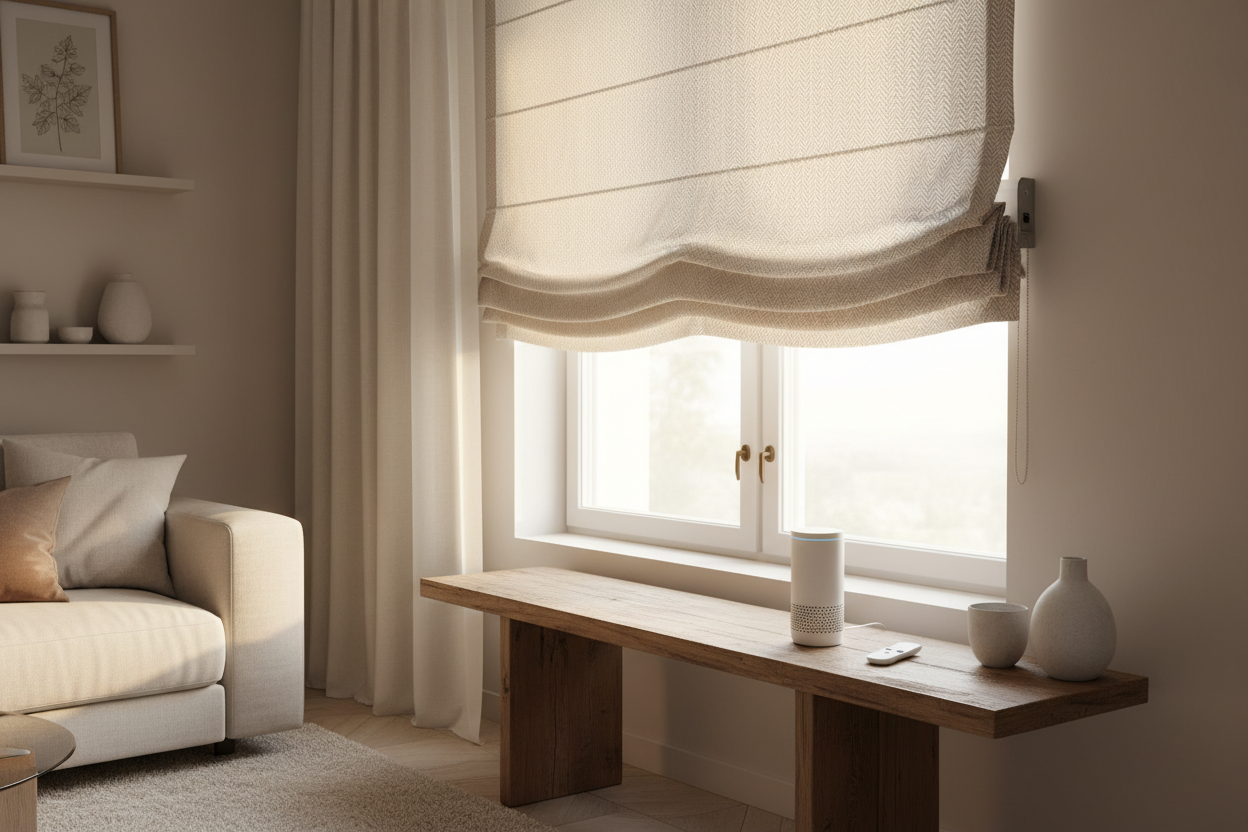

Automating Your Lined Roman Shade: Motors & Voice Control

Imagine settling in for a movie marathon on a bright Saturday afternoon. Instead of manually wrestling with cords to block out the glare, you simply say, "Alexa, it's movie time." Instantly, your heavy lined roman shade lowers, the lights dim, and the room transforms. This isn't just about laziness; it's about optimizing thermal efficiency and privacy without lifting a finger. Whether you are retrofitting existing fabric or buying a new smart setup, automating these heavier shades requires specific attention to motor torque and connectivity.

Quick Compatibility Check: Motor Specs

Before buying a motor, you must account for the extra weight of the lining. Here is the technical breakdown for handling lined fabrics.

Spec Category	Requirement for Lined Shades	Why It Matters
Motor Torque	Minimum 1.1Nm - 2.0Nm	Lined shades are 30-50% heavier; weak motors will stall.
Connectivity	Zigbee 3.0, Thread, or Wi-Fi (2.4GHz)	Zigbee/Thread offers lower latency and better battery life.
Power Source	Hardwired or High-Capacity Li-ion	Frequent movement of heavy fabric drains small batteries quickly.
Ecosystem	Matter, HomeKit, Alexa, Google	Check for native support to avoid using multiple bridges.

Installation Types: Tube vs. Chain Retrofit

When automating a lined roman shade, you generally have two paths, each with distinct trade-offs regarding aesthetics and noise.

Tubular Motor Retrofit

This is the "clean" install. You remove the manual mechanism inside the headrail and insert a tubular motor (like those from Rollease Acmeda or Somfy). Because lined shades stack thickly at the top, ensuring the motor fits inside the existing headrail is critical. This method supports the heaviest weights but requires a bit of DIY teardown capability.

Bead Chain Drivers

Devices like the Soma Smart Shades or Aqara E1 attach to the existing loop cord. While easier to install, they often struggle with the tension required to lift a fully lined roman shade. If your shade is over 6 feet wide or uses blackout lining, a bead chain driver may experience gear slippage.

Power Options & Weight Capacity

The "lined" aspect of your shade is the variable that dictates your power source. Thermal and blackout linings add significant mass.

• Battery (Rechargeable): convenient for spots without outlets. However, for a lined shade, expect to charge it every 3-4 months rather than the advertised 6-12 months due to the higher torque require to lift the load.
• Hardwired (DC/AC): The gold standard for lined shades. If you are renovating, run low-voltage wire to the window frame. It provides consistent torque without the voltage drop-off that occurs as batteries deplete.

Smart Integrations & App Features

Beyond simple up/down control, look for apps that offer "soft stop" capabilities. This feature slows the motor down right before the shade hits the top or bottom, preventing the heavy bottom bar from banging against the sill.

Noise Levels: Pay attention to the decibel rating. A quiet motor operates around 35-40dB. Cheaper, high-torque motors often whine at 55dB+, which ruins the ambiance of a smart wake-up routine.

Living with a Lined Roman Shade: Day-to-Day Reality

I've had a blackout-lined roman shade running on a Zigbee motor in my master bedroom for about eight months now, and there are sensory details the spec sheets don't mention.

The first thing I noticed was the "stacking sound." Unlike a roller shade that disappears silently, a roman shade creates a soft, rhythmic swish-fold-swish sound as the fabric layers stack up. It’s actually quite pleasant, almost like a white noise machine, but it is audible.

More importantly, I learned the hard way about "drift." Because the lining makes the shade heavy, gravity pulls on the internal spool over time. About once a month, I have to recalibrate the "bottom limit" in the app because the shade starts stopping about a half-inch lower than it should, eventually touching the window sill. It takes ten seconds to fix, but it’s a quirk of automating heavy fabric that you don't get with lightweight cellular shades.

Conclusion

Motorizing a lined roman shade combines the high-end look of custom drapery with the utility of a smart home. While it requires a more robust motor and careful consideration of power sources compared to lighter treatments, the ability to insulate your home automatically based on the sun's position is a massive upgrade to your living environment.

Frequently Asked Questions

Can I manually operate the shade if the battery dies?

Usually, no. Most tubular motors lock the mechanism to hold the weight. However, some newer "dual-operation" motors allow for manual pulling, though they are rare for heavy lined shades.

Do I need a hub for these motors?

It depends on the protocol. Wi-Fi motors connect directly to your router but use more power. Zigbee and Z-Wave motors require a gateway (like a SmartThings hub, Hubitat, or Amazon Echo with Zigbee built-in) to bridge the connection to your phone.

Will the motor handle blackout lining?

Yes, provided you check the "Max Load" rating. Ensure the motor is rated for at least 10-15% more than the actual weight of your shade to prevent overheating.
