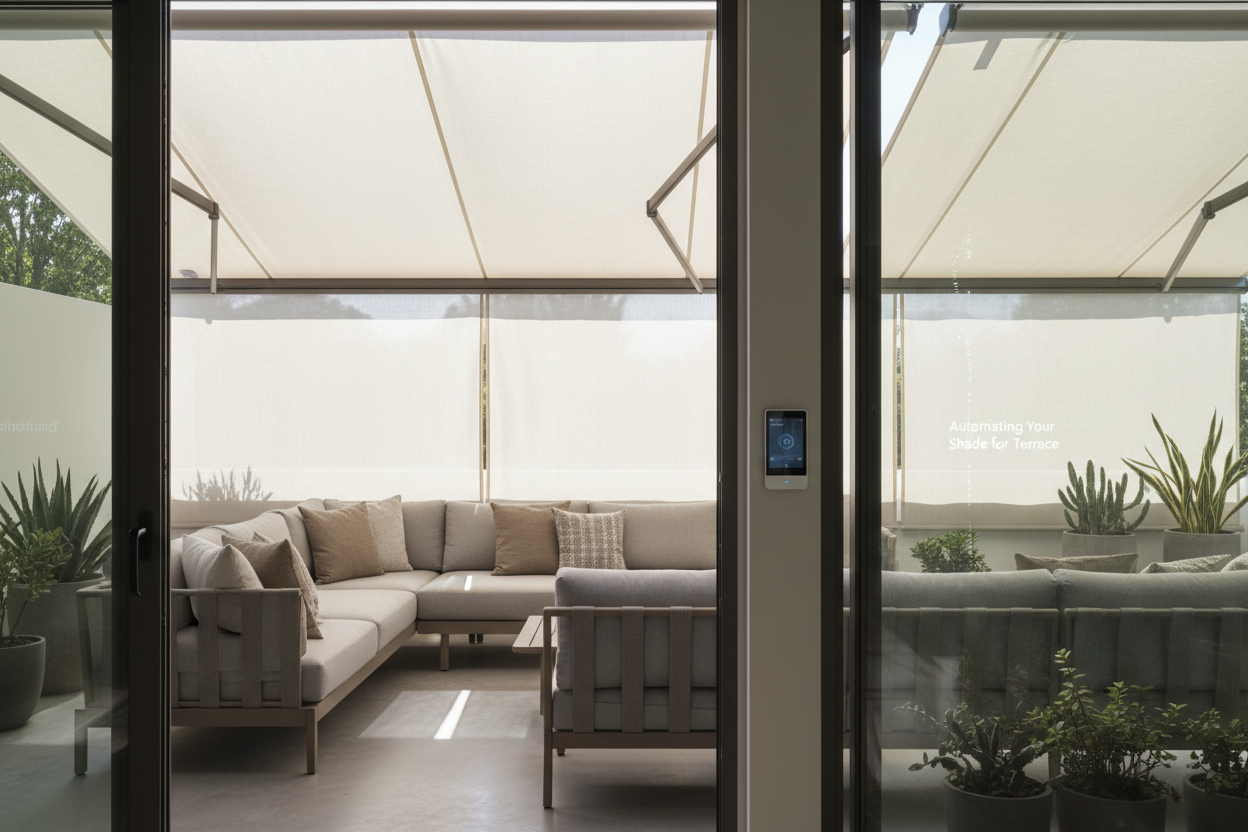

Automating Your Shade for Terrace: The Hands-Free Setup

Imagine settling into your patio furniture with a cold drink, only for the late-afternoon sun to hit you directly in the eyes. Instead of putting your drink down and manually cranking a heavy awning, you simply say, "Alexa, lower the patio blind." This is the convenience of modern outdoor living. Integrating a smart shade for terrace areas not only elevates your comfort but also protects your home's interior from heat gain and your outdoor furniture from UV damage.

Key Specs at a Glance

Before drilling into masonry or siding, review these technical requirements to ensure your outdoor smart shade ecosystem is viable.

Installation Types: Cassette vs. Drop Arm

When selecting a smart terrace shade, the hardware dictates the motor type. Full Cassette Awnings fully enclose the fabric and motor when retracted, offering the best protection against weather. These generally require high-torque tubular motors (40Nm to 100Nm depending on projection) due to the tension arms.

Vertical Drop Shades (Zip tracks) operate more like heavy-duty roller blinds. These are easier to retrofit with battery-operated tubular motors if you lack an external power outlet. Ensure your choice includes side-retention channels (zippers) to prevent the fabric from acting like a sail in the wind.

Power Options: Hardwired vs. Solar

Hardwired (AC Power)

For large projection awnings, AC power is the standard. It provides consistent torque without the "battery sag" that can slow down operation over time. However, this requires a waterproof junction box and often a licensed electrician to run conduit to your terrace.

Solar/Battery

Newer lithium-ion tubular motors can run for 6-9 months on a single charge. Pairing these with a slim solar panel mounted on the cassette housing makes the system self-sustaining. This is the ideal retrofit solution, though check the spec sheet for "lifting capacity"—battery motors often max out around 6-10Nm, which is sufficient for vertical shades but may struggle with large articulated arms.

Smart Integrations and Sensors

Unlike indoor curtains, outdoor shading requires safety logic. The most critical addition to your setup is a Wind Sensor (Anemometer). If wind speeds exceed a threshold (usually adjustable in the app), the shade automatically retracts to prevent catastrophic hardware failure.

For voice control, most outdoor motors use Radio Frequency (RTS/RF). To get these into Alexa or HomeKit, you typically need a bridge device like the Bond Bridge Pro or Somfy TaHoma. These hubs translate your WiFi voice commands into the RF signal the motor understands.

Living with shade for terrace: Day-to-Day Reality

I have lived with a retrofitted motorized awning on my back deck for two years now, utilizing a Somfy motor bridged to Home Assistant. Here is the unpolished truth about the experience.

The first thing you notice is the sound. It isn't the whisper-quiet glide of indoor Lutron shades. It’s a low-frequency, mechanical hum that lasts about 45 seconds while the awning extends. It’s audible, but not annoying—it actually sounds reassuringly industrial.

The biggest learning curve was the wind sensor anxiety. The first time a summer storm rolled in, I stood by the glass door watching the fabric flap violently, trusting the sensor to trigger. It took about 15 seconds of sustained gusts before the safety protocol kicked in and retracted the unit. It feels like an eternity when you're watching it, but it works. Also, be prepared for the "RF lag." Unlike WiFi lights that toggle instantly, there is often a 1-2 second delay between me asking Google to "Open the Terrace Shade" and the motor actually engaging. It’s a small quirk, but one you definitely notice.

Conclusion

Automating your terrace shade transforms your patio from a "sometimes" space into a true extension of your smart home. While the initial setup involves more consideration regarding weatherproofing and power than indoor blinds, the ability to manage heat gain and wind protection automatically is a massive upgrade to your outdoor lifestyle.

Frequently Asked Questions

Can I operate the shade manually if the power goes out?

Most reputable outdoor motors feature a "Manual Override" (MO) head. This allows you to use a traditional hand crank to retract the awning during a power failure, which is a critical safety feature if a storm knocks out power while the shade is extended.

Do I need a hub for smart features?

Generally, yes. Most outdoor motors use 433MHz RF for range and reliability through exterior walls. To connect this to your phone or voice assistant, you need a gateway (hub) that bridges the RF signal to your WiFi network.

How long do solar-powered batteries last?

With a properly positioned solar panel receiving direct sunlight, the battery should rarely need manual charging. Without the panel, a typical heavy-use cycle (one up/down per day) will drain a lithium motor battery in roughly 6 to 9 months.
