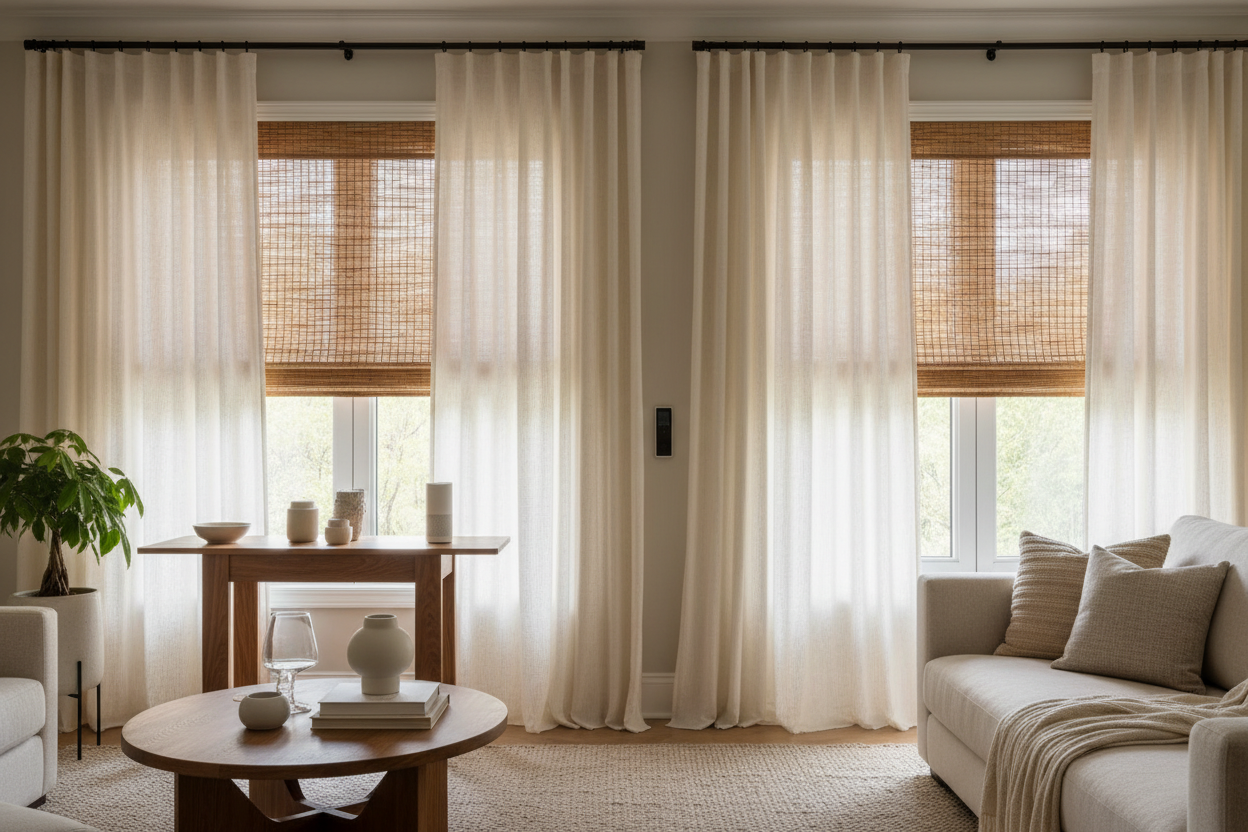

Bamboo Shades with Drapes: Motorizing the Layered Look

It usually happens around 6 AM: the sun breaches the horizon, and depending on your window situation, you are either gently woken up or blasted with blinding light. I prefer a dark room for sleeping, but I hate waking up in a pitch-black cave. That is exactly why I started experimenting with layered window treatments. By combining bamboo shades with drapes, you get the organic, textured light-filtering of wood during the day, and the heavy, blackout insulation of fabric at night. But walking around the house manually pulling cords and tugging heavy fabric every morning and night gets old fast.

By motorizing both layers, you can create voice-controlled routines that handle the heavy lifting for you. In this guide, I will break down exactly how to pull off a smart layered setup, what kind of motors you need for each layer, and how to sync them so your morning light routines actually work.

Quick Setup Specs at a Glance

Before buying any hardware for a dual-layer smart window, you need to verify your window frame depth and power access. Here is what a typical motorized layered setup requires:

• Mounting Strategy: Inside-mount for the bamboo shade (requires 2.5 to 3 inches of depth for the battery tube) and outside-mount for the smart drape track.
• Motor Types Needed: Tubular motor (roller/roman) for the bamboo; track motor or retrofit robot (like SwitchBot) for the drapes.
• Protocol: Matter over Thread or Zigbee is highly recommended to keep both devices synced locally without cloud latency.
• Average Cost: $300-$600 per window, depending on whether you retrofit existing treatments or buy custom smart units.

Mounting a Dual Smart System

Depth Clearance is Everything

The biggest mistake people make when planning a bamboo shade curtain combo is underestimating the hardware footprint. North American window casings are often shallow. If you want a motorized bamboo shade inside the frame, the headrail must house a lithium-ion battery pack and a tubular motor. You need an absolute minimum of 2.5 inches of flush depth. If your window frame is shallower, the bamboo shade's valance will protrude. This means your outside-mounted drapes will snag on the shade when the motors activate. To fix this, you will need curtain rod extension brackets to push the drape track at least an inch further off the wall.

Retrofitting vs. Buying New

If you already have a beautiful bamboo shade with curtains, you don't necessarily need to throw them out. You can retrofit the drapes easily using a smart curtain robot that crawls along your existing rod. However, retrofitting bamboo shades is much harder. Because bamboo shades are usually heavy Roman-style folds, standard retrofit chain-pull motors often struggle with the weight. For the bamboo layer, I highly recommend buying a purpose-built smart shade with a dedicated heavy-duty tubular motor.

Syncing Two Motors in One Ecosystem

Grouping for Voice and Routines

Having two different window treatments on one window means managing two separate smart devices in your app. To make bamboo shades and curtains function logically, you need an ecosystem like Apple HomeKit, SmartThings, or Home Assistant. You simply group the tubular motor (shade) and the track motor (drapes) into a single 'Window' group.

For my sunrise routine, I don't just blast both open at once. I use a staggered automation. At 6:30 AM, the heavy drapes open 100%, but the bamboo shades stay down. This lets the morning light filter through the woven wood, creating a warm, soft glow. At 7:30 AM, when the sun is higher, the bamboo shade rolls up completely.

Living with Motorized Bamboo and Drapes: My Notes

I have been running a motorized bamboo shade with curtains in my master bedroom for eight months, and the reality of living with it is slightly different than the polished YouTube tutorials suggest.

First, the noise discrepancy is real. My smart drape track is whisper-quiet, just a faint electronic hum. But the bamboo shade? Because it is made of real wood slats, rolling it up creates an unavoidable 'clacking' sound as the wood stacks on itself. It is not deafening, but if your partner is still sleeping, a motorized bamboo shade will absolutely wake them up. I had to adjust my morning routine to only open the silent drapes early in the morning, leaving the bamboo shade down until we are both out of bed.

Another unexpected learning was battery life. The drape motor pushes heavy blackout fabric and needs a recharge every four months. The bamboo shade motor, despite lifting a heavier physical load, has only dropped to 40% battery after eight months. If I were to do it again, I would have hardwired the drape track, or at least added a solar panel hidden behind the valance.

Frequently Asked Questions

Can I still open the drapes manually during a power outage?

Yes. Most smart curtain tracks and retrofit robots have a 'Touch and Go' feature. If you gently pull the fabric, the motor takes over. If the battery is completely dead, the clutch disengages, allowing you to slide them manually without breaking the belt.

Do I need a hub for a layered setup?

It depends on the motors you buy. If you choose Wi-Fi motors, they connect directly to your router (though they drain batteries faster). If you choose Zigbee or Matter-over-Thread motors, you will need a corresponding hub or border router (like an Apple TV 4K or Echo Hub) to coordinate the automations.

Can a retrofit motor handle heavy blackout drapes?

Retrofit robots can struggle with very heavy, lined drapes, especially on telescoping rods where the wheels can catch on the metal lip. If your drapes weigh more than 15 lbs, skip the retrofit robots and install a dedicated motorized curtain track for reliable performance.
