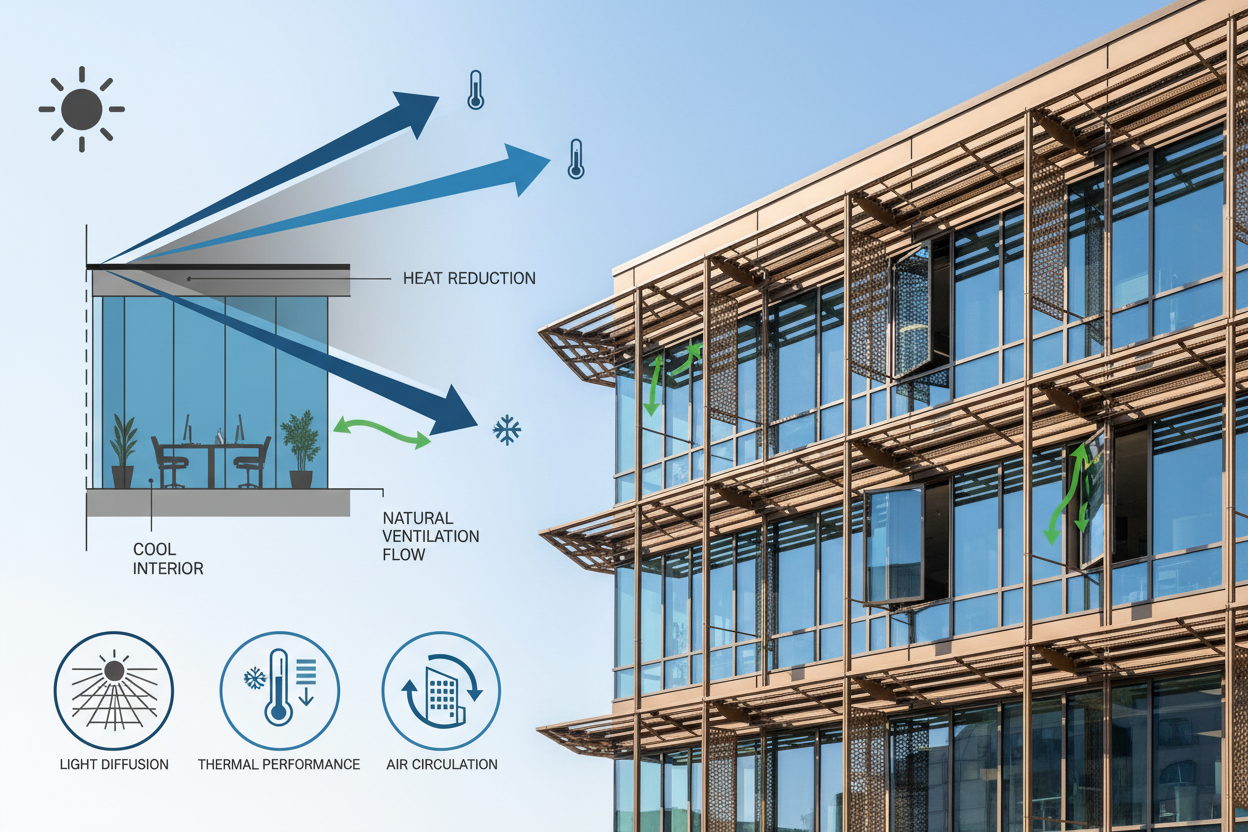

Beyond Aesthetics: How Perforated Metal Sunshades Optimize Building Performance

Modern architecture often faces a conflict between the desire for expansive natural light and the necessity of controlling internal temperatures. Large glass facades are visually striking and connect occupants with the outdoors, but they frequently lead to excessive solar heat gain and uncomfortable glare. This is where the perforated sunshade has emerged as a critical component in building envelope design. It serves as a functional veil, allowing architects to balance transparency with thermal control without sacrificing the visual character of the structure.

The concept is straightforward yet sophisticated. By placing a permeable barrier between the sun and the glazing, a significant portion of solar radiation is absorbed or reflected before it enters the building. However, unlike solid overhangs or louvers, a perforated solution maintains a visual connection to the exterior. It creates a filtered light effect, similar to the dappled shade found under a tree canopy, which enhances occupant comfort while reducing the load on mechanical cooling systems.

The Mechanics of Light Filtration and Thermal Control

The primary function of any shading system is to manage the solar heat gain coefficient (SHGC). When solar radiation hits a standard window, heat is transferred into the interior, forcing HVAC systems to work harder. A perforated shade acts as the first line of defense. By intercepting sunlight before it strikes the glass, these systems can reduce solar heat gain by up to 50% depending on the orientation and the specific open-area percentage of the metal.

Beyond heat, there is the issue of glare. Direct sunlight on computer screens or workspaces reduces productivity and causes eye strain. A well-designed perforated metal shade diffuses this light. Instead of blocking the sun entirely, the perforations break up the intense rays, allowing softer, ambient daylight to penetrate the room. This process, known as daylight harvesting, reduces the need for artificial lighting during the day, contributing to further energy savings.

Material Selection and Durability

When specifying a shading system, material longevity is paramount. The industry standard for a perforated metal shade is typically aluminum, though stainless steel and weathering steel are also utilized for specific aesthetic requirements. Aluminum is favored for its high strength-to-weight ratio and its natural resistance to corrosion. Since these elements are exposed to the harshest weather conditions—from UV radiation to driving rain—the finishing process is just as important as the base metal.

Anodizing and high-performance powder coatings (such as PVDF) are the most reliable finishes. They protect the metal from oxidation and ensure color stability over decades. In coastal environments, where salt spray is a concern, a perforated metal shade requires a marine-grade finish to prevent pitting. The structural integrity of these panels allows them to span significant distances, reducing the need for heavy secondary steel framing, which keeps the facade looking clean and uncluttered.

Understanding Open Area Patterns

The technical heart of a perforated sunshade lies in its pattern and "open area" percentage. This refers to the ratio of holes to solid metal. There is no one-size-fits-all solution here; the correct percentage depends on the building's geographic location and the orientation of the facade.

Calculating the Balance

A south-facing facade (in the Northern Hemisphere) receives high-angle sun, while east and west facades deal with low-angle morning and evening sun. A pattern with 40% to 50% open area is often the sweet spot for vertical screens. It provides enough density to block the harsh rays while remaining transparent enough for occupants to see through. If the open area is too high, the shading performance drops; if it is too low, the interior feels enclosed and dark.

Hole Geometry

While round holes in staggered rows are the most cost-effective and structurally sound option, modern fabrication allows for immense creativity. Square, hexagonal, and slotted patterns offer different aesthetic textures and airflow characteristics. Custom patterns can even be digitized to create images or logos when viewed from a distance, turning the perforated shade into a branding element or public art piece.

A Practical Perspective: Retrofitting for Comfort

In my professional experience overseeing facade upgrades, I recall a specific project involving a mid-rise office building constructed in the late 1990s. The west-facing facade was entirely glazed, and the tenants complained incessantly about the afternoon "oven effect." The HVAC system was running at maximum capacity, yet the interior temperature would still spike by 10 degrees in the late afternoon. We implemented a retrofit using vertical perforated aluminum fins set at a 45-degree angle. The difference was immediate. The physical temperature dropped, but the psychological impact was equally profound. The staff no longer felt the need to close their blackout blinds. They regained their view of the city, filtered through the perforated metal, and the building management saw a measurable drop in peak-load energy consumption during the summer months. It highlighted that these systems are not just decorative; they are essential machinery for occupant comfort.

Airflow and Ventilation Benefits

Thermal control is not limited to blocking light; it also involves managing heat accumulation. Solid masonry or composite panels can trap heat against the building skin. In contrast, a perforated sunshade promotes natural ventilation. As the metal heats up, the perforations allow air to circulate through the panel, dissipating the heat before it radiates to the building envelope. This "chimney effect" is particularly beneficial in double-skin facades, where the perforated layer acts as the outer skin, protecting the inner weather-sealed layer while allowing the cavity to breathe.

Installation and Structural Integration

Integrating these systems requires careful coordination between the architect, the structural engineer, and the installer. The wind load on a perforated panel is different from a solid surface, but it is still significant. The perforations reduce the overall wind resistance, but the mounting brackets must be robust enough to handle positive and negative pressures during storms.

Cantilevered sunshades, which project horizontally above windows, require clear structural tie-ins to the building frame. Vertical screens often require a sub-frame attached to the slab edges. The goal is to minimize thermal bridging—where the metal bracket transfers outside cold or heat into the building's interior. Using thermal breaks or isolators at the connection points is a best practice that prevents condensation issues and energy loss.

Conclusion

The utilization of a perforated sunshade represents a convergence of engineering precision and architectural elegance. It addresses the pragmatic requirements of energy efficiency and glare reduction while offering a dynamic canvas for design expression. For building owners and facility managers, the investment in a high-quality perforated metal shade yields returns through lower utility costs and improved tenant satisfaction. As building codes become stricter regarding energy performance, these passive design strategies will move from being optional upgrades to essential standard features in modern construction.
