Blackout Blind for Large Window: Spanning Wide Glazing with Motorized Precision

Introduction

Covering expansive glazing with room-darkening shades requires careful planning. Large architectural openings—such as picture windows, sliding door banks, and glass walls—introduce physical realities that standard window treatments cannot handle. When selecting a blackout blind for large window installations, fabric weight, roller tube rigidity, motor capacity, and perimeter light leakage all interact directly with one another. Without addressing these mechanical dynamics, oversized installations risk fabric sagging, motor strain, and distracting light halos around the edges.

Structural Dynamics of Oversized Window Coverings

The primary mechanical challenge of covering wide expanses with a single shade is tube deflection, often called the smile effect. As the width of a roller blind increases, the gravitational pull on the center of the metal tube causes it to bow downward. In opaque textiles with multi-layer coatings, this deflection produces visible ripples, waves, or diagonal puckering across the viewable surface.

To counteract barrel deflection on wide spans, manufacturers utilize heavy-gauge aluminum roller cores with larger internal diameters and internal reinforcement ribs. Choosing a stiffer core helps maintain horizontal alignment across the entire width of the glass. For applications where a roller tube might become excessively bulky, specialized blackout cellular shades offer an alternative approach. The internal honeycomb structure maintains uniform pleat spacing and creates a self-supporting vertical drop that distributes fabric mass across the top headrail evenly.

Single Continuous Span vs. Multi-Panel Configurations

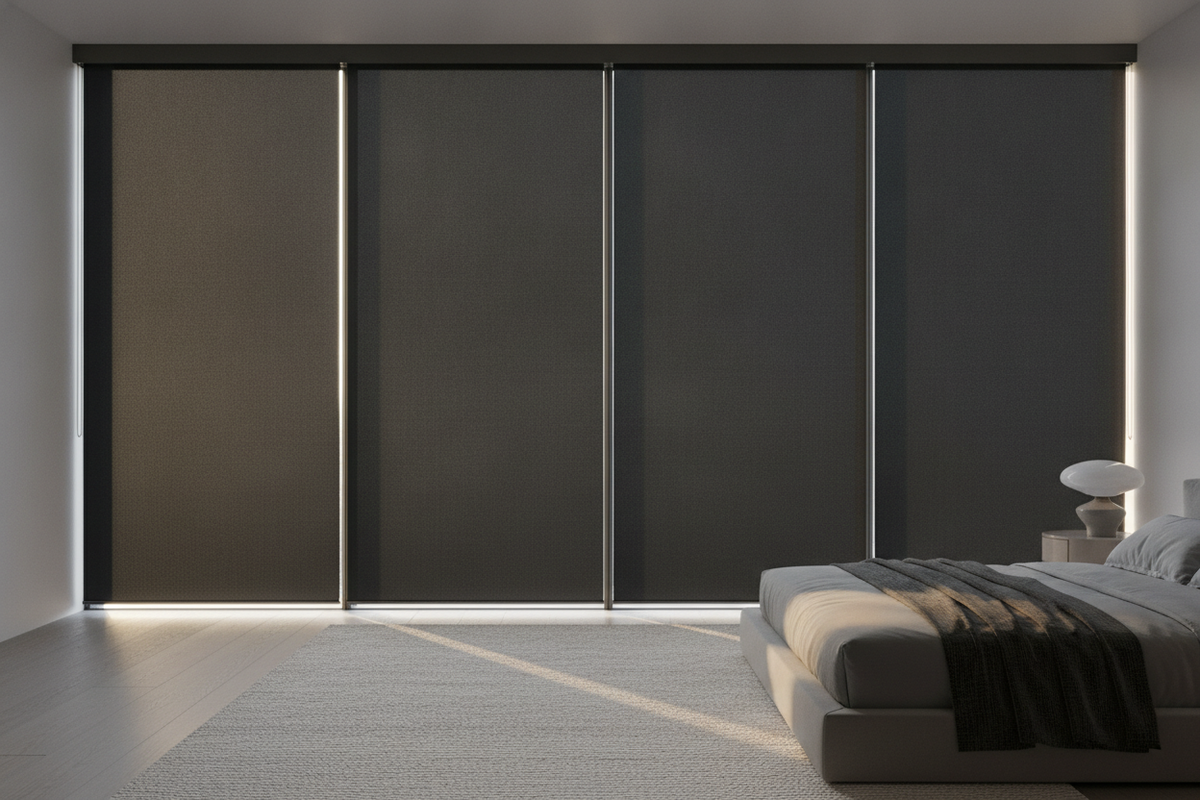

When planning blackout blinds for big windows, a fundamental design decision is choosing between a single continuous shade and a multi-panel arrangement. A single monolithic shade provides an uninterrupted visual surface when lowered, creating a clean aesthetic that complements modern architectural spaces.

However, monolithic shades require substantial top clearance for the larger roller cassette and demand higher-torque motors. Splitting an expanse into multiple adjacent shades aligned with window mullions is often a practical alternative. As explored in our walkthrough on covering big windows my setup for a large roller blind, dividing wide glass allows users to adjust individual panels for selective glare management while reducing mechanical load per unit. When splitting panels, consider intermediate bracket styles to minimize the vertical light gap between adjoining pieces of fabric.

Motorization and Power Systems for Heavy Blackout Fabrics

Multi-layered blackout textiles are significantly heavier than standard sheer or solar screen materials. Operating wide-span blackout shades manually using continuous bead chains can lead to physical fatigue and increased wear on clutch mechanisms. Motorized drive systems eliminate manual strain while ensuring smooth, balanced lifting across the entire width.

When specifying motors for substantial openings, power planning is essential. Homeowners can select from several power architectures depending on their renovation stage:

• Hardwired Line-Voltage (AC): Ideal for new construction or major remodels, hardwired line power supplies continuous torque for large, heavy fabrics without battery maintenance concerns.
• Low-Voltage Central Power (DC): Uses discrete wiring routed back to a centralized power panel, combining reliable power delivery with simpler in-wall wire routing.
• Rechargeable Tubular Motors: Convenient for retrofitting existing homes without tearing into drywall, often paired with discrete solar panels mounted behind window framing for continual top-offs.

Systems like the bouvardia series motorized blackout roller shades integrate robust motor options into sleek cassette housings, keeping heavy lifting mechanisms tidy and concealed. For an in-depth look at powering substantial spans across primary living areas, see our guide on blinds large windows guide.

Light-Sealing Strategies for Big Openings

An opaque textile only stops light where the fabric reaches; edge gaps around oversized windows can easily undermine room-darkening performance. Because roller fabrics must sit slightly inboard of mounting brackets to allow for rotating hardware, side light halos are inevitable on standard inside mounts.

To achieve true room darkening across wide spans, integrate dedicated light-sealing accessories:

• Side Channels and U-Tracks: Extruded aluminum channels mounted to the window jambs encapsulate the edges of the shade fabric, trapping light bleeds and preventing drafts from moving the textile.
• Top Fascias and Enclosed Cassettes: Conceal the top roll and eliminate the upper light gap between the rolled fabric and the window header.
• Bottom Rail Wool Brushes: Soft seals or channel grooves fitted to the bottom weight bar block light seepage where the shade meets the sill or floor.
• Outside Mount Overlaps: Extending the shade several inches beyond the window frame on all sides blocks direct line-of-sight light when side channels cannot be fitted.

Smart Control, Grouping, and Automation Architecture

Integrating large-span shades into a unified smart home platform simplifies daily operation. Rather than managing multiple remotes or manually pulling individual cords, automated scheduling enables hands-free sunlight and privacy management.

Multi-shade synchronization allows multiple adjoining panels covering a panoramic window to rise and lower in alignment. Grouping presets let you open shades to predefined intermediate positions for soft morning light, close them completely during peak afternoon heat to reduce solar gain, or trigger dark scenes for home theater use. Connecting these motorized shades to standard smart home ecosystems also enables simple voice commands and presence-based automation routines.

Summary Decision Checklist for Wide Window Blackout Projects

Before placing an order for wide-span blackout blinds, verify each aspect of your installation environment against this planning checklist:

1. Mounting Depth: Ensure the window frame depth can fully accommodate the necessary cassette or bracket size without obstructing window handles or cranks.
2. Structural Backing: Confirm that mounting screws anchor directly into solid wood studs or structural headers capable of supporting the combined weight of the heavy fabric, roller core, and motor.
3. Power Accessibility: Identify your power route early—verifying whether nearby electrical outlets exist for recharging or if rough-in wiring is accessible for permanent hardwired systems.
4. Perimeter Sealing: Determine whether side tracks or outside mount overlaps will be required to meet your specific darkness expectations in media rooms or bedrooms.
