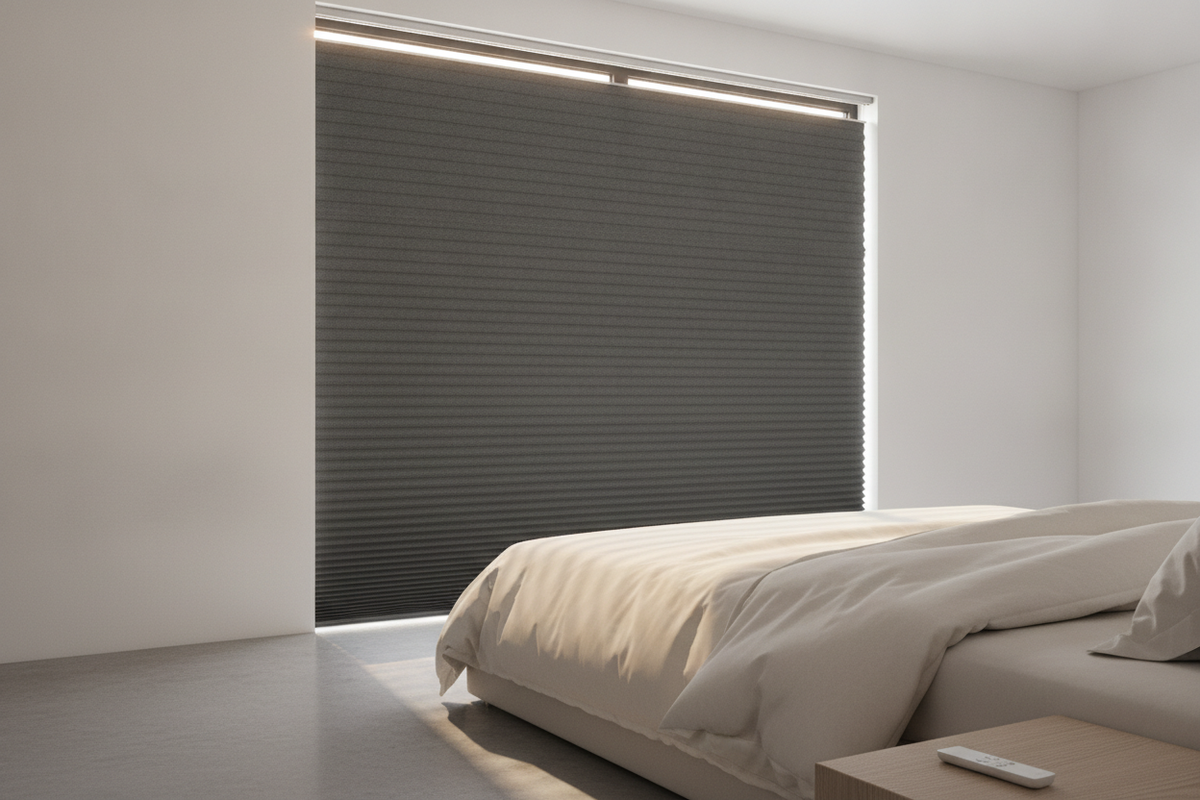

Blackout Cellular Blinds Guide: Honeycomb Mechanics, Light Blocking Physics, and Smart Motorization

The Engineering Behind Blackout Cellular Blinds

Achieving true room darkening requires addressing the multiple paths through which light enters a room. Standard horizontal and vertical blinds allow ambient light to seep through woven fabric fibers, between slatted gaps, and across physical cord routings. Blackout cellular blinds, commonly known as honeycomb shades, solve these vulnerabilities through a specialized multi-layer architectural design.

The primary barrier in a blackout honeycomb shade is an internal opaque film or metallic foil layer laminated within each polyester cell. While light-filtering cellular shades utilize a translucent non-woven textile that diffuses incoming daylight, blackout variants integrate an impermeable core that prevents direct and diffuse light transmission through the fabric plane. When exploring a comprehensive blackout cellular shades collection, this structural difference represents the divide between soft ambient glow and complete fabric opacity.

Concealed Cord Routing vs. Traditional Slat Rout Holes

Beyond fabric permeability, standard slatted blinds suffer from light leakage caused by punched cord holes. In traditional venetian or vertical window coverings, lift cords must pass directly through the body of each slat, creating hundreds of tiny pinhole openings that let daylight beam through. Cellular shades eliminate this issue through internal cord engineering. Lift strings travel entirely inside the enclosed hollow hexagonal chambers, hidden behind the front-facing fabric pleat. Because the exterior surfaces remain uninterrupted, light cannot bypass the shade through cord penetrations.

Single Cell vs. Double Cell Blackout Architecture

Honeycomb shades are constructed using either single-cell or double-cell geometries. Choosing between these designs affects not only light management but also structural stability and thermal regulation.

• Single-Cell Shades: Built with a single horizontal stack of hexagonal chambers. They offer a clean, contemporary profile with crisp horizontal pleat lines. Because they contain fewer fabric layers, single-cell designs maintain a relatively compact stack height when raised.
• Double-Cell Shades: Feature two interlocking layers of honeycomb pockets. This dual-chamber geometry creates two distinct dead-air barriers between the interior living area and the exterior window pane, enhancing resistance to conductive heat transfer.

For large architectural windows or draft-prone glazing, selecting a dedicated blackout cellular shades product with double-cell construction provides an extra layer of structural rigidity. The interlocking pockets keep the fabric taut and prevent pleat sagging across wide spans, ensuring uniform aesthetic alignment and consistent perimeter coverage.

Mounting Strategies: Eliminating Side Light Gaps

Even with opaque fabrics and concealed cords, an improper installation can compromise light control. The perimeter perimeter—specifically the vertical edge gaps between the shade fabric and the window casing—often produces a halo effect if mounting geometry is overlooked. Understanding installation physics is critical when reviewing an architectural blackout cellular shades guide.

Inside Mount Depth Dynamics and Side Channel Rails

An inside mount secures the headrail within the window jamb, offering a flush, tailored finish. However, manufacturing tolerances require a slight clearance gap on each side to prevent the moving fabric from grinding against the window frame. To neutralize the light halo created by these clearance tolerances, homeowners can install side-mounted U-channels or magnetic light-blocking tracks. These channels capture the fabric edges within an enclosed opaque track, sealing light paths along the entire vertical travel distance.

Outside Mount Overlaps for Complete Window Coverage

When window frame depth is too shallow for an inside mount, or when side channels are not preferred, an outside mount provides an effective alternative. By anchoring the headrail above the window trim and extending the shade width several inches beyond the outer casing on both sides, the fabric overlaps the frame entirely. This overlapping geometry forces incoming rays to travel around multiple physical corners, dampening edge glow across the perimeter.

Manual Cordless vs. Smart Motorized Blackout Cellular Shades

Modern blackout shades are available in both manual cordless configurations and smart motorized systems, each catering to different architectural needs and lifestyle preferences.

Cordless Tension Lift Mechanisms

Manual cordless shades utilize constant-force spring rollers housed inside the bottom rail or headrail. Users adjust the shade by gently lifting or pulling down the bottom bar, which holds its position through calibrated mechanical tension. This design eliminates hanging pull cords, producing clean visual lines while eliminating entanglement hazards around children and pets.

Motorized Control, Power Options, and Smart Home Ecosystems

Motorization introduces tubular DC motors concealed directly within the top headrail. These motors can be powered by concealed rechargeable lithium-ion battery packs or connected to hardwired low-voltage power distribution panels. Integrating a motorized blackout cellular shades product into a smart home network unlocks automated schedule controls:

• Scheduled Routines: Program shades to close automatically at sunset to maintain privacy and open at scheduled morning hours to introduce natural waking light.
• Scene Coordination: Pair shades with smart lighting and climate systems so that entering a media mode lowers the blinds while simultaneously dimming interior fixtures.
• Remote & Voice Management: Control individual shades or coordinated groups using wireless RF remotes, wall switches, smartphone applications, or smart voice assistants.

Window Suitability and Layering Design Frameworks

Blackout cellular blinds are well-suited for spaces that require strict illumination control during daytime hours, such as bedrooms, nurseries, home theaters, and executive home offices. Their sound-dampening honeycomb geometry also helps soften interior room acoustics by absorbing ambient sound reflections off hard glass panes.

For elevated aesthetic depth, many interior designers employ a layered window treatment strategy. Pairing minimalist blackout cellular shades with floor-to-ceiling drapery panels combines the geometric precision and insulating properties of honeycomb blinds with the soft, flowing textures of fabric curtains. The side drapery panels simultaneously cover the outermost edges of the window frame, virtually eliminating any residual light spill while adding warmth to the living space.
