Blackout Shade Side Track Guide: Light Gap Elimination, Channel Profiles, and Smart Motorization

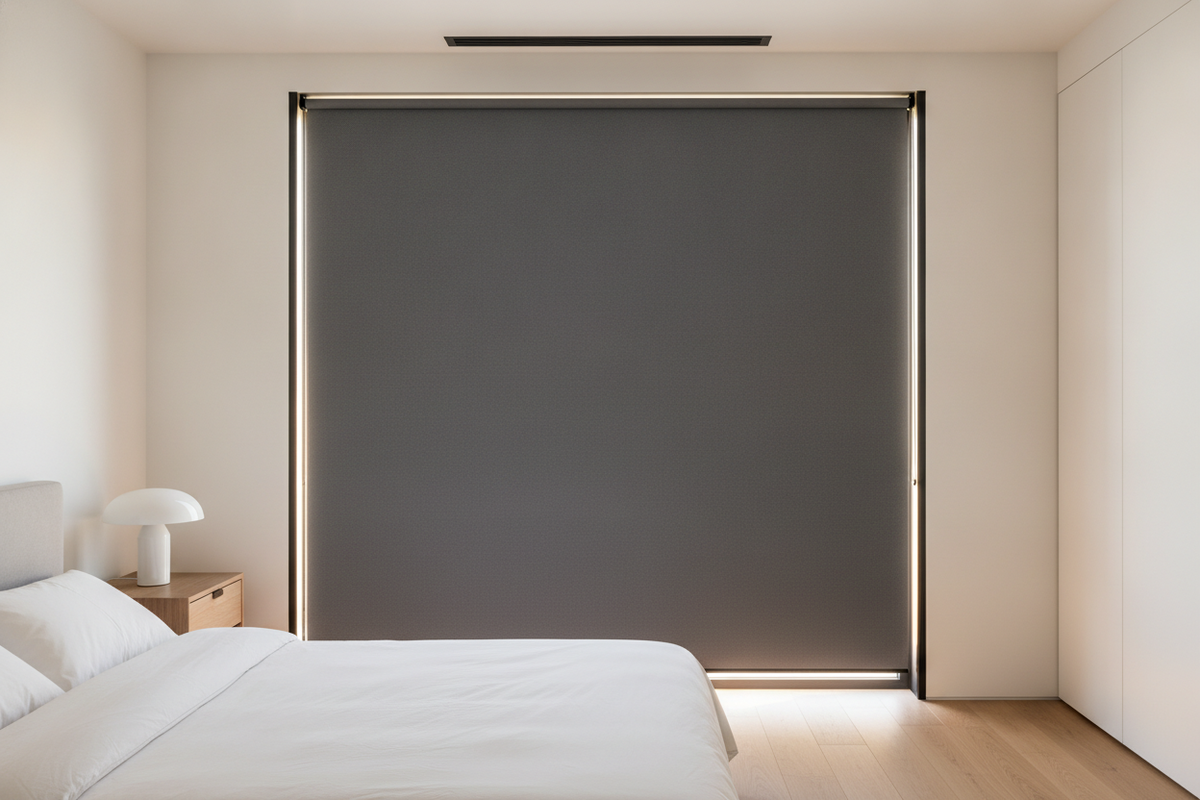

Installing an opaque window covering often reveals an unexpected frustration: perimeter light bleed. Even when textiles are completely impermeable to light, standard mounting hardware requires mechanical clearance at the left and right edges. This spacing allows incoming sunlight to form bright halos around the window frame. A dedicated blackout shade side track system addresses this issue by physically enclosing the lateral edges of the shade fabric within fixed vertical channels.

Whether you are designing a dedicated home theater, configuring a nursery, or setting up automated circadian lighting routines in a bedroom, understanding how side tracks interface with fabrics, motors, and window jambs is essential for achieving complete edge-to-edge room darkening.

The Anatomy of Perimeter Light Bleed: Why Fabric Alone Falls Short

Standard inside-mount window shades cannot span the exact width of a window casing. Motor assemblies, idler brackets, manual clutches, and spring mechanisms require lateral space on either side of the roller tube or headrail. Consequently, the actual shade fabric is narrower than the overall bracket-to-bracket width, leaving vertical light gaps along both jambs.

Perimeter light gaps degrade room-darkening performance because bright daylight reflects off interior window returns and diffuses throughout the room. For those seeking comprehensive coverage, exploring a total light blocking guide reveals that side rails are fundamental to blocking the light path. Side tracks encapsulate the edges of the moving textile, forcing incoming light into a confined channel where it cannot bounce into the living space.

Side Track Profiles: U-Channels, L-Angles, and Brush Light Seals

Manufacturers engineer side tracks in distinct geometries to balance light containment, structural stability, and smooth shade motion:

• Deep U-Channels: The most common profile for blackout blinds with side tracks, a U-channel features an outer wall, a back wall, and an inner retention lip. The fabric edge travels deeply inside the channel, preventing breezes or indoor drafts from blowing the material out of alignment.
• L-Angles (Light Blockers): L-shaped strips mount directly against the window frame to overlap the front or rear face of the fabric. While easier to retrofit on existing manual or motorized shades, L-angles offer less edge retention than full U-channels when air movement is present.
• Brush-Lined and Felt Light Seals: High-performance side tracks frequently integrate dense pile weatherstripping or soft felt inserts along the inner walls. These brush seals serve two critical purposes: they absorb peripheral light that enters the channel opening, and they prevent direct friction between the shade material and rigid aluminum or plastic rails during travel.
• Bottom Sills and Magnetic Channels: In complete enclosure systems, vertical side tracks tie into a bottom channel or magnetic landing pad to secure the hem bar, sealing the lower perimeter gap against the window stool.

Fabric Compatibility: Roller Shades vs. Cellular Shades in Track Systems

The internal mechanics of a shade dictate how it behaves within vertical guide rails. Comparing shade styles in a roller blinds cellular guide highlights fundamental differences in material movement:

Roller Shades with Side Tracks

Roller textiles are flat, tensioned sheets that roll neatly around an upper tube. When utilizing a blackout roller shade side track, the fabric must descend along a strictly vertical plane without bowing. A weighted bottom hem bar with end caps guided inside the track ensures the fabric stays taut. Precision alignment is necessary to avoid fabric puckering or edge fraying against the track walls.

Cellular Shades with Side Tracks

Honeycomb textiles feature three-dimensional cells that expand and compress as the bottom rail rises and lowers. Adding side rails to a blackout cellular shades collection creates an effective barrier because the structural depth of the cells naturally fills a wider track channel. The cellular geometry cushions the lateral movement, resulting in quiet travel with minimal edge friction.

Motorized Integration: Alignment Dynamics, Torque Balance, and Automation

Integrating side tracks with automated, motorized systems requires careful mechanical consideration. Because a motor drives the shade without manual tactile feedback, any obstruction or misdirection inside the channel can compromise performance.

Preventing Fabric Telescoping

Telescoping occurs when shade fabric rolls unevenly around the upper barrel, shifting laterally toward one side. In a standard open-bracket installation, slight telescoping causes minor visual misalignment; inside a side channel, it can cause the fabric to bunch, rub against the channel lips, or bind the motor. Proper leveling during headrail installation ensures straight, centered tracking.

Electronic Travel Limits

Motorized side track configurations require precise electronic limit programming. The lower limit must bring the bottom rail firmly into the sill channel without driving it so hard that the fabric slacks and bows outward. Similarly, upper limits must stop before bottom bar end caps collide with the upper channel entries.

Smart Automation Scenarios

When combined with smart home ecosystems, motorized shades equipped with side tracks—such as a blackout light cellular product—enable reliable automated environments. Users can schedule complete room darkening for midday naps, synchronize morning wake-up routines, or link media-room scenes to home theater remotes with the confidence that no ambient daylight will wash out the display.

Mounting Tolerances and Jamb Alignment: Handling Out-of-Square Windows

Window frames in residential and commercial buildings are rarely perfectly square. Because side tracks are rigid extrusions, accommodating frame variations is crucial for a smooth installation:

1. Casing Depth Assessment: Inside-mount side channels require adequate jamb depth to accommodate both the headrail and the vertical tracks. Ensure window handles, cranks, and lock latches do not intrude into the track path.
2. Three-Point Width Verification: Measure the window width at the top, middle, and bottom. If the jamb bows inward or outward, install shims behind the side rails to keep them strictly parallel. If the tracks taper inward toward the bottom, the hem bar may bind during descent.
3. Inside Mount vs. Outside Face Mount: When window jambs lack adequate depth or suffer from severe distortion, an outside-mount perimeter frame is often the ideal solution. Mounting the side tracks and headrail directly onto the surrounding wall surface or casing trim covers the entire window opening and eliminates edge gaps completely.

By selecting the appropriate channel profile, respecting frame tolerances, and ensuring balanced motorized alignment, side track systems transform standard room-darkening shades into a comprehensive perimeter light management solution.
