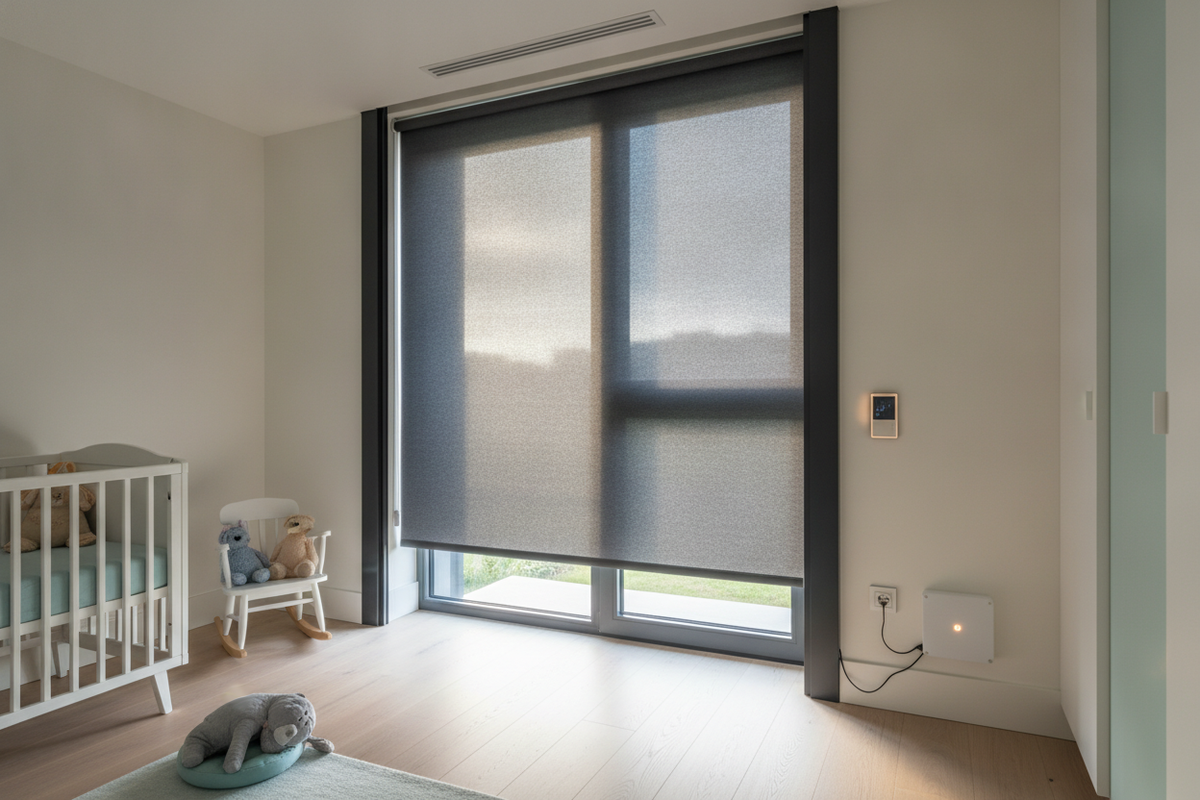

Blackout Shades Side Tracks: Motor Dynamics, Channel Profiles, Power Options, and Smart Control

The Perimeter Light Problem: Why Standard Blackout Shades Need Side Tracks

Standard roller treatments often leave narrow margins along the window jamb where direct daylight filters into the living space. Even when selecting fully opaque textiles from a blackout roller shades collection, hardware clearances and mounting tolerances allow ambient rays to bypass the shade material.

Understanding Edge Light Leakage Mechanics

Roller assemblies naturally feature mechanical gaps between the fabric edges and the window jamb. Operating hardware, including motor heads, idler pins, and bracket mounts, prevents the shade cloth from spanning the entire width of the frame. This geometric spacing creates perimeter light halos, which can compromise the visual immersion of home media spaces and disturb rest environments.

How Side Tracks Create an Enclosed Light Seal

Side tracks address perimeter bleed by providing vertical aluminum or polymer channels along each side of the window opening. As the shade lowers, its edges glide inside these recessed channels, physically trapping the borders of the textile. By redirecting the light path through multiple internal surfaces, these tracks effectively block direct rays from escaping around the edges of the shade fabric.

Side Channel Profiles, Brush Seals, and Fabric Tracking

Choosing the right channel profile determines how neatly a system integrates with existing window architecture and how effectively it seals out perimeter sunlight.

U-Channel vs. L-Channel Architectures

Channel designs are generally configured around specific mounting conditions:

• U-Channels: Designed primarily for inside-mount setups with adequate jamb depth. The fabric travels down an enclosed trough, creating a symmetric aesthetic along the inner frame.
• L-Channels (Perimeter Angles): Used extensively in outside mounts or shallow casings. These profiles mount against the face of the window frame or wall, overlapping the fabric edges to prevent light spillage.

Friction Reduction and Light-Tight Brush Inserts

Inside the channel, specialized liners serve a dual purpose. Flexible brush strips or dense mohair inserts block light while allowing the fabric hem bar and edges to glide without snagging. High-grade polymer inserts lower friction resistance, keeping the shade moving smoothly without causing the textile to bind, ripple, or fray along its borders.

Motorization Dynamics: Balancing Friction, Torque, and Smooth Travel

Introducing side channels changes the operating mechanics of motorized shades. As a home automation project, managing mechanical drag inside guided channels is critical to long-term reliability.

Motor Torque Requirements for Channel-Guided Shades

Unlike free-hanging shades, channel-guided systems encounter continuous contact friction along the vertical travel path. Installing reliable units like Classic series motorized blackout roller shades provides the steady torque output needed to overcome initial inertia and maintain uniform speeds across the entire window height.

Electronic Limit Setting and Obstacle Detection

Precise electronic limits prevent fabric damage inside track systems. If a bottom bar travels too low, it can catch on sill trim, while raising a shade past its upper threshold risks pulling the fabric out of the guide channels. Motors equipped with responsive stall detection help protect internal track components if an obstruction prevents smooth downward movement.

Power Architecture and Smart Ecosystem Integration

Motorized side track systems require careful planning regarding wiring, power delivery, and home automation connectivity.

Battery vs. Hardwired Power Considerations

Because side tracks line the jambs, running exposed wires can interfere with shade travel or disrupt clean sightlines. Hardwired installations benefit from pre-drilled channel raceways that conceal wiring within the window framing. For retrofits using rechargeable units, choosing shades with accessible charging ports or discrete solar charging panels avoids having to disassemble the tracks during routine maintenance. Hardware like Bouvardia series motorized blackout roller shades integrates cleanly with modern framing approaches.

Smart Automation Protocols and Circadian Scheduling

Integrating motorized tracks into smart home platforms enables automated scene management. You can coordinate your shades with circadian sleep schedules, trigger media room darkenings on command, or lower shades during peak sunlight hours to manage solar heat gain through home automation routines.

Navigating Complex Window Types and Architectural Tolerances

Window frames in residential spaces are rarely perfectly plumb and level. Careful alignment ensures that the channels remain parallel along their full length.

Addressing Out-of-Square Window Frames and Shimming

If side tracks are fastened directly onto bowed or out-of-square window jambs, the channel width can vary along the drop. Narrow spots cause the hem bar to bind, while wide sections may let the fabric slip free. Reviewing practical principles for modifying blackout roller shades for any window highlights the importance of using shims to ensure the rails sit plumb and parallel.

Application on Doors and Specialty Openings

Side tracks are especially useful on French doors and tilt-and-turn windows. By holding the fabric close to the glass pane, tracks prevent the shade from swinging outward or fluttering when doors open or breezes enter the room.

Realistic Trade-Offs, Maintenance, and System Selection

While side tracks deliver exceptional light control, they introduce distinct design and maintenance considerations. Channel hardware reduces the visible clear opening of the glass, which may affect narrow windows. Additionally, dust can gather inside the channels, so periodic vacuuming using a soft brush attachment is recommended to keep the track liners clean.

For homeowners deciding between fully enclosed tracks, standard rollers, or perimeter draperies, reading a detailed blackout roller shades guide helps clarify which hardware configuration best matches your lighting, aesthetic, and architectural needs.
