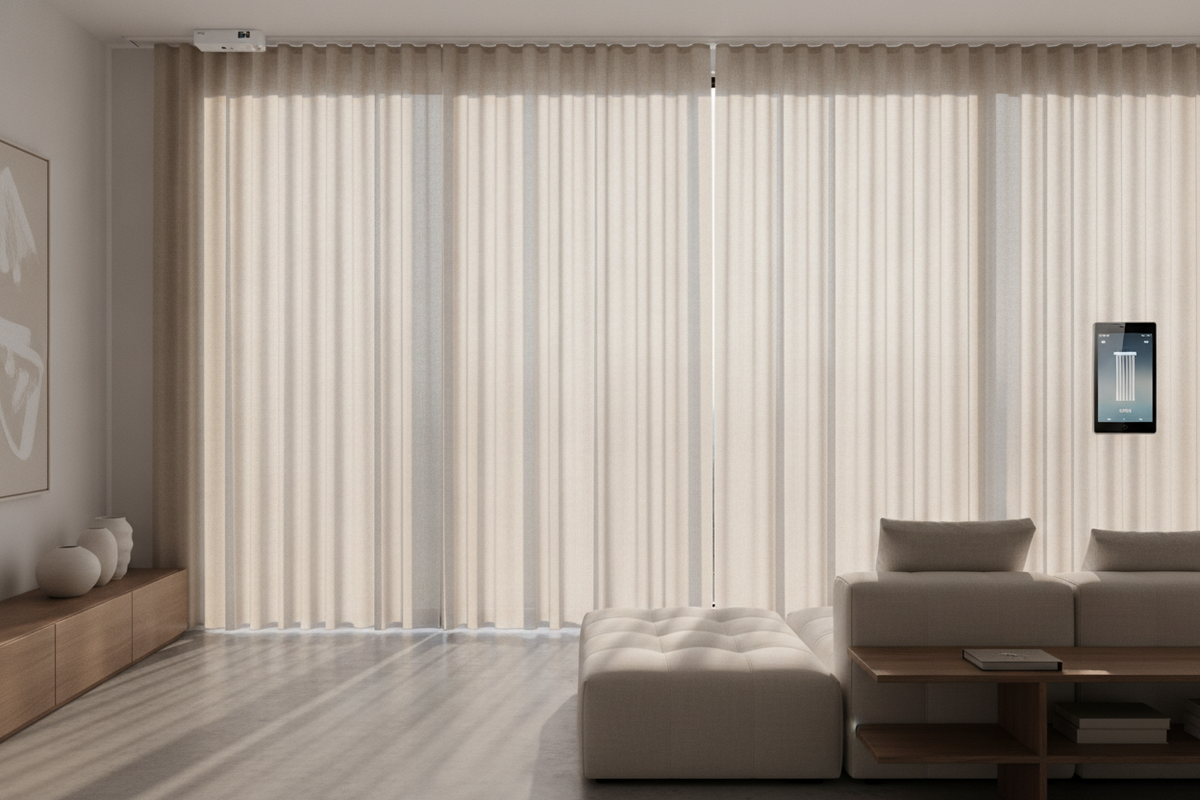

Blind and Curtain Installation: Layering Mechanics, Bracket Alignment, and Smart Automation Integration

Introduction: The Mechanics of Coordinated Window Treatments

Pairing functional blinds with drapery creates depth, texture, and versatile light control in modern interiors. However, a successful blind and curtain installation requires careful mechanical planning. When combining two separate window treatment assemblies within the same architectural envelope, installers must balance clearance depths, bracket clearances, dynamic load management, and motor accessibility to achieve clean aesthetics and smooth daily operation.

Without proactive planning, layered installations frequently suffer from common mechanical issues: curtain pleats catching on blind bottom bars, motor housings blocking bracket locks, or inadequate substrate support failing under dynamic operational torque. Approaching a coordinated blinds curtains installation from an architectural perspective ensures that both hard window coverings and soft draperies function together smoothly.

Architectural Clearance and Spatial Geometry for Layered Treatments

Before driving fasteners into window framing, evaluating the physical envelope of the window opening is essential. Reviewing a comprehensive curtains blinds guide helps clarify how fabric fullness, headrail dimensions, and mounting positions interact within various window frame profiles.

Inside-Mount Blinds Paired with Outside-Mount Curtain Tracks

The most common and mechanically straightforward configuration pairs inside-mount roller, cellular, or Venetian blinds with an outside-mount curtain track or rod. In this setup, the blind fits cleanly inside the window jamb, while the drapery mounts on the wall header above or onto the ceiling plane.

For this approach to succeed, the window jamb must offer sufficient depth to house the blind's headrail, brackets, and motor assembly without protruding beyond the casing face. Mounting the secondary curtain track outside the frame provides clear separation, allowing the curtain panels to glide across the opening without brushing against the blind fabric. When pairing functional base blinds with soft textiles, consulting a blinds curtain guide can assist in selecting fabric weights and pleat styles that coordinate smoothly with the inner shade.

Dual Outside-Mount Systems and Projection Bracket Spacing

When window jambs lack adequate depth for recessed mounting, both treatments must be mounted outside the casing. This requires specialized double projection brackets or two staggered track systems mounted to the wall or ceiling.

In a dual outside-mount system, the primary blind attaches closest to the wall, while extended projection brackets push the outer curtain rod forward. Maintaining sufficient projection clearance prevents drapery folds from dragging across the blind casing, eliminating friction and fabric wear during motorized or manual movement.

Substrate Anchoring and Hardware Load Management

Layered window coverings introduce significant static weight and active dynamic forces to wall surfaces, particularly when utilizing motorized tracks, dense textiles, or wide blind profiles.

Stud Fastening vs. Drywall Anchor Selection

Fastening brackets into solid structural framing or header backing is generally recommended when planning hardware layouts. Where timber studs or structural lintels align with mounting points, appropriate wood screws create a secure, stable attachment for the primary bracket assemblies.

In locations where bracket positions fall over hollow wall cavities, standard plastic expansion plugs are often inadequate for long-term reliability. Installers should consider heavy-duty steel toggle bolts or threaded metal hollow-wall anchors designed to support the combined static weight of motorized headrails, tracks, and hanging drapery fabric without pulling away from the substrate.

Managing Dynamic Load, Vibration, and Motor Torque

Motorized window treatments do not merely exert downward static force; they also generate rotational torque during motor startup and deceleration. Continuous track traversal and shade movement create subtle mechanical vibrations over time.

To counteract rotational torque, mounting brackets should be securely fastened with multi-point anchors that resist twisting forces. Using rigid, non-flexing brackets ensures that motorized assemblies remain plumb and level, preventing motor housing misalignment and premature gear train wear.

Step-by-Step Installation Framework for Dual Window Treatments

Executing a multi-layer installation requires a systematic workflow to ensure accurate alignment and prevent hardware overlap. Referencing a dedicated installation resource beforehand helps verify that all structural dimensions and mounting brackets align with your specific hardware configuration.

Phase 1: Baseline Sighting, Depth Clearance, and Level Lines

Begin by measuring the window frame diagonally to confirm whether the opening is square. Use a laser level or high-precision spirit level to project horizontal and vertical reference lines across the header and side casings.

Mark bracket locations with pencil indicators, ensuring that the primary inner brackets do not physically obstruct the mounting footprint or screw access of the secondary outer drapery brackets. For step-by-step guidance on retrofitting assemblies to existing trim, a dedicated blind curtain installation guide offers helpful procedural benchmarks.

Phase 2: Primary Blind Mounting and Alignment

Install the inner blind system first:

• Secure the primary mounting brackets into the marked locations, verifying alignment with a spirit level before fully tightening fasteners.
• Insert the blind headrail into the bracket clips until they engage with an audible click or positive mechanical lock.
• Operate the blind through a full travel cycle to verify that the fabric rolls evenly without telescoping to one side and that the bottom bar clears all internal trim.

Phase 3: Secondary Curtain Track or Rod Attachment

With the primary shade in place, mount the outer drapery system:

• Fasten the secondary ceiling or wall projection brackets along the upper reference line, ensuring adequate standoff distance from the inner blind.
• Mount the curtain track or rod assembly, confirming that track splices and carrier channels remain straight and level.
• Hang the outer drapery panels—such as a tailored curtains product—and test carrier movement across the full span to ensure unobstructed operation.

Power Sourcing and Cable Management in Motorized Installations

Motorized window treatments require deliberate power planning to maintain reliable operation and clean visual appeal.

Rechargeable Lithium Motors vs. Hardwired Line Power

Rechargeable wire-free motors eliminate the need for in-wall electrical rough-ins, making them well-suited for retrofit applications. When positioning rechargeable motors, ensure the charging port and magnetic connection points remain accessible without having to dismount the entire headrail or remove drapery panels.

Hardwired low-voltage or line-voltage motors offer continuous power without manual recharging cycles, making them ideal for high-reach windows or new construction. Wiring paths should be established prior to bracket installation so power leads enter the motor housing directly behind the track profile.

Concealed Conduit, Track Raceways, and Clean Cable Routing

Exposed wiring detracts from refined window architecture and risks snagging on moving drapery fabric. To maintain a clean installation:

• Route motor pigtails and low-voltage cables through paintable surface-mounted raceways aligned with window mullions or casing edges.
• Secure slack cabling with adhesive clips tucked behind the blind headrail or valance fascia.
• Ensure wires are kept clear of track carrier channels, moving belts, and rotating drive pulleys.

Smart Control Architecture: Multi-Channel Coordination and Scenes

Integrating dual motorized treatments into a unified smart home platform unlocks versatile environmental control and tailored lighting scenes.

Scene Sequencing: Independent vs. Synchronized Operation

Layered treatments offer distinct operational advantages when automated independently or in coordinated sequences. For example, programming daytime scenes can lower semi-sheer roller blinds to filter intense solar glare while leaving heavy outer curtains stacked open to preserve natural daylight.

Conversely, evening privacy or media scenes can trigger both systems simultaneously, lowering the internal shades and closing outer blackout curtains to achieve comprehensive room darkening and thermal containment.

Smart Protocol Compatibility: Zigbee, Matter, and Voice Integration

When selecting smart motors for layered treatments, pairing devices with compatible network protocols simplifies ecosystem integration. Multi-channel remote controls, dedicated automation hubs, and modern connectivity standards allow users to group blinds and curtains under single-room control zones, voice commands, and automated schedules.

Troubleshooting Operational Trade-Offs and Architectural Obstacles

Real-world installations often encounter physical obstructions and spatial limitations that require practical adjustments.

Mitigating Fabric Friction and Hem Catching

If drapery fabric brushes against the lower bar of an extended blind during traverse movement, verify the standoff bracket depth. Adjusting the curtain track forward by using extended mounting plates or spacer blocks restores necessary clearance, ensuring fabric hangs plumb without catching on lower hardware.

Navigating Architectural Handles, Cranks, and Mullions

Casement window cranks, sliding door handles, and deep window sills can interfere with downward blind travel. Where projecting hardware creates an obstruction, select reverse-roll shade configurations or mount the blind headrail forward within the jamb opening to provide a clear drop path.
