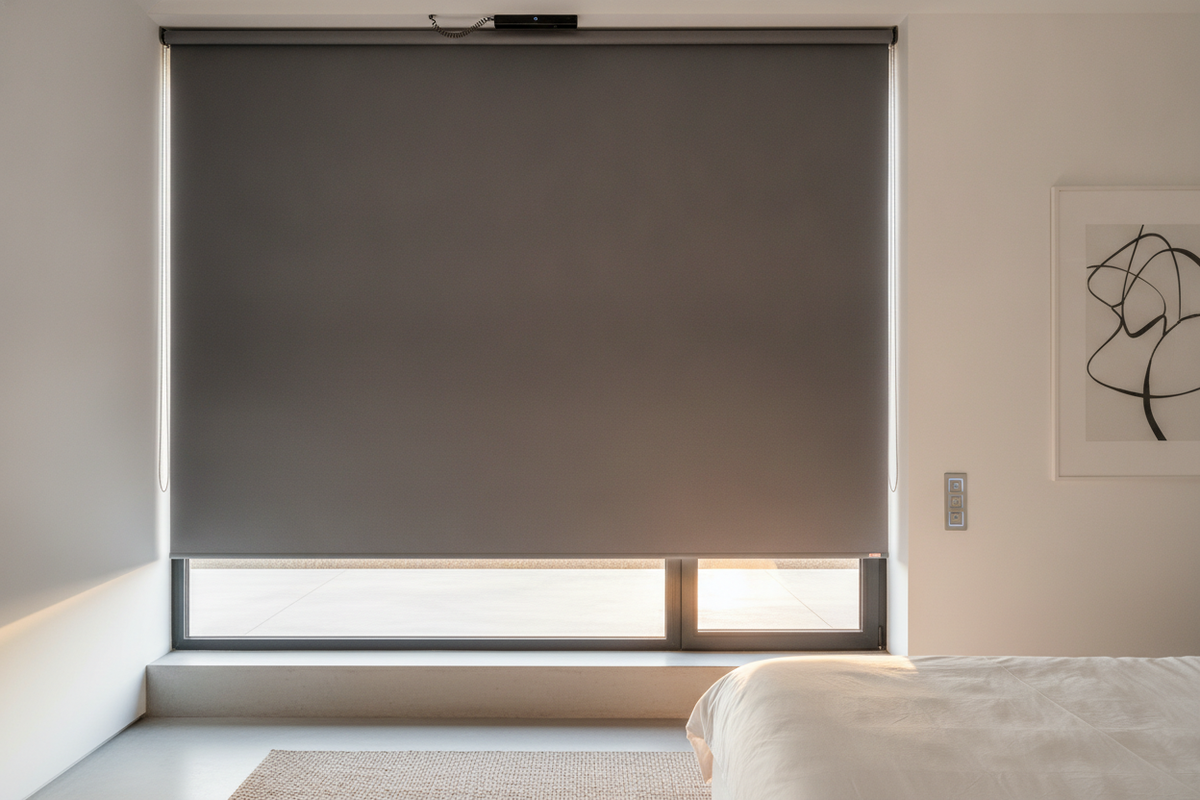

Blockout Roller Blind Architecture: Opacity Mechanics, Perimeter Light Gaps, and Smart Motorization

Anatomy of a Blockout Roller Blind: Fabric Composition and Core Mechanics

A reliable blockout roller blind relies on composite textile engineering rather than mere thickness. Standard window coverings often permit diffused glow through the weave, whereas true room-darkening shades use laminated or multi-pass coated textiles. In high-performance textiles, a woven polyester base fabric is bonded with acrylic or polyurethane backing layers to prevent visible daylight transmission through the weave.

Beyond the textile itself, mechanical tension across the roller tube dictates how evenly the shade hangs. If the upper aluminum barrel flexes under the weight of the textile, the fabric can cup or bow inward along the edges. Engineering internal blackout blinds requires selecting tube profiles with sufficient rigidity to support the fabric weight and bottom hem bar tension across the entire span.

Managing Light Gaps: Inside Mounts, Outside Overlaps, and Side Channels

Even completely opaque textiles cannot prevent light leakage if perimeter gaps remain unaddressed. Because roller shades require mounting brackets and drive mechanisms at each end of the tube, the fabric panel is narrower than the overall bracket-to-bracket width. In a standard inside mount, this mechanical requirement produces a visible perimeter glow along both vertical jambs.

Homeowners have several installation methods to mitigate this perimeter halo:

• Outside Mount Overlaps: Extending the roller assembly beyond the window frame allows the fabric to overlap the surrounding wall casing, diminishing direct edge transmission. Consulting a detailed roller shades resource helps establish proper overlap margins beyond the structural opening.
• Side Channels (U-Channels): Installing vertical guide tracks along the window jambs encases the fabric borders. These channels physically trap light and prevent air currents from shifting the shade.
• Layered Treatments: Combining drop down blackout curtains or tailored drapes with internal shades provides physical perimeter coverage over the side margins.

Manual Lift Systems vs. Motorized Drive Options

Choosing between manual operation and motorized control influences both daily convenience and long-term mechanical reliability. Traditional spring-loaded blackout shades pull down using internal coiled springs, balancing counterweight against manual resistance. While cost-effective, spring mechanisms can experience tension drift over extended use, occasionally leading to uneven roll-up or premature fabric skewing.

Beaded chain clutch loops provide more consistent manual positioning, though exposed loops introduce cord considerations in residential spaces. Modern motorized tubular drives fit directly inside the roller tube, driving the blind with steady rotational speed and electronic limit settings. Reviewing a comprehensive blackout roller blinds guide highlights how motorized lifting avoids the uneven pulling forces that cause edge fraying. Additionally, those exploring transitions from manual fixtures can reference a pull down blinds guide to understand how modern motor assemblies replace traditional spring cores.

Power Architectures: Rechargeable Battery vs. Hardwired Line Voltage

Motorized window treatments utilize two primary power architectures: wire-free rechargeable DC motors and hardwired power systems. Selecting between them depends on installation timing and the building structure.

Internal rechargeable lithium-ion motors are ideal for retrofitting existing homes. These motors store energy within the tube or in a discrete external wand, operating for extended periods between charging cycles via low-voltage cables or optional mini solar panels. Because they require no in-wall electrical rough-in, installation is straightforward and non-invasive.

In contrast, hardwired line-voltage or low-voltage DC setups suit new construction or major remodeling. Running dedicated power directly to each window casing eliminates manual recharging routines entirely. Hardwired systems also support continuous duty cycles on large openings where heavier multi-layered blackout fabrics require robust, consistent power delivery.

Smart Control Integration and Day-Night Automation Workflows

Integrating motorized shades into smart home ecosystems elevates them from passive barriers to proactive environmental controllers. Modern controllers connect via protocols such as Zigbee, Thread, Matter, Wi-Fi, or proprietary RF bridges, linking shade operation to centralized home automation hubs.

A common setup pairs a dual-roller bracket with an exterior sheer screen and an interior blockout shade. Automation routines can raise the darkening blind at dawn while deploying the sheer layer to diffuse daytime glare. In advanced configurations, homeowners consult a pull down shades guide to trigger shade deployment based on ambient light thresholds rather than static clocks. For dedicated sleeping zones, integrating bedtime routines with automated schedules, as outlined in a roller blinds blackout guide, ensures shades drop consistently each evening to maintain dark conditions.

Budget Trade-Offs: Entry-Level Pull Downs vs. Custom Motorized Assemblies

Evaluating window treatments requires balancing immediate product costs against long-term operational durability. Ready-made cheap roller shades blackout options offer accessible room dimming for standard window dimensions, making them practical for temporary housing or secondary utility spaces.

However, off-the-shelf pull down darkening shades frequently use thinner aluminum barrels and generic spring clutches, which can struggle to keep heavy blockout textiles tracking straight over several seasons. Custom motorized assemblies, while requiring a higher initial investment, feature tailored tube diameters, precision-machined brackets, and custom-cut side channels. For primary living areas, media rooms, and master bedrooms, investing in engineered mechanical assemblies provides reliable light sealing, balanced fabric tension, and hands-free smart home operation.
