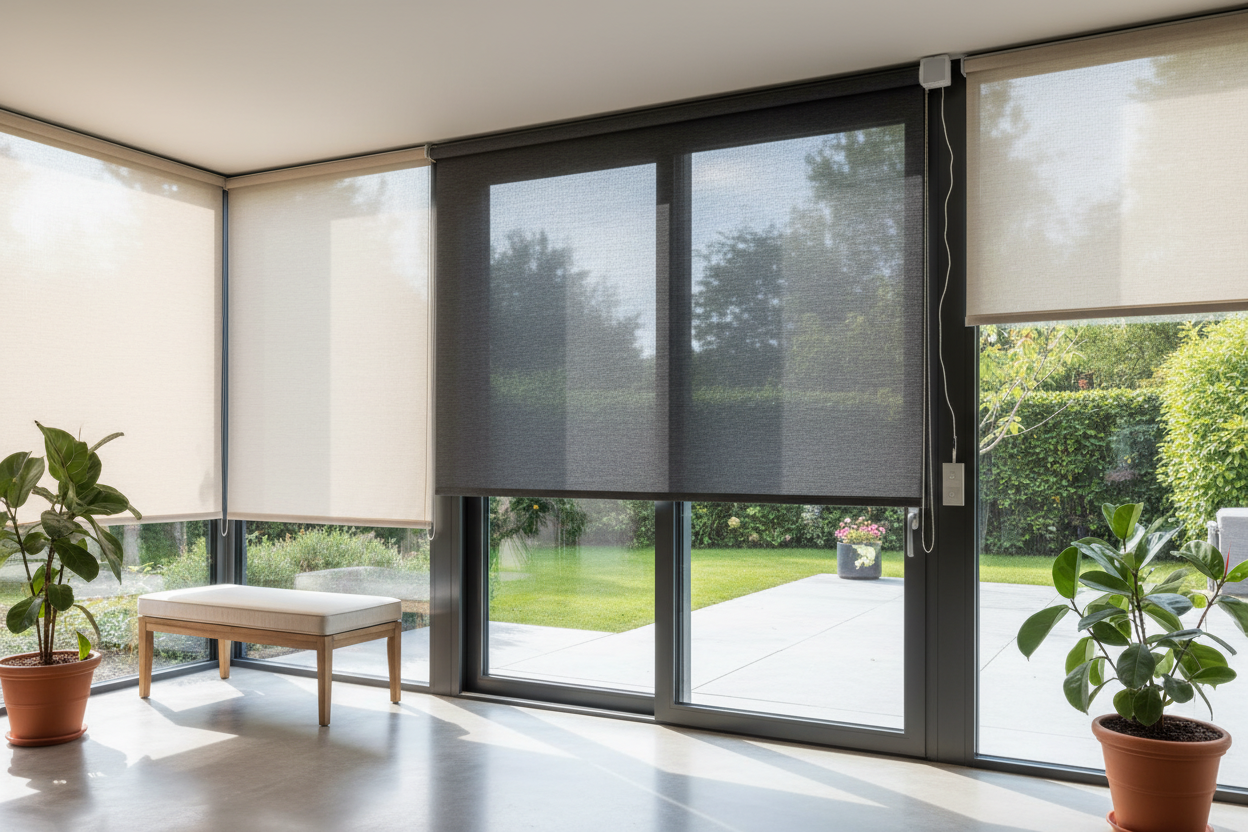

How to Sync Outdoor Pull Down Shades with a Cheap Lux Sensor

I used to think I was clever. I had my outdoor pull down shades set to a strict schedule: 5:00 PM every day, drop to 100%. Then Tuesday happened. A massive summer storm rolled in, the sky turned charcoal, and while I was inside frantically closing windows, my 'smart' shades deployed right into 30mph gusts. I watched through the glass as my expensive fabric turned into a giant sail.

That was the day I realized that clocks are the worst way to manage a patio. The sun doesn't care about your Google Calendar. It cares about the solstice, cloud cover, and that one pesky neighbor's tree that blocks the light for exactly twenty minutes at 4:30 PM. To fix this, I stopped using timers and started using light levels.

Quick Takeaways

• Time-based schedules fail because solar angles change weekly.
• A $20 Zigbee or Z-Wave lux sensor provides real-time data for cloud cover.
• Hardwired motors are superior for high-frequency sensor adjustments.
• Always include a wind-speed override to save your hardware.

Why 'Sunset' Routines Don't Actually Work for Patios

The problem with 'Sunset minus 2 hours' is that it's a blunt instrument. In June, that might be 6:00 PM. In September, it’s 4:30 PM. Even if you use an offset, your patio pull down shades are performing a dumb script. On an overcast day, you don't need them down at all. Lowering them just turns your patio into a dark, depressing cave when you could be enjoying the natural (albeit gray) light.

Standard automations also fail to account for the 'heat soak' effect. By the time the sun is low enough to trigger a sunset routine, your patio furniture and decking have already been baking for hours. You want the shades to react to the intensity of the light, not the position of the sun on a chart. If the UV index spikes at 2:00 PM, the shades should respond immediately.

The $20 Lux Sensor That Changed My Backyard

I picked up a basic outdoor-rated Zigbee lux sensor and mounted it to the underside of my eave. This is the tech savvy way to block sun on patio because it measures the actual light hitting your space. When the sensor detects more than 15,000 lux for a sustained five minutes, it triggers the shades. No guesswork required.

Placement is everything. Don't point it directly at the sun, or it will max out its reading instantly. I found that mounting it vertically, facing the area I want to protect, gives the most accurate 'real-world' brightness level. This prevents the shades from dancing up and down every time a single fluffy cloud drifts by.

Hardwired vs. Battery: What Heavy Automations Demand

Here is the cold truth: if you plan on using sensors to trigger your outdoor pull down sun shade, you need to think about power. A battery-powered motor is great for shades that move once a day. But when you have a lux sensor checking conditions every few minutes, you might find your shades moving three or four times an afternoon to account for weather shifts.

This is where the debate of battery vs hardwired power gets real. I burned through a 'long-life' lithium battery in six weeks once I automated my shades to be reactive. If you're building a truly autonomous system, run the 12V or 110V line. It’s more work upfront, but you won't be climbing a ladder with a charging brick in the middle of July.

How I Built the 'Sun-Blocker' Routine

I use Home Assistant, but you can do this in SmartThings or Hubitat too. The logic is simple: 'If Lux is above 10,000 for 5 minutes, AND wind speed is below 15mph, THEN lower shades to 80%.' That five-minute buffer is crucial. Without it, your motor will grind itself to death every time a bird flies past the sensor.

I specifically chose heavy-duty patio shades that can handle frequent movement. You want a motor with a high duty cycle. I also set a 'reverse' routine: if the lux levels drop below 2,000 for twenty minutes, the shades retract. This keeps the patio feeling open and airy the moment the harsh glare disappears behind the trees.

When to Override the Sensors (And Why You Must)

Automation is great until it isn't. You need a 'Grill Mode.' There is nothing more annoying than your smart home deciding to lower a PVC-coated shade while you're searing steaks on a 500-degree Weber. I use a physical Zigbee button stuck to the door frame that kills the automation for two hours.

You also need a hard-coded safety for wind and rain. Even if the sun is out, if my weather station detects gusts over 20mph, the shades stay up. Period. The motor torque required to pull a shade up against a stiff breeze is enough to snap a drive pin or tear the fabric tracks.

Personal Experience: The 'Ghost' Trigger

I once had my shades trigger at 2:00 AM because a neighbor's new security floodlight was pointed directly at my sensor. I woke up to the sound of the motor whirring in the dark. Now, I add a 'Time of Day' condition to my lux routine: it only runs between 8:00 AM and 7:00 PM. Learn from my insomnia; don't let your sensors run wild at night.

FAQ

Will a cheap sensor work in the rain?

Most are 'weather-resistant,' not waterproof. Mount it under an eave or inside a clear plastic project box to keep the electronics dry while still letting the light in.

Can I use my phone's light sensor?

No. You need a dedicated, fixed sensor that stays in the same spot. Your phone is in your pocket; it doesn't know how bright the deck is.

What if my WiFi goes down?

This is why I prefer Zigbee or Z-Wave for outdoors. They don't rely on your router's reach. As long as the hub is powered, the shades will still protect your furniture.
