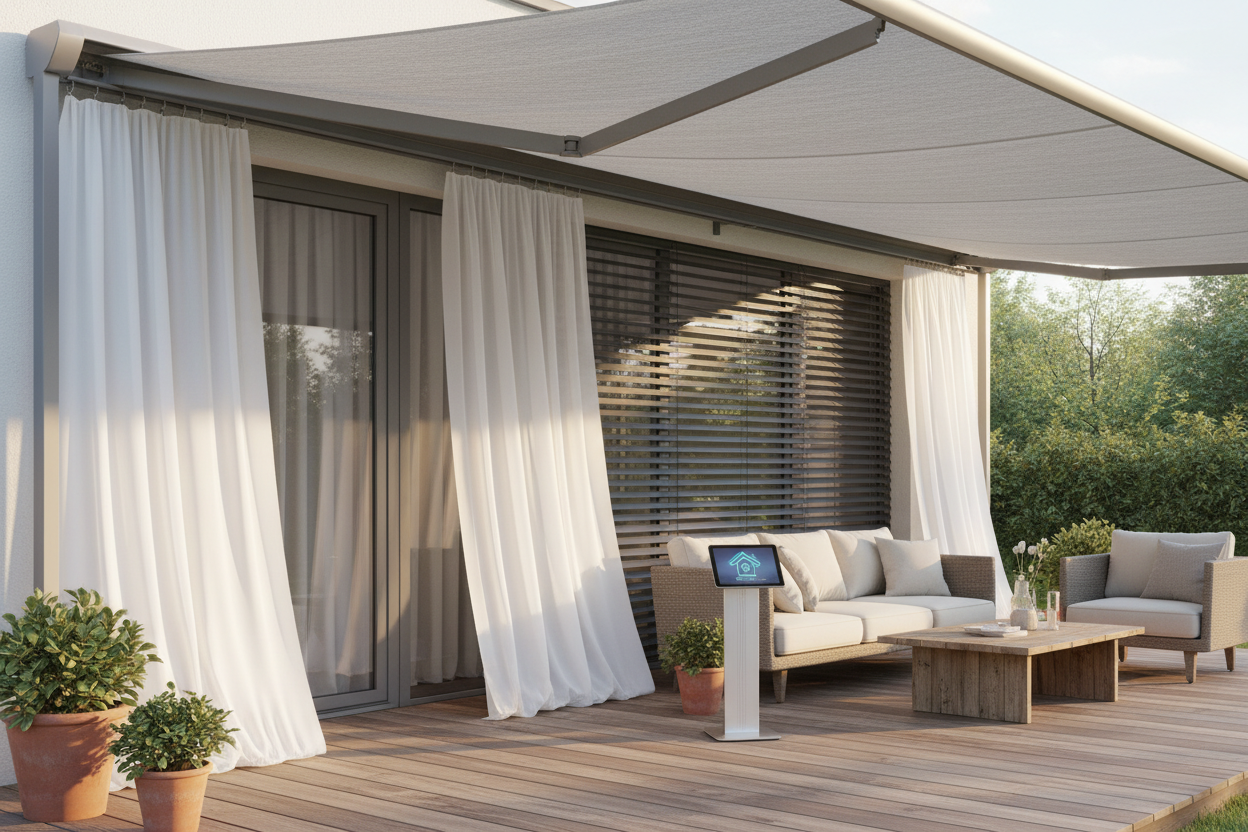

Build an Awning Over Deck: The Ultimate Smart Patio Setup

There is nothing quite like relaxing on your patio until the late afternoon sun turns your seating area into a sauna. I wanted the convenience of voice-controlled outdoor shades, but before installing the tech, I needed a solid structure. If you want to build an awning over deck spaces to house modern smart home upgrades, you have to plan for both carpentry and connectivity.

In this guide, I will walk you through how to construct a sturdy, tech-ready wooden frame that perfectly supports motorized screens, smart lighting, and weather sensors.

Project Specs at a Glance

• Skill Level: Intermediate DIY (basic carpentry and low-voltage wiring).
• Average Cost: $800 - $1,500 for lumber and hardware (smart shades and motors extra).
• Tech Readiness: Plan for 120V AC outlets on posts for hardwired motors or hub repeaters.
• Permits: Usually required if attached directly to your home's exterior ledger board.

Planning Your Connected Outdoor Oasis

How to Build a Wood Awning Over a Deck

When figuring out how to build a wood awning over a deck, the foundation is everything. You are not just putting up shade; you are building a mounting surface for heavy motorized roller tubes. I recommend using 6x6 pressure-treated posts and 2x8 rafters. This provides the sheer mass needed to prevent vibrations when heavy-duty motors are rolling up 12-foot wide privacy screens.

Start by securing a ledger board to your house framing using structural lag screws. Do not rely on the siding to hold the weight. Once your posts and beam are set, you can install the rafters. Leave a dedicated channel or use conduit along the top of the rafters to run low-voltage wiring for your smart ecosystem.

Wiring a DIY Back Porch Awning

A standard diy back porch awning usually just needs a coat of stain, but a smart awning needs power. Even if you opt for battery-powered or solar-charged exterior shades, you will likely want smart string lights or a Wi-Fi range extender out there. Run an outdoor-rated conduit from a GFCI outlet before you close up any soffits. Having dedicated power at the top corners of your frame makes retrofitting motorized shades infinitely easier later on.

Motorized Add-Ons: Shade and Weather Control

Choosing the Right Motorized Screens

Once you build a deck awning, the fun part begins. Exterior motorized shades act as walls you can control with your phone or voice. Because outdoor fabrics are heavy and block UV rays, you need motors with high torque. I prefer hardwired Zigbee motors for outdoor use. They maintain a mesh network connection much better through exterior walls compared to standard Wi-Fi motors.

Weather Sensors and Automations

The smartest thing you can do for an outdoor structure is add an anemometer (wind sensor). If a sudden storm rolls in while you are away, the sensor detects the wind speed and automatically triggers your awning's side screens to retract, preventing the tracks from bending or the fabric from tearing.

My Installation Notes: The Reality of a Smart Awning

Building the wood frame was straightforward, but integrating the smart tech had a learning curve. I initially mounted the motorized shade tracks flush against the 6x6 posts. What I didn't account for was the natural expansion and slight warping of the pressure-treated wood over the first six months. As the wood bowed slightly, the tracks pinched, causing the motor to stall out and trigger an overload protection error.

I had to go back, shim the tracks, and leave a tiny gap for seasonal wood movement. Also, the wind sensor I installed is a lifesaver, but it took three weeks of tweaking the sensitivity. At first, a gentle breeze would send the shades flying up in the middle of a family dinner. Now, it only triggers at a sustained 20 mph wind, which feels like the sweet spot.

Frequently Asked Questions

Can I add motorized shades to an existing wood awning?

Yes, as long as the structure is plumb and can handle the weight. You can retrofit battery-powered motorized shades easily, though you will need to recharge them every 3 to 6 months depending on usage and fabric weight.

Do I need a dedicated hub for outdoor smart shades?

It depends on the protocol. Wi-Fi motors connect directly to your router, but outdoor signals are often weak. A Zigbee or Z-Wave setup requires a hub inside the house, but offers much better reliability and battery life for exterior setups.

How do I hide the wiring on a wood patio frame?

The cleanest method is to route a shallow channel along the top or back of your wooden posts using a router tool before installing them. Lay the outdoor-rated wire inside, then cover it with a thin strip of matching wood or outdoor trim.
