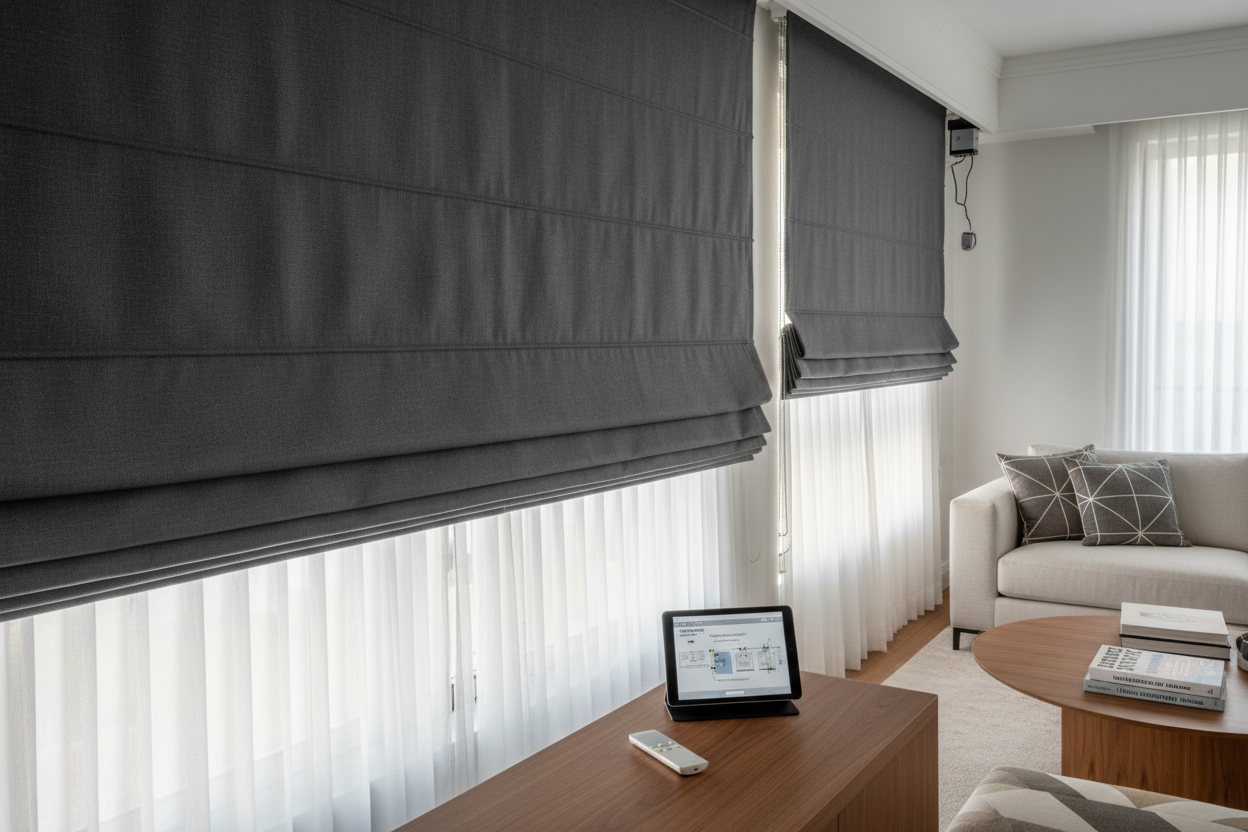

Build Smart: The Ultimate DIY Blackout Roman Shades Guide

Imagine triggering a "Movie Night" scene: the lights dim, the projector fires up, and your custom window treatments lower automatically to block out the streetlights. You don't need to spend thousands on Lutron or Hunter Douglas to achieve this. By combining basic fabrication skills with modern retrofit motors, you can build high-end diy blackout roman shades that integrate perfectly with your smart home ecosystem.

Key Specs for Smart DIY Builds

Before sourcing fabric or motors, understand the technical requirements for automating heavy blackout materials.

Feature	Specification / Recommendation
Motor Type	Tubular (Inside Tube) or Retrofit (Bead Chain)
Torque Requirement	Min 1.1Nm (for lined blackout fabric > 4ft wide)
Connectivity	Zigbee 3.0, Z-Wave, WiFi (2.4GHz), or RF433
Power Source	Rechargeable Li-ion (USB-C) or 12V Hardwired
Platform Support	Alexa, Google Home, HomeKit (via Bridge)

Fabrication: The Chassis for Your Motor

When learning how to make blackout roman blinds for automation, precision is more critical than in standard sewing. A manual operator can compensate for a slightly crooked lift; a motor cannot.

Material Weight and Torque

Blackout lining adds significant weight. Standard Roc-lon lining creates drag. If you are building a shade wider than 48 inches, avoid battery-powered "wand" retrofits. Opt for a dedicated tubular motor (like those from Rollease or Zemismart) inserted into a 1.5-inch aluminum tube. This ensures the motor has enough torque to lift the heavy drape without stalling.

The Lift Mechanism

If you are researching how to make blackout roman shades, you will choose between a cord lock system or a continuous loop. For smart integration, always build a continuous loop system or use a direct-drive tube. Cord locks are incompatible with automation. Ensure your lift cords are non-stretch nylon; any elasticity will cause the shade's "home" position to drift over time.

Power and Smart Integration

Once your shade is fabricated, you have two primary routes for automation:

1. The Tubular Motor (Pro Finish)

This replaces the manual mechanism entirely. The motor slides inside the headrail tube. It is quieter (usually ~35dB) and invisible. You will likely need an RF hub (like a Bond Bridge) to translate the motor's radio frequency signal into WiFi for Alexa or Google Assistant control.

2. The Chain Driver (Retrofit)

If you build your shade with a bead chain loop, you can attach a device like the Aqara E1 or Soma Smart Shades to the wall. This gear drives the chain. It is easier to install but louder (~45-50dB) and visibly bulky.

Living with diy blackout roman shades: Day-to-Day Reality

I’ve lived with my custom motorized roman shades for about two years now, and there are sensory details the spec sheets don't mention. The first thing you notice is the sound profile. In a noisy living room, you won't hear them. But at 6:30 AM in a dead-silent bedroom, even a "quiet" 30dB tubular motor creates a distinct mechanical hum that acts as a secondary alarm clock.

Another nuance is the "settling" factor. Because I used a heavy blackout thermal liner, the fabric relaxes differently depending on the humidity. Every few months, I have to go into the app and adjust the lower limit by about a quarter-inch; otherwise, the bottom bar starts resting on the sill too heavily, creating slack in the lift cords. It’s not a malfunction, just the reality of automating fabric vs. rigid blinds. Also, getting the charging cable to tuck away invisibly behind the valance took me three tries and a lot of gaffer tape—plan your cable management before you mount the brackets.

Conclusion

Building your own smart blackout shades is a project that sits at the intersection of craft and tech. It requires patience to sew straight lines and patience to configure Zigbee networks. However, the result is a custom window treatment that costs a fraction of the price of Lutron Serena shades, with the exact fabric and opacity you desire.

Frequently Asked Questions

How long does the battery last on DIY motors?

On average, a rechargeable tubular motor used twice daily (up/down) lasts 4 to 6 months. Heavier blackout fabrics may reduce this to 3 months due to the higher torque required.

Can I open them manually during a power outage?

Generally, no. Tubular motors lock in place when unpowered. Retrofit chain drivers usually have a manual release button, but true internal motors will leave the shade stuck in its current position until power is restored.

Do I need a hub?

It depends on the motor. WiFi motors connect directly to your router but drain batteries faster. Zigbee and RF433 motors require a gateway (like SmartThings, Hubitat, or Bond Bridge) to communicate with voice assistants.
