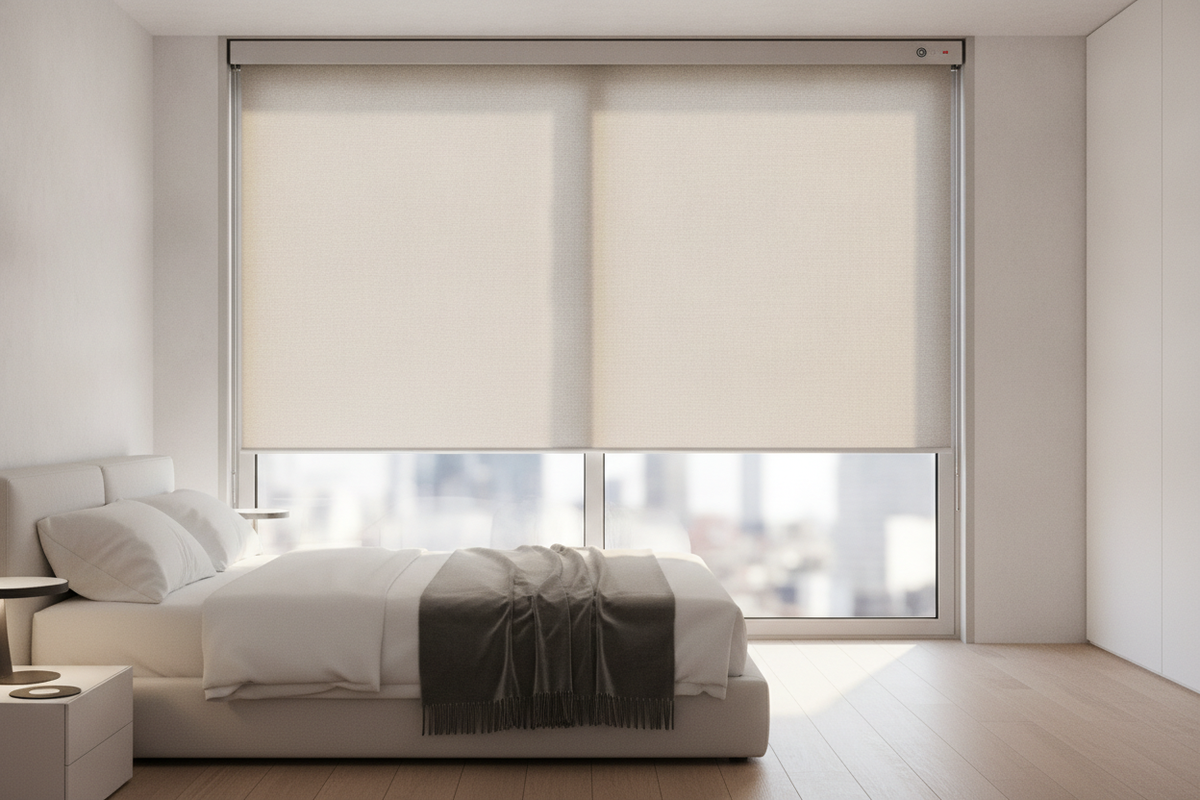

Cassette Blinds Guide: Enclosed Headbox Mechanics, Light Sealing, and Smart Motorization

When selecting window treatments for modern residential spaces, light control and clean architectural lines remain central priorities. Standard roller shades leave the fabric roll, internal drive components, and mounting brackets fully exposed to the room. In contrast, cassette blinds enclose the top mechanical assembly within an integrated structural housing, delivering a streamlined appearance while fundamentally altering how the shade manages light leakage and physical wear.

What Are Cassette Blinds? Anatomy of Enclosed Roller Systems

At their core, cassette window blinds consist of an engineered aluminum or composite headbox that fully or partially surrounds the upper roller tube. Unlike open-roll configurations, roller blinds with cassette designs house the idle end, motor or spring drive, and rolled fabric layer within a unified protective shell.

The structural anatomy of a modern cassette shade includes several key elements:

• Cassette Headbox: The external shell, available in rounded, square, or low-profile designs, which shields the roll from dust accumulation and mechanical contact while matching the surrounding trim.
• Internal Roller Tube: The structural core that supports the fabric panel and houses the tubular motor or manual spring mechanism.
• Mounting Brackets and Endplates: Specialized internal or top/rear clip hardware that secures the cassette directly into window jambs or wall faces without exposing mounting screws.
• Bottom Rail: A weighted hem bar that maintains fabric tension during travel, often designed to seat flush against the underside of the cassette when fully retracted.

By sheltering the fabric roll inside the enclosure, the system prevents ambient dust, grease, and sunlight from settling on top of the coiled textile, reducing localized fading and fabric degradation over time.

Light Control Engineering: Cassette Housings vs. Side Channel Integration

One of the primary challenges of standard window treatments is light bleed around the top roll. In an open-roll shade, light passes freely over the fabric tube and spills across the ceiling and upper walls. Installing a dedicated cassette for roller shades creates a physical barrier above and around the roller mechanism, significantly reducing upper light gaps.

For spaces requiring complete darkness, a standalone headbox can be paired with matching side and bottom channels to form a comprehensive blackout cassette roller blind. In these installations, the fabric edges travel inside continuous U-channel or L-angle aluminum tracks fitted with light-absorbing brush seals. Reviewing a detailed blackout roller shades guide helps clarify how combining an enclosed top headbox with perimeter channels addresses lateral light gaps compared to standard hung fabrics.

When planning blackout roller blinds with cassette hardware, it is helpful to distinguish between two distinct light-control setups:

• Cassette Only: The enclosed headbox blocks upper light spill and conceals the roller mechanism, while the fabric drops freely along the window pane. This provides strong privacy and direct glare reduction while permitting minor edge illumination.
• Cassette with Side Channels: The headbox interfaces seamlessly with vertical side tracks and a bottom sealing profile, enclosing the fabric on all four sides to prevent light infiltration along the frame perimeter.

Motorization and Concealed Power Options in Cassette Roller Blinds

The integrated cavity of a cassette roller blind makes it particularly well-suited for automated smart home applications. Because the tubular motor resides inside the internal roller tube, the motor head, antenna leads, and power connections are completely concealed within the end caps of the cassette headbox.

Homeowners can evaluate several motor power and communication architectures depending on structural wiring access:

• Rechargeable Battery Motors: Internal lithium-powered tubular motors eliminate visible electrical cords and can be charged via discreet magnetic ports or paired with compact solar trickle panels mounted behind the cassette.
• Low-Voltage Hardwired Power: Direct DC wiring routed through the wall cavity into the cassette mounting bracket provides continuous power without the need for manual recharging.
• Smart Control Integration: Motorized cassette assemblies can interface with smart home ecosystems through wireless protocols such as Zigbee, Matter, or radio frequency gateways, enabling automated scheduling and scene control.

For spaces where sleek motorization is preferred, selecting a specialized blackout roller shades product ensures the motor torque, tube profile, and cassette housing operate in quiet alignment without visible wiring.

Mounting Configurations and Window Frame Requirements

Proper installation of a cassette window treatment depends on accurate window framing evaluation and depth clearance. Homeowners generally choose between inside mount and outside mount orientations:

• Inside Mount: The cassette sits recessed entirely within the window casing. This creates a clean architectural finish flush with the surrounding wall. It requires adequate jamb depth to accommodate the full profile of the cassette without protruding into the room or interfering with window cranks and handles.
• Outside Mount: The cassette attaches directly to the wall face or window trim above the opening. This configuration is ideal for shallow window frames, tilt-and-turn windows, or instances where overlapping the window trim is desired to maximize light blockage.

When measuring for inside mounts, measuring the frame width across the top, middle, and bottom ensures the cassette snaps evenly into place without binding against uneven framing.

Selecting the Right Cassette Blind Setup: Decision Framework

Selecting between various cassette blackout blinds involves balancing aesthetic goals, window dimensions, and practical room demands. Thicker multi-layer blackout textiles naturally increase the rolled fabric diameter, requiring a slightly larger headbox profile to ensure smooth retraction without interior rubbing.

Consider the following application guidelines when planning your shading layout:

• Bedrooms and Media Rooms: Prioritize an enclosed cassette paired with edge-sealing side channels to achieve dark sleeping or viewing conditions.
• Home Offices and Living Spaces: A standalone cassette housing with solar or light-filtering fabric provides glare management and sleek hardware concealment without requiring perimeter channels.
• Maintenance and Accessibility: Enclosed systems require minimal routine upkeep; occasional dusting of the exterior housing and gentle spot-cleaning of the fabric panel keep the mechanism operating smoothly.

Exploring a comprehensive blackout roller shades collection allows you to compare headbox finishes, fabric opacities, and motor configurations to achieve the ideal balance of light control and design cohesion throughout your home.
