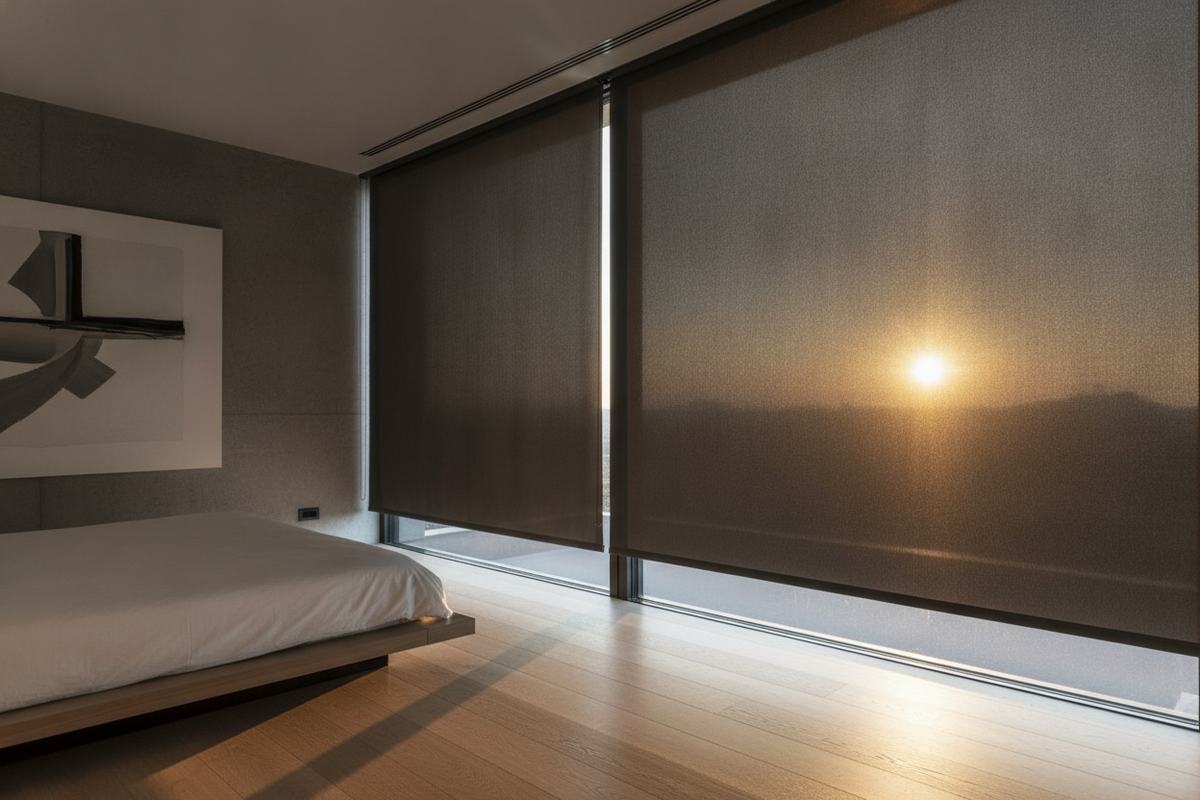

Custom Blackout Roller Shades: Precision Sizing Mechanics, Edge Gap Management, and Smart Motorization Architecture

Architectural Precision: Sizing Dynamics and Edge Gap Management

Standard off-the-shelf window coverings frequently struggle with light leakage around the frame perimeter. In spaces such as media rooms, bedrooms, and presentation areas, achieving high-level room darkening requires bespoke sizing. Selecting a tailored system from a dedicated blackout roller shades collection enables precise alignment between shade hardware and the surrounding architectural frame, directly minimizing unwanted ambient bleed.

Inside vs. Outside Mount Tolerances and Light Bleed Dynamics

The primary mechanical challenge with inside-mounted shades is the clearance needed for operating brackets and drive mechanisms. Because the fabric roll cannot span the exact width of the window opening without rubbing against the jambs, narrow light gaps naturally form on each edge. In an inside mount, fabric deductions ensure smooth operation but inevitably leave small peripheral margins where daylight can enter.

Conversely, outside mounts eliminate inside-jamb clearances by extending the roller tube and fabric across the outer face of the window frame or adjacent wall surface. Overlapping the outer trim allows the opaque textile to bypass the inner opening entirely. As detailed in our comprehensive custom blackout roller guide, planning sufficient perimeter overlap is the simplest method for mitigating side-gap halo effects without introducing complex frame channels.

Side Channels and Cassette Enclosures for Total Light Occlusion

When an inside mount is architecturally necessary, complete light occlusion requires specialized containment profiles. Extruded aluminum side channels and bottom tracks encase the fabric edges along their full vertical travel. Integrated brush seals or flexible thermoplastic sweeps prevent light from escaping past the fabric borders while stabilizing the material against room drafts.

At the top of the window, an enclosed cassette or fascia housing prevents top-roll light glow. A closed cassette conceals the roller barrel and motor assembly, shielding the upper aperture and providing a finished, architectural appearance that integrates cleanly with modern millwork.

Blackout Fabric Substrates and Multi-Layer Material Engineering

The performance of a blackout roller shade depends heavily on the structural integrity and composition of its fabric. Opaque textiles must balance light blockage, dimensional stability, rolling diameter, and resistance to environmental moisture or temperature fluctuations.

Multi-Pass Acrylic Coatings vs. Composite Opaque Cores

Blackout fabrics generally rely on one of two engineering approaches: multi-pass coating or multi-layer lamination. Coated fabrics utilize a base textile, such as woven polyester or fiberglass, finished with multiple layers of acrylic foam backing. The outer decorative face retains the texture of a traditional weave, while the opaque reverse layers seal the microscopic gaps between fibers.

Composite core fabrics embed a solid opaque layer between two outer textile layers. This sandwich construction delivers uniform opacity regardless of face color and offers high resistance to pinhole light leaks. High-grade core composites also provide improved thermal resistance, helping to reduce radiative solar heat gain at the glass boundary.

Roll Diameter, Barrel Deflection, and Bottom Rail Weighting

Because blackout textiles are inherently heavier and thicker than sheer or semi-translucent fabrics, custom sizing must account for rolled bundle diameter and tube stiffness. As fabric rolls up, total bundle thickness increases, requiring appropriate bracket depth and cassette sizing. If a wide span utilizes an undersized tube, the center of the barrel can deflect under the weight of the fabric, leading to horizontal v-shaped puckering.

A well-weighted bottom rail is equally critical. Balanced ballast maintains consistent downward tension across the full fabric drop, keeping the sheet planar and preventing the edges from curling inward over time.

Power Delivery and Motorization Architecture for Custom Rollers

Integrating motorization into custom-sized blackout shades enhances convenience while eliminating manual operating chains for a cleaner, safer aesthetic. Modern tubular motors reside entirely inside the roller barrel, preserving clean lines across the installation.

Tubular Motor Sizing and Dynamic Load Distribution

Tubular motors are engineered to match the mechanical load of the shade. Wider and taller custom shades require larger internal tube profiles to prevent mechanical sag and motors calibrated to deliver steady rotational torque. A purpose-built blackout roller shades product balances motor lifting capacity with soft-start and soft-stop profiles, reducing mechanical stress on mounting hardware during everyday operation.

Hardwired Low-Voltage vs. Rechargeable Battery Systems

Selecting a power architecture depends on whether the installation is part of a new build, a major renovation, or a retrofit project:

• Hardwired Low-Voltage Systems: Ideal for new construction, low-voltage wiring delivers continuous power without the need for periodic charging. Wiring can be centrally routed to a dedicated power distribution panel, ensuring clean wall cavities and uninterrupted operation.
• Integrated Rechargeable Motors: In existing spaces where opening walls for wire runs is impractical, tubular motors with concealed lithium-ion batteries provide an effective alternative. Modern designs maintain slim barrel profiles and can be charged via discreet magnetic ports or paired with small, unobtrusive solar trickle panels.

Smart Home Integration Protocols and Multi-Zone Control Strategies

Automated blackout shades provide the greatest utility when incorporated into comprehensive smart home ecosystems. Synchronizing shading with lighting schedules, occupancy sensors, and HVAC cycles optimizes energy efficiency and natural daylight management.

Wireless Protocols: Zigbee, Matter, RF, and Ecosystem Bridges

Motorized shade controllers support several communication topologies. Proprietary radio frequency (RF) motors offer reliable remote control and can connect to home automation hubs through dedicated RF-to-IP gateways. For unified mesh environments, motors utilizing Zigbee or Thread protocols can integrate directly with major smart platforms, enabling local automation routines, scheduled adjustments, and synchronized multi-shade movement without external cloud dependencies.

Dual-Layer Day-Night Shading Configurations

A single blackout shade provides total privacy and room darkening, but it cannot offer filtered daylight or daytime view preservation. Dual-bracket assemblies solve this limitation by mounting two independently controlled rollers within the same window frame.

By pairing an interior sheer or solar screen roller with an exterior-facing blackout shade, homeowners achieve dynamic solar control. Choosing a specialized shades custom size product enables precise dual-layer management, allowing users to switch between softly diffused daylight, unobstructed views, and complete evening privacy through automated scenes.

Window Architectural Profiles and Implementation Decision Matrix

Diverse window types introduce distinct installation constraints that should be evaluated prior to manufacturing custom shades.

Deep Jambs, Floor-to-Ceiling Glazing, and Corner Windows

Window architecture dictates the ideal mounting and channel strategy:

• Deep Window Jambs: Provide sufficient recess depth to fully conceal cassettes, motor wiring, and side channels within the frame line.
• Floor-to-Ceiling Expanses: Demand larger aluminum tubes to prevent horizontal deflection across expansive fabric drops, often benefiting from pocket ceiling recesses planned during framing.
• Corner and Mullion Intersections: Require careful calculation of bracket spacing to prevent corner shade collisions while keeping the unprotected glass seam as narrow as possible.

Calibration, Upper/Lower Limit Programming, and Maintenance

Proper commissioning ensures the long-term reliability of custom blackout roller shades. Setting accurate electronic limits prevents the bottom rail from resting forcefully on the sill or retracting too far into the cassette housing. For routine maintenance, gentle dusting with a soft microfiber cloth and periodic inspection of side-channel tracks ensure smooth, quiet operation across years of service.
