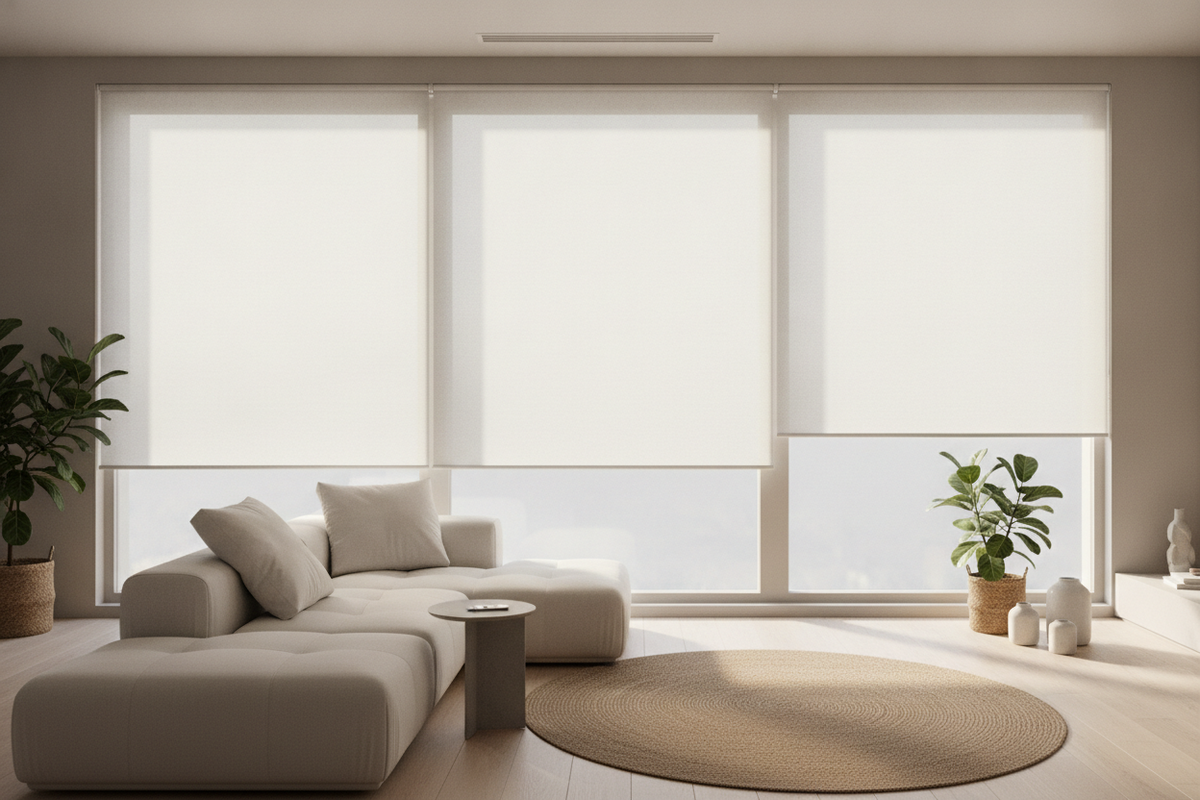

Cut-to Size Blackout Roller Shades: Trimming Mechanics, Edge Light Gaps, and Smart Motorization Trade-Offs

The Engineering Behind Cut-to Size Blackout Roller Shades

Window coverings that permit on-site modification provide rapid installation and budgetary flexibility. When selecting cut size shades guide strategies, homeowners frequently encounter cut-to size blackout roller shades designed to be trimmed to specific window widths. Unlike factory-engineered models built strictly to millimeter dimensions, trimmable units rely on standardized tube architectures and wide-format textiles that accommodate field alterations.

Tube Construction: Extruded Aluminum vs. Composite Cores

The structural backbone of any roller assembly is its barrel. In trimmable roller shades, this core typically consists of light-gauge extruded aluminum, reinforced cardboard composite, or thin PVC tubing. Extruded aluminum offers superior torsional rigidity over broad spans, preventing the tube from bowing under the weight of heavy blackout textiles. However, field-cutting aluminum demands precise tools, such as high-tooth-count miter saws or tubing cutters, to prevent jagged burrs that could compromise drive plugs or idler pins.

Composite paperboard and plastic cores allow simpler modification with basic utility blades or fine handsaws. Despite this ease of cutting, these materials present lower structural resistance to bending over wider installations. When retrofitting motors or hanging heavy multi-layer textiles, a flexing tube can induce telescoping, causing the material to roll unevenly toward one side.

Textile Behavior: Multi-Ply Vinyl and Blackout Weave Stability

Blackout performance depends on the internal opacity of the textile. Cut-to-size vinyl roller shades often utilize multi-ply laminated membranes featuring fiberglass or polyester scrim cores sandwiched between opaque vinyl layers. While these layers block ambient light transmission through the surface, manual trimming exposes raw cut edges.

When cutting room darkening fabrics with handheld utility knives or rotary cutters, the integrity of the edge seal can degrade. Fiber weaves without edge encapsulation are prone to progressive fraying under repetitive cycling. Furthermore, improper tension during trimming can yield subtle diagonal cuts, leading to uneven alignment along the weighted hem bar at the bottom.

The Blackout Paradox: Casing Tolerances and Edge Light Bleed

Homeowners invest in cut to fit blackout shades primarily to darken bedrooms, home theaters, or media spaces. However, the physical mechanics of roller shade mounting hardware introduce geometric constraints that make complete edge-to-edge light exclusion challenging within standard window casings.

Understanding Bracket Deductions and Light Gaps

Every roller blind requires mechanical clearance at both ends of the tube to accommodate mounting brackets, idle bearings, and drive mechanisms. Because the fabric panel must clear these mounting fixtures without rubbing against the window frame, the textile must be narrower than the total bracket-to-bracket width.

This discrepancy creates unavoidable side gaps between the edge of the shade fabric and the window jamb. Consulting a detailed roller shades resource helps illustrate how these dimensional deductions affect coverage. Even if a DIY installer trims the core tube to sit snugly within the casing, ambient daylight will bypass the fabric boundaries, producing vertical light halos along the perimeter.

Mitigation Strategies: Side Channels and Outside Mount Profiles

To counteract perimeter light bypass, interior designers and automation specialists utilize supplementary architectural elements:

• Side Channels (U-Channels): Vertical aluminum or plastic tracks mounted along the window frame encase the fabric edges, blocking lateral light leakage.
• Outside Mounting Configurations: Installing the roller shade beyond the frame opening allows the fabric to overlap the surrounding trim, containing light bleed behind the panel.
• Fascias and Cassettes: Top-mounted aluminum enclosures obscure the upper roller barrel, preventing light leakage over the top roll.

Motorization Retrofits: Converting Trimmable Shades to Smart Automation

Retrofitting passive window shades into automated smart home fixtures offers greater convenience. Transitioning cut to-size blackout roller shades from manual spring-roller or bead-chain operation to automated motor drives requires attention to internal barrel geometry and mechanical tolerances, as explored in our cut size blackout guide.

Internal Diameter Matching and Drive Crown Selection

Tubular motors are engineered to slide directly inside the roller tube. Successful retrofitting depends on matching the motor outer diameter to the internal diameter of the trimmed tube. Standard tubular motors commonly feature diameters engineered for specific industrial tube extrusions.

Off-the-shelf cut-to-size shades often employ proprietary inner rib profiles or non-standard diameters designed strictly for manual spring plugs. If the internal ribs do not match the drive crown and idler wheel of the smart motor, the motor will slip inside the barrel, preventing consistent fabric movement. Adapting these units may require custom 3D-printed drive adapters or filing internal ribs smooth.

Removing Spring-Loaded Assemblies for Tubular Motors

Manual trimmable shades frequently use internal counter-balance torsion springs. Converting these units to smart operation requires removing the spring mechanism, de-burring the trimmed tube end, and securing the motor crown. Once converted, the drive motor assumes complete responsibility for holding dynamic torque and holding the shade suspended when stationary.

Power Architecture and Smart Control Systems

When engineering an automated shading installation, power distribution and wireless communication protocols must balance room aesthetics with operational reliability.

Rechargeable Lithium Cores vs. Low-Voltage Hardwiring

Motor power configurations generally fall into two primary structural categories:

• Internal Rechargeable Batteries: Tubular motors featuring integrated lithium power cells eliminate visible external wiring. Recharging is accomplished periodically via exposed magnetic charging cables or secondary solar panels mounted in the window reveal.
• Low-Voltage Hardwired Lines: In newly constructed spaces or comprehensive renovations, running low-voltage DC wiring directly to the window jamb supplies consistent power without requiring manual recharge cycles.

Protocol Selection: RF, Zigbee, and Matter Ecosystems

Control integration dictates how smoothly motorized shades interface with broader home automation routines. Proprietary 433MHz Radio Frequency (RF) systems provide basic point-to-point remote control, but bridging them into central smart hubs requires dedicated translation gateways. In contrast, modern standards such as Zigbee, Z-Wave, or Matter-over-Thread provide mesh networking capabilities, local execution, and status reporting back to smart platforms for synchronized automated routines.

Decision Matrix: Trimmable Off-the-Shelf vs. Custom Smart Roller Shades

Choosing between trimming off-the-shelf window shades and investing in purpose-built motorized units involves trade-offs across cost, installation effort, and finished appearance. Our comparative roller shades custom guide highlights the balance between short-term savings and long-term utility.

Room Darkening Expectations vs. Budget Constraints

For temporary living arrangements or budget-conscious retrofits, cheap room darkening shades and cut-to-size room darkening shades offer straightforward coverage. However, when evaluating the time, precision cutting tools, and potential fabric waste involved in manual modification, precision-built custom cut roller shades provide structural benefits. Factory-assembled options feature laser-cut fabric edges that resist unraveling and perfectly aligned internal tubes, as discussed in our custom roller shades guide.

Window Type Applicability and High-Traffic Considerations

Standard rectangular windows with deep reveals accommodate trimmable shades well, especially when paired with external drapery panels to mask side light gaps. Conversely, out-of-square window casings, extra-wide picture windows, or architectural openings lacking frame depth make field-cut assemblies difficult to tune. In such high-visibility areas, dedicated custom smart shades ensure structural squareness, balanced fabric tracking, and reliable automation performance.
