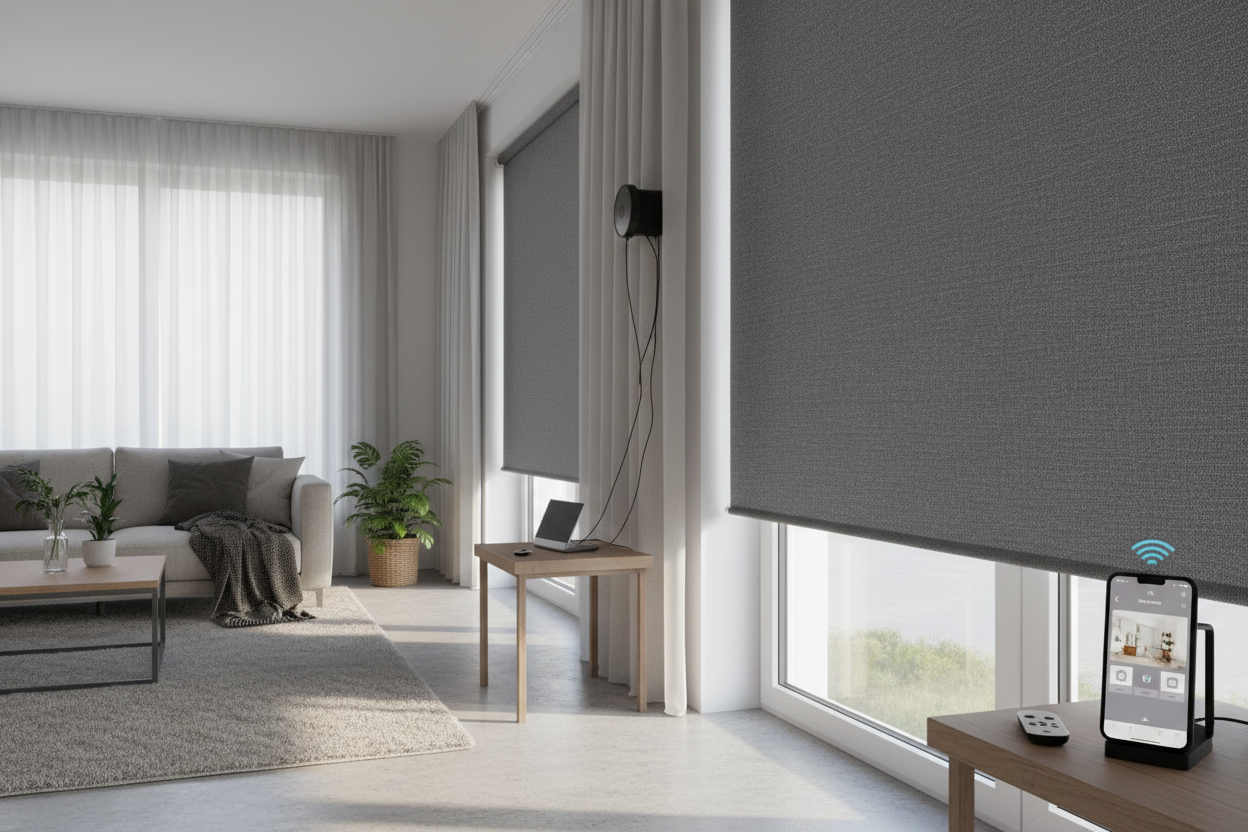

DIY Smart Home: Automating Cut-to-Size Blackout Shades

Imagine it's 2:00 PM on a Saturday. You settle in for a movie, but the afternoon sun is washing out your OLED TV. Instead of getting up to manually crank a chain, you simply mutter, "Cinema Mode." Slowly, the room plunges into darkness. This isn't a luxury reserved for million-dollar homes; it is the practical reality of pairing smart motors with accessible cut-to size blackout roller shades.

While custom smart shading used to require a contractor and a massive budget, the market has shifted. You can now combine trimmable, off-the-shelf vinyl shades with retrofit smart drivers, or order precision-cut smart units online. This guide explores how to achieve that high-tech functionality without the high-end price tag.

Quick Tech Specs & Compatibility

Before you start measuring, know what you are getting into. Here is the breakdown of the tech stack required to automate standard roller shades.

Feature	Retrofit Chain Driver	Tubular Motor (Internal)
Power Source	Rechargeable Li-ion (USB-C) or Solar Panel	Hardwired (120V) or Battery Wand
Connectivity	Bluetooth (local), Zigbee, or WiFi Bridge	RF (433MHz), Z-Wave, Zigbee, Matter
Platform Support	Alexa, Google Home, SmartThings (Hub required)	HomeKit, Alexa, Control4, Josh.ai
Weight Capacity	Max 10-15 lbs (Standard Vinyl)	20+ lbs (Heavy Fabrics)

Mounting Dynamics: Inside vs. Outside Mount

When dealing with cut to fit blackout shades, the physical installation dictates how "smart" the result looks. If you are retrofitting, you have two main paths.

Inside Mount (The Clean Look)

This fits the shade inside the window frame. For trimmable roller shades, precision is non-negotiable. If you cut the vinyl too narrow, you get "light bleed"—halos of light that ruin the blackout effect. If you cut it too wide, the friction against the frame will burn out your smart motor. Most DIY retrofit motors (like the ones that pull the bead chain) require extra depth on the frame to sit flush.

Outside Mount (The Blackout King)

If your goal is total darkness, mount the shades above the frame. This is often more forgiving for cut-to-size vinyl roller shades because you don't need millimeter-perfect width. It also allows you to hide the bulk of a battery pack or retrofit motor behind the curtain valence.

Power Options: Battery vs. Hardwired

For most DIYers installing cheap room darkening shades, hardwiring isn't an option unless you want to tear up drywall.

• Battery Motors (Rechargeable): The standard for retrofits. Expect to charge these once every 4-6 months depending on usage. Look for motors with at least 5V output to handle heavier cut-to-size room darkening shades.
• Solar Add-ons: Many smart drivers now come with small solar panels. However, if you are using blackout shades, you are inherently blocking the sun. These panels need to be placed carefully against the glass, behind the shade fabric, which can be tricky with vinyl materials.

Smart Integrations and App Features

The hardware is only half the battle. The software experience varies significantly.

Automated Schedules & Light Sensing

Your custom cut roller shades should work without you. Look for apps that support "Sun position" automation. This adjusts the shade height based on the time of year and the angle of the sun to manage heat gain. This is vital for vinyl shades, which can trap heat.

Noise Levels (dB)

If you are buying a retrofit device (a motor that pulls the existing chain), expect noise levels around 45-50dB. It sounds like a small RC car. Internal tubular motors (inside the roller tube) are much quieter, often sitting below 35dB, which is whisper-quiet.

Living with cut-to size blackout roller shades: Day-to-Day Reality

I have lived with a mix of high-end Lutron shades and DIY 30 inch wide roller shades fitted with retrofit motors for two years. Here is the unpolished truth about the DIY route.

The biggest quirk is the "alignment drift." With cut-to-size vinyl roller shades, the fabric is often lighter than premium fabrics. Over months of rolling up and down, the vinyl can start to telescope (roll unevenly) to one side. When you add a smart motor, it doesn't "feel" this resistance like a human hand would. I've had to manually reset the "Open" and "Close" limits on the app every few months to stop the motor from jamming the fabric into the bracket.

Also, let's talk about the LED indicators. Many retrofit motors have a small status light. In a pitch-black room designed for sleep, that tiny blue charging LED can be surprisingly annoying. I ended up putting a piece of black electrical tape over the sensor—a low-tech fix for a high-tech device.

Conclusion

Upgrading to smart, cut-to size blackout roller shades is one of the highest ROI upgrades for a smart home. It offers genuine utility—thermal management, privacy, and glare reduction—without requiring a full renovation. Whether you choose a simple chain-driver retrofit for your existing shades or order custom cut roller shades with internal motors, the convenience of voice-controlled sunlight is undeniable.

Frequently Asked Questions

Can I cut the shades myself if I use a tubular motor?

Yes, but it is risky. If you are using trimmable roller shades, you must cut the aluminum or cardboard tube perfectly straight. If the edge is jagged, the internal motor won't seat correctly, causing wobbling and noise.

Do these work during a power outage?

Battery-operated units will continue to work until the battery dies. However, if your smart home hub (like Alexa or SmartThings) is down due to a WiFi outage, you will lose voice control and app control. You will need to use the physical buttons on the motor or a paired RF remote.

Can I use heavy vinyl shades with smart motors?

Yes, but check the torque rating. Standard cut to fit blackout shades made of thick vinyl are heavy. Ensure your motor is rated for at least 1.1Nm of torque for windows wider than 30 inches.
