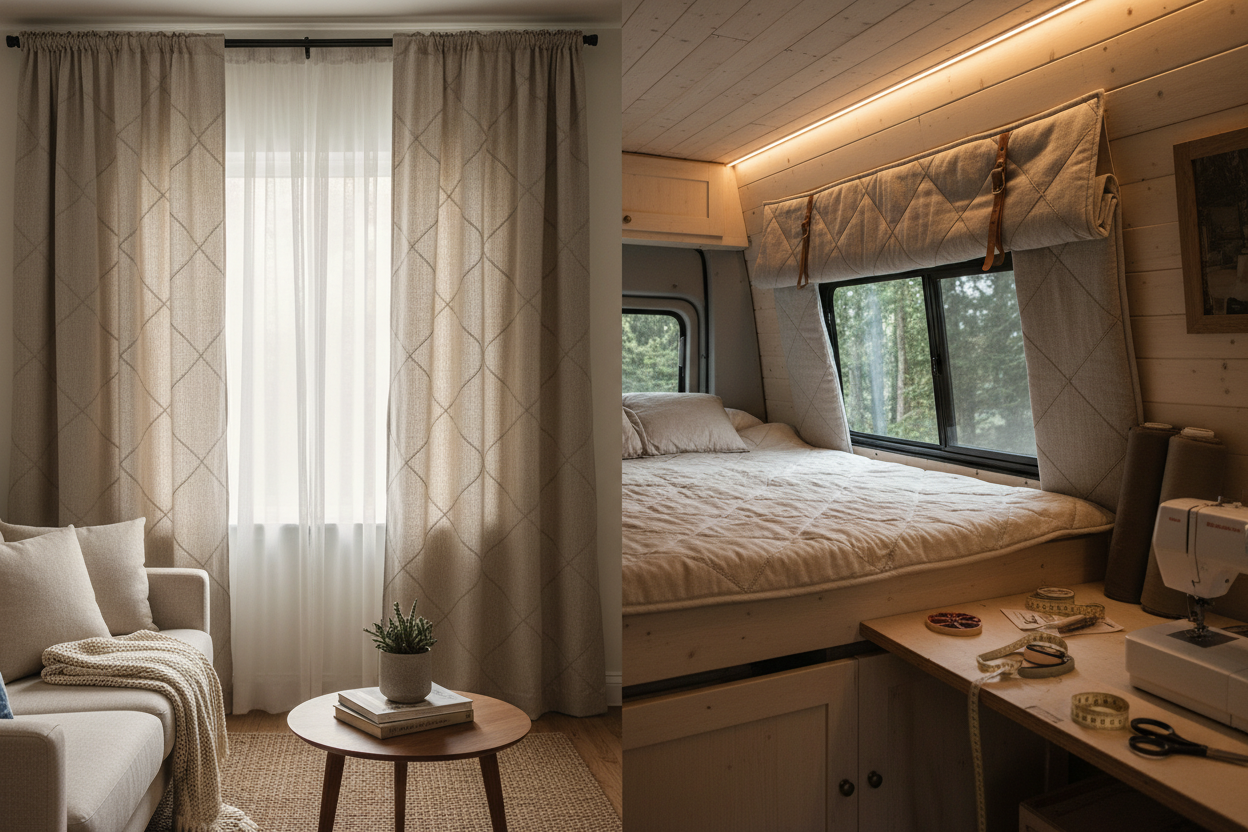

DIY Window Covers: Stop Wasting Energy in Your Home & Van

As someone who stares at smart thermostat data for fun, nothing hurts my soul more than watching my HVAC system fight a losing battle against drafty glass. Whether you are trying to stabilize the temperature in a mid-century home or outfitting a mobile tech-hub on wheels, building diy window covers is often the most cost-effective thermal upgrade you can make. Sure, I love testing motorized smart blinds, but when it comes to raw R-value and blackout capability, a custom-built, insulated cover wins every time.

By the end of this guide, you will understand exactly which materials actually block thermal transfer, how to fabricate them to fit perfectly, and how to integrate them into your broader home efficiency or van life setup.

Quick Material Check: What You Need to Know First

• Core Insulation: Low-E foil (like Reflectix) blocks radiant heat, while Thinsulate or closed-cell foam traps air to stop conductive cold. You usually need both.
• Outer Fabric: Ripstop nylon resists moisture and UV degradation much better than standard cotton or canvas.
• Mounting Hardware: Rare earth (neodymium) magnets sewn into the edges are vastly superior to suction cups, which reliably fail in extreme temperature swings.
• Smart Integration: If you keep the total weight under 3 pounds, lightweight DIY covers can be attached to retrofit smart roller motors for voice-controlled deployment.

The Science of Thermal Control

Radiant vs. Conductive Heat

Before you start cutting fabric, you need to understand what you are trying to block. Most people fail at their first attempt at diy insulated window coverings because they slap a piece of Reflectix against the glass and call it a day. Reflectix is a radiant barrier; it reflects sunlight away. However, it does almost nothing to stop conductive cold from seeping through the glass in winter unless there is an air gap. For true four-season performance, you need a multi-layer approach: a UV-resistant outward-facing fabric, a radiant barrier, a conductive insulation layer (like 3M Thinsulate), and an inward-facing decorative fabric.

Van Life vs. Smart Home Applications

The requirements shift depending on your environment. For home use, you might mount these covers on a track system or attach them to a DIY motorized roller tube using a low-cost Zigbee motor. For mobile setups, van window insulation needs to be easily stowable and highly resistant to condensation. The principles of thermal dynamics remain the same, but the mounting mechanisms diverge wildly.

The Build Process: Doing It Right

Template Creation

If you are searching for how to make window cover templates, the secret is Kraft paper and painter's tape. Tape the paper over the window frame and trace the exact outline with a marker. Cut it out, test fit it, and then add a 1-inch seam allowance around the entire perimeter before cutting your actual fabric. This ensures a snug, draft-free fit once the final piece is assembled.

Assembly and Magnet Placement

Figuring out how to make insulated window covers for van or home use usually comes down to the sewing process. You will want to use a heavy-duty needle (size 90/14 or 100/16) because sewing through Reflectix, Thinsulate, and two layers of nylon is tough on a standard machine. Sew small pockets along the perimeter for your neodymium magnets. Pro-tip: Make sure all your magnets are facing the same polarity before you stitch them in, or your covers will repel the metal window frame instead of sticking to it.

Living with DIY Window Covers: Day-to-Day Reality

I built a set of diy insulated window covers for my west-facing office windows and a few custom diy van window covers for my weekend camper. The temperature difference is undeniable—my Ecobee thermostat sensors show a 6-degree stabilization in the office during peak afternoon sun. But it is not a flawless experience.

First, the stiffness of the multi-layer insulation makes them incredibly bulky to store. You cannot just fold them up neatly like a bedsheet; they have to be rolled, and even then, they take up significant space. Second, the condensation issue is real. Because the covers do such a great job of blocking heat transfer, the glass behind them gets freezing cold in the winter. If your interior humidity is high, water will pool on the sill behind the cover. I ended up having to run a small smart dehumidifier on a routine to manage the moisture buildup. Lastly, the snapping sound of 20 strong magnets hitting a metal frame is surprisingly loud—not ideal if you are trying to put them up quietly while someone is sleeping.

Frequently Asked Questions

Do DIY insulated window covers cause condensation?

Yes, they can. By isolating the cold glass from the warm interior air, the glass drops to the outside temperature. Any warm, moist air that slips past the cover will condense on the glass. Ensuring a tight magnetic seal and managing indoor humidity are the best ways to mitigate this.

Can I attach a motor to my DIY window cover?

It depends on the design. If you build a flexible, lightweight cover without rigid foam, you can attach the top edge to a motorized roller tube (like those from Zemismart or Rollease Acmeda). However, thick Thinsulate covers are generally too bulky to roll tightly around a standard smart blind tube.

Is Reflectix enough for van window insulation?

No. Reflectix is a radiant barrier, not true conductive insulation. It is excellent at reflecting harsh summer sun out of your vehicle, but it will not keep you warm on a 20-degree winter night unless combined with an air gap and a material like Thinsulate or wool.
