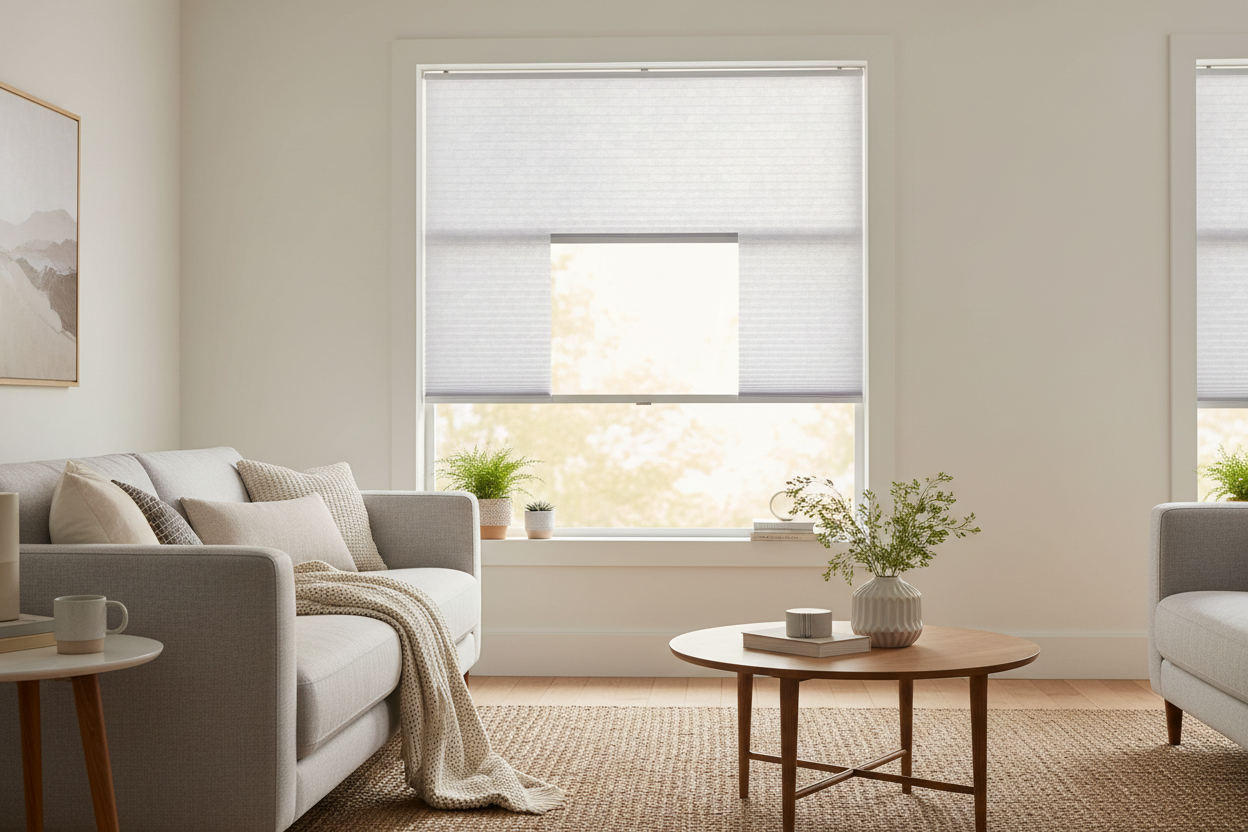

Don't Snap the Cords: How to Install Cellular Shades Top Down Bottom Up

I still remember the 'twang' of my first $200 mistake. I was rushing a nursery setup, trying to get a set of honeycomb shades up before nap time. I figured a bracket was a bracket, but I was wrong. One aggressive 'click' later, I’d snapped an internal tension cord, leaving the shade hanging like a broken wing.

Learning how to install cellular shades top down bottom up is different from hanging a basic roller. You aren't just mounting a stick of metal; you're calibrating a suspension system. These shades use a complex internal pulley to let the top drop and the bottom rise simultaneously. If your alignment is off by even an eighth of an inch, the friction will eventually shred those cords.

• Precision is binary: If the headrail isn't perfectly level, the middle rail will sag indefinitely.
• Depth matters: Inside mounts require more clearance than you think to avoid fabric fraying.
• The 'Snap' is a trap: Never force the rail into the bracket; if it doesn't click easily, something is pinched.
• Tension is life: The cords must remain clear of the bracket teeth during the entire installation process.

Why Top-Down Bottom-Up Bracket Placement is Unforgiving

Standard shades are gravity-fed. You pull them down, they stay. But TDBU shades are held in a state of constant tension. Think of it like a guitar string; if the bridge is crooked, the string won't stay in tune. When you learn standard how to install shades, you usually have some wiggle room in the brackets. With TDBU, that wiggle room is non-existent.

The fatal mistake most DIYers make is 'eyeballing' the bracket distance from the window glass. If one bracket is 1/4-inch further forward than the other, the headrail twists. This twist puts lateral pressure on the internal spools. Over time, the cord rubs against the sharp edge of the spool housing until—snap. You want your brackets perfectly parallel to the window pane, period.

I always use a metal spacer or a block of wood to ensure both brackets are seated at the exact same depth. Don't trust the window trim to be square; houses settle, and wood warps. Use a tape measure for the distance between brackets, but use a physical spacer for the depth.

The Flush Fit: How to Install Top Down Bottom Up Shades Inside Mount

When you're figuring out how to install top down bottom up shades inside mount, the biggest hurdle is the 'stack.' That's the pile of fabric that gathers when the shade is fully open. If your window depth is shallow, that stack might hit your window crank or the lock lever. I’ve seen beautiful linen shades get ruined because they rubbed against a brass latch every time they were raised.

Measure your depth at the top of the frame. You need enough room for the bracket plus about half an inch of 'breathing room' for the fabric. This is especially critical if you are upgrading to Vintage Series Motorized Blackout Cellular Shades. Blackout fabrics are significantly thicker than light-filtering ones. If you don't have at least 2.5 inches of flat mounting surface, the cassette will protrude, and you'll lose that clean, integrated look.

Before drilling your pilot holes, hold the shade up manually. Check that the fabric won't snag on the window hardware. If it's too tight, you might need to consider an outside mount instead. It’s better to change plans now than to have a 'shredded' shade in six months.

Clearing the Trim: How to Install Top Down Bottom Up Shades Outside Mount

If your window casing is too shallow or you have beautiful decorative trim you don't want to drill into, you'll need to know how to install top down bottom up shades outside mount. This involves mounting the brackets to the wall or the face of the trim. The challenge here is gravity. Since the shade isn't boxed in by a frame, any slight tilt in the headrail becomes painfully obvious.

Use a long bubble level—ideally 24 inches or more. Mark your first bracket hole, then level across to the second. If you have thick decorative molding, you'll likely need spacer blocks. These are plastic shims that sit behind the bracket to push the shade out far enough to clear the trim. Without them, the shade will hang at an angle, and the middle rail will never sit flush against the bottom sill.

I prefer mounting to the wall above the trim whenever possible. It gives the room more height and prevents you from putting holes in expensive woodwork. Just make sure you're hitting a stud or using heavy-duty toggle bolts. These shades are heavier than they look because of the extra rails and cordage.

The 'Roll and Click': How to Install Top Down Bottom Up Blinds Safely

This is the moment of truth. When you're ready to actually attach the rail, you're learning how to install top down bottom up blinds without turning them into expensive trash. Most TDBU shades use a 'hook and roll' bracket. You hook the front lip of the headrail onto the front of the bracket, then swing the back of the rail upward until it clicks into place.

Here is the secret: look at the cords before you click. The internal tension strings often hang slightly loose during shipping. If a cord gets caught between the metal headrail and the bracket teeth, the 'click' will sever the cord instantly. I always use a flathead screwdriver or a credit card to gently tuck the strings into the rail channel before I snap it in.

If you have to push hard, stop. The rail should seat with a crisp, metallic 'click.' If it feels mushy or requires your full body weight, you’ve likely caught a cord or the bracket isn't level. For a deeper look at the internal string path, check out this guide on How To Install Top Down Bottom Up Shades Without Snapping A Cord. It shows exactly where the 'danger zones' are inside the rail.

Troubleshooting: Why Won't My Middle Rail Stay Level?

So, it's on the wall, but it looks... off. If your middle rail is sagging on one side, check your bracket leveling first. A 1/16th-inch difference at the top translates to a half-inch sag at the middle rail. If the brackets are level, the tension might be uneven. Try fully lowering the shade to the bottom sill and then raising it slowly; this often 'resets' the internal spring motor.

If the shade feels incredibly stiff to pull down, your brackets might be too tight against the end caps. TDBU shades need a tiny bit of lateral breathing room. Loosen the bracket screws a quarter-turn and see if the movement improves. Finally, if you see a light gap at the very top when the shade is 'closed,' your brackets are mounted too low. You want the headrail to be tight against the top of the window frame to maintain that thermal seal cellular shades are famous for.

How do I know if I've snapped a cord?

If you raise the shade and one side stays down while the other goes up, or if you see a loose string dangling from the headrail, it's snapped. Usually, this means the shade needs a professional restringing or a total replacement.

Can I install these on a door?

Yes, but you absolutely must use 'hold-down brackets' at the bottom. Without them, the TDBU mechanism will swing and bang against the glass every time you open the door, which will eventually unbalance the tension system.

Do I need two people for the install?

For windows wider than 36 inches, yes. One person needs to hold the rail level while the other clicks it into the brackets. Trying to 'solo' a wide TDBU shade is the fastest way to bend the headrail or pinch a cord.
