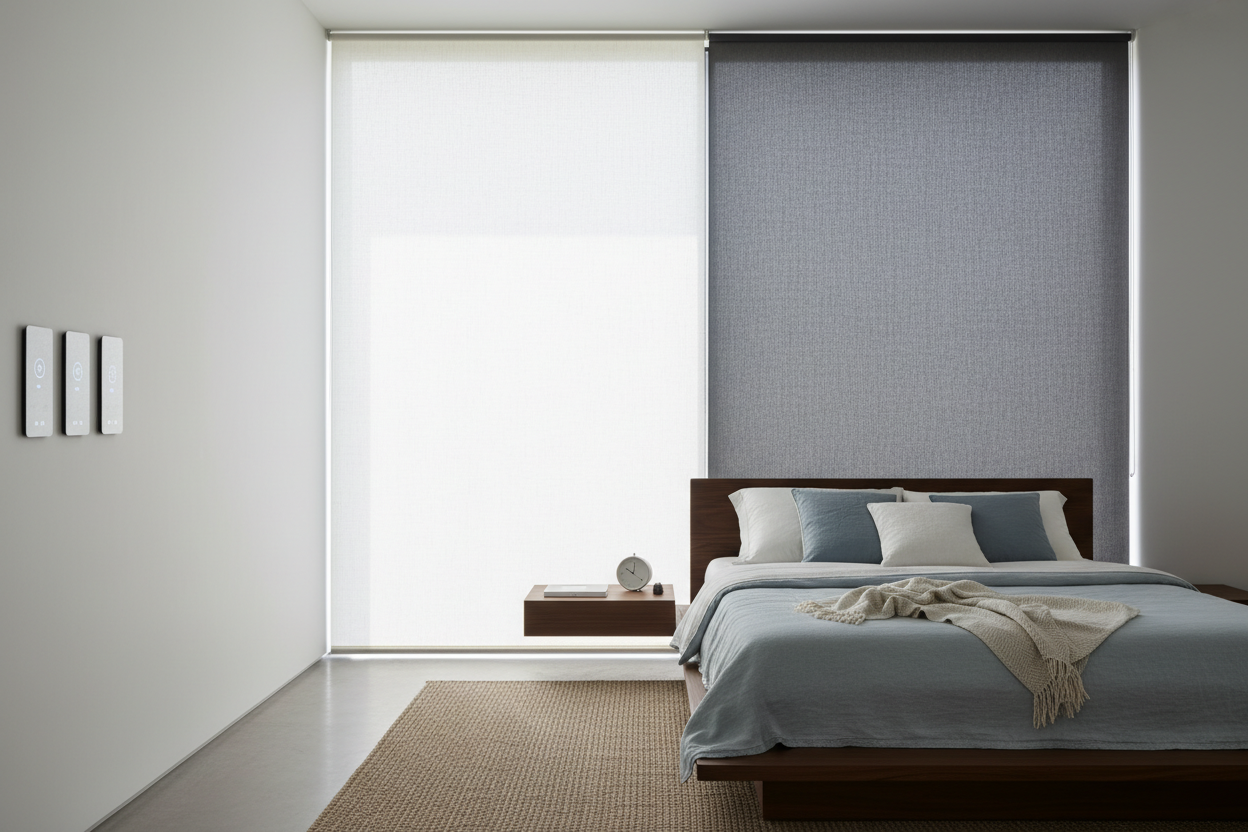

Double Roller Blinds Sheer and Blackout: My Smart Bedroom Setup

There is a specific frustration that comes with standard window coverings: you either get full sunshine and zero privacy, or you're sitting in a cave. This is the exact scenario that drove me to upgrade my primary bedroom. I wanted the soft, diffused light of a hotel room during the day, but total darkness for movie nights or sleeping in.

The solution wasn't just a heavier curtain; it was installing smart double roller blinds sheer and blackout. By layering two distinct fabrics on a single dual-bracket system, you gain granular control over your environment via voice command or app, without touching a chain. Here is how these dual systems function in a real-world smart home ecosystem.

Quick Compatibility Check

Before drilling holes, you need to know if these motors will talk to your current hub. Here are the core specs I look for when testing dual-motor setups:

• Connectivity Protocol: Zigbee 3.0 (Recommended for stability) or WiFi (2.4GHz).
• Power Source: Rechargeable Lithium-ion battery (USB-C charging) or Hardwired (120V/240V).
• Smart Platform Support: Native support for Alexa and Google Home; HomeKit usually requires a specific gateway.
• Motor Torque: Generally 1.1Nm to 2.0Nm required to lift dual fabric layers.

Installation Realities: The Dual Bracket

Installing double blinds sheer and blackout is significantly different from mounting a single roller. The bracket is deeper and protrudes further into the room—often extending 4 to 5 inches from the wall or frame.

If you are doing an inside mount (fitting the blind inside the window frame), you need substantial depth. In my experience, most residential window frames are too shallow for a flush mount with dual rollers. I almost always recommend an outside mount (fixing the bracket above the architrave) to accommodate the bulk of two fabric rolls.

Weight and Anchoring

Because you are hanging two motors and two rolls of fabric, the load is heavy. Drywall anchors are rarely sufficient here. You need to hit a stud or use heavy-duty toggle bolts. A sagging bracket will cause the fabric to telescope (roll up unevenly), eventually jamming the motor.

Power & Battery Options

For a retrofit scenario where you cannot run new electrical wire behind the drywall, battery-powered motors are the standard. Modern motors use internal Lithium-ion batteries that typically last 4-6 months on a single charge based on one up/down cycle per day.

However, with a dual system, remember you have two charging ports to access. When mounting, ensure the motor heads are oriented so the USB-C ports face downward or outward. I have made the mistake of installing the blackout layer in a way that blocked the charging port of the sheer layer, forcing me to unclip the entire unit just to recharge.

Ecosystem Integration and Noise Levels

Most dual blind motors operate around 35dB to 45dB. While quiet, running both motors simultaneously (e.g., "Alexa, open the bedroom") creates a harmonic hum that is noticeable.

For integration, I prefer Zigbee motors paired with a dedicated hub (like a SmartThings hub or a proprietary gateway like Bond Bridge). WiFi motors connect directly to your router but can crowd your network if you have multiple windows. In the app, you will technically see two devices per window: "Bedroom Sheer" and "Bedroom Blackout." You must create routines or scenes to group them logically.

Living with double roller blinds sheer and blackout: Day-to-Day Reality

After three months of using this setup, here is the unpolished truth about living with them. The biggest adjustment was the "light gap." Because the sheer roll and the blackout roll sit one in front of the other, there is a small physical gap between the blackout fabric and the side of the window frame, usually larger than what you see on a single roller.

Another nuance is the voice command delay. When I say, "Turn on Movie Mode," the sheer layer begins to rise, and about two seconds later, the blackout layer starts to lower. They rarely move in perfect unison unless you are using a hardwired system. I also noticed that the sheer fabric tends to hold static dust more than the blackout material, requiring a gentle vacuum with a brush attachment every few weeks to keep it looking crisp.

Despite these minor quirks, the ability to wake up by having just the blackout layer rise—leaving the sheer layer down to filter the harsh morning sun—is a massive lifestyle upgrade.

Conclusion

Upgrading to smart double roller blinds sheer and blackout is an investment in convenience and ambiance. While the installation requires more planning regarding bracket depth and weight support, the result is a versatile window treatment that adapts to your needs throughout the day. If you are retrofitting, stick to Zigbee motors for better battery life and network stability.

Frequently Asked Questions

How often do I need to charge the motors?

For average use (opening and closing once a day), expect to recharge every 4 to 6 months. If you use a solar panel add-on, you may rarely need to charge them manually.

Can I operate them manually if the power goes out?

Most smart motors lock in place when unpowered. Unless you specifically purchase a model with a manual pull-chain override (which is rare for smart motors), you cannot move the blinds during a power outage or dead battery.

Do I need a specific hub for these blinds?

It depends on the motor. WiFi motors usually connect directly to the cloud/app. Zigbee and Thread motors require a compatible gateway or a smart speaker with a built-in hub (like an Echo Show or HomePod) to enable voice control and remote access.
