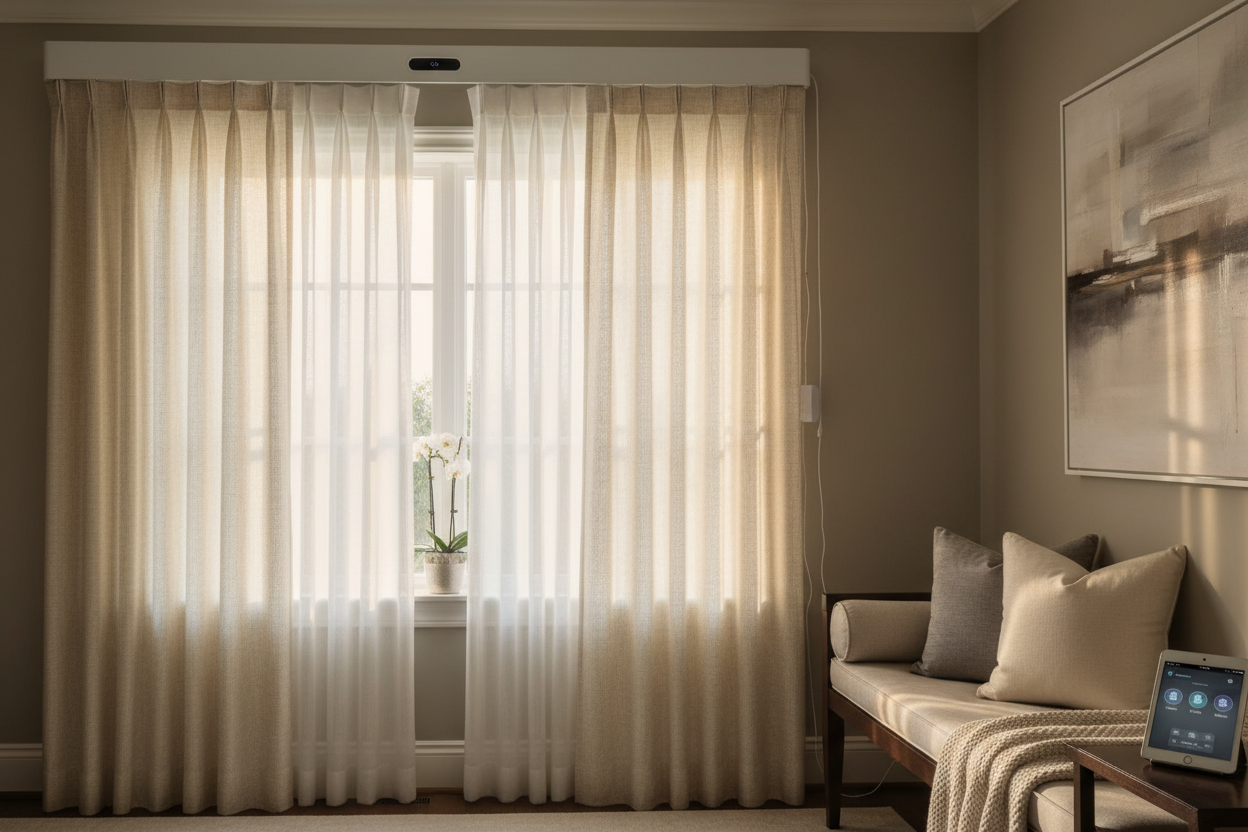

Dressing a Window: Making Existing Curtains Smart

There is a distinct difference between waking up to a blaring smartphone alarm in a pitch-black room and slowly coming to as your curtains quietly glide open to reveal the morning sun. When it comes to dressing a window, we traditionally focus on fabric weight, color, and texture. But integrating a smart motor into your setup completely shifts how you interact with natural light and privacy.

Whether you want your shades to close when the thermostat detects direct afternoon heat, or you just want to trigger a privacy mode when you leave for work, motorized treatments are becoming a standard home upgrade. By the end of this guide, you will know exactly which hardware fits your frame, how to power it, and what to expect during installation.

Quick Compatibility Check

• Power Source: Choose between rechargeable lithium-ion battery packs (lasts 5-8 months) or hardwired AC (requires an outlet near the top of the frame).
• Track vs. Rod: Retrofit robots run on existing rods, while full motorized tracks replace your current hardware entirely.
• Ecosystem: Check for Zigbee, Z-Wave, or Matter over Thread support if you want local control without relying on a manufacturer cloud server.
• Weight Limits: Most consumer motors cap out at 100 lbs of fabric pull capacity.

Retrofitting vs. Starting Fresh

How to dress a window you already have

If you are a renter or just do not want to tear down your existing hardware, retrofit curtain robots are the easiest entry point. These small, battery-powered devices clamp directly onto your existing curtain rod or track. They use a motorized rubber wheel to physically push or pull the fabric along the rail. While they are incredibly easy to install, they can struggle with telescoping rods where the metal sections overlap, often getting stuck on the tiny ridge.

For homeowners, a dedicated motorized track is a much more reliable solution. You replace the entire rod with an aluminum track housing an internal belt drive. It provides a cleaner look and handles much heavier fabrics without slipping or stalling.

Fabric Weight and Light Control

How to dress up a window without straining the tech

The type of fabric you choose directly impacts motor performance. Heavy, velvet blackout curtains require a motor with higher torque. If you try to pull 40 pounds of dense fabric with a budget retrofit robot, the battery will drain twice as fast, and the motor will loudly strain during operation.

Dual-layer systems are increasingly popular. You can run a sheer fabric on a front track for daytime privacy and UV protection, while a heavier blackout drape sits on a secondary rear track for nighttime. Just keep in mind that dual-track setups require a wider mounting depth inside the frame—usually at least six inches to prevent the fabrics from rubbing against each other.

Smart Ecosystem Integration

Hubs, Voice Control, and Routines

Most entry-level motorized blinds rely on Wi-Fi direct connections. While this means you do not need to buy a separate hub, it can crowd your router if you have a dozen windows. Upgrading to a Zigbee or Z-Wave setup creates a mesh network, which is far more stable and reacts instantly when you ask Alexa or Google Assistant to close the living room.

The real magic happens with automations. Using a smart home platform like Apple HomeKit or SmartThings, you can tie your window treatments to other sensors. I have mine set to lower automatically if the indoor temperature creeps above 75 degrees during the summer, noticeably cutting down on cooling costs.

Living with Motorized Curtains: Day-to-Day Reality

After running a motorized track in my primary bedroom and retrofit robots in the guest room for the last year, I have learned a few hard truths. First, the noise level is something you need to account for. The motor on my bedroom unit makes a faint, mechanical hum. It is barely audible during the day, but highly noticeable when the house is dead silent at 6 AM. If you are a very light sleeper, a sunrise routine might wake you up through sound rather than light.

I also did not account for the battery pack thickness when I mounted the track. It sticks out about 15mm from the wall and occasionally catches the edge of the fabric, causing a slight bunching effect that I have to fix by hand. On the positive side, the sunrise routine is genuinely the best smart home automation I have set up. It took three firmware updates before the timing was actually reliable, but waking up to natural light instead of an alarm has noticeably improved my morning mood.

Frequently Asked Questions

Can I still open motorized curtains manually during a power outage?

Yes. Most modern motorized tracks feature a manual override or 'tug-to-start' function. If the power goes out, gently pulling the edge of the curtain will disengage the clutch, allowing you to slide the fabric by hand without damaging the internal belt.

How long do batteries actually last?

Manufacturers often claim 8 to 12 months, but real-world usage paints a different picture. If you open and close heavy curtains twice a day, expect to recharge the lithium-ion packs every 5 to 6 months. Solar panel add-ons can extend this indefinitely if your window gets direct sunlight.

Do I need a dedicated hub?

It depends on the protocol. Wi-Fi motors connect directly to your router but drain batteries faster. Zigbee, Z-Wave, and Thread/Matter models require a compatible gateway or hub, but they offer significantly better battery life and reliable local control.
