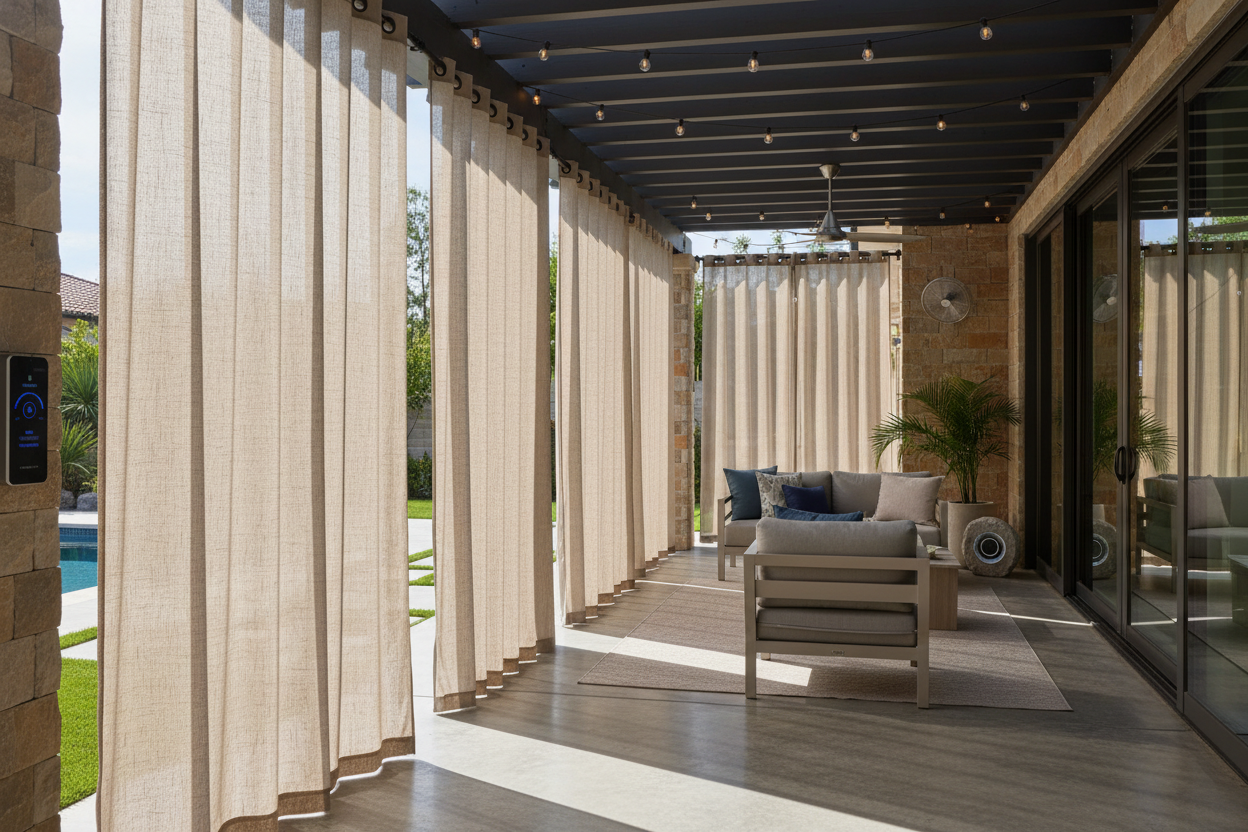

Hanging Outdoor Shade Setup: Beating the Afternoon Sun

It happens every summer afternoon. You are relaxing on the deck with a cold drink, and right around 4 PM, the sun dips past the roofline, blinding everyone and turning the seating area into an oven. That is exactly why I finally installed a smart hanging outdoor shade. Instead of fighting with manual hand cranks or pull chains while squinting into the glare, my patio now responds to a simple voice command—or better yet, a temperature-triggered routine.

If you are looking to reclaim your outdoor living space, upgrading to a motorized outdoor hanging sun shade is one of the most functional smart home investments you can make. But outdoor tech brings unique challenges: weatherproofing, power delivery, and getting a wireless signal through exterior walls. Here is what you need to know before drilling into your siding.

Quick Specs: What to Know Before You Buy

• Power Source: Solar-charged battery packs are the most practical for retrofits, while hardwired 110V motors are best for new builds.
• Connectivity: Most outdoor motors use RF (Radio Frequency) paired with an indoor Wi-Fi bridge to communicate with Alexa, Google Home, or Apple HomeKit.
• Wind Management: A dedicated wind sensor is non-negotiable to prevent damage during sudden gusts.
• Fabric Openness: 5% openness blocks glare while preserving the view; 1% provides maximum UV block and privacy.

Installation Challenges and Power Delivery

Battery vs. Solar vs. Hardwired

Unlike indoor blinds, a hanging shade for patio requires a heavy-duty motor to handle thick, weather-resistant fabrics and wind loads. If you are building a new porch, run 110V wiring directly to the mounting corners. For the rest of us retrofitting an existing space, battery-powered motors are the go-to. However, taking down a massive 120-inch outdoor shade to charge it via USB-C every six months is a massive headache. I highly recommend pairing a battery motor with a weatherproof solar panel. Mounted discreetly on the fascia board, a small solar strip keeps the motor topped up indefinitely.

Smart Hubs and Exterior Range

Getting the Signal Through the Wall

Smart home protocols like Zigbee and Z-Wave are fantastic indoors, but exterior walls—especially brick, stucco, or those with foil-backed insulation—are notorious signal killers. When setting up a hanging sun shade for porch use, you will likely rely on a proprietary RF hub (like the Bond Bridge or a brand-specific gateway). You plug this bridge into an indoor outlet as close to the patio as possible. The bridge connects to your home Wi-Fi and translates your smart home commands into the low-frequency RF signal the shade motor understands.

Fabric Options and Wind Defense

Why You Need a Wind Sensor

The biggest threat to any patio hanging shade is a sudden summer storm. A 10-foot wide shade acts exactly like a sail. Smart outdoor shades should always be paired with an anemometer (wind spinner) or a vibration sensor mounted on the bottom hem. When the wind speed exceeds your preset threshold, the motor automatically retracts the shade, protecting the fabric and your mounting brackets. Do not skip this accessory.

My Installation Notes: Day-to-Day Reality

I have been living with a motorized, solar-charged hanging shade on my west-facing deck for a full summer. The convenience is undeniable. I set up a routine in Home Assistant that lowers the shade to 50% when the outdoor temperature hits 85 degrees and the sun is in the western sky. It keeps the deck cool before I even step outside.

But the setup was not entirely smooth. First, mounting the heavy brackets into brick required a hammer drill and masonry anchors—this is a two-person job and took a solid afternoon. Second, the motor is significantly louder than my indoor smart blinds. It produces a distinct, mechanical grinding hum that lasts for the 15 seconds it takes to deploy. Lastly, I had to tweak the wind sensor sensitivity three times. Out of the box, a mild breeze would trigger the auto-retract feature, sending the shade up right when I needed sun protection the most.

Frequently Asked Questions

Can I still open a motorized hanging outdoor shade manually?

Generally, no. Most motorized outdoor shades do not have a manual override clutch. If the battery dies or the motor fails, you cannot pull them up by hand without risking damage to the internal gearing. This is why solar-charging panels are highly recommended.

Do I need a special outdoor-rated smart hub?

No. The smart hub or bridge stays indoors, plugged into a standard outlet. It communicates with the outdoor motor using RF (Radio Frequency), which penetrates exterior walls much better than standard Wi-Fi.

How long do batteries last on a single charge?

Without a solar panel, a heavy-duty outdoor shade motor typically lasts 3 to 6 months on a full charge, assuming one up/down cycle per day. Cold weather can reduce this battery life by up to 30%.
