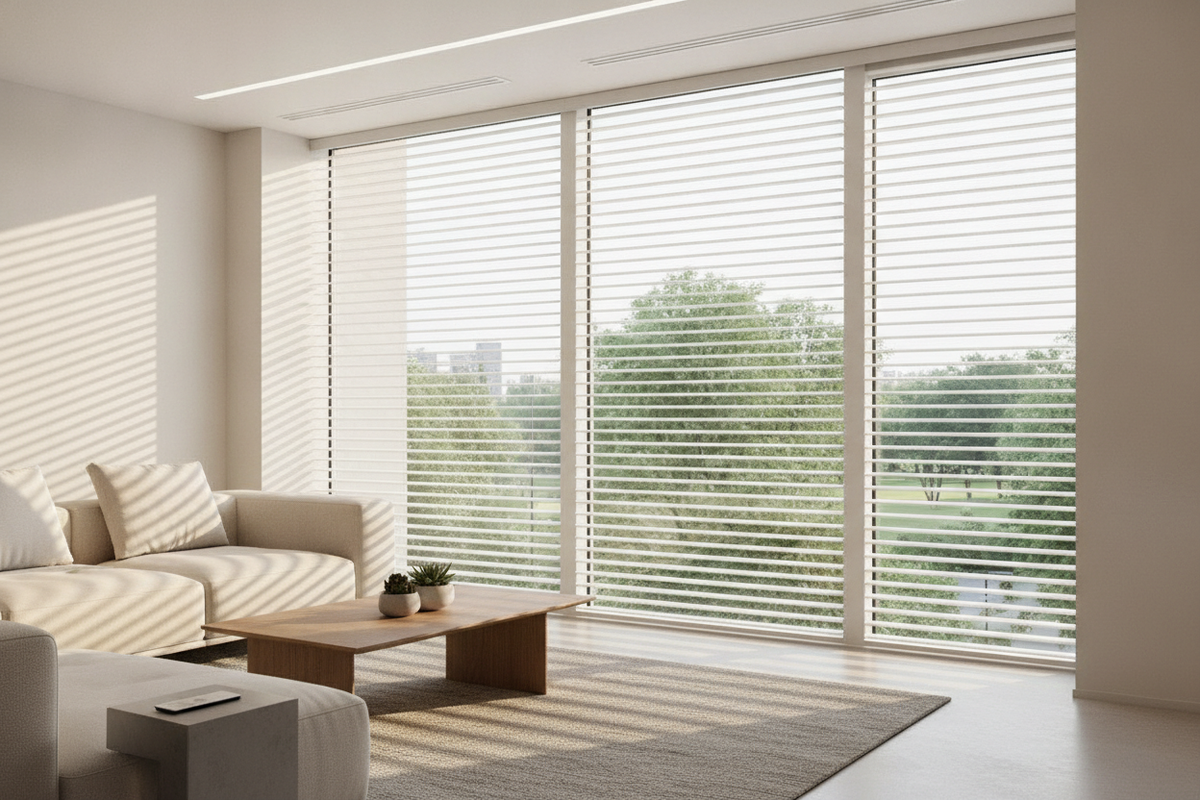

Horizontally Slatted Window Coverings: Slat Mechanics, Material Performance, and Smart Tilt Automation

Architectural Light Modulation with Horizontal Slat Systems

Among classic and contemporary window treatments, horizontally slatted window coverings remain a benchmark for fine daylight management. Unlike solid roller shades or cellular blinds that operate primarily through binary vertical positioning, horizontal slats provide variable optical geometry. By adjusting the pitch angle of individual horizontal vanes, occupants can redirect direct solar glare toward ceilings to brighten interior rooms while preserving street-level privacy and outdoor views.

Selecting an effective horizontally slatted window covering requires understanding how slat profile, weight distribution, and operating mechanisms interact. Whether specified for residential living areas, humid utility spaces, or high-exposure commercial settings, horizontal systems balance structural durability, aesthetic appeal, and mechanical precision.

Mechanical Anatomy of Horizontal Slats: Ladder Strings, Tapes, and Tilt Drums

The core functionality of any horizontal slat assembly relies on a coordinated set of internal components housed inside the upper headrail and suspended along the window drop:

• Tilt Rod and Tilt Drums: Running horizontally through the headrail, a metal or composite tilt rod engages notched drums that hold the upper suspension cords. Rotating this central axle causes the front and back cords to move in opposite directions, pivoting the slats smoothly.
• Braided Ladder Cords: Fine, high-tensile cords create horizontal rungs that cradle each slat at consistent vertical intervals. These ladders ensure uniform spacing across the entire drop.
• Decorative Cloth Tapes: Broad fabric bands can cover or replace traditional ladder cords. In addition to adding visual texture, cloth tapes conceal cord route holes, which helps reduce pinhole light leakage.
• Bottom Rail Ballast: A weighted structural bottom rail provides downward tension, keeping suspension cords taut and stabilizing the slat stack against natural room drafts.

The precision of these components determines how evenly slats close in both upward and downward orientations, directly influencing privacy and light exclusion.

Material Performance Profiles: Timber, Composites, and Aluminum

Material composition shapes how horizontal slats handle thermal exposure, humidity, weight, and aesthetic demands across different rooms:

• Natural Hardwood: Premium timber slats offer high structural rigidity, minimal weight per foot, and an organic wood grain profile. Because natural wood can warp or expand in high-moisture environments, it is best suited for dry living rooms, home offices, and primary bedrooms.
• Extruded Composites and Faux Wood: Engineered polymers and PVC composites deliver exceptional moisture resistance, making them well suited for kitchens, bathrooms, and laundry areas. However, composite slats are heavier than timber, which increases the torque required for manual or motorized lifting over wide spans.
• Lightweight Aluminum: Architectural aluminum slats combine low weight with high tensile strength and resilience against sun exposure. Their slim profile allows for compact headrails and tight stack heights, making them practical for modern, minimalist interiors.

Motorization Architectures: Tilt-Only vs. Full Lift-and-Tilt Systems

Adding smart automation to horizontal slat systems involves two primary mechanical configurations, each suited to specific usage patterns:

1. Motorized Tilt-Only Architectures

Tilt-only motorization focuses purely on rotating the internal tilt rod. Because tilting requires relatively low torque and avoids the mechanical friction of lifting a heavy stack, tilt-only motors are compact, energy efficient, and easy to fit inside standard headrails. For most automated daily daylight management, automated tilt satisfies primary privacy and glare mitigation needs.

2. Full Lift-and-Tilt Motorization

Full-function systems combine automated slat rotation with motorized vertical raising and lowering. These systems require higher-torque motors, robust spooling drums, and integrated lift cord management to prevent tangling during vertical travel. For broad architectural spans where slat weight can impact mechanical lifespan, exploring our window coverings guide for short and wide openings provides helpful sizing and load considerations.

Power Distribution and Smart Home Protocol Integration

Automated horizontal slats can be powered and controlled through several architectural methods based on access to electrical infrastructure:

• Rechargeable Lithium-Ion Assemblies: Integrated battery wands or concealed motor packs eliminate exposed wiring, making them well suited for retrofit installations. Optional slim solar panels placed behind the headrail can supply trickle charging to sustain battery levels.
• Hardwired Low-Voltage DC: For new construction and extensive renovations, low-voltage power lines run directly to the window jamb ensure reliable, continuous operation without battery maintenance.
• Wireless Smart Protocols: Modern motorized slat systems integrate with smart home platforms using standard protocols like Matter, Zigbee, Z-Wave, or dedicated RF bridges. This integration allows horizontal slats to adjust automatically based on room occupancy, daylight schedules, or local sun positions.

Window Matching and Room-by-Room Configuration Strategies

Applying horizontally slatted window coverings effectively depends on tailoring material choice and mounting depth to each specific space:

In resting zones such as guest rooms or master suites, pairing adjustable horizontal slats with secondary soft drapery provides comprehensive acoustic dampening and flexible illumination. When planning bedroom layouts, our bedroom window covering guide details complementary light-blocking approaches. Furthermore, layering motorized horizontal blinds beneath automated blackout drapery creates balanced thermal insulation, as discussed in our window coverings guide for dual-layer automation.

For deep-set window casings, an inside mount preserves clean architectural lines and keeps the headrail flush with surrounding trim. When window casing depth is shallow or handles obstruct the frame, an outside mount positioned on the wall or architrave provides full glass coverage while preventing slat interference.

Calibration, Maintenance, and Long-Term Slat Alignment

To ensure quiet operation and balanced slat alignment over years of service, regular maintenance and electronic calibration are recommended:

• Electronic Limit Calibration: When commissioning motorized units, precisely setting the upper and lower tilt limits prevents over-rotation, which protects internal ladder cords from unnecessary mechanical strain.
• Periodic Dusting: Cleaning horizontal surfaces with an anti-static microfibre cloth or low-suction brush attachment prevents airborne dust from accumulating inside ladder cords and tilt mechanisms.
• Slat Leveling: If bottom rails show slight tilt over time due to cord settling, balance adjustment screws located under the bottom rail end caps can be dialed in to restore level horizontal alignment.
