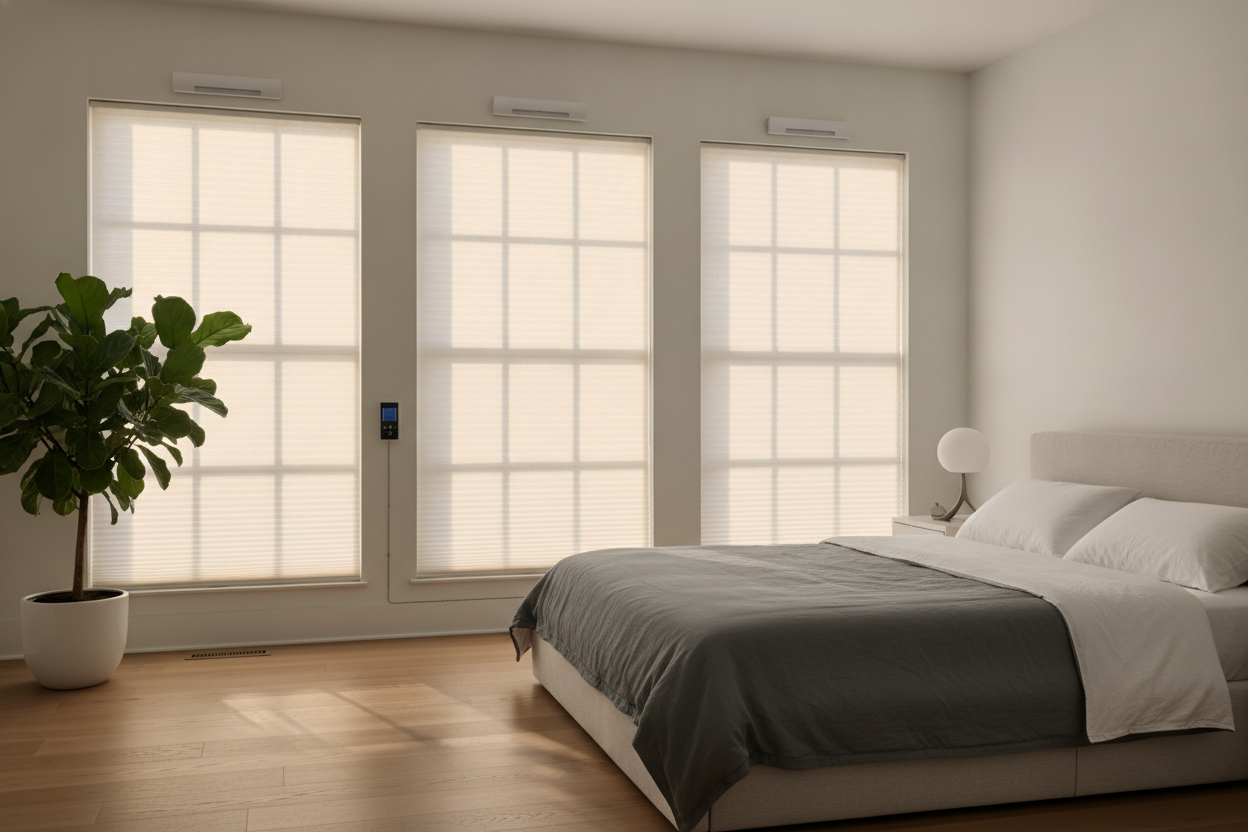

How 3 8 Inch Cellular Shades Fixed My Casement Window Nightmare

I spent two hours trying to force a standard 3/4-inch smart shade into my 1950s casement window frame before I finally admitted defeat. Every time the motor lowered, it slammed into the folding crank handle, tripped the obstacle detection, and sent a 'Motor Obstruction' notification to my phone. I wanted automation, but my shallow window frames were fighting back.

The solution wasn't to replace the windows or the cranks. It was to downsize the pleat. By switching to 3 8 inch cellular shades, I found the clearance I needed to let the motor run its full cycle without hitting a single piece of hardware. It is the difference between a clunky, protruding mess and a clean, flush-mounted finish.

Quick Takeaways

• Shallow frames (under 2 inches) require the 3/8-inch profile to avoid protruding into the room.
• Single cell designs are thinner than double cell, making them ideal for tight clearances.
• Using a 3 on 1 headrail prevents wide windows from sagging under the weight of the motor.
• Always set your lower limit 0.5 inches above the window crank to avoid motor burnout.

The Bulky Hardware Problem (Why Standard Shades Failed)

Casement windows are a blessing for airflow but a curse for smart home enthusiasts. Most modern motorized blinds are built around a 3/4-inch or 1-inch pleat. While those look great on deep-set double-hung windows, they are a disaster on casements with shallow stops. In my living room, the distance from the glass to the edge of the trim is barely 1.5 inches. Once you factor in the mounting brackets, a standard shade sticks out like a sore thumb.

The real nightmare started when I tried to automate them. Smart motors are sensitive. They calibrate by measuring resistance. When my old 3/4-inch shades hit the window crank halfway down, the motor thought it had reached the windowsill. It would stop, lose its 'home' position, and eventually require a full factory reset. I spent more time standing on a ladder with a paperclip hitting the reset button than I did actually enjoying my automated morning routine.

Standard shades also left huge light gaps on the sides because they couldn't sit deep enough in the frame. I was getting the worst of both worlds: a shade that didn't block light effectively and a motor that refused to work because it was constantly colliding with the hardware. I needed something with a much smaller footprint.

Why I Downsized to 3 8 Inch Cellular Shades

The switch to 3 8 inch cellular shades changed the geometry of my window entirely. The '3/8' refers to the size of the honeycomb pleat when viewed from the side. Because the pleats are smaller, the headrail—the metal housing at the top that holds the motor and battery—is significantly narrower. This allowed me to mount the entire assembly inside the window casing rather than on the face of the trim.

The micro-pleat design is a specific engineering choice for shallow windows. Even when the shade is fully raised, the stack height (the bunch of fabric at the top) is incredibly thin. This is huge if you have older windows with beautiful woodwork you don't want to hide. The slim headrail tucked right up against the top of the frame, leaving plenty of room for the window crank to operate underneath it without interference.

Most people worry that smaller pleats look 'busy,' but on a casement window, it actually looks more proportional. The smaller scale of the honeycomb cells mimics the tighter lines of the window frame. It looks intentional, not like an afterthought from a big-box store. From a technical standpoint, the lighter weight of the 3/8-inch fabric also puts less strain on the motor, which should theoretically extend the battery life between charges.

Single Cell vs. Double Cell: Making the Right Trade-Off

When you are shopping for these, you'll see options for 3 8 single cell cellular shades and double cell versions. I chose the single cell for my living room for one reason: depth. A double cell shade adds a second layer of honeycomb, which increases the R-value (insulation) but also increases the physical thickness of the shade. In a tight casement frame, every millimeter counts.

If you live in a climate with extreme winters, you might be tempted to go thicker. However, I found that for the living room, the single cell provided enough of a thermal barrier to stop the 'drafty window' feeling without causing the shade to rub against the glass or the screen. For the bedrooms, where I had a bit more depth to play with, I opted for Double Cell Cellular Shades to maximize energy efficiency. The double cell acts like a puffer jacket for your window, trapping air in two distinct layers.

The trade-off is simple: if your window frame is shallower than 1.5 inches, stick with the 3/8-inch single cell. If you have 2 inches or more, you can probably get away with the double cell. In my case, the single cell was the only way to keep the motor assembly from hitting the crank handle during its morning 'Open' command.

Handling the Extra-Wide Living Room Windows

My living room features a massive three-panel casement window that spans nearly 90 inches. Covering a span that wide with a slim 3/8-inch headrail is risky. If you try to use one giant shade, the headrail will eventually sag in the middle, causing the motor to grind and the fabric to ripple. It looks cheap, and it sounds worse.

Instead of one massive unit, I used a strategy of automating 3 on 1 headrail cellular shades. This setup uses a single, continuous headrail at the top, but three independent shades hanging from it. Each shade aligns perfectly with the vertical mullions of the casement windows. This keeps the weight distributed and allows the slim 3/8-inch profile to maintain its structural integrity across the wide opening.

From an automation perspective, this is the pro move. I can group all three shades in my app so they move in perfect sync, or I can crack the middle shade for some light while keeping the side shades closed to block the glare on my TV. Because the 3/8-inch pleats are so light, the motors don't have to work nearly as hard as they would with a heavy wood blind or a thick double-cell fabric. It is the most reliable part of my current smart home setup.

Setting Up the Motors to Avoid Collisions

Once the shades were mounted, the real work began in the app. Even with the slim profile of the 3 8 inch cellular shades, the window crank is still a physical obstacle at the very bottom of the run. If you let the shade drop all the way to the sill, it will rest on top of the crank, causing the fabric to bunch up and potentially damaging the internal lift cords.

I set my lower limits about a half-inch above the highest point of the crank handle. In the app, I ran the 'Limit Setup' routine, lowered the shade slowly until it just cleared the handle, and saved that as the 100% closed position. It leaves a tiny light gap at the very bottom, but it saves the motor from burning out. For the bedroom where I needed total darkness, I eventually swapped the frames for Motorized Double Cell Blackout Cellular Shades and replaced the folding cranks with 'T-handle' style turns to get that extra clearance.

One tip: if you use Zigbee or Thread-based motors, make sure you do your initial pairing before you snap the shades into the brackets. Reaching the pairing button on a slim 3/8-inch headrail once it is tucked deep into a window frame is a finger-cramping nightmare. Pair it on your lap, then click it into the window.

The 6-Month Verdict

After six months of daily use, these slim shades have held up better than my full-sized ones. The smaller pleats haven't lost their crispness, and because they don't hit the hardware, the motor calibration hasn't drifted a single millimeter. I have my 'Movie Mode' scene set to drop them to 100% and dim the lights, and it works every single time without that dreaded grinding sound.

If you are struggling with shallow windows or bulky casement hardware, stop trying to make 3/4-inch shades work. The 3/8-inch profile is the specific tool for this specific job. It is the only way to get a truly flush, professional-looking automated window treatment in a house that wasn't built with smart tech in mind.

FAQ

Do 3/8 inch shades provide enough privacy?

Absolutely. The cell size doesn't change the opacity of the fabric. If you choose a blackout or light-filtering material, the privacy is identical to larger pleat sizes. You just get a slimmer profile.

Can I install these myself on a shallow frame?

Yes, but you need to be precise. Use a 1/16-inch drill bit for pilot holes to ensure you don't split the window trim. Since the mounting space is limited, there is very little room for error with your screw placement.

Are the motors louder because the headrail is smaller?

Usually, no. Most manufacturers use the same 25mm or 28mm motors. The noise level (usually around 35-40dB) is more about the motor quality than the size of the shade pleats. In fact, because the 3/8-inch fabric is lighter, the motor often sounds smoother.
