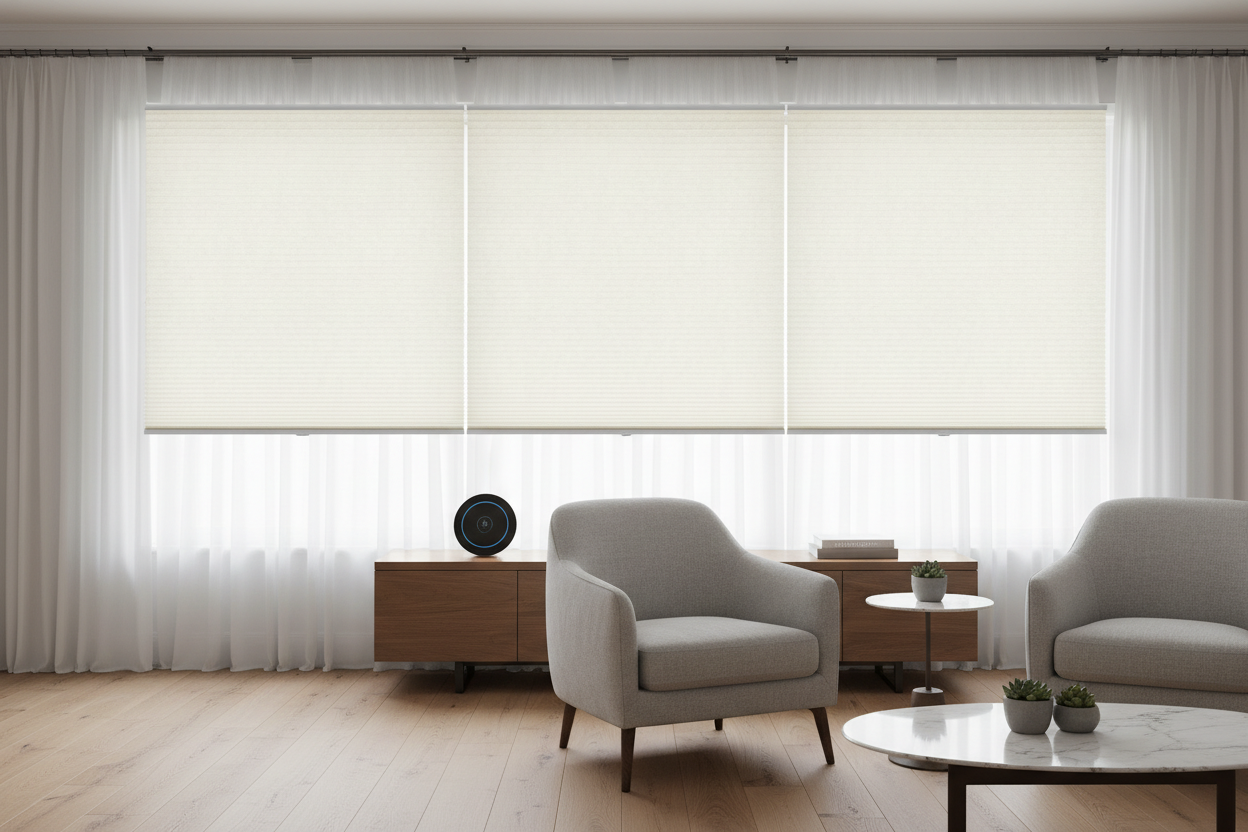

Wide Window Smarts: Automating 3 on-1 Headrail Cellular Shades

Picture this: It's high noon, and the sun is blasting through your sliding glass door, turning your living room into a greenhouse. You want to block the glare on the TV, but you don't want to lose the view of the backyard entirely. This is the exact scenario where 3 on-1 headrail cellular shades shine. Instead of wrestling with a massive, heavy single shade or dealing with three separate, misaligned headrails, this setup offers the perfect middle ground for wide glazing.

By splitting the coverage into three independent panels on a single unified rail, you gain granular control over light and privacy. When you add smart motorization to the mix, you transform a standard window treatment into a dynamic light management system.

Key Specs at a Glance

Before you drill into your lintel, it is crucial to understand the technical constraints of putting three motors on a single rail system.

Anatomy of the Setup: Rod vs. Track Integration

When dealing with multiple blinds on one window, the hardware engineering matters. Unlike a standard curtain rod, a 3-on-1 headrail is a rigid, architectural track system. The internal gearing must accommodate three separate lift spools.

The Weight Factor

Smart motors have torque limits. A single 100-inch wide shade often strains battery-operated motors, causing them to whine or drain power rapidly. By utilizing three blinds on one headrail, you distribute the load. The center shade usually covers 50% of the opening (like a sliding door), while the two side shades cover the flanking glass. This reduces the strain on individual motors, extending the lifespan of the gearing.

Power Options: Battery vs. Hardwired

This is the most common point of failure in DIY smart home setups.

• Battery Wands: If you are looking at a Levolor 3 on 1 headrail retrofit, you might be tempted to use battery wands. Be warned: with three motors, you have three batteries to charge. If one motor runs slower because its voltage dropped earlier than the others, your shades will look misaligned.
• Hardwired (12V/24V): For a 3-on-1 setup, low-voltage hardwiring is superior. It ensures all three motors receive identical current, keeping the lift speed synchronized.

Smart Integrations & Noise Levels

If you are using an RF-based system (common in retrofits), you will likely need a bridge like the Bond Bridge Pro or a specific manufacturer hub (like Somfy Tahoma) to get them into Alexa or HomeKit.

Noise Considerations (dB):
A single motorized shade typically runs between 40-50dB. When you trigger a scene like "Good Morning" and all three shades lift simultaneously, the sound is additive but not linear. Expect a hum around 55dB. If you opt for premium motors (like Lutron or Rollease Acmeda), the noise floor drops significantly, which is critical if these are installed in a bedroom.

Living with 3 on-1 headrail cellular shades: Day-to-Day Reality

My Installation & Usage Notes

I've lived with a motorized 3-on-1 setup on my main patio slider for about six months now, and there are nuances specs won't tell you.

The first thing I noticed was the "Whirring Chorus." Even with high-end motors, it is nearly impossible to get three motors to spin at the exact same RPM. When I ask Google to "Open the Patio," the three shades start together, but about halfway up, you hear the frequencies drift apart. It creates a phasing sound—like a twin-engine plane. It’s not annoying, but it’s definitely noticeable in a quiet house.

Another detail is the "Light Gap Reality." Manufacturers minimize the gap between the three shades, but physics dictates there must be some space so the fabrics don't rub. At 2:00 PM, I get two distinct slivers of sunlight cutting across my floor like laser beams. I actually use this as a visual timer, but if you want 100% blackout conditions, you need to know that these gaps exist.

Finally, the app grouping is a lifesaver. I rarely move the shades individually. I have them grouped as a single entity in Home Assistant, so one button press moves the entire wall of fabric. However, I kept the physical remote paired to just the center shade for when I need to quickly let the dog out.

Conclusion

Upgrading to smart 3-on-1 headrail cellular shades is one of the most functional changes you can make for wide windows. It solves the weight issue of massive shades while giving you the flexibility to manage light zones. Just ensure you plan your power source carefully—charging three battery wands on a ladder is a chore you'll want to avoid.

Frequently Asked Questions

Do I need a hub for Levolor 3 on 1 headrail automation?

Yes, most Levolor motorized options use Bluetooth or proprietary RF. To control them via WiFi, Alexa, or Google Home, you typically need the Levolor hub or a compatible bridge depending on the specific motor generation.

What happens during a power outage?

If you are hardwired, the shades will not operate without a battery backup. If you use battery wands, they will continue to work via the physical remote, though voice control (dependent on your WiFi router) will be down.

Can I schedule the shades to move independently?

Absolutely. This is the biggest advantage of this system. You can program the center shade to stay up for airflow while keeping the side shades down for privacy, or have them track the sun's position throughout the day.
