How a Cornice Curtain Valance Saved My Messy DIY Smart Drapes

I remember the first time I triggered my living room 'Movie Night' scene. The lights dimmed to 10%, the TV flickered on, and my DIY motorized curtains groaned into action. It felt like the future, until the sun went down and I saw the silhouette of a bulky motor and a bird's nest of USB cables taped to the wall. That's when I realized I needed a cornice curtain valance to hide my crimes against interior design.

• DIY motors are bulky; hide them or regret the 'science project' aesthetic.
• Cornices provide the rigid structure that soft fabric valances can't match.
• Modern linen wraps make the look feel contemporary rather than dated.
• Internal cable management is a safety requirement, not just an option.

The Ugly Truth About Retrofitting Smart Curtain Tracks

Retrofitting automation is rarely as pretty as the marketing photos suggest. I spent weeks researching DIY curtain motor projects for smart home comfort, thinking I was a genius for saving hundreds of dollars. Then I actually installed the hardware. The brackets were raw zinc, the motor was the size of a soda can, and the power brick hung like a heavy fruit from the outlet.

It worked, sure. But the aesthetic was 'industrial warehouse' when I wanted 'cozy sanctuary.' Every time the curtains moved, I wasn't looking at the smooth glide of the fabric; I was staring at the blinking blue LED on the motor housing and the messy loop of power cable that I’d poorly secured with masking tape. If you're going the DIY route, you have to plan for the cover-up.

Why a Cornice Curtain Valance Was My Only Solution

I tried a standard fabric valance first. It was a disaster. The soft fabric just sagged over the motor, creating a weird lump that looked like a squirrel was hiding behind my drapes. To truly hide the bulk of my smart drapery, I needed something with structural integrity. A cornice is a hard box—usually wood or foam—that creates a physical 'shelf' to tuck away the tech.

Because a cornice stands out from the wall on its own brackets, it creates a hollow cavity. This is the secret hideout for your Zigbee hubs, power adapters, and those oversized motor heads that don't fit behind a standard rod. It’s about creating a clean architectural line that the eye can rest on.

Are Cornice Valances for Windows Outdated?

Most people hear the word 'cornice' and think of dust-collecting floral prints in their grandmother's parlor. But cornice valances for windows have evolved. If you keep the profile flat—no crown molding, no scalloped edges—and wrap it in a high-quality grey or oatmeal linen, it looks like a built-in architectural feature.

The key is the 'return'—the distance the box sticks out from the wall. By matching the fabric of the cornice to your drapes, you create a floor-to-ceiling look that actually makes your ceilings feel higher. It's a design trick that hides the hardware while adding a bit of 'custom build' gravity to the room.

How I Built a Tech-Hiding Fabric Box

I built mine using 1/4-inch plywood and some 1x4 pine boards for the frame. The most important measurement isn't the width; it's the depth. While you might look for the right curtain rods for sheer elegance in a normal setup, a motorized track needs breathing room. I built my cornice with a 6-inch return.

This extra space ensures the fabric doesn't rub against the motor housing, which can cause the motor to overheat or stall. I wrapped the wooden box in thin polyester batting to give it a soft, premium feel, then stapled my matching curtain fabric tight across the front. The result is a crisp, clean box that looks like it was installed by a pro.

Cable Management Secrets Inside the Cornice

Once the box was mounted, I had a 6-inch deep 'attic' for my tech. This is where the magic happens. I used adhesive-backed Velcro to mount the heavy power bricks to the inside 'roof' of the cornice. If a cable drapes down and catches the moving carrier of your motorized blackout drapery, you risk stripping the gears or tearing the hem of your expensive curtains.

I also lined the inside of the wood with a few strips of acoustic foam. Motorized tracks can be noisy, especially the budget-friendly ones. This simple addition dropped the motor whine from a noticeable 42dB grind to a whisper-quiet 34dB hum. It’s these small details that make the automation feel like a luxury feature rather than a noisy gadget.

From Science Project to Luxury Hotel Vibes

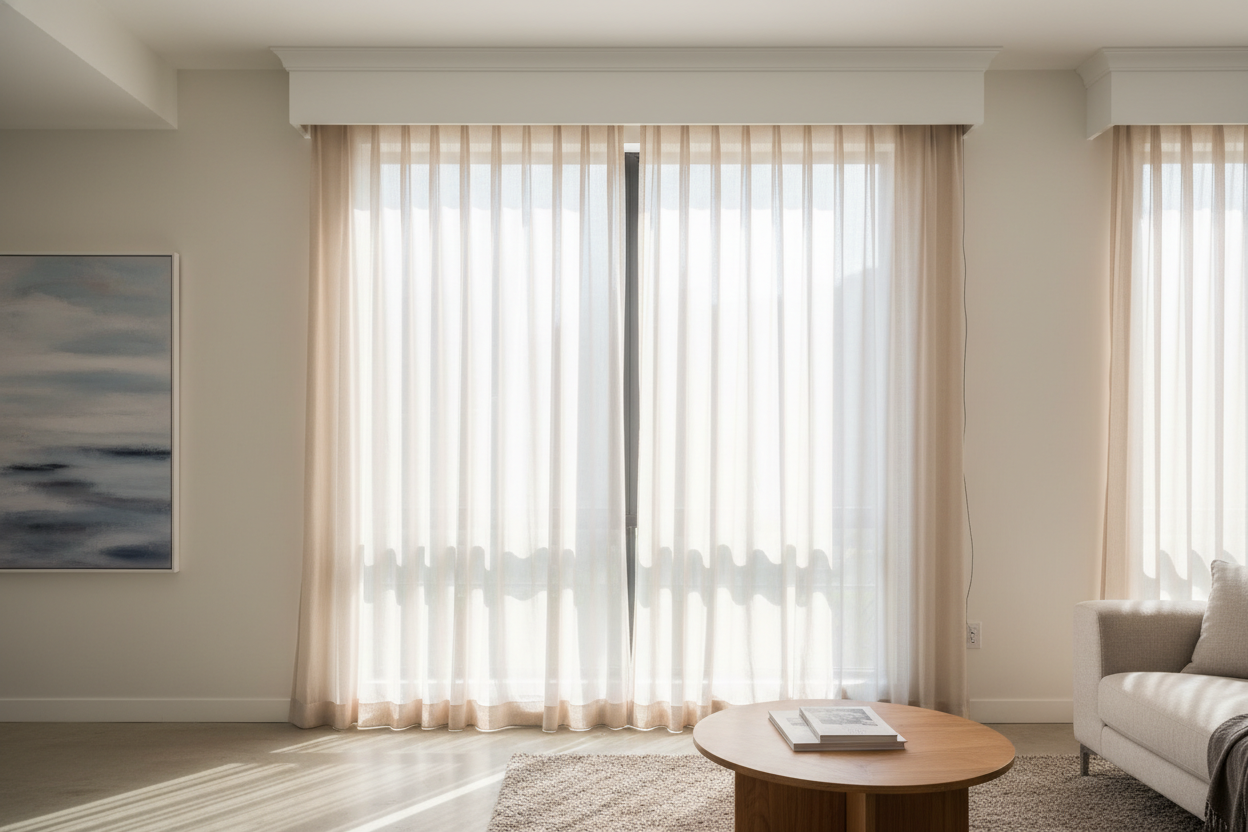

The transformation was instant. Now, when the 'Good Morning' automation triggers at 7:30 AM, the fabric glides out from behind a clean, architectural border. There are no visible wires, no brackets, and no blinking lights. It went from looking like a dorm room hack to a five-star hotel suite.

The best part? My wife stopped asking when I was going to 'finish' the window project. By spending a Saturday building a simple fabric-wrapped box, I finally made my smart home look as smart as it functions. It’s the ultimate bridge between high-tech convenience and high-end design.

FAQ

Can I use a cornice with battery-powered motors?

Absolutely. Just make sure you leave enough clearance to reach the charging port with a cable, or design the cornice with a removable top panel so you can swap out battery packs without taking the whole thing down.

How do I keep the cornice from becoming a dust trap?

Use a vacuum attachment with a soft brush once a month. Since the top is flat, it will collect dust, but a quick swipe keeps it clean. Avoid heavy textures like velvet if you're worried about maintenance.

Is a cornice hard to mount?

It can be heavy. You absolutely must find the studs or use heavy-duty toggle bolts. If you just screw it into the drywall, the weight of the wood plus the torque of the motor will eventually pull it off the wall.
