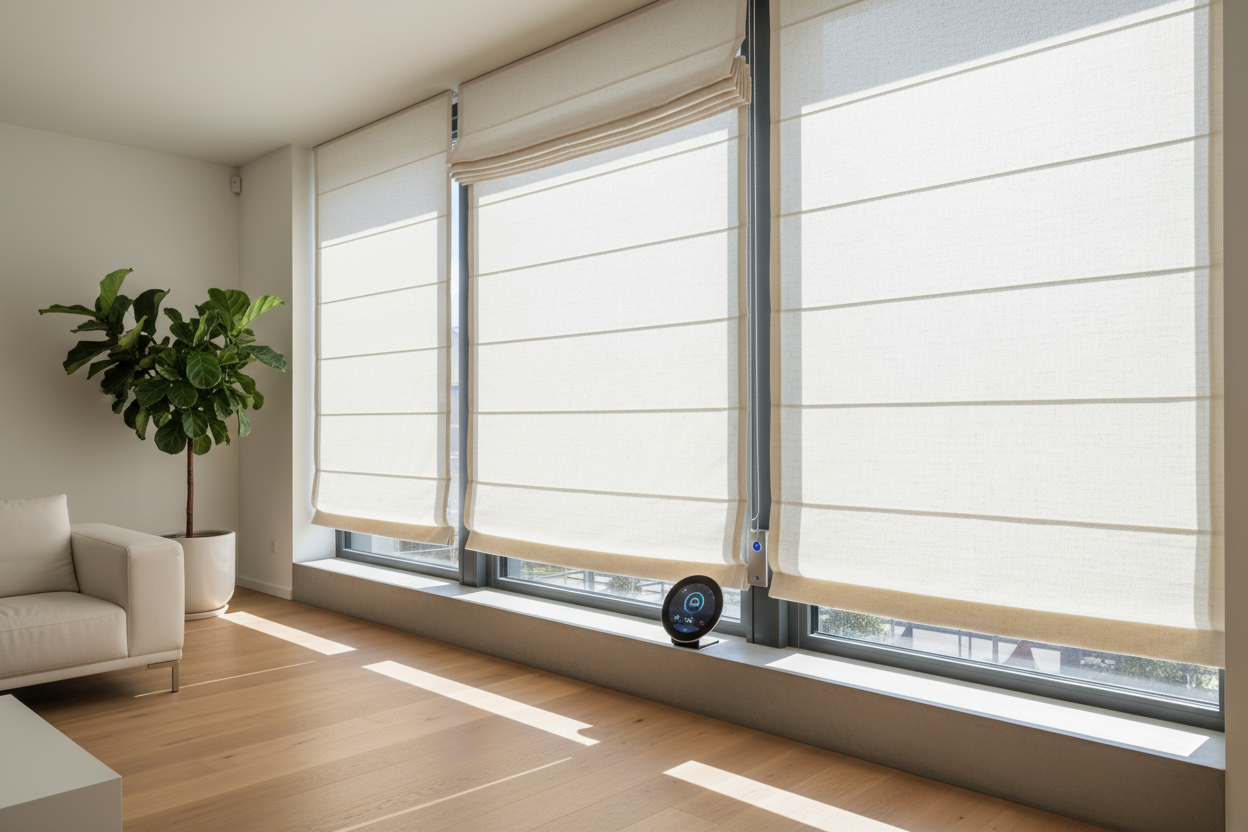

How Heavy Can DIY Insulated Roman Shades Be Before Motors Fail?

I woke up last January to a living room that felt like a walk-in freezer. My massive picture windows were basically heat-sucking voids, and the thin decorative curtains I had were doing exactly nothing to stop the draft. I knew I needed diy insulated roman shades, but I didn't realize I was about to embark on a quest to find a motor that wouldn't commit suicide trying to lift them.

Quick Takeaways

• Standard 0.5Nm motors will stall on shades weighing over 8 lbs.
• Thermal batting adds roughly 0.2 to 0.4 lbs per square foot to your fabric weight.
• High-torque (1.1Nm to 2.0Nm) motors are mandatory for multi-layer insulation.
• Zigbee or Thread protocols are more reliable than Wi-Fi for heavy-duty battery shades.

The Freezing Living Room That Started This Entire Project

The problem with big windows in a snowy climate is the physics of it. Cold glass creates a convection current that drops chilly air right onto your sofa. I spent weeks researching fabrics, eventually ordering a fabric sample roman shades kit to see which materials could actually hide a thick layer of thermal batting without looking like a lumpy sleeping bag.

Standard linen is beautiful, but it has the R-value of a wet paper towel. To fix the draft, I needed weight. And weight is the natural enemy of the tiny, battery-powered motors we all love for their easy installation.

Sewing the Batting: Building the Heavyweight Champion of Window Treatments

I settled on a three-layer sandwich: a decorative face fabric, a middle layer of Warm & Natural cotton batting, and a heavy blackout lining. This setup is a beast. While a standard roman shade might weigh 4 or 5 pounds, this insulated version tipped the scales at nearly 14 pounds for a 60-inch window.

My ultimate goal was automating diy insulated roman shades for energy efficiency. I wanted the shades to drop the moment my Ecobee sensors detected the room temp dipping below 68 degrees. But before the automation could work, I had to solve the lifting problem.

The 'Groan and Stall' (Why My First Smart Motor Hated These Shades)

I initially tried a standard 25mm retrofit motor I had lying around from a previous project. It was rated for 'medium' shades. When I hit the 'down' button, it worked fine—gravity is a great assistant. But when I asked it to go up, the motor emitted a high-pitched whine followed by a gut-wrenching grinding noise.

It moved about three inches before the internal safety shut-off kicked in. The motor was pulling too many amps trying to overcome the friction of the thick fabric folds and the sheer mass of the batting. It was a total failure.

Sourcing a High-Torque Motor That Actually Fits in a Standard Headrail

This is where you have to look at the Newton meter (Nm) rating. Most entry-level smart motors are 0.5Nm. For insulated roman shades diy projects, you need to hunt for motors in the 1.1Nm to 2.0Nm range. This usually requires moving up to a 35mm or 40mm tube size, which means a beefier headrail.

I eventually found a 1.2Nm Zigbee motor that fit a slightly larger tube. It lifts the 14-pound shade at about 28 revolutions per minute. It isn't fast, but it doesn't sound like it's dying. If you are doing the math, check out this smart motorization guide for a breakdown of how to calculate the exact torque needed based on your tube diameter.

When You Should Stop Tinkering and Just Buy Pre-Insulated Smart Shades

I spent three weekends sewing, measuring, and cursing at my motor mounts. While I saved money on the fabric, the high-torque motors and heavy-duty hardware added up. If you aren't comfortable rewiring a battery pack or wrestling with a sewing machine that hates thick layers, you might be better off with custom roman shades built by professionals.

Specifically, if you want that thermal performance without the DIY headache, motorized blackout roman shades are a solid middle ground. They offer the density needed for insulation with a motor that is factory-matched to the weight of the fabric. No grinding noises, no stalled motors, and no cold living rooms.

FAQ

How much weight can a standard 0.5Nm motor lift?

Generally, they max out around 8 to 10 pounds depending on the tube diameter. Larger tubes actually make it harder for the motor because of the increased leverage of the weight.

Does thermal batting make the shade too bulky to fold?

Yes, if you use high-loft batting. Stick to 'low-loft' or specialized thermal linings to ensure the shade still stacks neatly at the top of the window.

Will cold weather kill the motor batteries?

Lithium batteries hate the cold. If your windows are very drafty, expect to charge your shades 30% more often in the winter than in the summer.
