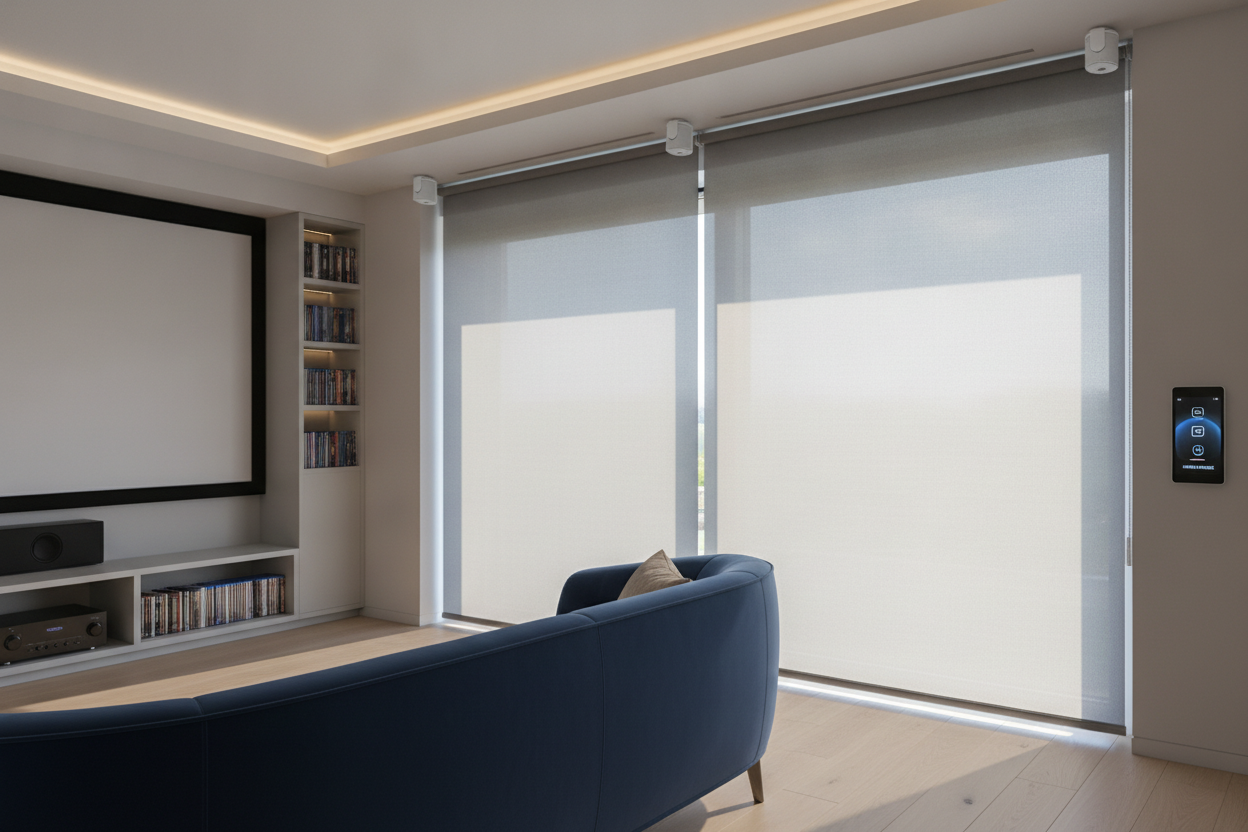

How I Mounted Two Roller Blinds in One Window for Movie Nights

My living room is a victim of its own success. It has these massive, south-facing windows that make the space feel airy and expensive during breakfast, but by 2:00 PM, the sun turns my 120-inch projector screen into a washed-out grey mess. I spent months trying to find a compromise. I tried the 'one-size-fits-all' approach with semi-opaque fabrics, but they were too dark for afternoon emails and too bright for late-night horror movies. The only real solution was to stop compromising and install two roller blinds in one window.

Quick Takeaways

• Dual setups require specialized brackets that hold two tubes in a single, stacked, or staggered configuration.
• You need a minimum window frame depth of 4.5 to 5 inches for a clean inside mount.
• Motorization is a must; managing four manual cords for two windows is a recipe for a tangled nightmare.
• Always place the blackout layer closest to the glass to minimize light bleed around the edges.

The Home Theater vs. Home Office Dilemma

The struggle is real when your 'office' is also your 'cinema.' During the day, I need soft, diffused light. I want to see my keyboard without the glare of a thousand suns bouncing off my monitor, but I also don't want to feel like I'm working in a cave. When 6:00 PM hits and the Xbox turns on, I want total darkness. Putting two roller shades on one window was the 'aha!' moment that solved both problems.

By using two separate fabrics, you gain a level of light control that a single shade just can't touch. Most people think they have to choose between a view and a nap. I didn't want to choose. I wanted the ability to drop a sheer layer to kill the glare while still seeing the trees outside, and a secondary 'nuke the sun' layer for those HDR movie moments. Using two blinds might seem like overkill until you see the transition from a bright workspace to a pitch-black theater in under 20 seconds.

I’ve tried the DIY hacks—velcroing blackout fabric to the frame or using tension rods—and they all looked like a college dorm project. If you want a setup that doesn't make your spouse roll their eyes, you have to commit to the dual-bracket hardware. It’s the difference between a 'functional' window and a 'smart' one.

Why I Decided Against Layering Curtains Over Shades

The traditional advice is to hang a roller shade and then slap some heavy velvet drapes over the top. I hated that idea. First, curtains are dust magnets. In a room with high-end electronics and cooling fans, the last thing I need is more lint floating around. Second, the 'layered' look felt too heavy for my minimalist aesthetic. I wanted the window to look like a clean piece of glass when the shades were up, not a Victorian stage set.

This practical guide to roller shades really hammered home the benefits of a streamlined look. Dual brackets for 2 roller blinds on one window allow both fabrics to disappear into a single header or a very slim profile. You don't have bulky curtain rods protruding six inches into the room, and you don't have to deal with the inevitable cat hair that sticks to the bottom of drapes.

There’s also the 'stack' issue. Curtains, even when open, block part of the glass. With a dual roller setup, the entire window is clear when the motors are retracted. It’s a cleaner, more architectural look that fits a modern smart home. Plus, if you're automating things, syncing two motors is infinitely more satisfying than watching a robotic curtain rod tug a piece of fabric across a rail with a loud, grinding whine.

The Hardware You Need for a Dual Setup

You can't just buy two random shades and hope they fit. You need a dedicated dual mounting bracket. These brackets are designed to hold two separate rollers—one slightly lower and in front of the other. The geometry is tight. I’m talking about millimeters of clearance between the two rolls of fabric. If your fabric is too thick, the rolls will rub against each other, causing the motors to stall or the fabric to fray over time.

For the front-facing layer, I went with motorized light filtering roller shades. This is the 'daytime' layer. It cuts the UV rays and kills the glare on my screen but keeps the room feeling alive. For the rear layer—the one closest to the glass—I installed motorized blackout roller shades. Placing the blackout layer in the back is a pro tip: it allows the fabric to sit closer to the window frame, which significantly reduces that annoying 'halo' effect where light leaks in from the sides.

Check your motor specs too. I opted for 12V DC motors with a noise rating under 35dB. You don't want your window treatments sounding like a power drill while you're trying to enjoy a quiet dialogue scene. Also, ensure your bracket can handle the weight of two tubes. A 72-inch wide window with two motorized rollers is heavy; don't even think about using drywall anchors. Find the studs or use heavy-duty toggle bolts.

Step-by-Step: Getting Both Motors Inside the Frame

This is where things get technical. Most standard roller shades only need about 2.5 inches of depth for an inside mount. For a dual setup, you need significantly more—usually 4.5 to 5 inches. If your window frames are shallow, you might have to do an outside mount, which means the brackets are screwed into the wall above the window rather than inside the casing.

First, measure your width at the top, middle, and bottom. Use the smallest measurement. When you're running two motors, any slight 'out-of-square' in your window frame will be magnified. I spent forty minutes shimming my left bracket because my 1950s house decided that '90 degrees' was a suggestion rather than a rule. If the brackets aren't perfectly level, one of the shades will telescope, meaning it will drift to one side and start eating itself against the bracket.

Once the brackets are up, snap the blackout shade in first. Test it. Run it all the way down and all the way up. Check for any rubbing against the window handle or the frame. Then, snap in the light-filtering shade. You’ll likely have to adjust the 'limit switches' (the programmed stop points) immediately. You don't want the front shade to hit the floor before the motor stops, or worse, have it get caught on the back shade's bottom rail.

Automating the Dual Setup Without App Headaches

Now for the fun part: the logic. You have two motors per window, which means you have twice the potential for network drops if you’re using cheap WiFi chips. I stick to Zigbee or Z-Wave for my blinds. It’s a mesh network, so each blind helps pass the signal to the next one. I’ve had zero pairing failures since I ditched my old WiFi-only bridges.

I set up three main routines in my hub. 'Work Mode' triggers at 8:00 AM: the blackout shades go up 100%, and the light-filtering shades drop to 70%. It’s perfect. 'Cinema Mode' is the heavy hitter: I linked this to my projector power. When the projector turns on, both layers drop to 100%, the lights dim to 5%, and the room goes into total lockdown. My wife calls it the 'Batcave button.'

The third routine is 'Heat Management.' I have a temp sensor in the room. If the internal temperature hits 78 degrees and I’m not home, the blackout shades drop automatically to keep the sun from baking my office. It saves me about $15 a month on AC, which helps justify the cost of the extra motors. Just make sure you group your shades correctly in your app so you aren't clicking four different buttons just to see the sun.

Is the Double-Roller Look Actually Worth the Cost?

I’m not going to lie: buying two sets of motorized shades is an investment. You’re essentially doubling your hardware cost per window. But if you use your room for multiple purposes, it is the single best upgrade you can make. The ability to shift the 'vibe' of a room from a productive office to a cozy theater with a voice command is a luxury that never gets old.

I’ve had this setup for a year now. I had one motor lose its pairing after a firmware update, which took five minutes to reset, but otherwise, it’s been flawless. No more fighting with curtains, no more glare on my Zoom calls, and no more streetlights ruining the black levels on my movies. If you have the depth in your window frames, do it. Your eyes (and your projector) will thank you.

FAQ

Can I use one motor to pull both shades?

No. The whole point of a dual setup is independent control. You need two separate motors so you can have one up and one down. Attempting to DIY a single-motor solution for two fabrics is a recipe for a mechanical disaster.

Do the two fabrics ever get tangled?

Only if you install them too close together or if the brackets are unlevel. If the fabric starts to 'telescope' (roll unevenly), it can rub. High-quality dual brackets provide just enough gap to prevent this.

How long do the batteries last on a dual setup?

In my experience, the light-filtering shade needs a charge every 6 months because I use it daily. The blackout shade usually lasts 9-10 months since it only drops at night. Most modern motors use USB-C charging, so it’s a non-issue.
