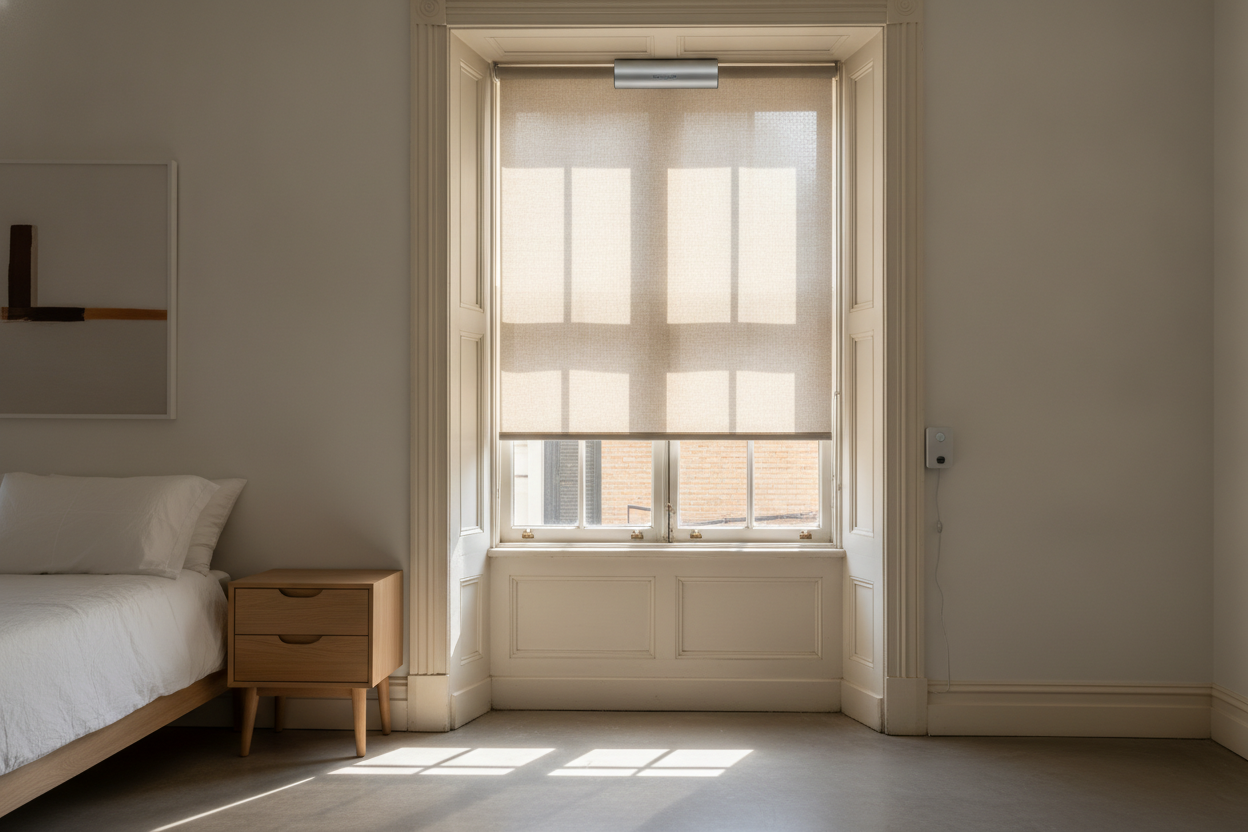

How to Automate a 27 Inch Roller Shade Without Ruining Old Trim

I woke up at 6:15 AM to a laser beam of sunlight hitting me directly in the left eye. My 1920s bungalow has these gorgeous, original oak windows, but they are a nightmare for anyone trying to sleep past dawn. I’ve spent months trying to find a smart solution that didn't involve drilling massive holes into century-old wood or mounting a bulky plastic box on the face of the decorative trim.

Fitting a 27 inch roller shade into a frame that is barely an inch deep is like trying to park a suburban in a compact spot. Most off-the-shelf options are built for modern 2x4 construction with deep windowsills. If you have historic double-hung windows, you know the struggle: the sash lock sticks out, the frame is narrow, and the wood is so dry it splits if you even look at it with a drill bit.

Quick Takeaways

• Tube length is the primary constraint; motors take up a significant portion of a 27-inch span.
• Inside mounting in shallow frames requires low-profile brackets and precise pre-drilling.
• External battery wands are often necessary when internal space is limited by the motor.
• Light-filtering fabrics prevent narrow windows from feeling like dark, heavy tunnels.

The Curse of the 1920s Double-Hung Window

My house was built in an era when window frames were designed for a single pane of glass and a weighted pulley system. There was no consideration for a motorized 27 roller shade. When I measured my bedroom windows, I realized I had exactly 1.125 inches of flat surface on the inside of the jamb before I hit the window sash. That is not a lot of room for error.

The wood itself is a challenge. Old-growth oak is beautiful, but after 100 years, it’s basically stone. If you try to force a screw in without a proper pilot hole, you’ll hear a 'crack' that sounds like a gunshot. I’ve ruined a perfectly good piece of crown molding by being impatient. For these narrow windows, you have to treat the installation like surgery. Every millimeter of clearance matters, especially when you have to account for the window lock that inevitably sits right where the shade wants to hang.

The width is the other issue. A 27-inch opening is standard for these old homes, but 'standard' in 1924 meant 'roughly 27 inches.' One window might be 27.1 at the top and 26.8 at the bottom. If you don't account for that taper, your automated shade will jam halfway down, and you’ll hear the motor grinding in a way that makes your wallet hurt.

Why This Size Is the Awkward Middle Child of Smart Blinds

In the world of home automation, size usually dictates power. Most standard smart roller shades use motors that are between 12 and 18 inches long. When you put one of those inside a 27 inch roller shade tube, you are suddenly left with very little 'empty' space. This creates a massive headache for internal battery placement.

Physics is a stubborn thing. If the motor occupies 15 inches of the 27-inch tube, and the idle end takes up another 3 inches, you only have 9 inches of space left for the battery cells. Many manufacturers try to cram the batteries in there, but it leads to poor weight distribution. I’ve seen narrow shades that wobble or 'telescope' (where the fabric rolls unevenly to one side) because the internal components aren't balanced. It’s a common flaw in cheap, narrow motorized units.

Furthermore, the torque required to move a shade isn't just about the width; it's about the roll diameter. Even a narrow 27-inch shade can get heavy if you choose a thick fabric. You need a motor that is small enough to fit but strong enough to lift the material without sounding like a blender. I look for motors rated at 1.1Nm of torque or higher, which is the sweet spot for these mid-sized narrow treatments.

The Battery vs. Hardwired Dilemma in a 27" Tube

If you are lucky enough to be doing a full studs-out renovation, hardwire your windows. Run the 12V or 24V lines and never think about charging again. But for the rest of us living in historic homes, we are stuck with batteries. In a tube this short, you have to decide: do you want a shorter motor with less power, or an external battery wand?

I personally prefer the external battery wand for a 27" roller shade. You can clip it behind the header or even inside the window channel where it’s invisible. This allows you to use a more robust motor. I’ve also found that using smart control for narrow windows helps manage the battery life. By setting 'soft starts' and 'soft stops' in the app, you prevent the motor from drawing a huge spike of current every time it moves. It’s quieter, too—measured at about 34dB, which is just a soft hum.

The charging port is the final hurdle. On narrow shades, the charging port is often tucked right against the bracket. I’ve had to use a 90-degree micro-USB adapter just to get a charging cable into the motor head without taking the whole shade down. It's a small detail, but one you’ll care about six months from now when the battery finally hits 5%.

Stop Drilling the Face: The Shallow Inside Mount Trick

Please, stop drilling into the front-facing decorative trim. It’s the fastest way to devalue a historic home. To get a 27 roller shade to fit inside a shallow frame, you need to mount to the 'ceiling' of the window opening. I use a 90-degree drill attachment to get the pilot holes straight. If you try to drill at an angle, the screw head will sit crooked, and the bracket won't snap onto the shade properly.

If your window lock is in the way, use the 'reverse roll' trick. Instead of the fabric hanging off the back of the tube (closest to the glass), have it roll off the front. This gives you an extra inch of clearance, allowing the shade to bypass the lock and the mid-rail of the double-hung window. It also hides the roll itself, giving it a cleaner, more minimalist look that contrasts nicely with the old wood.

One more thing: use a level. I know that sounds obvious, but in an old house, nothing is level. If your brackets are even 1/16th of an inch off, a narrow shade will drift to one side. Over time, this frays the edges of the fabric as it rubs against the brackets. I use a small torpedo level on the tube itself before I call the job finished.

Which Fabric Actually Looks Good in a Narrow Window?

Choosing fabric for a narrow window is a balancing act. If you go too heavy, the window looks like a dark vertical slit in the wall. I’ve seen people put heavy black vinyl on 27-inch windows and it completely kills the vibe of the room. It makes the space feel smaller and more closed-in.

I almost always recommend motorized light filtering roller shades for these scenarios. A textured weave—think linen or a light grey salt-and-pepper pattern—softens the light coming through without blocking it entirely. It keeps the room feeling airy while providing total privacy. From the street, these look much better than plastic-backed blackout shades, which tend to look cheap against historic architecture.

Lighter fabrics also mean less weight. On a 27-inch shade, a lightweight fabric puts significantly less strain on the motor. This translates to longer intervals between charges and a faster, smoother lifting motion. In my master bedroom, switching from a heavy blackout to a light-filtering weave increased my battery life from four months to nearly seven.

The Final Verdict: Was the Retrofit Worth the Hassle?

Automating these old windows is a project that requires patience. You will likely drop a screw behind the radiator. You might have to reset the motor limits because the fabric bunched up on the first run. But once it’s done, the convenience is undeniable. I have mine set to a 'Good Morning' routine where the shades rise to 50% at 7:00 AM. It’s a much better way to wake up than a screaming alarm or a sunbeam to the eye.

The tech has finally caught up to the challenges of historic homes. You don't have to sacrifice your trim or your sanity to get a smart 27 inch roller shade. Just measure three times, pre-drill your holes, and choose a fabric that lets the room breathe. It’s a weekend project that pays off every single morning.

FAQ

Will a 27-inch shade work with Zigbee or Matter?

Yes, most high-quality motorized shades now offer Zigbee or Matter-compatible motors. Just ensure your hub is within range, as the metal window weights inside old walls can sometimes interfere with the signal.

How do I hide the battery wand?

You can use heavy-duty command strips to mount the wand to the top of the window frame, tucked behind the roller tube. Most people will never see it unless they are looking for it.

Can I cut a larger shade down to 27 inches?

I wouldn't recommend it. Motorized shades have specific internal components that are factory-balanced. Cutting the tube yourself often voids the warranty and can damage the motor's mounting points.
