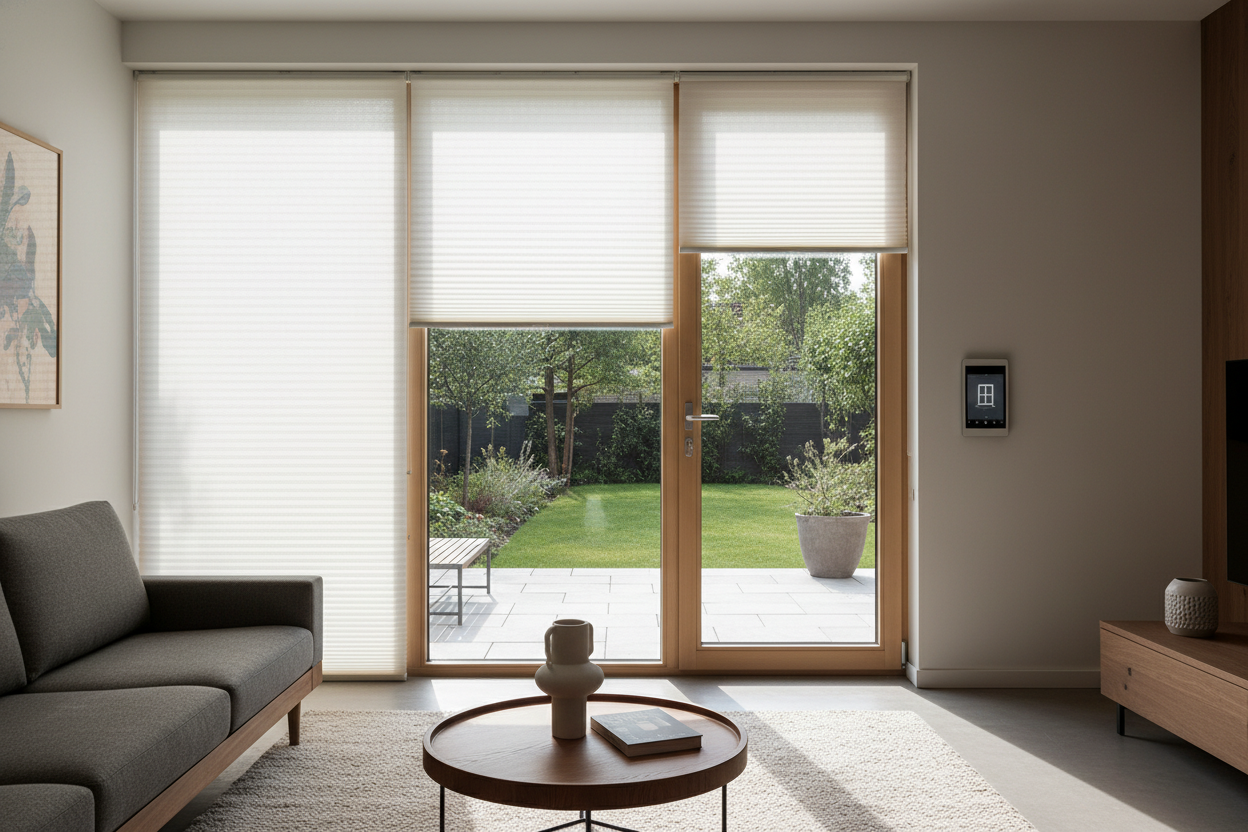

How to Mount Insulated Patio Door Blinds Without Blocking the Handle

Last December, my living room felt like a walk-in freezer. I was sitting on the couch, two blankets deep, watching the curtains flutter even though every window was locked tight. The culprit? My massive 8-foot sliding glass door. It wasn't just a window; it was a giant heat sink sucking the life out of my furnace and my bank account. I realized quickly that standard window treatments weren't going to cut it—I needed high-performance insulated patio door blinds.

Quick Takeaways

• Cellular (honeycomb) shades are the only real thermal barrier for large glass expanses.
• Spacer blocks are mandatory to clear protruding door handles.
• Automation prevents 'forgetfulness'—shades should drop the moment the sun goes down.
• Properly installed thermal blinds can reduce heat loss through glass by up to 40%.

The Giant Ice Pack in My Living Room

If you have a sliding glass door, you own a giant ice pack. Even high-end double-pane glass has an R-value (insulation rating) that is laughably low compared to a standard insulated wall. On a 20-degree night, I could put my hand near the glass and feel a literal breeze caused by convective cooling—the air hits the cold glass, drops, and creates a floor-level draft.

I spent weeks monitoring my smart thermostat logs. Every time the sun went down, my heater would kick into overdrive just to maintain 68 degrees in that one room. It became clear that without a physical thermal barrier, I was essentially trying to heat the entire neighborhood through my patio.

Why Traditional Solutions Failed Me

I tried the 'heavy curtain' route first. It was a disaster. To get any real insulation, you need thick, velvet-style drapes, which weighed a ton and constantly got caught in the sliding door track. Plus, my cat treated them like a climbing wall. Then I looked at vertical plastic slats—the kind you see in every 90s apartment. They offer zero R-value because they don't create a seal; they're just noisy dust-collectors.

I eventually realized that insulated blinds for patio doors actually work because they fit tight to the frame. Unlike floppy drapes, structured blinds create a pocket of air that stays put. This search for proper thermal blinds for patio doors led me straight to cellular shades, which are the gold standard for stopping the 'ice pack' effect.

Cellular Shades: The Only Design That Actually Stops Drafts

The magic is in the honeycomb. If you look at cellular shades from the side, they look like a series of tubes. These tubes trap a layer of 'dead air'—one of the best insulators found in nature. When you pull these shades down over a massive slider, you aren't just blocking light; you're building a wall of air between you and the cold glass.

For my setup, I went with double-cell energy efficient shades. The double-cell design adds a second layer of air pockets, which is crucial for those of us living in climates where 'winter' means the pipes might burst. They are lightweight, they stack tightly at the top so they don't block your view during the day, and they are shockingly good at deadening outside noise, too.

The Protruding Handle Problem (And My Spacer Block Fix)

Here is where most DIY installs go wrong: the handle. Sliding doors have bulky handles that stick out about two inches. If you mount your blinds flush to the trim, the shade will hit the handle halfway down and get stuck, or worse, the motor will burn out trying to force it. This is the biggest headache when installing thermal blinds patio doors.

The fix is simple: spacer blocks and a 'reverse roll' or 'front-side' mount. I used half-inch plastic spacer blocks behind the mounting brackets to push the headrail further away from the door. This gave the fabric just enough clearance to glide past the handle. When shopping for patio shades, always measure how far your handle sticks out from the mounting surface. If you don't have at least 2.5 inches of clearance, you’re going to need those blocks.

Automating the Draft Defense

The best thermal blind is the one that actually gets used. I knew I’d forget to close them at 5 PM, so I went motorized. I integrated my shades with a Zigbee hub and a simple outdoor light sensor. Now, when the light level drops below 10%, the shades automatically deploy. This is exactly why choose smart blinds over manual ones—you maximize the energy savings without having to think about it.

I also added a safety routine: if the door contact sensor shows 'Open,' the blinds won't move. There is nothing worse than a motorized blind trying to close while a dog or a kid is halfway through the door. I use a 12V rechargeable battery pack for the motors, and even in the dead of winter, I only have to charge them once every six months.

The One-Winter Verdict on My Energy Bill

After one full winter with this setup, the results were undeniable. My living room finally feels like a part of the house rather than a porch with a roof. My heating bill dropped by about 15% month-over-month compared to the previous year, even with a slightly colder January. The ambient chill is gone, and the furnace doesn't kick on nearly as often at night. It’s the single most effective smart home upgrade I’ve made for actual comfort.

FAQ

Do insulated blinds work for summer heat too?

Absolutely. They work both ways. In the summer, they trap the heat between the shade and the glass, preventing it from radiating into your AC-cooled room. Just make sure the side facing the window is white or reflective.

How do I clean cellular shades on a high-traffic patio door?

Use the brush attachment on your vacuum once a month. For sticky finger marks from kids, a slightly damp (not soaking) microfiber cloth with a tiny bit of mild dish soap works wonders. Don't scrub, or you'll pill the fabric.

Can I install these if my door is extra wide?

Yes, but for doors wider than 72 inches, I recommend 'two-on-one' headrails. This means you have two independent shades sharing one top rail. It’s easier on the motors and allows you to open one side of the door while keeping the other side insulated.
