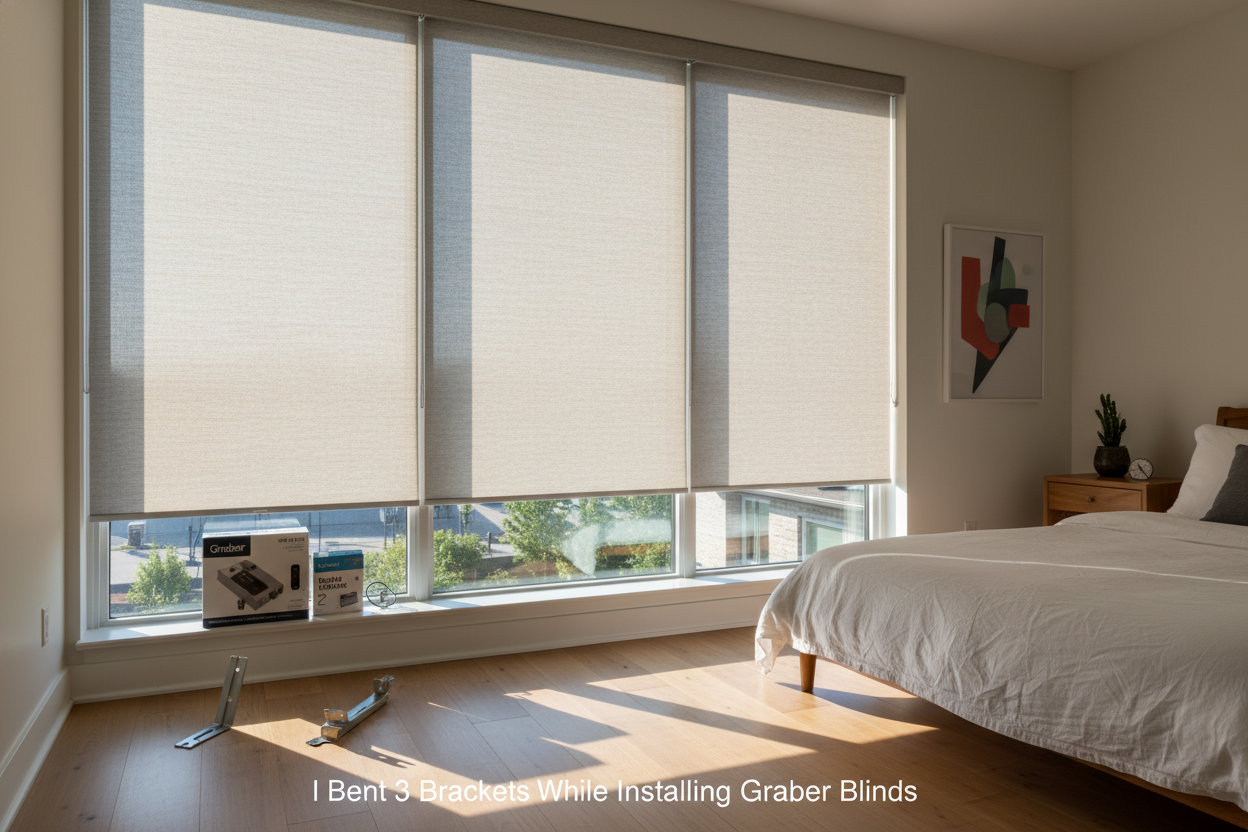

I Bent 3 Brackets While Installing Graber Blinds (Here's Why)

I Thought Premium Shades Meant Foolproof Hardware (Oops)

I’ve spent the last decade configuring Zigbee meshes and debugging smart hubs, so I figured installing graber blinds would be a twenty-minute job. I was wrong. I stood there with a drill in one hand and a bent mounting bracket in the other, realizing that smart home tech is only as good as the physical hardware holding it up. Overconfidence is a dangerous thing when you are dealing with motorized window treatments. I assumed that because I paid a premium for Z-Wave motors, the mounting hardware would be engineered to be idiot-proof. It isn't.

The reality is that reviewing tech often makes you forget that physical hardware installation requires actual carpentry skills. You aren't just hanging a piece of fabric; you’re hanging a metal tube packed with a motor, a battery wand, and a communication radio. If your bracket spacing is off by even a quarter-inch, the torque from the motor will eventually pull the headrail out of alignment. I learned this the hard way when my first shade started sagging like a wet noodle after three days because I didn't respect the physics of the install. A sagging shade doesn't just look bad; it puts uneven pressure on the motor, which is a fast track to a $500 repair bill.

• Pilot holes are mandatory, not optional, to prevent screw drift.
• Space brackets exactly 4 inches from the ends to support the motor weight effectively.
• Use a laser level; your window trim is almost certainly lying to you.
• Check your depth clearance twice to avoid the motor grinding against the glass.

Why I Ignored the Graber Blinds Installation Instructions

The factory graber blinds installation instructions are a bit of a relic. They feel like they were written in 1995 for manual pull-cord shades that weigh next to nothing. They tell you to mount the brackets, snap in the headrail, and call it a day. That’s fine if your shade weighs two pounds, but a 60-inch motorized roller shade is a different beast entirely. The manual completely ignores the lateral force the motor exerts when it starts up. Every time that motor kicks in to lift the shade, it creates a tiny bit of vibration and torque.

If you don't use the right screws or if you hit soft drywall without a proper anchor, that motor will eventually wiggle the bracket loose. I threw the paper manual in the recycling bin after the third bracket bent under the pressure of me trying to 'force' the fit. The instructions also fail to mention that the battery wand adds significant weight to one side of the rail. If you follow the generic spacing guide, you’ll end up with a lopsided install that makes the motor work twice as hard to stay level. You have to think like an engineer, not just a consumer following a pamphlet.

The 'Perfectly Level' Myth for Older Homes

My house was built in the 1940s. Nothing is square. If I use a bubble level to get the shade perfectly horizontal relative to the earth, it looks crooked because the window frame itself is slanted. I had to learn to 'split the difference' during the install. You want the shade level enough so the fabric rolls straight on the tube without telescoping, but not so level that you have a massive, ugly gap on one side of the trim. It’s a balancing act that the manual doesn't prepare you for. I spent an hour shimming one side of a bracket with a piece of a business card just to get it to look right to the naked eye while still functioning mechanically.

Depth Clearance for Z-Wave Motors

When you automate Graber cellular blinds, depth is everything. The Z-Wave motor head sticks out slightly further than the standard manual end caps used on cheaper models. If you mount the brackets too deep into the window frame, the motor head will scrape against the glass or the trim every time it moves. It sounds like a dying blender and will eventually burn out the motor. I had to shim my brackets out by an eighth of an inch just to get the clearance right. You need at least 2.5 inches of flat mounting surface for an inside mount if you want the motor to breathe. Anything less and you are asking for friction issues that will kill your battery life in weeks instead of months.

My Method for Installing Graber Blinds Without Crying

After ruining those first three brackets, I developed a system that actually works. First, ignore the 'end of the rail' mounting suggestion found in the basic how to install shades guide. I now place my brackets exactly 4 inches in from each side. This distributes the weight of the motor tube more evenly across the headrail and prevents that dreaded middle-sag. It also gives you a bit of wiggle room if you hit a metal corner bead or a stud you weren't expecting. If the brackets are too close to the ends, the rail has more room to flex in the middle, which causes the fabric to wrinkle over time.

I also stopped guessing where the screws go. I use a laser level to project a line across the top of the frame, then mark my pilot holes with a spring-loaded center punch. This is much more precise than a pencil mark. If your pilot hole is off by a hair, the screw will pull the bracket diagonally as it tightens, and your shade will never snap in correctly. When you finally go to 'snap' the shade into the brackets, listen for a distinct metallic click. If you don't hear it, it’s not secure. I’ve had a shade fall on my head because I thought it was 'close enough.' It wasn't.

The Tools You Actually Need (Ditch the Manual Screwdriver)

Forget the screwdriver. You need a drill with a right-angle attachment. Window frames are tight spaces, and trying to get leverage with a standard drill driver is how you strip screw heads and slip, gouging your expensive new trim. I also highly recommend a magnetic bit holder so you aren't dropping screws behind the radiator every five minutes. A small LED work light is also a lifesaver; you can't see the bracket engagement tabs in a dark window header without one.

When to Admit Defeat and Call a Professional

There is no shame in calling for backup. If you find out your window headers are made of solid steel or your drywall is crumbling like a dry cookie, stop drilling. I managed the guest room myself, but when I looked at the 12-foot wide bank of windows in the living room, I knew I was out of my league. That's why I wrote my 6 month Graber blinds review — because sometimes the best move is paying a professional to handle the heavy lifting while you focus on the software side. If you have more than five windows to do, the fatigue will lead to mistakes. Professional installers have specialized bits for metal lintels and the experience to handle uneven masonry that would break a DIYer’s spirit.

Final Thoughts: Was the Hardware Headache Worth It?

Once the shades were finally level and the Z-Wave mesh was stable, the frustration faded. There is something undeniably cool about watching your house 'wake up' at sunrise without you lifting a finger. The Graber hardware is robust once it is actually installed correctly, but the journey to get there is paved with bent metal and stripped screws if you aren't careful. Take an extra ten minutes to measure, use the right tools, and treat those brackets with respect. Your motor and your sanity will thank you. Just remember: measure thrice, drill once, and never force a bracket that doesn't want to snap.

FAQ

Do I need a special drill bit for Graber brackets?

A standard 3/32-inch bit for pilot holes usually does the trick for wood frames. If you are going into aluminum or vinyl, get a cobalt bit to prevent walking.

Why won't my shade snap into the bracket?

Check if the bracket is bent or if the screw head is sticking out too far. Even a tiny protrusion will stop the headrail from seating properly in the spring-loaded tab.

Can I install these alone?

For windows under 40 inches, yes. Anything wider and you really need a second person to help hold the weight of the motor-side rail while you snap it in.
