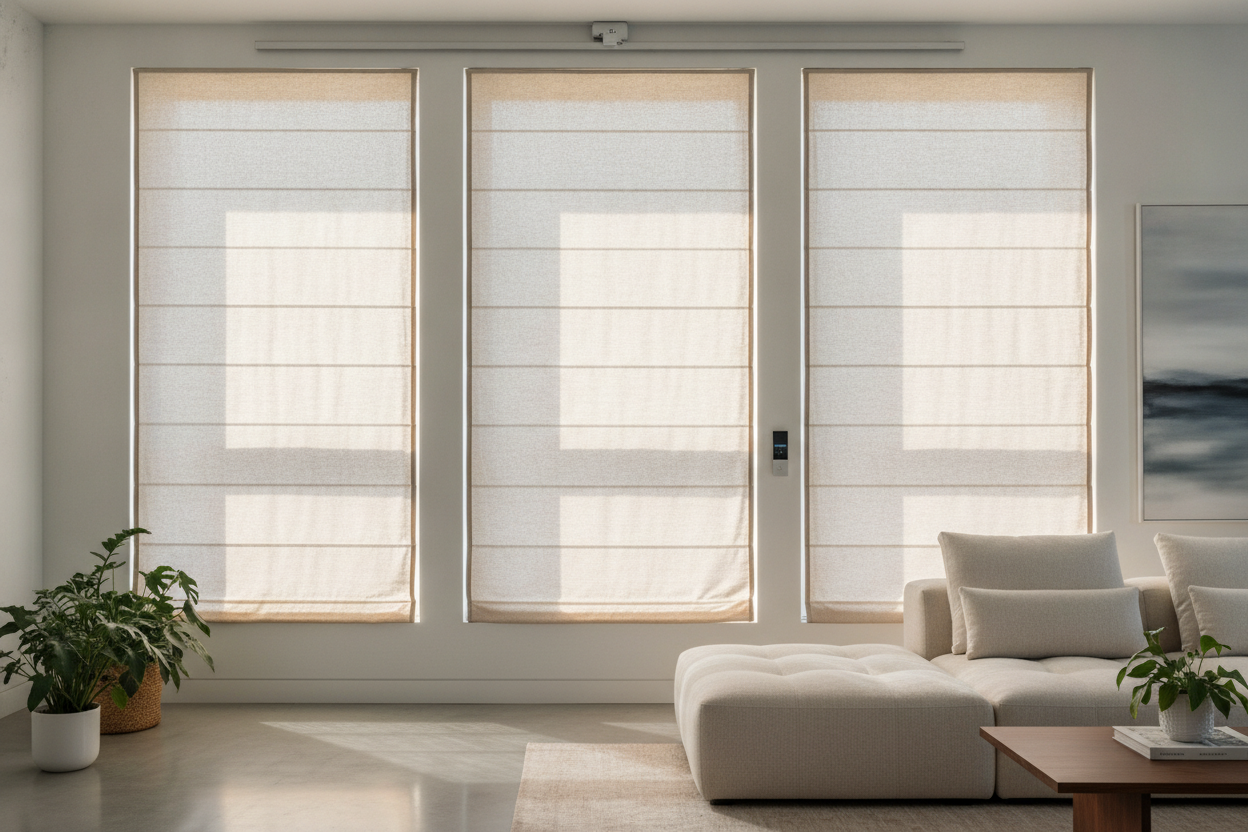

I Built DIY Outside Mount Roman Shades to Hide Crooked Windows

My 1924 bungalow has a lot of 'personality.' That is usually code for the fact that not a single window frame in this house is a true rectangle. When I first started my smart home journey, I was obsessed with the clean, recessed look of inside-mount motorized blinds. I spent a week's pay on a custom-sized kit, only to realize that my window was 34 inches wide at the top and 34.6 inches at the bottom. The rigid motor cassette jammed halfway down, the fabric scraped the paint, and the light gaps on the sides were large enough to let the neighbors watch me drink my morning coffee. It was a disaster.

I finally stopped fighting the architecture and embraced diy outside mount roman shades. By moving the entire assembly to the wall above the window, I bypassed the crooked frames entirely. No more jamming, no more light bleed, and I finally got the motorized aesthetic I wanted without having to rebuild my house's framing. If you are struggling with out-of-square windows, stop measuring the inside. Look at the wall instead.

Quick Takeaways

• Outside mounts hide architectural flaws and uneven window casings.
• A 1x2 or 2x2 wooden headboard is essential for supporting heavy lithium-ion motors.
• Overlap the window trim by at least 2 inches on each side to eliminate light gaps.
• Always anchor into the header studs; smart motors generate significant rotational torque.

Why I Finally Gave Up on Inside Mounts

The dream of the perfectly flush, inside-mount smart shade is a lie for anyone living in a house older than ten years. I wasted months trying to shim, plane, and sand my window jambs to fit a motorized roller. The problem is that smart shades rely on precision. A 35mm tubular motor needs a straight path. If your window frame bows in the middle—which mine does—the fabric will bunch. When fabric bunches, the motor works harder, the battery dies in three weeks instead of six months, and eventually, the safety sensors trigger a false obstruction stop.

Then there is the light gap. Even if you manage to fit a shade inside a crooked frame, you will have 'light halos.' Because the frame is uneven, the gap between the fabric and the wood varies. In a bedroom, this is the difference between sleeping until 8 AM and being blasted by a laser beam of sunlight at 6:15 AM. Moving to an outside mount allows the fabric to sit flat against the wall, creating a seal that actually blocks the light. It is a functional win that happens to look much more expensive than it actually is.

The Illusion of Perfection: Faking Square Windows

One of the best design tricks I have learned is that you can make a tiny, crooked window look like a massive, high-end architectural feature just by where you place the shade. When you mount outside the trim, you aren't restricted by the physical opening. I typically extend my shade width about two to three inches past the casing on both sides. This completely hides the fact that the left side of my window sits a half-inch lower than the right.

When the shade is down, the window looks perfectly symmetrical. When it is up, the stacked fabric covers the top part of the trim, making the ceilings feel a foot higher. If the idea of sewing your own fabric sounds like a nightmare, you can always look into custom Roman Shades designed for outside mounting. It gives you that tailored look without the struggle of trying to calculate pleat ratios on your living room floor. The goal is to create a visual rectangle that the eye trusts, even if the house underneath it is shifting.

Altering Roman Shade Construction for Smart Motors

Standard roman shade construction usually involves a thin aluminum track or a flimsy plastic headrail. That works fine for a manual cord-operated shade, but smart motors change the physics of the setup. I use 12V or battery-powered tubular motors, and they have some serious kick. When the motor starts, it generates torque that can twist a cheap bracket right out of the drywall. I have moved entirely to using a 1x2 or 2x2 clear pine board as my headboard.

I wrap the wood in the same fabric as the shade for a finished look, then mount the motor brackets directly to the underside of the wood. This creates a rigid 'spine' for the shade. In my previous smart motor retrofit, I found that having this solid base also significantly reduced motor noise. Instead of the window frame acting like a sounding board for the motor's hum, the heavy wood absorbs the vibration. My current setup runs at about 38dB—basically a whisper—which is crucial when you have 'Good Morning' routines scheduled for 7 AM.

The Fabric Math for DIY Flat Roman Shades

When building diy flat roman shades, the math is where most people quit. For an outside mount, you need to measure the total width of your trim and add 4 inches. For the height, I measure from the top of the trim to the sill, then add 6 inches. This extra height allows the shade to be mounted high enough that the 'stack' (the folded fabric) doesn't block the glass when the shade is open. You want to see the view you paid for, not a bunch of bunched-up linen.

The fold spacing is the secret sauce. I prefer 8-inch intervals. This creates a clean, modern look when the shade is raised. Before you commit to twenty yards of expensive velvet, I highly recommend getting Weffort Fabric Sample Roman Shades. I once tried to motorize a heavy blackout canvas that was so stiff the motor couldn't actually fold it. The fabric just bowed outward like a sail. Testing the drape and weight against your specific motor's lift capacity (usually measured in Newton-meters) will save you a lot of frustration and wasted fabric.

Securing Heavy Motors to Drywall (Don't Skip This)

Physics is a cruel mistress. A motorized roman shade can weigh anywhere from 8 to 15 pounds depending on the fabric and the battery pack. When that motor spins at 30 RPM to lift the shade, it is exerting constant downward and rotational force. Standard plastic drywall anchors are not enough. I have seen them pull out, leaving giant holes in the wall and a shattered motor on the floor. It is a heartbreaking sight.

Since you are doing an outside mount, you have the advantage of the window header. There is almost always a solid wood 2x4 or 2x6 header above your window. Use a stud finder, locate that wood, and use 3-inch deck screws to mount your headboard. If you absolutely cannot hit a stud, use 1/4-inch toggle bolts. If the idea of drilling massive holes into your walls and calculating load-bearing ratios makes you sweat, you might be better off with the Silva Series Motorized Blackout Roman Shades. They are engineered to be as light as possible while keeping the motor tech internal, which takes a lot of the stress off your mounting points.

The Final Look: Zero Light Gaps, Zero Jamming

The first time I triggered my 'Movie Night' scene and watched the outside-mount shades glide down, I knew I’d never go back to inside mounts. Because the fabric overlaps the wall, the room goes almost pitch black. There is no light leaking from the sides to reflect off the TV screen. The motor runs smoothly every single time because it isn't fighting a cramped, crooked window frame. It just hangs freely against the wall.

The best part? It looks intentional. Guests don't see a crooked window; they see a high-end, motorized window treatment that frames the room perfectly. My automation is finally reliable. I haven't had to 'help' a stuck shade in six months. In the world of smart homes, reliability is the ultimate luxury.

FAQ

Can I use any fabric for motorized roman shades?

Technically yes, but weight matters. If the fabric is too heavy, the motor will overheat or the battery will drain in weeks. Stick to medium-weight linens or cottons, and always check your motor's lift rating in kg or Nm.

How do I hide the battery pack on an outside mount?

I mount the battery pack on the back of the wooden headboard using heavy-duty Velcro. It stays hidden behind the fabric valance but is still easy to grab when it needs a USB-C charge every few months.

Do I need a special hub for these?

Most DIY smart motors use either Zigbee or RF. If you want Alexa or HomeKit control, you will usually need a small bridge. I prefer Zigbee because it doesn't clutter my Wi-Fi and the response time is nearly instant.
