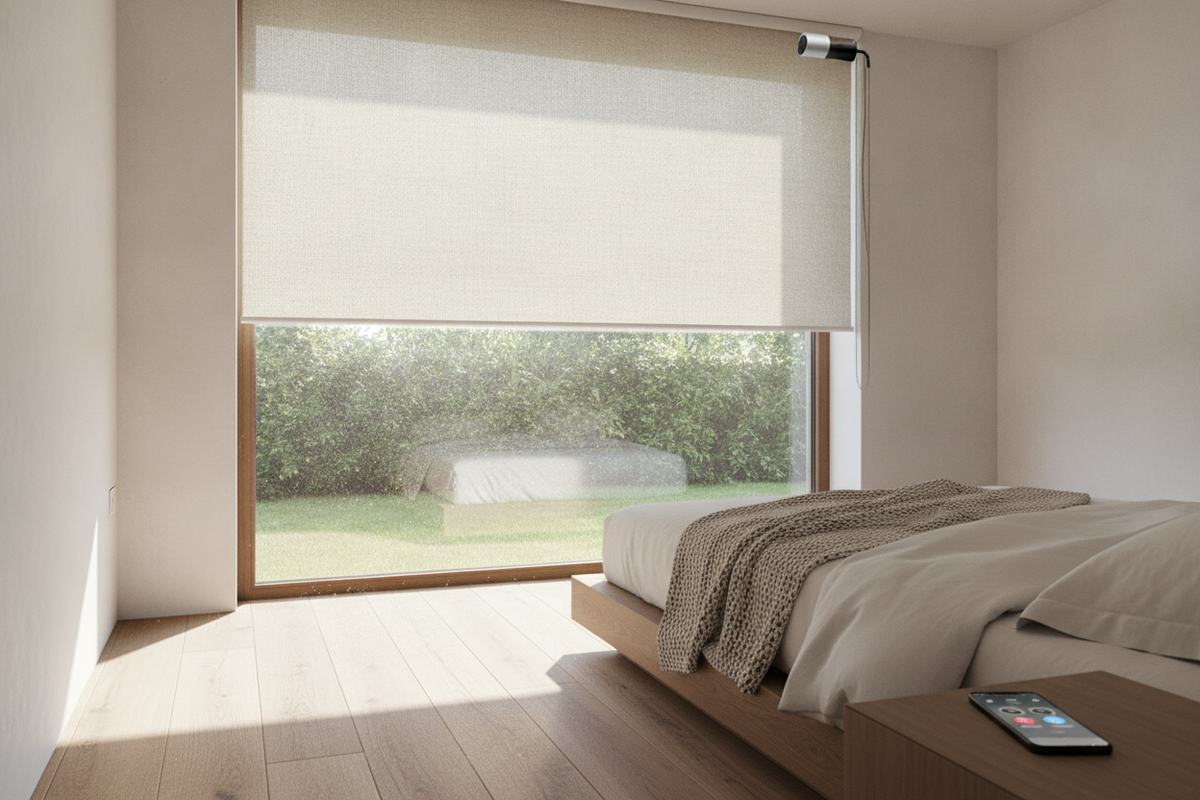

I Fixed My Crooked DIY Roll Up Curtain With a $60 Smart Motor

I woke up at 6:15 AM because a sharp sliver of sunlight was stabbing me directly in the eye. I reached over to pull the cord on my handmade diy roll up curtain, but the string snagged, the fabric tilted at a 15-degree angle, and the whole thing jammed halfway up. I ended up throwing a pillow over my head and cursing the day I ever discovered Pinterest.

Quick Takeaways

• Manual DIY shades almost always roll crooked without professional-grade tensioning hardware.
• Retrofitting a $60 Zigbee motor tube is significantly cheaper than buying a full custom motorized unit.
• Fabric weight matters: a motor with 1.1Nm of torque is perfect for linen but will struggle with heavy velvet.
• Leveling is the most critical step—if your tube is off by even a millimeter, the fabric will 'telescope' and fray against the brackets.

The Pinterest Lie That Started It All

We have all seen those viral tutorials on 'how to make roll up curtains' that promise a high-end look for the price of a latte and some scrap fabric. They make it look so simple: just sew a pocket, insert a dowel, and use some twine to pull it up. The 'roll-up curtain diy' aesthetic is a vibe, sure, but the reality is a mechanical disaster. I wanted that custom linen look without spending $400 per window, so I dove headfirst into the world of 'how to make roll up blinds' using basic hardware store supplies.

The problem is that those tutorials ignore physics. Fabric isn't perfectly uniform. Twine stretches. Unless you are a master of tension, your DIY attempt will eventually look like a crumpled mess within a week of daily use. I spent hours trying to figure out 'how to make roll up window shades' that didn't look like they were installed by a drunk squirrel. The aesthetic was there, but the functionality was non-existent. I quickly realized that the gap between a pretty photo and a working window treatment is a lot wider than I thought.

Why Manual Cords Are a Tangled Nightmare

After I wasted a weekend learning how to make roll-up shades for window frames, I was stuck with a pulley system that was frankly dangerous for my sanity. Every time I tried to adjust the height, the cords would tangle or the fabric would bunch up on one side. This is the inherent flaw when you research 'how to make window shades that roll-up' without using a proper roller tube. The fabric just doesn't have the internal structure to stay flat.

I tried adding weights to the bottom. I tried using thicker nylon cord. I even tried 'how to make roll up shade' guides that used magnets. Nothing worked reliably. The physical limitations of 'diy roll up blinds' are real—without a centered axis of rotation, you are fighting gravity and friction every single morning. It got to the point where I just stopped moving them entirely, which defeats the purpose of having window treatments in the first place.

The Turning Point: Scrapping the Cords for a Smart Motor

I was about to rip the whole thing down and buy cheap plastic blinds when I started looking into creative diy roller shades and roll up curtain projects that actually used technology. I realized I didn't need to throw away my custom fabric; I just needed to replace the 'how to make roll up window shades' manual junk with a motorized tube. I found a 25mm Zigbee motor for about $60. It was a revelation. By attaching my fabric to a rigid aluminum tube, the motor provides perfectly even torque across the entire width of the shade.

Automated tension solved the crooked rolling problem instantly. When the motor turns, it pulls the fabric up at a constant speed, preventing the uneven bunching that ruined my manual version. If you are struggling with 'diy roll up shade' mechanics, stop buying more string. A motor with a built-in lithium battery means you don't even have to wire it into the wall. I paired mine with my Home Assistant hub, and now 'Alexa, open the bedroom' actually works without the fabric getting jammed. It is the only way to make 'how to make roll up window shades' actually worth the effort.

How to Actually Build It (Without Ruining Your Fabric)

If you want to know 'how to make curtains that pull up' and actually stay straight, you need two things: a motorized top tube and a heavy, rigid bottom dowel. The bottom dowel acts as a weight to keep the fabric taut as it rolls. You can't just hem the bottom; you need to insert a metal or solid wood rod into a bottom pocket to ensure it stays level during the ascent.

Getting the Dimensions Exactly Right

Before you order your motor, you need to check how to measure roller shades for a motorized fit. This isn't like a curtain rod where you can have a little overhang. You need exactly 1/8 inch of clearance on each side of the tube so the fabric doesn't rub against the mounting brackets. If it rubs, the motor will detect the resistance as an 'obstacle' and stop, or worse, it will fray your expensive fabric over time.

Mounting the Motorized Tube

Installation is where most people fail. You must use a bubble level. If the motor is even slightly tilted, the fabric will 'telescope'—meaning it will slowly shift to one side of the tube as it rolls up. Consult a guide on how to install shades to make sure your brackets are anchored into studs. A motorized tube is heavier than a wooden dowel, and the torque of the motor starting up can rip cheap drywall anchors right out of the wall.

Attaching the Fabric

Don't use fabric glue; it seeps through and looks terrible. The best way to attach your fabric to the aluminum tube is high-bond double-sided mounting tape. Lay the tube on the floor, align the top edge of your fabric perfectly straight, and press down. This ensures that when you learn 'how to roll up curtains' with the motor, the first rotation is perfectly square. One crooked rotation at the start will ruin the entire roll.

When to DIY and When to Just Buy the Real Thing

I love my motorized DIY project, but I’ll be honest: it took me three tries to get the fabric aligned perfectly. If you value your time more than $100, you might want to skip the 'how to make roll up blinds' phase and just buy Texture Series Motorized Blackout Roller Shades. They come pre-assembled, the motors are quieter than the budget ones I bought (mine sounds like a tiny, angry vacuum), and the blackout fit is guaranteed.

However, if you have a specific fabric you love or an odd-sized window, the DIY motor retrofit is a fantastic middle ground. It turns a frustrating 'diy roll up curtain' into a piece of smart home tech that actually works. Just remember to buy a level and keep your measuring tape handy.

FAQ

Will a smart motor work with heavy velvet?

Most budget 25mm motors have about 1.1Nm of torque. That is plenty for linen or light cotton, but for heavy velvet or double-layered blackout fabric, you will need a 35mm motor with higher torque (around 3Nm to 6Nm) or you risk burning out the motor in six months.

Do I need a smart hub?

It depends on the motor. Bluetooth motors connect directly to your phone, but Zigbee motors require a hub (like a Tuya gateway or Home Assistant). I prefer Zigbee because it doesn't clog up my Wi-Fi and the battery life is significantly better.

How often do I have to charge the motor?

With typical use (up in the morning, down at night), most lithium-ion shade motors last 4 to 6 months on a single charge. You just plug in a long Micro-USB or USB-C cable for a few hours once a season. It is way easier than dealing with tangled cords every single day.
