I Fixed My Drafty Room With Smart Blinds for Windows Shades

Living in a house built in 1890 is a romantic notion until January hits. My Victorian has original wavy glass windows that are beautiful to look at but about as thermally efficient as a screen door. For years, I tried to fight the drafts with heavy velvet curtains, only to find myself shivering while my heating bill climbed like a SpaceX rocket. I spent three winters wearing a parka indoors before I realized my blinds for windows shades were the weak link in my insulation chain.

I finally stopped the bleeding by installing smart motorized treatments that do more than just block the sun. By switching to a cellular setup that actually tracks the winter sun, I turned my windows from heat-sinks into active insulators. Here is the breakdown of how I finally stabilized my home temperature without ruining the historic aesthetic.

Quick Takeaways

• Thermal curtains often fail because they don't seal the edges, creating a 'chimney effect' for cold air to spill into the room.
• Cellular (honeycomb) shades trap air in pockets, acting as a physical buffer between the glass and your living space.
• Side rail tracks are the 'secret sauce' that prevents cold air from leaking around the fabric edges.
• Automation allows you to harvest free solar heat during the day and seal it in at night without manual intervention.

Why Traditional Heavy Drapes Couldn't Stop the Chill

I used to think thick fabric was the answer. I bought the heaviest 'blackout thermal' drapes I could find, weighing nearly 10 pounds per panel. They looked like something out of a theater, but they were thermally useless. The problem is basic physics: cold air hits the glass, becomes dense, and sinks. Because traditional drapes hang an inch or two away from the window, they create a narrow channel that funnels that cold air straight to the floor and across your feet.

I spent a whole December choosing the right window blinds and shades for your home because I was tired of my thermostat running 24/7 while my ankles were freezing. I realized that a hanging curtain is just a decorative air-slide. To stop a draft, you need a window blind shade that sits flush against the frame. You need to stop the air from moving in the first place, rather than just trying to hide behind a piece of velvet.

Finding the exact right window blind and shade combination became a winter survival obsession. I needed something that looked clean enough for a formal parlor but worked hard enough for a sub-zero night. The failure of my drapes taught me that 'insulation' isn't about the weight of the fabric—it is about the seal around the glass.

The Physics of Cellular Smart Shades

If you want to stop heat transfer, you need trapped air. This is the same principle behind a thermos or a double-pane window. Cellular shades are designed with a honeycomb cross-section that creates individual pockets of 'dead air.' This raises the R-value—the measure of thermal resistance—of your window significantly. When you upgrade a basic window blind shade to a motorized honeycomb structure, you are physically blocking the cold from entering the room.

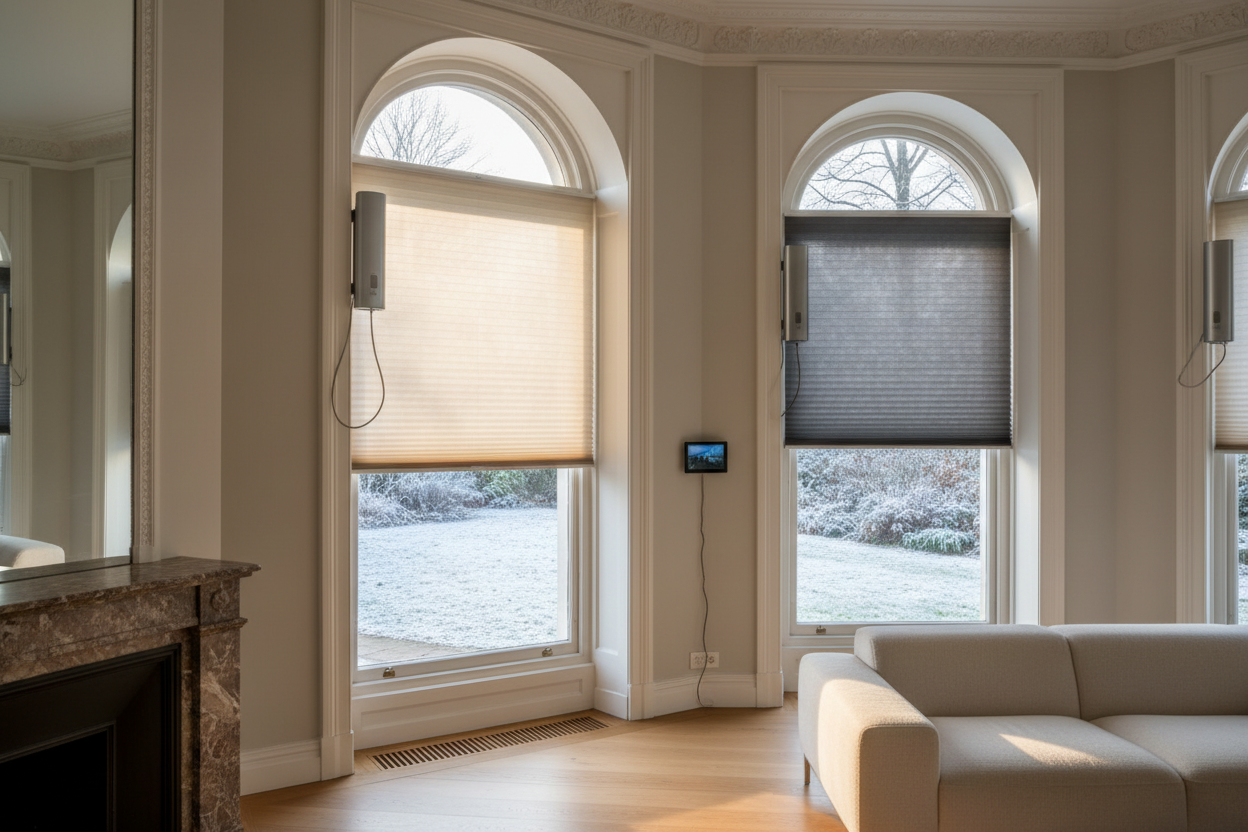

I opted for motorized blackout and light filtering day night suspended cellular shades. These are a revelation for old houses. They feature two different fabrics in one unit: a sheer, light-filtering layer for the day and a thick, blackout layer for the night. The blackout layer usually has a metallic foil lining inside the cells, which reflects heat back into the room and keeps the cold glass isolated.

In my testing, the difference was measurable. On a 15°F night, the surface temperature of my original glass was 34°F. With the cellular shades deployed, the temperature of the shade fabric facing the room stayed at 66°F. That is a massive jump in comfort that no flat fabric could ever achieve. The air trapped inside those cells acts as a literal wall against the winter.

Plugging the Leaks: The Secret to Stopping Edge Drafts

Even the best cellular shade has a weakness: the 1/4-inch light gap on the sides. In a modern house, that's just a minor annoyance. In a Victorian with 130-year-old frames, that gap is a highway for freezing air. If you don't plug it, the cold air just flows around the shade. I learned this the hard way after my first 'smart' installation still left me feeling a draft on my neck while I sat on the sofa.

To fix this, I retrofitted my setup with side rail tracks for blackout shades. These are U-shaped channels that mount directly to the window casing. The edges of the shade fabric slide up and down inside these tracks, creating a literal seal against the frame. It eliminates the 'halo' of light around the edges and, more importantly, it stops the air from bypassing the insulation. It turns the window treatment into a sealed unit.

Installation was straightforward—they usually just stick on with high-bond adhesive or a few small screws—but the impact was immediate. The 'drafty window' feeling simply vanished. If you are serious about energy efficiency, you cannot skip the tracks. Without them, you're only doing half the job.

My Sun-Tracking Smart Home Automation Routine

The real magic happens when you stop managing your windows manually. I use a Zigbee-based hub to control my home blinds and shades based on the position of the sun and local temperature sensors. Unlike standard roller shades, which are mostly about privacy or glare, my cellular shades are part of an active thermal management system that saves me money.

My routine is built on 'Solar Harvesting.' At sunrise, if the outdoor temperature is below 40°F but the sky is clear, my south-facing shades open to 100%. This lets the sun blast into the room and warm up the heavy wood floors (thermal mass). As soon as the sun passes the meridian, or if the internal room temperature hits 72°F, the shades automatically drop to the 'closed' position to lock that heat inside before the sun goes down.

I also have a 'Deep Freeze' trigger. If the outdoor temperature drops below 10°F, all shades close regardless of the time of day to preserve the home's baseline heat. I’ve found that Zigbee motors are the way to go here—they respond instantly to sensor triggers without the lag you sometimes get with Bluetooth or the cloud-dependency of some Wi-Fi motors. My motor noise is under 35dB, which is quieter than my refrigerator, so the house just 'adjusts' itself silently throughout the day.

Protecting Historic Trim During Smart Motor Installation

Installing heavy motorized cassettes into 130-year-old Douglas fir trim is nerve-wracking. You can't just go in with a power driver and hope for the best. Old wood is brittle; if you don't pre-drill, you will split the grain, and once that historic trim is ruined, it’s gone forever. I always use a drill bit slightly smaller than the screw diameter and hand-tighten the final few turns to avoid over-torquing the brackets.

I also recommend using 'inside mount' brackets whenever possible to keep the profile slim. If your window jambs are too shallow, look for 'spacer blocks' that allow the motor to clear the window hardware without sticking out too far into the room. Most motorized kits come with cheap zinc screws that look terrible against dark wood—I always swap them out for high-quality brass or blackened steel screws that match the period hardware of the house. It's a small detail, but it prevents the 'tech' from looking like an eyesore in a historic space.

FAQ

Will motorized shades ruin my battery in the cold?

Lithium-ion batteries do lose some efficiency in extreme cold, but since the battery is on the 'room side' of the cellular shade, it stays warm enough to function. I typically get 5-6 months of use on a single charge, even in the dead of winter.

Can I still use my windows manually?

Most motorized shades are 'motor-only,' meaning you shouldn't pull on them. However, you can always keep a small remote stuck to the wall near the window so guests don't accidentally break the internal gears trying to tug them down.

Do I need a special hub for sun-tracking?

You need a hub that supports 'scenes' or 'routines.' Most Zigbee hubs (like Hubitat or Home Assistant) can pull local weather data and sun position automatically to trigger your shades without you needing to write a single line of code.
