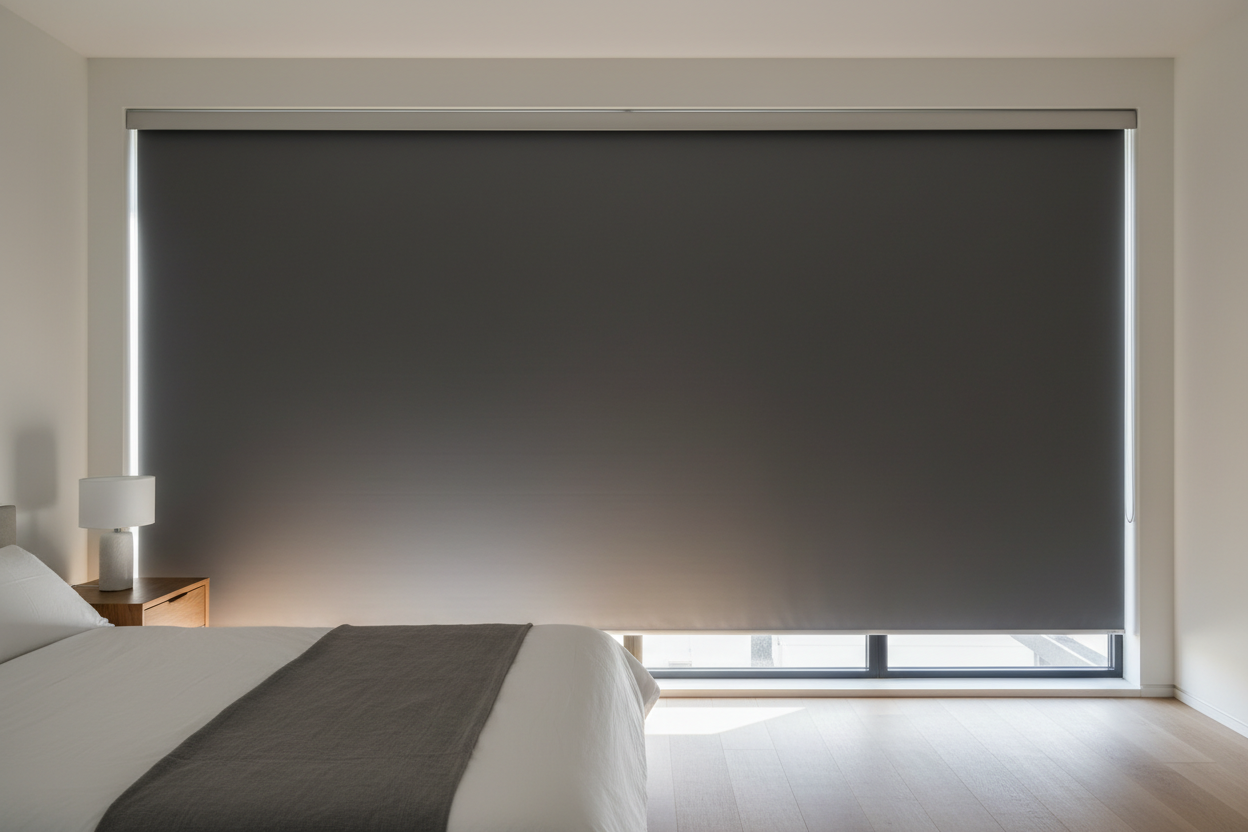

I Fixed the Annoying Tube Sag on My 70 Inch Wide Roller Blinds

My primary bedroom has a massive window that’s basically a wall of glass. It’s gorgeous at sunset, but it’s a nightmare at 6:00 AM when the sun hits my pillow like a heat-seeking missile. Finding 70 inch wide roller blinds that actually work—and don’t look like a saggy hammock after two weeks—is a legitimate engineering challenge most people aren't prepared for.

• Standard 1-inch tubes will bow under the weight of a 70-inch span.
• High-torque motors are mandatory for lifting heavy-duty blackout fabrics.
• Precision leveling is the difference between a smooth roll and ruined fabric edges.
• Toggle bolts are non-negotiable for mounting hardware this heavy.

The Six-Foot Window Problem Nobody Warns You About

Most big-box retailers treat a 70 wide roller shade like it’s just a slightly longer version of a standard window treatment. It’s not. When you cross that 60-inch threshold, physics starts working against you. A standard 36-inch blind uses a thin-walled aluminum tube that handles the load just fine, but stretch that same hardware to nearly six feet and gravity takes over.

I’ve seen dozens of DIY installs where the homeowner bought a budget 70 inch roller blind only to have the center of the tube dip by half an inch. That dip ruins the aesthetic and eventually kills the motor because it’s fighting constant friction. If you’re covering a span this wide, you have to move into commercial-grade territory.

Combating Tube Sag and the Dreaded V-Wrinkle

When the tube flexes, you get what’s known as the 'V-wrinkle.' The fabric doesn't roll up straight; it bunches in the middle and 'telescopes' out toward the brackets. This isn't just an eyesore—the edges of your fabric will eventually fray as they rub against the mounting hardware. I learned this the hard way after ruining a custom-cut shade in my last apartment.

To fix this, I upgraded to a 2.5-inch heavy-duty reinforced aluminum core. It’s significantly stiffer than the 1.5-inch tubes found in cheaper kits. This is especially critical when you are using Blackout Roller Shades, which are inherently heavier due to the multi-layer light-blocking construction. The extra weight of the fabric demands a tube that won't flinch under the load.

Why I Didn't Skimp on the Motor Torque

Lifting a 70 roller shade isn't a job for a wimpy motor. I once tried a cheap retro-fit motor that claimed it could handle 'large windows,' but it sounded like a coffee grinder every time it moved. More importantly, it drained its internal battery in about ten days because it was constantly straining at its maximum weight limit.

I eventually switched to a 2Nm high-torque motor. It moves the shade at a consistent 28 RPM and stays under 40dB—roughly the sound of a quiet library. If you’re debating how to juice these things, check out this Smart 70 Inch Roller Shade Battery Vs Hardwired Guide. For a window this size, I’m a firm believer in hardwiring if you have the option, though a high-capacity lithium battery wand can work if you don't mind the occasional recharge.

Sleeping In: The Case for Heavy Duty Blackout Fabric

Once I solved the structural issues, the focus shifted to sleep hygiene. A 70 inch roller shade creates a massive surface area for heat transfer. In the summer, that window acts like a radiator. By installing Classic Series Motorized Blackout Roller Shades, I managed to drop the ambient temperature in the room by nearly five degrees during peak afternoon sun.

The blackout performance is total. Because the tube is perfectly straight, the fabric hangs inches from the glass with minimal light gaps on the sides. It’s the difference between waking up because the room is 'bright-ish' and waking up because your alarm actually went off.

My Over-Engineered Mounting Strategy

Don't even look at the plastic drywall anchors that come in the box. A 70 inch roller blind, the motor, and the heavy-duty tube weigh enough to rip standard anchors right out of the wall during a high-torque start. I used 1/4-inch toggle bolts rated for 80 pounds each. It’s overkill, but I never have to worry about the whole assembly falling on my head.

I also used a Bosch laser level to mark my bracket heights. If your brackets are even 2mm out of alignment on a six-foot span, the 70 inch roller shade will track to one side. Take the extra ten minutes to get it perfectly level. Your fabric edges will thank you three years from now.

The Morning Routine That Made It Worth It

The first morning everything worked perfectly was a revelation. At 7:00 AM, the motor hums to life, and that massive wall of fabric disappears into the headrail. I have mine integrated via Zigbee to a Hubitat elevation hub, which handles the scheduling. It’s part of a routine I call 'Sunrise Mode' that I’ve detailed in The Best 70 Inch Wide Roller Blinds Setup For Lazy Mornings.

The only downside? Now I can’t stand the manual blinds in the rest of the house. Once you automate a window this large and realize you never have to wrestle with a cord again, there’s no going back.

FAQ

Will a 70-inch shade work with a battery motor?

Yes, but only if the motor is rated for the weight. Look for a motor with at least 1.1Nm to 2.0Nm of torque. Cheap 0.5Nm motors will burn out within a year.

How do I stop my wide blinds from wrinkling?

Wrinkling usually happens because the tube is sagging. You need to upgrade to a larger diameter internal tube (at least 2 inches) to keep the fabric flat across the entire span.

Do I need two people to install a 70-inch shade?

Technically no, but it’s highly recommended. Trying to hook a six-foot-long tube into brackets while standing on a ladder is a great way to drop an expensive motor on the floor.
