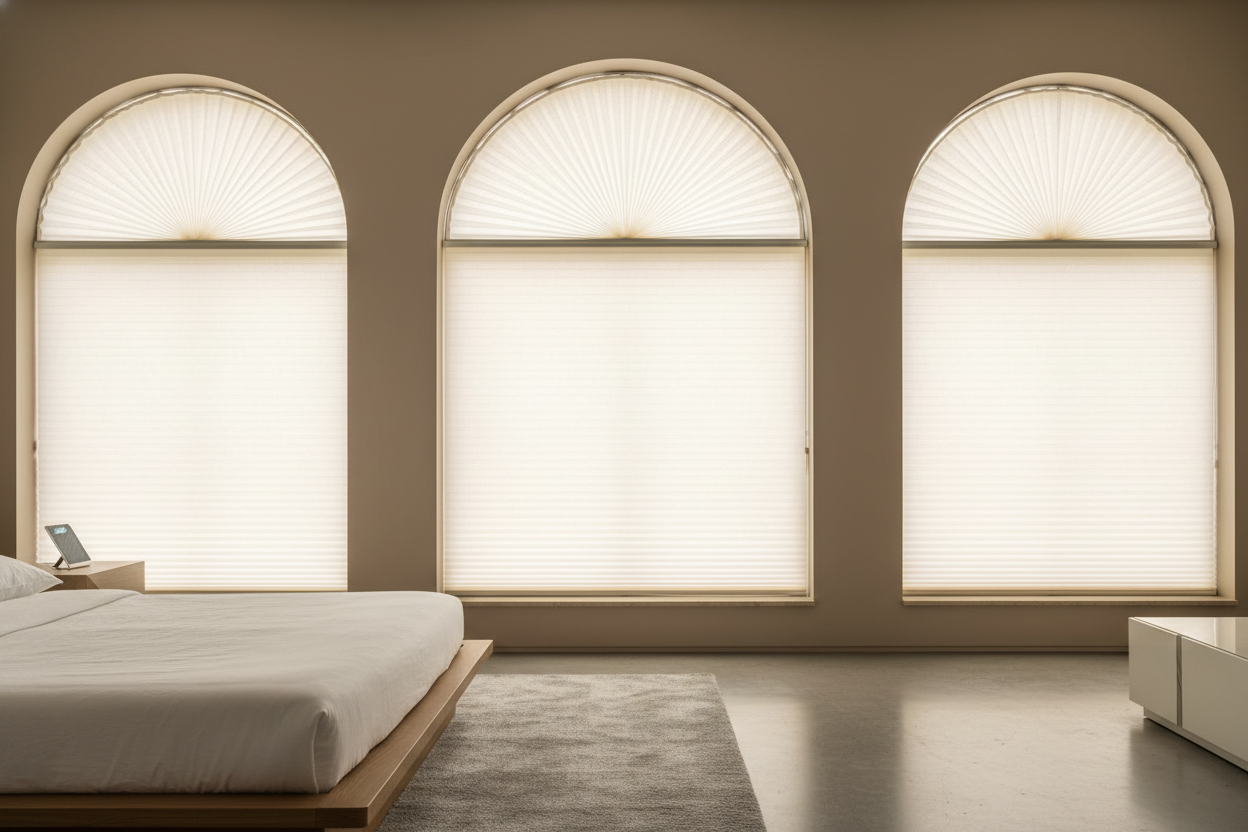

I Measured Wrong Twice: Fitting Cellular Shades for Arched Windows

I used to think my second-story arched windows were a luxury. Then summer hit, and that beautiful architectural curve turned into a literal magnifying glass, blasting a 6 AM sunbeam directly onto my face. I spent weeks trying to ignore it before realizing that standard blinds aren't going to cut it for a window that looks like a giant protractor.

Finding the right cellular shades for arched windows is a unique circle of DIY hell. I measured twice, ordered once, and still ended up with a shade that had a massive light gap on the left side because my house—like every house—isn't built with mathematical precision. If you're tired of the glare but don't want to pay a professional installer $1,200 for a single window, here is how I finally hacked the process.

• Never trust a tape measure alone; always make a physical paper template.
• Double-cell fabrics are worth the extra cost for the thermal insulation alone.
• Most 'perfect arches' are actually slightly elliptical due to house settling.
• Motorization is possible, but it requires specific hardware that handles the fan-fold tension.

The Geometry Problem Nobody Warns You About

When I started outfitting my home with insulating cellular shades, the rectangular windows were a breeze. I measured the width, subtracted a quarter inch for clearance, and moved on. Arched windows are a different beast. Your builder might call it a 72-inch half-circle, but between the drywall mud and the house settling over five years, that radius is almost certainly wonky.

An arch cellular shade requires a perfect fit because the fabric fans out from a central point. If your window is even a half-inch off-center or the curve dips slightly, the shade will either pinch and bind or leave a crescent-shaped light leak that looks amateur. I learned this the hard way after my first 'custom' order arrived and looked like a jagged tooth in the frame because I assumed my window was a perfect geometric semicircle. It wasn't.

Paper Fans vs. Honeycomb Shades for Arched Windows

You’ve seen those $20 pleated paper fans at the big box stores. They’re fine for a dorm room, but they’re acoustic and thermal disasters. They yellow in the sun within six months and have zero R-value. If you’re dealing with a high-exposure window, you really need to upgrade to double cell fabrics. The honeycomb structure traps air, which is the only thing standing between your AC bill and the 100-degree afternoon sun.

Beyond the insulation, honeycomb shades for arched windows provide a structural rigidity that paper just can't match. The fabric holds its pleats, meaning the 'fan' looks crisp and symmetrical. When I switched from a cheap temporary fix to a real double-cell setup, the temperature in my master bedroom dropped by four degrees within an hour. It is the difference between a flimsy window covering and actual home infrastructure.

My Template Method for Cellular Shades for Half Moon Windows

To get cellular shades for half moon windows right, you have to stop thinking in numbers and start thinking in shapes. My foolproof method involves a roll of butcher paper and some blue painter's tape. I taped the paper over the entire window opening and used the side of a pencil lead to rub against the edge of the drywall, creating a perfect physical 'rubbing' of the opening.

I failed twice before I realized that measuring the height and width simply isn't enough for a custom fit. You need to verify if the arch is a 'perfect' arch (where the height is exactly half the width) or an 'eyebrow' arch. Most online retailers will ask for these dimensions, but providing a digital photo of your template next to a tape measure is the only way to ensure the factory cuts the radius correctly. It felt tedious, but it saved me from a third $300 mistake.

Getting the Mount Right (Without Ruining the Drywall)

Installing cellular arch window shades is all about the center hub. You’ll usually have a small circular base that anchors to the sill and several clips that follow the curve. The trap most people fall into is mounting the clips too shallow. You need at least 2 inches of depth for the shade to sit flush; otherwise, the edges of the honeycomb cells will peek out past the drywall, ruining the look.

I used a 1/8-inch drill bit for my pilot holes to avoid cracking the old plaster around my arches. Once the hub is centered, the shade fans out like a peacock tail. If the tension feels too tight, don't force it—you might need to trim a fraction of an inch off the base rail. I spent about forty minutes micro-adjusting the tension clips so the shade wouldn't 'pop' out of the frame when the humidity changed in July.

Can You Actually Motorize These Things?

For years, arched shades were 'set it and forget it,' meaning they stayed closed forever. That’s a waste of a view. I eventually swapped my static inserts for motorized arched cellular shades. These use a curved track and a small motor—usually hidden in the base—to actually pull the fan open and shut.

The setup was surprisingly straightforward. I paired the motor to my Zigbee hub by holding the program button for 5 seconds until the LED flashed blue, then calibrated the 'open' and 'closed' limits. Now, my 'Alexa, good morning' routine triggers the bedroom arches to fan open at 7:30 AM. There is a slight mechanical hum—about 38dB—but it’s a small price to pay for not having to climb a 12-foot ladder every time I want to see the sky.

FAQ

Can I trim these shades at home?

No. Arched shades have complex internal cords and a specific radial cut. If you try to hack these with a miter saw like standard cellular shades, you'll end up with a pile of useless fabric and broken strings.

What is the difference between an arch and an eyebrow window?

A perfect arch has a height that is exactly half its width. An eyebrow window is flatter and wider. You must know which one you have before ordering, as the fan geometry is completely different.

Do arched shades provide total blackout?

They can, but because of the fan design, there is often a tiny pinhole of light at the very center hub. Most manufacturers include a small decorative cap to cover this, but don't expect 100% laboratory darkness.
