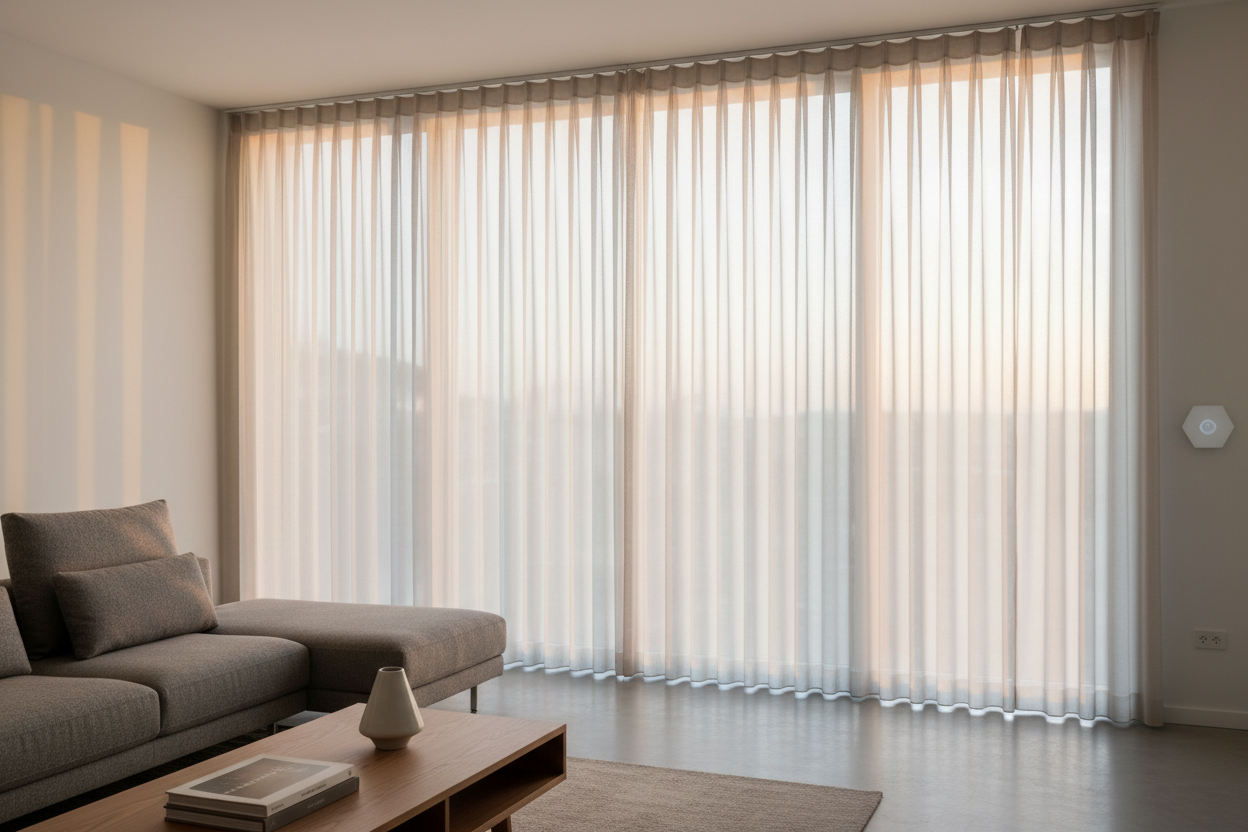

I Motorized My DIY Window Coverings to Keep Sun Out

I spent three summers in a south-facing apartment that felt less like a home and more like a pizza oven. By 2 PM, the sun would hit my glass and turn my living room into a 95-degree sauna. I tried the 'trashy aesthetic' first—taping up heavy blackout fabric with blue painter's tape. It worked for a week until the heat melted the adhesive, and the whole thing collapsed onto my cat at midnight.

I needed a real solution. I wanted **diy window coverings to keep sun out** that didn't look like a hazmat site and, more importantly, I wanted them to move on their own. After months of trial and error, I built a motorized, app-controlled diy window sun blocker for under $150. Here is how I did it without losing my security deposit.

Quick Takeaways

• Zigbee motors are superior to Wi-Fi for battery life and reliability.
• Always choose fabric with a reflective white backing to bounce heat away from the glass.
• Tension-mounted rollers are the only way to go for renters.
• Automating by temperature is better than automating by time.

The 'Foil and Tape' Era (And Why I Needed an Upgrade)

We have all been there. You are desperate. The AC is humming at max volume, your electricity bill is climbing, and you are still sweating while sitting still. In my first apartment, I actually used aluminum foil. It was effective at reflecting heat, but I looked like a conspiracy theorist to my neighbors, and I couldn't see outside for three months.

The problem with static solutions—like tape or window film—is that they are binary. You are either in a dark cave or you are roasting. I wanted the 'smart' life. I wanted my windows to recognize when the sun was at its peak and lower a shield, then retract when the golden hour hit so I could actually enjoy the view I pay way too much for.

Building a custom setup isn't just about saving money; it is about fit. Standard off-the-shelf smart shades rarely fit the weird, non-standard window frames found in older buildings. By DIYing the assembly, I could ensure every millimeter of glass was covered, leaving no gaps for 'light leaks' that defeat the purpose of a sun blocker.

What Actually Makes a Good DIY Window Sun Blocker?

Most people think 'blackout' equals 'heat-proof.' That is a lie. If you put a black fabric inside your window, it absorbs the solar energy, turns it into heat, and then radiates that heat directly into your room. You have basically built a vertical radiator. To actually stop the heat, you need a high R-value or a reflective outer surface.

This is where the physics of this guide to window sun shades becomes essential. You want a fabric that has a high 'reflectance' rating. Look for materials labeled as 'solar shades' with a 1% to 3% openness factor. This means they block 97% to 99% of UV rays while still letting you see a ghost of the outside world so you don't feel claustrophobic.

I chose a vinyl-coated polyester. It is stiff enough to roll straight—which is vital for motorized DIY setups—and it handles the high heat of a window pane without off-gassing that 'new plastic' smell. If you go too cheap on the fabric, it will curl at the edges within a month, and your motor will snag. Spend the extra $20 on the material; your future self will thank you.

Gathering the Parts for a Smart-Looking Cover

The heart of this build is a retrofit chain motor. I use Zigbee versions because they don't clog up my Wi-Fi router and they respond instantly. You can find these for about $40-$60. They have a little sprocket that grabs your existing bead chain and yanks it up or down. It is noisy—about 45dB, which is louder than a whisper but quieter than a vacuum—but it is reliable.

For the 'bones,' I used a heavy-duty tension roller tube. You want one with a diameter of at least 1.5 inches so the fabric doesn't 'telescope' (roll crooked). These are great because they pressure-fit into the window frame. No drills, no screws, no angry landlords. It turns a temporary fix into practical DIY window coverings that look like they were professionally installed.

Finally, grab a Zigbee gateway if you don't already have a smart hub like Home Assistant or a Hubitat. Avoid the proprietary Bluetooth-only motors. They are tempting because they are cheap, but the range is garbage, and you will find yourself standing three feet from the window just to get the app to connect. That defeats the whole point of automation.

My Step-by-Step Build Process (No Drills Required)

First, measure your window width at the top, middle, and bottom. Window frames are almost never perfectly square. Use the smallest measurement. I cut my tension roller tube using a simple hacksaw and sanded the edges smooth so they wouldn't catch on the plastic end caps. If your cut is jagged, the whole shade will wobble when it spins.

Cutting the fabric is the nerve-wracking part. Use a rotary cutter and a straight edge on a hard floor. Do not use scissors; you will get 'the jitters' and end up with a frayed edge that looks like a dog chewed on it. If you are using light filtering shades material, make sure the 'pretty' side faces in and the reflective side faces the glass.

I attached the fabric to the roller using high-bond double-sided tape. Line it up perfectly. If you are off by even a fraction of a degree, the shade will 'walk' to one side as it rolls up and eventually jam against the bracket. Once attached, I slid the tension rod into the frame and tightened it until it didn't budge when I gave it a firm tug.

The final step is mounting the motor. These usually come with 3M VHB tape. Clean the window frame with rubbing alcohol first, or the weight of the motor will pull it off the wall in two days. Loop the bead chain around the motor's gear, pull it taut—but not tight—and stick it down. I let the adhesive cure for 24 hours before I ran the first calibration cycle.

Syncing the DIY Setup to My Smart Home Hub

Now for the fun part. I paired the motor to my Home Assistant setup by holding the pairing button for 5 seconds until the LED blinked blue. It popped up immediately as a 'Cover' device. Calibration is simple: you use the remote to set the 'Top' limit (where it stops when open) and the 'Bottom' limit (where it hits the sill).

I don't use timers. Timers are dumb. If it is a cloudy day, I don't want my shades closing and leaving me in the dark. Instead, I placed a $15 Zigbee temperature sensor on my bookshelf. I wrote a simple automation: 'If indoor temp > 75°F AND sun is shining on the south wall, lower shades to 80%.' This keeps the heat out before the AC even has to kick in.

I also mapped a 'Movie Mode' to my IKEA shortcut button. One press and the shades drop, the lights dim to 10%, and the soundbar turns on. It is a level of luxury that feels ridiculous for a DIY project under $150. The battery on these motors lasts about 4-6 months on a single charge via USB-C, which is plenty for me.

When to Just Buy Real Smart Shades Instead

Look, I love a good hack, but DIY has its limits. My setup has a visible bead chain and a motor stuck to the side of the frame. It looks 'techy,' but it doesn't look 'designer.' If you are trying to impress a spouse or you are outfitting a high-end living room where aesthetics are the priority, the DIY route might feel a bit clunky.

The motors in DIY kits are also significantly louder than integrated units. If you want a silent, hidden motor that disappears into the headrail, you are better off looking at something like motorized light filtering zebra shades. Those come pre-assembled, use much higher-end motors that won't wake you up in the morning, and the fabric is precision-cut by a machine, not a guy with a rotary cutter on his kitchen floor.

But for a home office, a bedroom, or a rental where you just need to stop the heat without spending $600 per window, this DIY build is unbeatable. It turned my apartment from a greenhouse back into a home. Just remember: measure twice, cut once, and never trust a Wi-Fi motor in a dead zone.

FAQ

Will this work on tilted or skylight windows?

Not really. Tension rods and bead-chain motors rely on gravity to keep the fabric hanging straight. For tilted windows, you need side channels or 'zip' tracks to keep the fabric from sagging, which usually requires a professional, screw-in installation.

How do I stop the fabric from fraying at the edges?

If you aren't using a heat-sealed fabric, you can use a tiny bit of 'Fray Check' or clear nail polish along the cut edge. However, the best way is to use a sharp rotary blade and a straight edge to get a clean, factory-like cut the first time.

Can I control these with Alexa or Google Home?

Yes, as long as your Zigbee motor is connected to a compatible hub (like an Echo with a built-in hub or a dedicated Zigbee bridge). Once the hub sees the motor, you can just say, 'Alexa, close the sun blocker,' and it works like magic.
