I Retrofitted Smart Motors Into Vintage Laura Ashley Roman Blinds

I’m a sucker for a dusty estate sale. Last month, I hit the jackpot in a drafty Victorian attic: a full set of laura ashley roman blinds in a classic, faded floral linen. The fabric was impeccable, but the hardware was a disaster. The pull cords snapped like dry twigs the moment I touched them, and the wooden headrails were warped from decades of humidity.

Most people would have seen a pile of scrap fabric. I saw an opportunity to bring some serious 21st-century tech to a 1980s aesthetic. These shades were built with a level of textile quality you just don't find in big-box stores anymore, but their manual lifting systems were a safety hazard and a literal pain to operate. My mission was simple: gut the rot and install a Zigbee-powered motor system.

• Vintage fabric is the prize: High-quality linen and cotton from older laura ashley blinds are worth the effort of a retrofit.
• Safety first: Removing old cords eliminates strangulation risks for kids and pets.
• Precision matters: If your lift lines are off by even half a centimeter, the shade will track crookedly.
• Battery life: Modern Li-ion motors usually last 6-12 months on a single charge, depending on the weight of the fabric.

The Estate Sale Find (And the Dry-Rot Problem)

When I hauled these laura ashley roman shades home, the smell of old dust was overwhelming. But once I got them under a decent work light, the problem wasn't the fabric — it was the 'dry-rot' of the mechanical components. Traditional roman shades rely on a series of small plastic rings and nylon strings. Over thirty years, that plastic becomes brittle. One tug and the rings shatter into tiny, sharp shards.

Beyond the annoyance of broken parts, the old-school cord locks were a nightmare. They never gripped the cord quite right, leading to that 'one side higher than the other' look that drives me crazy. The wooden headrails had also seen better days, showing signs of bowing in the center. I knew right then that trying to repair the original hardware was a fool’s errand. If I wanted these to work, I had to treat the fabric as a raw material and build the 'smart' parts from scratch.

The weight was another factor. These vintage linens are heavy. Manual operation meant fighting against gravity every morning. By switching to a motorized system, I could let a high-torque motor do the heavy lifting while I stayed in bed. Plus, automating these meant I could finally integrate them into my 'Good Morning' routine, where they slowly rise at 7:30 AM to let the natural light wake me up, rather than a jarring alarm clock.

Why You Can't Just 'Plug In' Old Hardware

A common mistake I see in the DIY community is trying to attach a motor to a manual cord-and-pulley system. It’s a recipe for a burnt-out motor and a tangled mess of string. Traditional manual shades are designed for vertical tension; modern motorized roman shades operate on a completely different mechanical principle. They use a rotating tube or a precision-spooled shaft that winds the lift lines evenly.

You have to completely decouple the vintage fabric from its original mounting. The old wooden batten at the top? Toss it. The rusted screw-eyes? Gone. To make this work, the fabric needs to be flat, clean, and ready to be attached to a modern aluminum headrail. This separation is the only way to ensure the motor doesn't strain against old, friction-heavy pulleys.

Modern motors also offer features the original designers of these blinds couldn't have imagined. We're talking about 'soft start' and 'soft stop' technology, which prevents the fabric from jerking. It makes the movement look fluid and expensive. By stripping the old hardware, you're essentially giving that vintage floral print a high-tech skeleton that will actually protect the fabric over the long term by applying even tension across the entire width.

Gutting the Old Hardware (Without Tearing the Fabric)

This is the part where you need a sharp seam ripper and a lot of patience. I spent three hours carefully removing the original stitching that held the fabric to the headrail. You have to be surgical. If you nick the face fabric of these vintage laura ashley blinds, the hole will be visible every time the sun shines through them. I recommend working on a large, clean table — never the floor.

Once the fabric is free from the headrail, start removing the old lift rings. Most vintage shades have them sewn on by hand. I found that using a pair of small embroidery scissors worked best to snip the threads without catching the linen fibers. Don't be surprised if the lining fabric feels a bit stiff; that's usually just old sizing or starch, and it actually helps the fabric hold its shape during the retrofit.

After the hardware is gone, give the fabric a light steam. Do not wash it in a machine — you’ll ruin the structure and likely cause massive shrinkage. A handheld steamer is your best friend here. It relaxes the creases where the old folds were, making it much easier to measure out your new lift points. You want a blank canvas before you start the high-tech installation.

The Ring and String Update

Now comes the geometry. You can't just put the new rings back where the old ones were. Modern motorized tubes have specific exit points for the lift cords, and they need to align perfectly with your rings. I used a 60-inch metal ruler to map out a grid on the back of the shade. If your lines aren't perfectly vertical, the shade will 'telescope' — meaning it will shift to one side as it rolls up.

I followed a professional sewing pattern for roman shades to determine the optimal spacing for my new, heavy-duty UV-resistant rings. I opted for 8-inch intervals between the horizontal folds. This creates that classic, deep-fold look that Laura Ashley is known for, but with the structural integrity needed for motorization. I hand-sewed each ring using a double-knotted upholstery thread. It’s tedious, but it’s the only way to ensure they don't pop off under the torque of the motor.

The string itself matters too. I ditched the old cotton cord for a 0.9mm polyester lift line. It has zero stretch and won't fray over time. When you're threading these through the rings, make sure you have enough slack at the top to reach your motor's take-up reels. I always leave an extra 12 inches — it's easier to trim excess than it is to start over because a cord was too short.

Attaching the Vintage Fabric to a Smart Motor Tube

The moment of truth: marrying the fabric to the motor. I used a 1.5-inch aluminum tube system with an integrated battery motor. The top of the fabric gets a strip of heavy-duty, adhesive-backed hook-and-loop fastener. Pro tip: don't just trust the adhesive. I always run a line of stitching through the Velcro and the fabric. If the room gets hot, that adhesive can soften, and your beautiful vintage shades will end up on the floor.

Aligning the fabric to the tube is a two-person job. You need to ensure the top edge is perfectly level with the motor shaft. I used a laser level projected across the tube to make sure I wasn't off by even a hair. For more detailed mounting tips, I checked the smart retrofit guide which covers how to handle the weight distribution for heavier fabrics like these linens.

Once attached, I programmed the limits. This is my favorite part. Using the remote, I set the 'Upper Limit' so the shade tucks neatly under the valance, and the 'Lower Limit' so it just kisses the windowsill. Most modern motors let you set an 'Intermediate Position' too. I set mine to 50% height, which I trigger with a voice command when the afternoon sun starts hitting my monitor. It’s a satisfying 'thrum' sound — about 38dB — which is much quieter than the old ratcheting sound of the manual locks.

English Country Aesthetic, 21st Century Tech

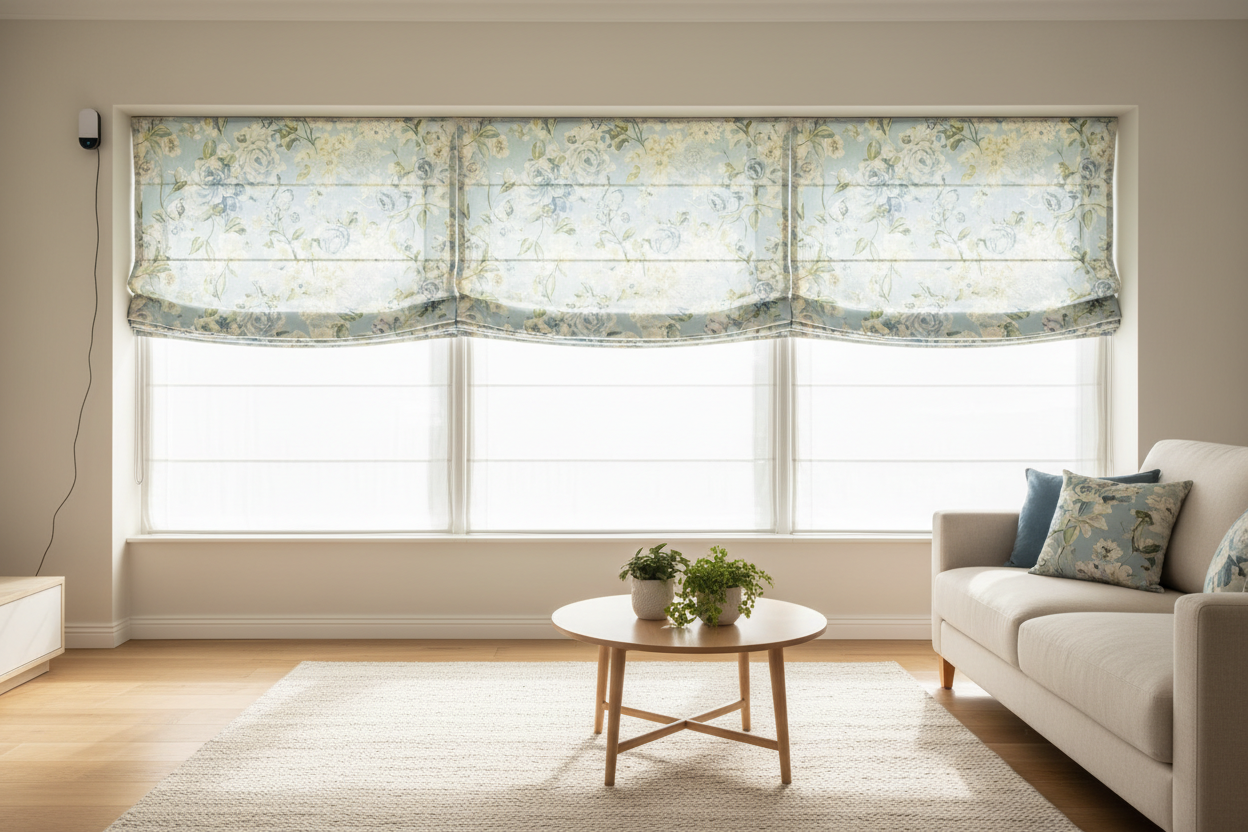

The final result is honestly stunning. From the front, they look like classic, high-end laura ashley roman shades. There are no dangling cords, no plastic wands, and no messy piles of string on the floor. They have that 'stately home' vibe, but they respond to my iPhone and my voice. It's the best of both worlds: the soul of vintage design with the brains of a modern smart home.

I did run into one snag. One of the motors lost its Zigbee connection during a firmware update, which required me to climb up and hit the physical reset button on the motor head. It was a five-minute fix, but it reminded me that even the best tech needs a little human intervention occasionally. Since then, they’ve been rock solid. There is something deeply satisfying about watching 40-year-old fabric move with the precision of a Swiss watch.

If you find a set of these blinds at a thrift store or estate sale, don't walk away because the cords are broken. The fabric is the hard part to replicate; the tech is the easy part to install. With a little patience and the right motor kit, you can save a piece of design history and make your daily routine a whole lot smoother.

FAQ

Can I use any motor for vintage roman shades?

Not necessarily. You need a motor with enough torque (measured in Nm) to lift the weight of your specific fabric. Vintage linens are often much heavier than modern polyester, so I recommend a motor rated for at least 1.1Nm or 2Nm for larger windows.

Do I need to be an expert at sewing?

You don't need to be a master tailor, but you should be comfortable using a seam ripper and doing basic hand-stitching for the rings. The cleaner your stitch work, the better the shade will look when the sun shines through it.

How long does the battery actually last?

In my experience with these heavy Laura Ashley fabrics, I get about 7 months of use (opening once and closing once per day) before I need to plug in a micro-USB or USB-C cable to charge them. If you have a sunny window, you can even add a small solar panel to keep them topped up indefinitely.
