I Ruined My Corners Before Figuring Out Bay Window Roman Shades

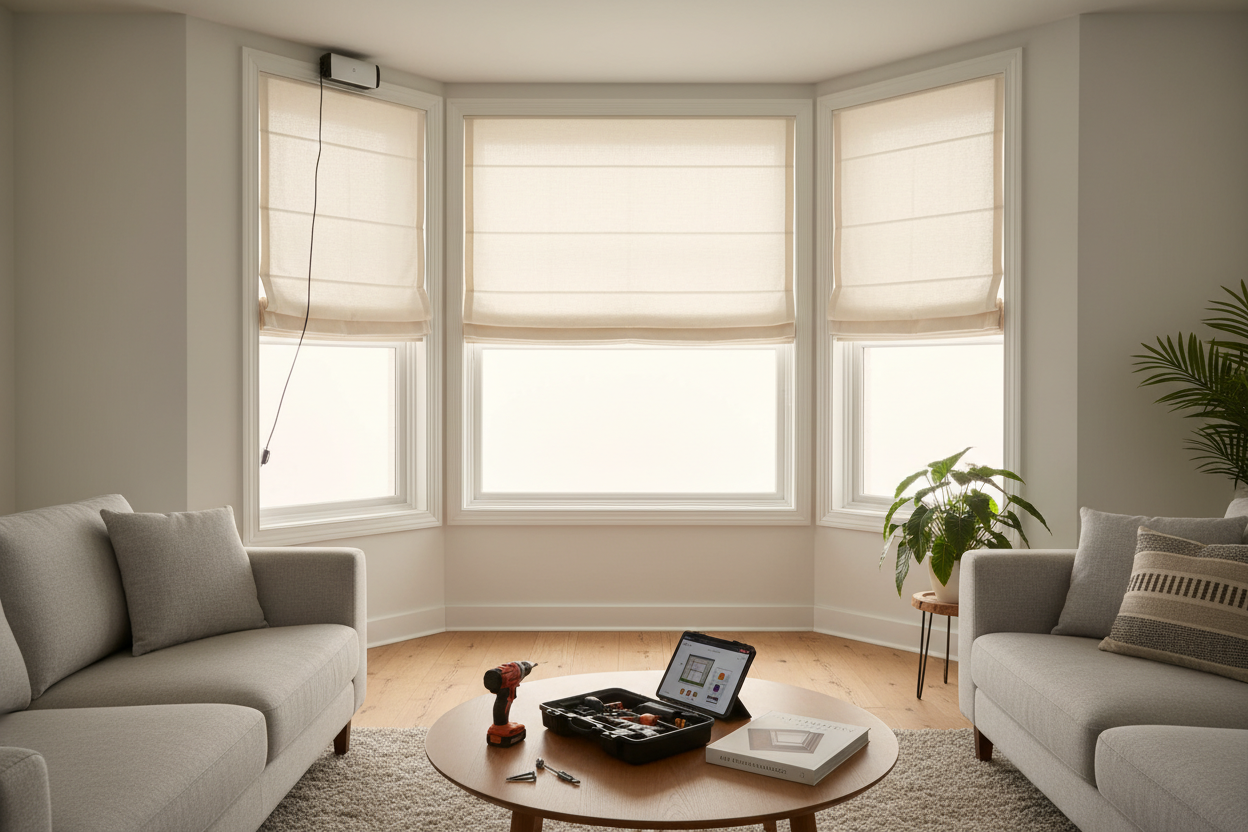

I remember the exact moment I realized I’d made a $1,200 mistake. I had just finished mounting three custom-ordered motorized bay window roman shades in my living room. I tapped 'All Up' on my remote, expecting a graceful, synchronized ascent. Instead, I heard the agonizing sound of high-torque motors grinding fabric into wood. Because I hadn't accounted for the corner clearance, the shades were physically wedged against each other at the 45-degree angles, trying to force their way past physics.

Quick Takeaways

• Measure for the 'stack,' not just the window width.
• Deduct at least 3/8ths of an inch from the inner edges of side panels.
• Choose Zigbee or Thread motors to ensure the three panels move in perfect unison.
• Heavy blackout fabrics require deeper deductions than light linens.

The Geometry Problem Nobody Warns You About

When you measure a standard window, it’s a simple width-by-height game. But bay windows are a trap for the overconfident DIYer. Most people measure the glass and call it a day. The problem? Roman shades have depth. When you have three panels meeting at angles, the headrails and the folded fabric (the 'stack') need physical space to exist without overlapping.

In my first attempt, I mounted the center shade flush to the side windows. When the motors kicked in, the fabric folds bunched up and expanded outward. Since there was zero clearance, the middle shade grabbed the edge of the left shade and nearly ripped the mounting brackets out of the ceiling. It’s a messy, expensive way to learn about corner deductions.

Why Bother With Roman Blinds Over Rollers?

You might wonder why I didn't just take the easy route with rollers. Rollers are thin and predictable, but they look like office equipment in a cozy living room. They also leave massive light gaps in the corners because the brackets are wider than the fabric. I wanted the structured, architectural look of Roman Shades to soften the room's hard angles.

Roman blinds offer a 'finished' look even when they are fully raised. In a bay window, that fabric texture frames the view. If you get the measurements right, the three panels 'kiss' in the corners—touching just enough to block the light without actually competing for the same square inch of air.

Testing Fabric Thickness in the Corners

Not all fabrics are created equal. A thin sheer linen folds up into a tight, slim stack. A heavy velvet or a blackout-lined polyester creates a thick, bulky fold that sticks out several inches from the glass. Before you commit to your final measurements, I highly recommend getting a Weffort Fabric Sample Roman Shades kit.

I took my samples, folded them four times to mimic the raised position, and held them up in the corner of my bay window. This showed me exactly how much 'projection' I had to deal with. If your fabric stack is 3 inches deep, your side shades need to be set back far enough that they don't hit the center shade's fabric as it rises.

The Exact Math for Inside Mount Deductions

Here is the formula that saved my second attempt. For a three-panel bay, measure your center window width and subtract 1/4 inch for a standard wiggle-room deduction. For the two side windows, you need to be more aggressive. Measure from the corner to the outer edge, then subtract the depth of your headrail plus an extra 1/8 inch.

If you are using something like Silva Series Motorized Blackout Roman Shades, that blackout lining adds significant girth. I found that subtracting a total of 3/8ths of an inch from the inner side of the side panels gave me just enough clearance. This prevents the motor from hitting a resistance 'stall'—which is usually calibrated at a sensitive 35dB threshold—and stopping halfway up because it thinks it hit an obstacle.

Syncing Three Motors Without the Lag

Nothing ruins the premium feel of automated shades like 'popcorning'—when the left shade starts, then the right, then the middle. It looks cheap. I use a Zigbee hub to group my three motors into a single 'Bay Window' entity. This sends the command to all three simultaneously.

I’ve found that Bluetooth-only shades often lag because the phone has to connect to each motor individually. With a dedicated hub, I can set a 'Good Morning' scene where the shades rise to exactly 60% at 7:30 AM. They move in a perfect line, which is essential when the panels are only half an inch apart. Any deviation in speed is immediately noticeable.

Hiding the Battery Wands in Angled Frames

Bay windows usually have narrow trim, which makes hiding battery wands a nightmare. You don't want a plastic tube dangling in your 45-degree corner. I mounted mine horizontally behind the headrail using heavy-duty 3M strips. It’s tight, but it keeps the silhouette clean.

If your bay window is in a tricky spot, like a breakfast nook, you might want to automate your kitchen roman shades using a solar charging strip. I tucked a small solar panel on the very top ledge of the bay window where it’s invisible from the floor. I haven't had to plug in a charger in over fourteen months. It’s the ultimate 'set it and forget it' hack for high-up windows.

FAQ

Can I use one motor to drive all three bay window shades?

Technically possible with expensive universal joints, but I wouldn't. The 45-degree angles create too much friction and torque. You'll burn out a single motor in months. Use three separate motors and sync them via software instead.

Will roman shades block the view more than rollers?

Yes. Even when fully raised, the 'stack' of a roman shade usually covers 8 to 12 inches of the top of the window. If you have low windows and want every inch of view, roman shades might not be for you.

What happens if the power goes out?

Most motorized roman shades use internal batteries or battery wands. They'll keep working for months during a power outage. You just won't be able to trigger them via your smart speaker if your Wi-Fi router is down.
