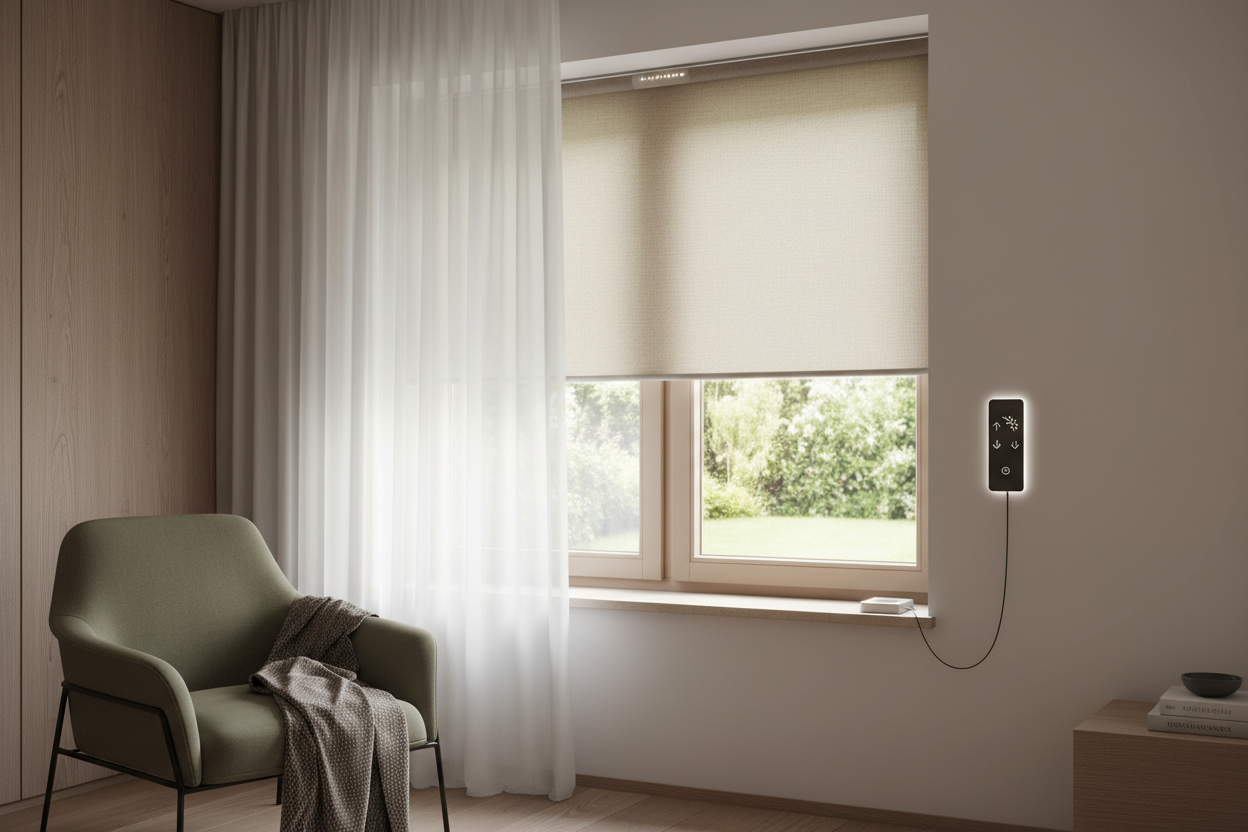

Inside Mount Shade: Achieving a Flush, Smart Window Look

There is something incredibly satisfying about waking up to natural light gradually filling your bedroom, without ever having to leave the bed. But when I first started upgrading my window treatments, I hated the bulky look of traditional outside-mounted cassettes. I wanted a clean, architectural profile. That is when I realized an inside mount shade was the only way to go if I wanted to maintain the existing lines of my window trim.

In this guide, we will break down exactly what it takes to install and live with motorized shades mounted inside the window frame. By the end, you will know exactly how to measure, which power options make sense for tight spaces, and whether your frames are actually deep enough to handle them.

Quick Pre-Install Checklist

• Minimum Depth: Most smart roller shades require at least 2 inches of depth for a standard mount, and 3 to 4 inches for a truly flush mount.
• Light Gaps: A window shade inside mount will inevitably have a 1/2-inch to 3/4-inch light gap on the sides due to the motor head and brackets.
• Power Source: Rechargeable battery wands are the easiest retrofit, but they require accessible charging ports.
• Connectivity: Ensure you choose a Thread or Zigbee-enabled motor for faster local control compared to standard Wi-Fi.

Nailing the Flush Aesthetic

Measuring for a Window Shade Inside Mount

The biggest mistake people make with inside mounts is measuring the window exactly once. North American window frames—especially in older homes—are rarely perfectly square. You need to measure the width at the top, middle, and bottom, and always order based on the narrowest measurement. If you order based on the top width and your window bows inward at the middle, the smart shade will scrape the sides or stall the motor entirely.

You also need to understand the difference between 'minimum depth' and 'flush mount depth'. Minimum depth just means the brackets can physically screw into the top of the frame. Flush mount depth means the entire cassette and fabric roll will sit perfectly flush with your wall, disappearing completely when rolled up.

Powering Your Shades Discreetly

Battery vs. Hardwired in Tight Spaces

When you mount a shade inside the frame, hiding wires becomes a major challenge. If you are not doing a gut renovation, hardwiring is usually off the table because fishing low-voltage wire through existing window headers is a nightmare. This leaves battery-powered motors as the most practical choice.

Modern smart shades use either integrated lithium-ion batteries or external battery wands. Integrated batteries look cleaner, but you have to run a long USB-C cable to the motor head every 6 to 8 months to charge it. If your window is 10 feet high, this gets annoying fast. External battery wands can be unclipped and charged at your desk, but they require an extra inch of vertical space behind the shade fascia.

Connecting to Your Smart Home

Matter, Thread, and Hubs

A smart shade is only as good as its connection. While Wi-Fi direct motors are cheaper, they drain batteries quickly and often drop off the network. I highly recommend looking for motors that support Thread or Zigbee. These create a low-power mesh network that responds instantly when you trigger a voice routine via Alexa or HomeKit.

Keep in mind that if you go the Zigbee route, you will need a dedicated bridge plugged into your router. Matter-over-Thread options are becoming more common and allow you to use an existing Apple TV or Echo device as the border router, eliminating the need for an extra proprietary hub.

Living with Inside Mount Shades: Day-to-Day Reality

I have had motorized inside mount shades in my primary bedroom and home office for over a year now, and the reality of living with them is a mix of pure convenience and minor compromises. The sunrise routine is genuinely my favorite smart home automation—the shades silently crack open 10 percent at 6:30 AM, letting in just enough light to wake me up naturally.

However, there are downsides nobody mentions. Because the motor requires a thicker bracket on the right side, the fabric cannot stretch all the way to the window frame. This creates a noticeable 'light gap' on both sides. During a bright summer morning, those light gaps act like laser beams hitting the bedroom wall. I actually had to install U-channel side tracks to block out the light bleed, which slightly ruined the ultra-clean aesthetic I was going for.

Also, the motor noise is something to consider. While it is just a faint hum during the day, in a dead-silent house at 5 AM, it sounds much louder. I ended up setting the morning routine to a slower 'quiet mode' speed, which takes twice as long to open but keeps the decibel level manageable.

Frequently Asked Questions

Do inside mount shades block all light?

No. By design, they leave a small gap (usually 1/2 to 3/4 of an inch) on either side to accommodate the brackets and motor head. If you need 100 percent blackout conditions, you will need to add light-blocking side channels to your window frame.

How long do the batteries actually last?

For a standard window (roughly 36x60 inches) opening and closing once a day, a high-quality lithium-ion battery motor will last about 6 to 8 months on a single charge. Heavier blackout fabrics will drain the battery slightly faster than lightweight sheer fabrics.

Can I pull the shade down manually if the battery dies?

Most smart shades do not support manual pulling. Tugging on the hem bar can strip the internal gears of the motor or mess up the electronic upper and lower limits. You will need to charge the battery or use the app/remote to move it.
