Inside the Tube: How Smart Roller Shades Actually Work

Imagine settling in for a movie, but the glare on your OLED TV is unbearable. Instead of getting up to tug on a chain, you simply mutter a command, and the room darkens instantly. While the result feels like magic, the engineering behind it is a precise blend of mechanics and connectivity. Understanding how does a roller shade work—specifically the transition from spring-loaded tension to motorized torque—is essential before you start drilling holes in your window frame.

Key Specs at a Glance: Smart Shade Mechanics

Before diving into the nuts and bolts, here is the technical breakdown of modern automated roller systems versus their manual counterparts.

Feature	Manual (Spring/Chain)	Smart (Motorized)
Drive Mechanism	Spring Tension or Clutch	Tubular DC Motor
Control Method	Physical Tug/Chain	RF Remote, Zigbee, Thread, WiFi
Power Source	Kinetic (Hand power)	Li-ion Battery (Rechargeable) or Hardwired (12V/24V)
Weight Capacity	Low to Medium	High (High-torque motors available)

The Core Mechanism: From Springs to Smart Motors

Whether you are dealing with a budget blackout blind or a high-end Lutron system, the fundamental physics remain similar: fabric is wound around a tube. However, the method of propulsion changes entirely when you upgrade to smart tech.

1. The Legacy Tech: How Manual Roller Shades Work

To appreciate the upgrade, you have to understand the baseline. If you are wondering how to pull down blinds work or cordless roller blind mechanism specifics, it usually involves a spring inside the roller tube. When you pull the shade down, you are tightening that spring. A ratchet mechanism locks it in place. To release it (how to retract pull down blinds), you give a quick tug to disengage the ratchet, allowing the spring to recoil and lift the fabric.

Common issues with these include tension loss—leading to users searching for how to reroll a roller blind manually to restore the spring's snap. Smart shades eliminate this physical wear and tear.

2. The Upgrade: How the Roller Blind Mechanism Works (Motorized)

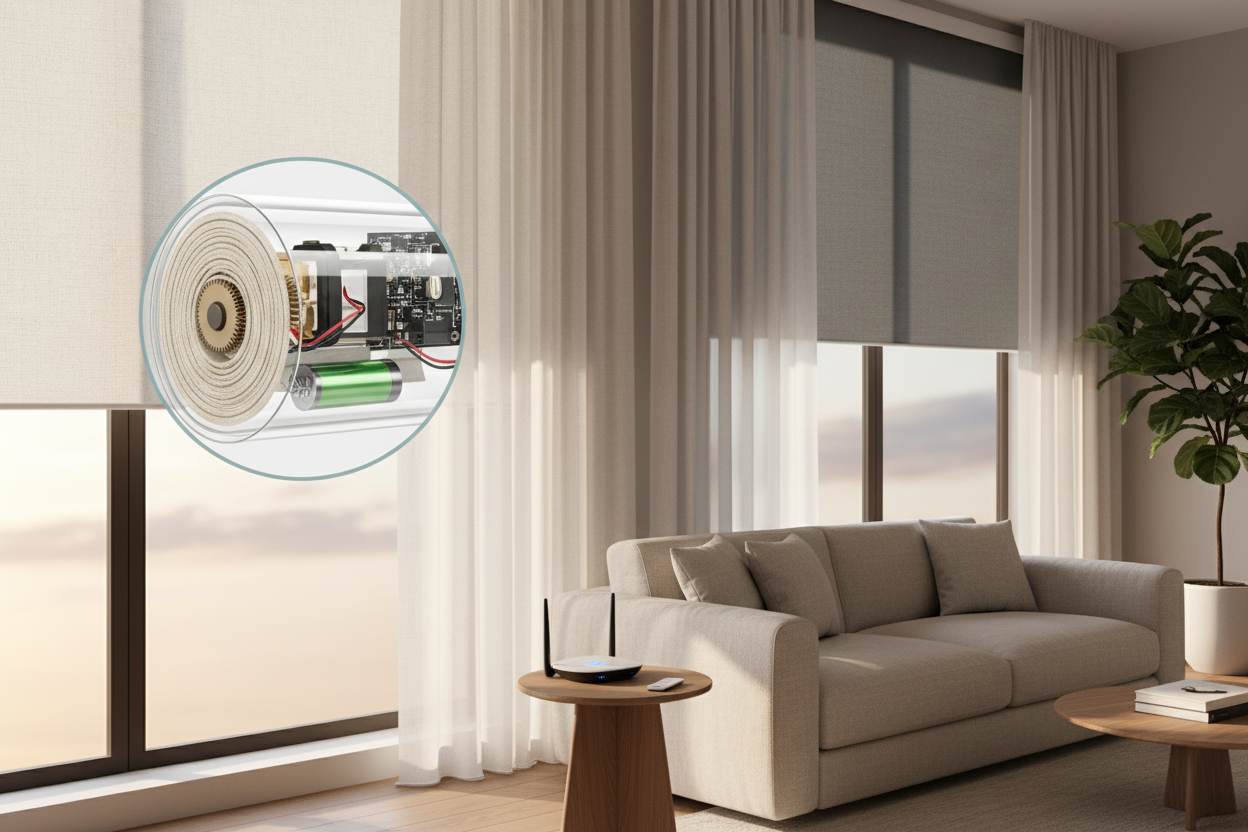

In a smart setup, the spring is replaced or augmented by a tubular motor that slides directly inside the roller tube. This is the brain and brawn of the operation.

• The Drive Wheel: The motor spins a drive wheel at the end of the tube, which grabs the tube’s interior grooves to rotate it.
• Electronic Limits: Instead of a physical stop, you program "upper" and "lower" limits via an app. This tells the motor exactly how to roll up shades to the perfect valance height without jamming.
• Torque & Speed: Smart motors are rated by torque (Nm). Heavier fabrics like velvet require higher torque (1.1Nm+) compared to sheer shades (0.5Nm).

Installation Types and Power Options

When figuring out how to work roller shades into your smart ecosystem, installation is the biggest variable.

Retrofit vs. Replacement

You can buy dedicated smart shades (like Eve MotionBlinds or Serena), or retrofit existing ones. Retrofit devices, like the SwitchBot Blind Tilt or Axis Gear, attach to the existing beaded chain to pull it for you. This answers the question of how to close roll up blinds without replacing your favorite fabric—the robot essentially mimics your hand movements.

Battery vs. Hardwired

Most DIYers opt for rechargeable battery wands hidden in the headrail. Expect to charge these every 6–12 months depending on usage. Hardwired (low voltage) is superior for new construction as it eliminates maintenance, but requires running wire through the drywall.

Smart Integrations and App Features

Once installed, the "how" shifts from mechanics to software. Through protocols like Zigbee, Z-Wave, or the newer Matter standard, the shades communicate with your hub.

• Voice Control: "Alexa, close the bedroom." The hub translates this to an RF signal the motor understands.
• Sun Tracking: Using light sensors, the shades can learn how to close pull down shades automatically when the sun hits a certain intensity to protect furniture.
• Noise Levels: This is a spec often overlooked. A cheap motor sounds like a remote-control car (50dB+). Premium motors are nearly silent (<35dB), offering a "ghost-like" movement.

Living with how does a roller shade work: Day-to-Day Reality

I’ve lived with a mix of retrofitted chain-drivers and native smart roller shades for about three years now, and there are nuances the spec sheets don't tell you. The most jarring reality is the "Whirrr" factor. In a bustling living room, you don't hear the motors. But at 6:00 AM, when my "Wake Up" routine triggers the bedroom blackout shades, even the quietest motor is audible in a dead-silent house. It’s not annoying, but it is a distinct mechanical hum that becomes your new alarm clock.

Another thing I noticed is the "Popcorn Effect." If you have three windows side-by-side and ask Google to "open the shades," they rarely move in perfect unison unless they are high-end hardwired units. Because of cloud latency and mesh network hops, one might start a half-second after the other. It’s a minor aesthetic quirk, but if you are obsessive about symmetry, you’ll find yourself tweaking the motor speed settings in the app to get them to finish the race at the same time.

Frequently Asked Questions

How do I operate smart shades during a power outage?

If you use battery-powered motors, they will still work via the remote or app (if your local network is up). If they are hardwired or your WiFi is down, you generally cannot move them manually without risking damage to the motor gearing. Some hybrid models allow for a "manual override"—check your specific model's manual on how to use pull down blinds features in emergency mode.

How do I fix a shade that won't roll up all the way?

This is usually a drift in the digital limit switch. You don't need to know how to rewind a window shade manually; instead, go into the companion app and run the "calibration" or "set limits" process to reset the top and bottom stop points.

Can I automate my existing spring-loaded shades?

Not directly. Spring-loaded mechanisms (cordless) lack the chain needed for external retrofit motors. You would need to remove the internal spring mechanism and slide in a retrofit tubular motor, effectively converting the cordless roller blind mechanism into a motorized one.
